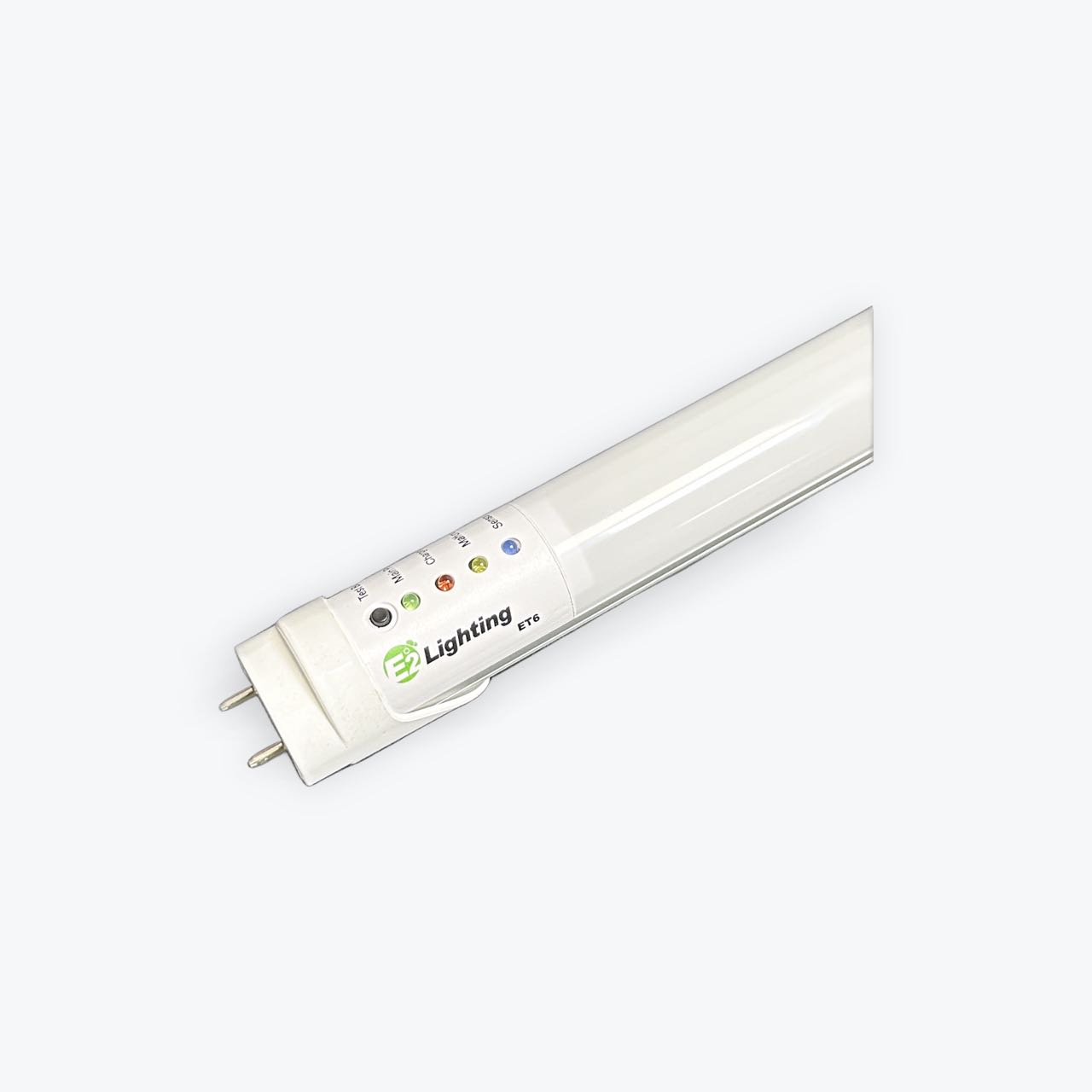

T8 Emergency Battery Backup Tube – G6 – (Always On)

T8 Emergency Battery Backup Tube – G6 – (Always On)

Models: E2-T8-ALW/ON-2FT-9W-40K-E, E2-T8-ALW/ON-2FT-9W-50K-E, E2-T8-ALW/ON-4FT-18W-35K-E, E2-T8-ALW/ON-4FT-18W-40K-E, E2-T8-ALW/ON-4FT-18W-50K-E

9W or 18W, 1,152 or 2,319 Lumens
4000K or 5000K CCT (2 ft); 3500K, 4000K or 5000K CCT (4 ft)
Built-in Emergency Battery, 90 Minutes
G13 base, Double-ended ballast bypass, Single-ended
100-277 Volt
IP44

📄 Download Spec Sheet (PDF)

Specifications

Wattage18W / 4 ft: 18W / 2 ft: 9W
Voltage100–277V
CCT3500K / 4000K / 5000K
CRI> 80
Lumens2,319 lm / 2,319 lm (at 4 ft) / 1,152 lm (at 2 ft)
Lifespan50,000 hours (at L70)
Dimensions2 ft / 4 ft
ListingsDLC / ETL / IP44
Warranty5-Year Manufacturer's Warranty
Light SourceLED
Size2 / 4 ft
Frequency50–60 Hz
Power Factor0.9
THDup to 20%
Tube WiringDouble-ended ballast bypass (default) / Single-ended
Ambient Temperature-20–65 °C (operating) / 0–45 °C (charging)
Lamp BaseG13
Weight4 ft: 0.8 lb / 2 ft: 0.6 lb
Emergency BackupIntegrated
Emergency Power3W
Emergency Runtime90 minutes

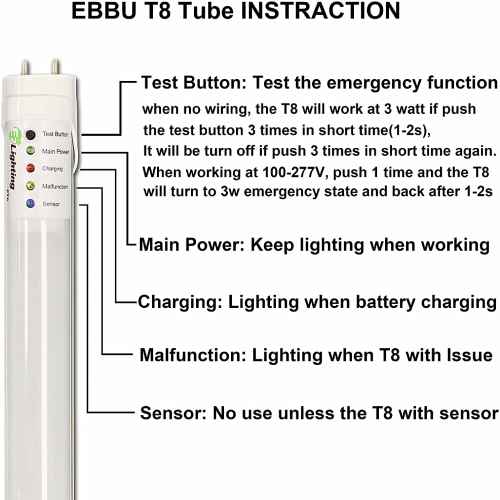

Test SwitchTest button (button, manual)
Indicator LightStatus indicator (charging) / Status indicator (main power) / Status indicator (malfunction) / Status indicator (sensor operation)
DimmableNo
Mercury FreeYes
StandardsRoHS
FamilyT8 LED tube
SeriesG6 T8 tube with emergency battery

Description

This G6 T8 LED tube has a built-in lithium emergency battery, so the lamp itself keeps lighting during a power outage for 90 minutes without a separate emergency unit. It comes in a 2-foot 9W model and a 4-foot 18W model, delivering 1,152 and 2,319 lumens. Color temperature is 4000K or 5000K on the 2-foot tube and 3500K, 4000K or 5000K on the 4-foot tube. The battery has overcharge and overdischarge protection and the 4-foot tube supplies 3W of emergency output, and a test button and status indicator make checks simple. It suits emergency lighting in industrial and commercial buildings, warehouses, hotels, schools, corridors, stairways and apartment buildings.

Both models have a CRI of 80, a power factor of 0.9 and THD up to 20%, and are not dimmable. They run on 100–277V with double-ended ballast-bypass wiring by default, with a single-ended option, and fit a G13 base. The polycarbonate lens and mercury-free build weigh 0.6 lb for the 2-foot tube and 0.8 lb for the 4-foot tube, rated IP44 and -20–65 °C.

ETL and DLC listed and RoHS compliant, with a 50,000-hour rated life and a 5-year limited warranty.

Specifications

General
FamilyT8 LED tube
SeriesG6 T8 tube with emergency battery
Light SourceLED
Size2 / 4 ft
Light
CCT3500 / 4000 / 5000K
CRI80
Lumens2,319 lm / 2,319 lm (at 4 ft) / 1,152 lm (at 2 ft)
Electrical
Frequency50–60 Hz
Power Factor0.9
THDup to 20%

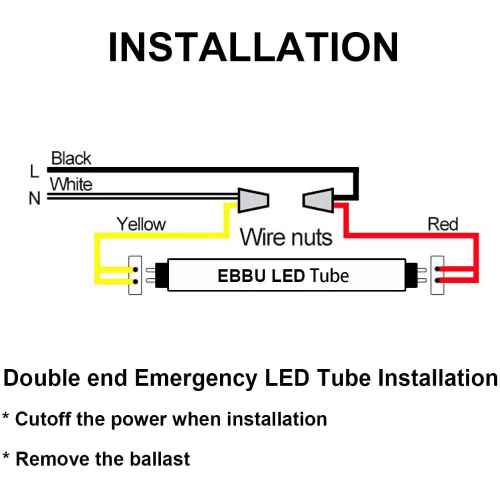

Tube WiringDouble-ended ballast bypass (default) / Single-ended
Voltage100–277V
Wattage18W / 4 ft: 18W / 2 ft: 9W
Physical
Ambient Temperature-20–65 °C (operating) / 0–45 °C (charging)
Lamp BaseG13
Weight4 ft: 0.8 lb / 2 ft: 0.6 lb
Emergency
Emergency BackupIntegrated
Emergency Power3W
Emergency Runtime90 minutes
Test SwitchTest button (button, manual)
Indicator LightStatus indicator (charging) / Status indicator (main power) / Status indicator (malfunction) / Status indicator (sensor operation)
Controls
DimmableNo
Warranty
Rated Life50,000 hours (at L70)
Warranty5 years
CertificationsETL / DLC
IP RatingIP44
Mercury FreeYes
StandardsRoHS
