2X2 LED Troffer 3CCT & Wattage Tunable
2X2 LED Troffer 3CCT & Wattage Tunable
Model: E2-TRF-2X2-20/25/30/35/40W-30/35/40/50/65K
20/25/30W Wattage Selectable, Up to 3,850 Lumens
3500K/4000K/5000K CCT Selectable
1-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 20W / 25W / 30W |
| Voltage | 120-277V |
| Dimming | 1-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 2570 lm / 3125 lm / 3850 lm |
| Lifespan | 75,000 hours |

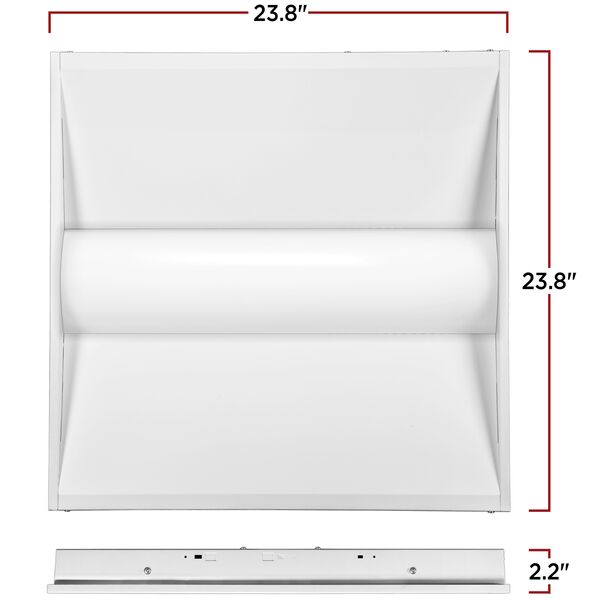

| Dimensions | 603 × 603 × 54 mm |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Efficacy | 125+ lm/W |
| Power Factor | 0.98+ |
| Mounting | Recessed (embedded) |
| Weight | 6.8 lb |
| Emergency Backup | Not included |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (pieces, carton) |
| Accessories | 2×2 ft surface-mount kit (sold separately) / Fixture whips (sold separately) / WSD-EMLY15W27-XX — 15W emergency backup battery LED driver (sold separately) |
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
Description

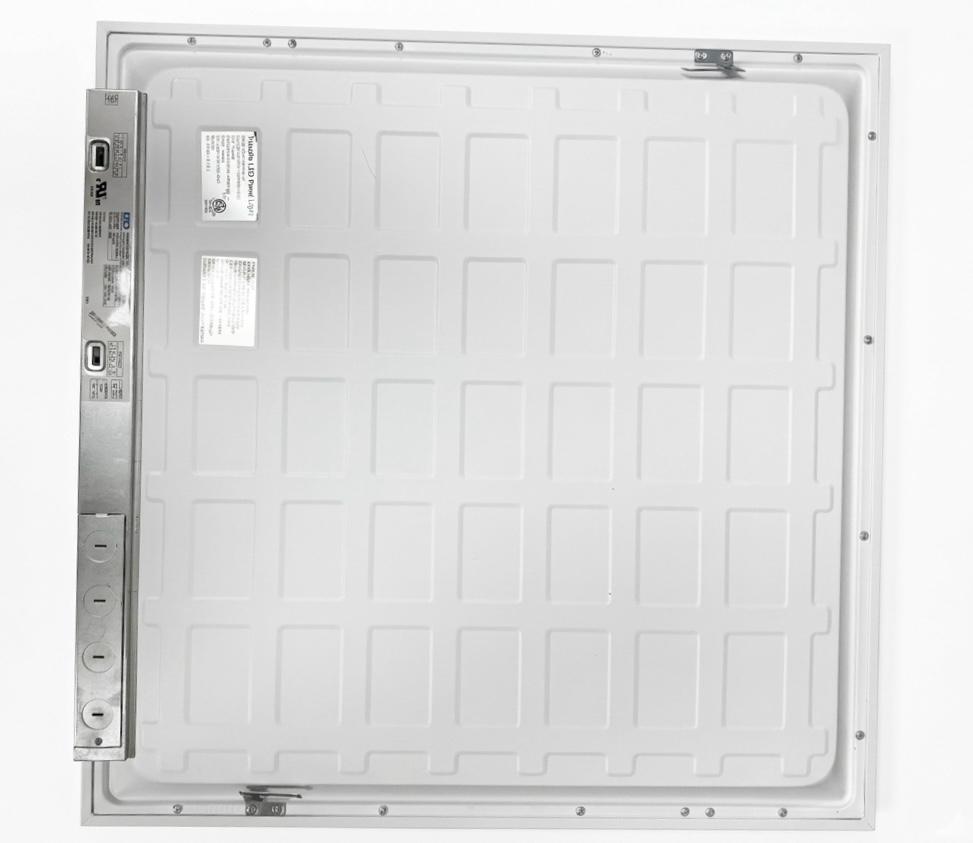

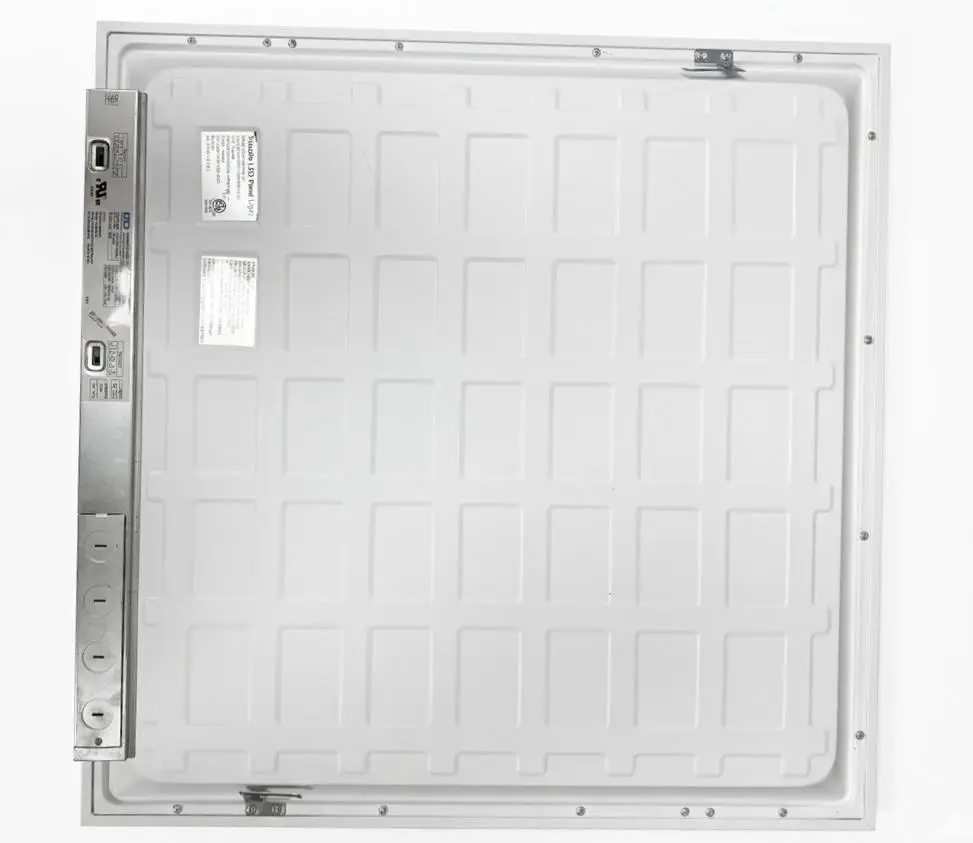

Ideal for versatile indoor applications in damp environments, this 2×2 LED troffer has rear-mounted selectors for wattage and color temperature, suiting healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. Wattage is selectable at 20, 25 or 30W, giving 2,570, 3,125 or 3,850 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+.
It dims on 1–10V controls and runs on 120–277V with a power factor of 0.98+. The fixture recesses into the ceiling, measures 603 × 603 × 54 mm and is rated for damp locations.
UL and DLC Premium listed, mercury-free and RoHS compliant, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 2,570 / 3,125 / 3,850 lm |
| Electrical | |
|---|---|
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 20 / 25 / 30W |
| Physical | |
|---|---|
| Dimensions | 603 × 603 × 54 mm |
| Mounting | Recessed (embedded) |
| Weight | 6.8 lb |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (pieces, carton) |
| Accessories | 2×2 ft surface-mount kit (sold separately) / Fixture whips (sold separately) / WSD-EMLY15W27-XX — 15W emergency backup battery LED driver (sold separately) |
