Non Cut Off Wall Pack 120W CCT Tunable
Non Cut Off Wall Pack 120W CCT Tunable
Model: E2-WPN-01-80/100/120W-35/40/50K
80/100/120W Wattage Selectable, Up to 15,600 Lumens
3500K/4000K/5000K CCT Selectable
120-277 Volt
Wet Location, IP65
Specifications
| Wattage | 80W / 100W / 120W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 70 |
| Lumens | 10400 lm / 13000 lm / 15600 lm |
| Lifespan | 50,000 hours |

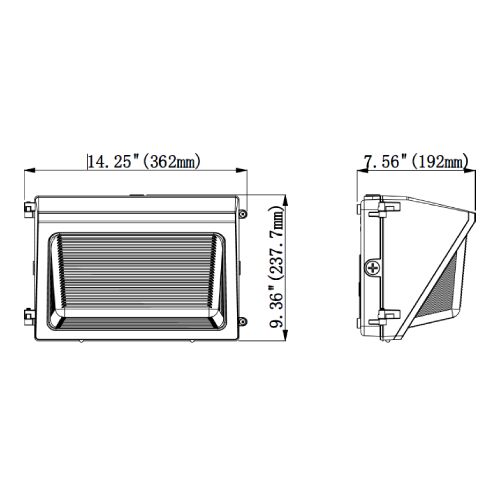

| Dimensions | 360.8 × 235.5 × 185.7 mm (14.21" × 9.27" × 7.31") |
| Listings | cETLus, DLC Premium, ETL Classified, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Cutoff | Non-cutoff |
| Efficacy | 130 lm/W (±10%) |
| THD | up to 20% |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| CCT Selectable | Yes, switchable (internal tuning switch) |
| Wattage Selectable | Yes (internal tuning switch) |
| Location Rating | Outdoor / Wet location |
| Family | Wall pack and wall luminaire |
| Series | E2-WPN-01 non cut-off wall pack |
Description
This non-cutoff LED wall pack lets you choose 80W, 100W or 120W of output and 3500K, 4000K or 5000K color temperature with an internal tuning switch, to set the right light for your outdoor space. It provides 10,400, 13,000 or 15,600 lumens at 130 lm/W, bright, uniform light for large areas, with a CRI of 70+.
It dims with 0–10V controls and runs on 120–277V. A die-cast aluminum housing and UV-resistant polycarbonate refractor are wet-location and IP65 rated, with a 50,000+ hour rated life. Suited to parking lots, walkways and driveways, and to security, perimeter and site lighting.
DLC Premium and cETLus listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | E2-WPN-01 non cut-off wall pack |
| Light Source | LED |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 70+ |
| Cutoff | Non-cutoff |
| Efficacy | 130 lm/W (±10%) |
| Lumens | 10,400 / 13,000 / 15,600 lm |
| Electrical | |
|---|---|
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 80 / 100 / 120W |
| Physical | |
|---|---|
| Dimensions | 14.21 × 9.27 × 7.31 in |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (internal tuning switch) |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes (internal tuning switch) |
| Warranty | |
|---|---|
| Rated Life | 50,000+ hours |
| Warranty | 5 years |
| Certifications | cETL / ETL / cETLus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Outdoor / Wet location |
