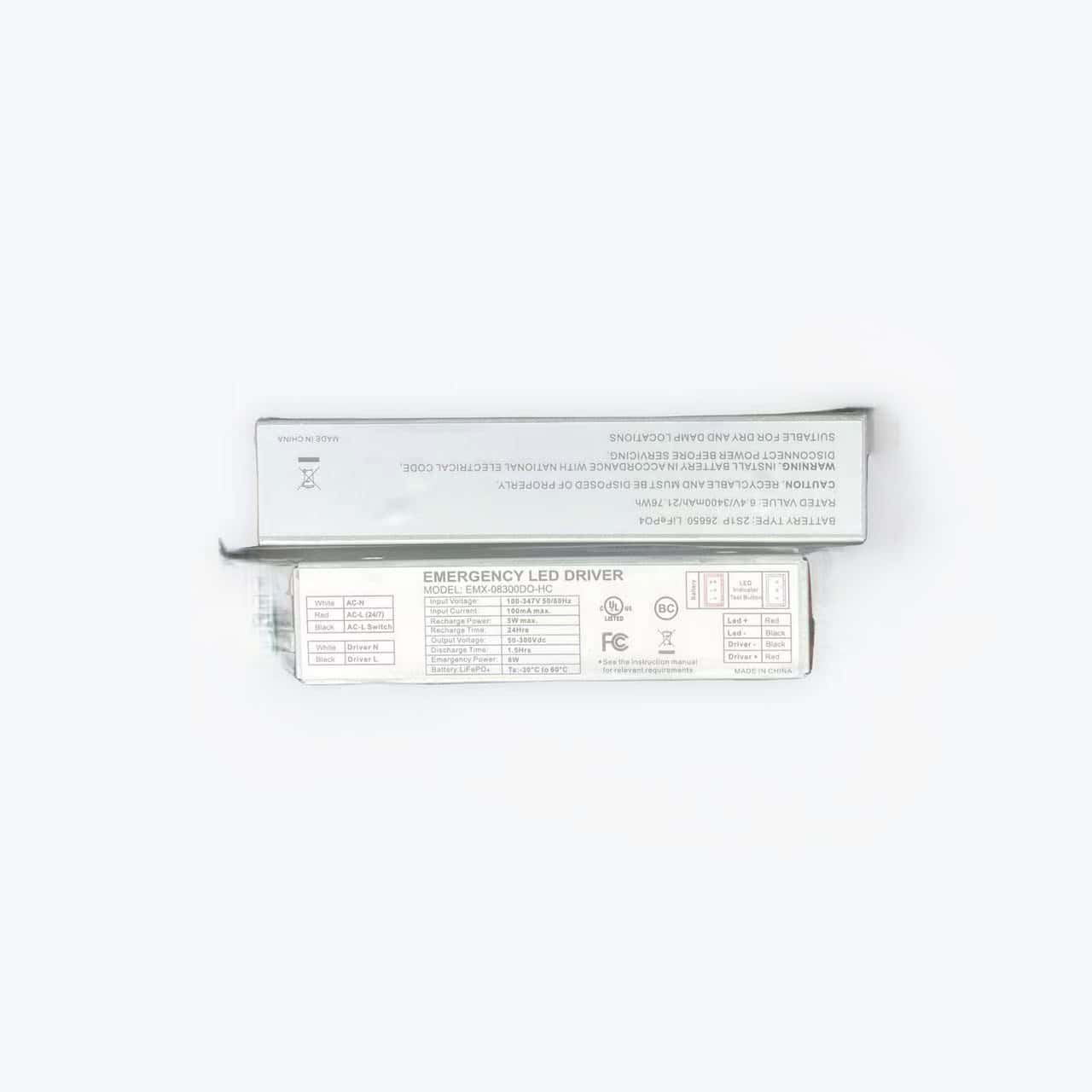

Cold Temperature LED Emergency Battery 8W( -22 F to 140F)

Cold Temperature LED Emergency Battery 8W( -22 F to 140F)

Model: EMX-08300DO-HC

8W Emergency Output, 90+ Minutes
100-347 Volt
Output 50-300V
Recharges in 24 Hours
Ordinary Location

📄 Download Spec Sheet (PDF)

Specifications

Wattage5W
Emergency Power8W
Input Voltage100-347V
Output Voltage10-58V, 50-300V
Ambient Temperature-30°C(-22°F) - 60°C(140°F)
Recharge Time24 hours
ListingsUL
Currentup to 100mA (maximum)
Warranty5-Year Manufacturer's Warranty
Frequency50 / 60 Hz
Weightup to 0.88 lb
MaintenanceMaintenance-free (battery)
Battery ServiceabilityNo
Emergency Runtime90+ minutes
Indicator LightMalfunction indication / Status indicator
Test SwitchSelf-test (automatic) / Test button (manual)
Location RatingIndoor / Ordinary Location
ProtectionSurge protection
StandardsUL 924 / CSA C22.2 No. 141 / California Title 20 / FCC / RoHS
FamilyEmergency LED driver and battery
SeriesLow Temperature Emergency LED Driver (EMX)

Description

A low-temperature emergency LED driver rated for -30 to 60 °C ambient, keeping LED lighting on through a power outage in cold spaces. It operates on 100–347V input and provides 8W of constant power for 90+ minutes, connecting to the LED driver's DC output at 50–300V.

It installs permanently in listed emergency luminaires in indoor locations, and its sealed, maintenance-free battery recharges in 24 hours. Monthly self-testing, an indicator light with malfunction indication, a test button and surge protection support routine checks. It is ideal for commercial buildings, schools, hospitals, factories and data centers and high-end residential houses.

UL listed to UL 924, tested to CSA C22.2 No. 141 and compliant with California Title 20, with FCC and RoHS compliance and a 5-year warranty.

Specifications

General
FamilyEmergency LED driver and battery
SeriesLow Temperature Emergency LED Driver (EMX)
Electrical
Currentup to 100 mA (maximum)
Frequency50 / 60 Hz
Output Voltage50–300V
Voltage100–347V
Wattage5W
Physical
Ambient Temperature-22–140 °F / -30–60 °C (ambient)
Weightup to 0.88 lb
MaintenanceMaintenance-free (battery)
Emergency
Battery ServiceabilityNo
Charge Time24 hours
Emergency Power8W
Emergency Runtime90+ minutes
Indicator LightMalfunction indication / Status indicator
Test SwitchSelf-test (automatic) / Test button (manual)
Warranty
Warranty5 years
CertificationsUL
Location RatingIndoor / Ordinary Location
ProtectionSurge protection
StandardsUL 924 / CSA C22.2 No. 141 / California Title 20 / FCC / RoHS
