LED Emergency Single RED Exit Sign Combo Light -90 Min Battery Backup
LED Emergency Single RED Exit Sign Combo Light -90 Min Battery Backup
Model: E2-EX-SETC22
4/5.2W Wattage Selectable
Built-in Emergency Battery, 90 Minutes
120 / 277 Volt
Damp Location
Specifications
| Wattage | 4W (at 120V) / 5.2W (at 277V) |
| Voltage | 120-277V |
| Height | 7.125 in |
| Mounting | Ceiling / Wall (back) |
| Dimensions | 18" × 7.13" × 1.75" |
| Maintenance | Maintenance-free (emergency battery) |
| Listings | UL / cUL |
| Emergency Backup | Integrated |
| Warranty | 5-Year Manufacturer's Warranty |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED power-on indicator (power on) |
| Legend Illumination | Indirect placement for diffused output |
| Test Switch | Self-diagnostic test button (manual, button) |
| Dimmable | No |
| Location Rating | Damp location |
| Standards | UL 924 |
| Family | Exit sign |
| Series | E2 SETC22 exit sign combo |
Description

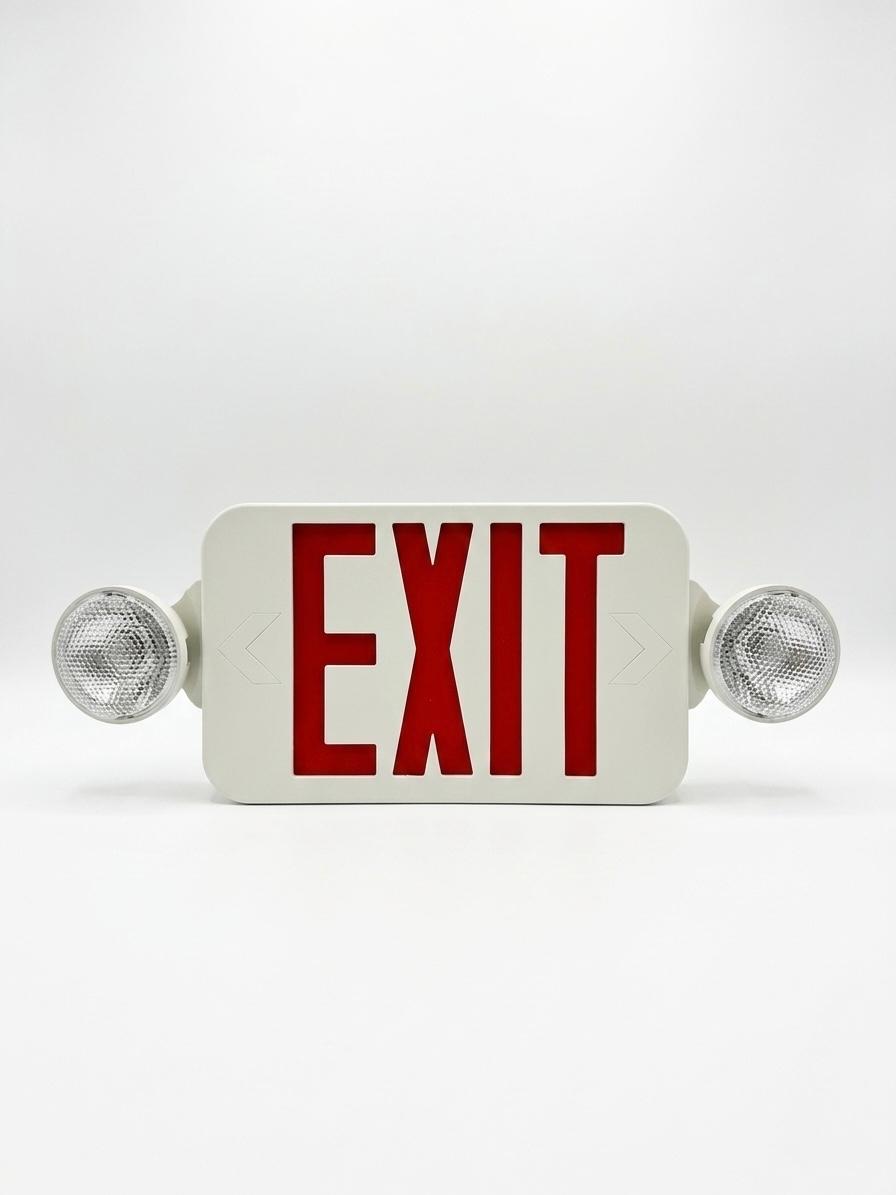

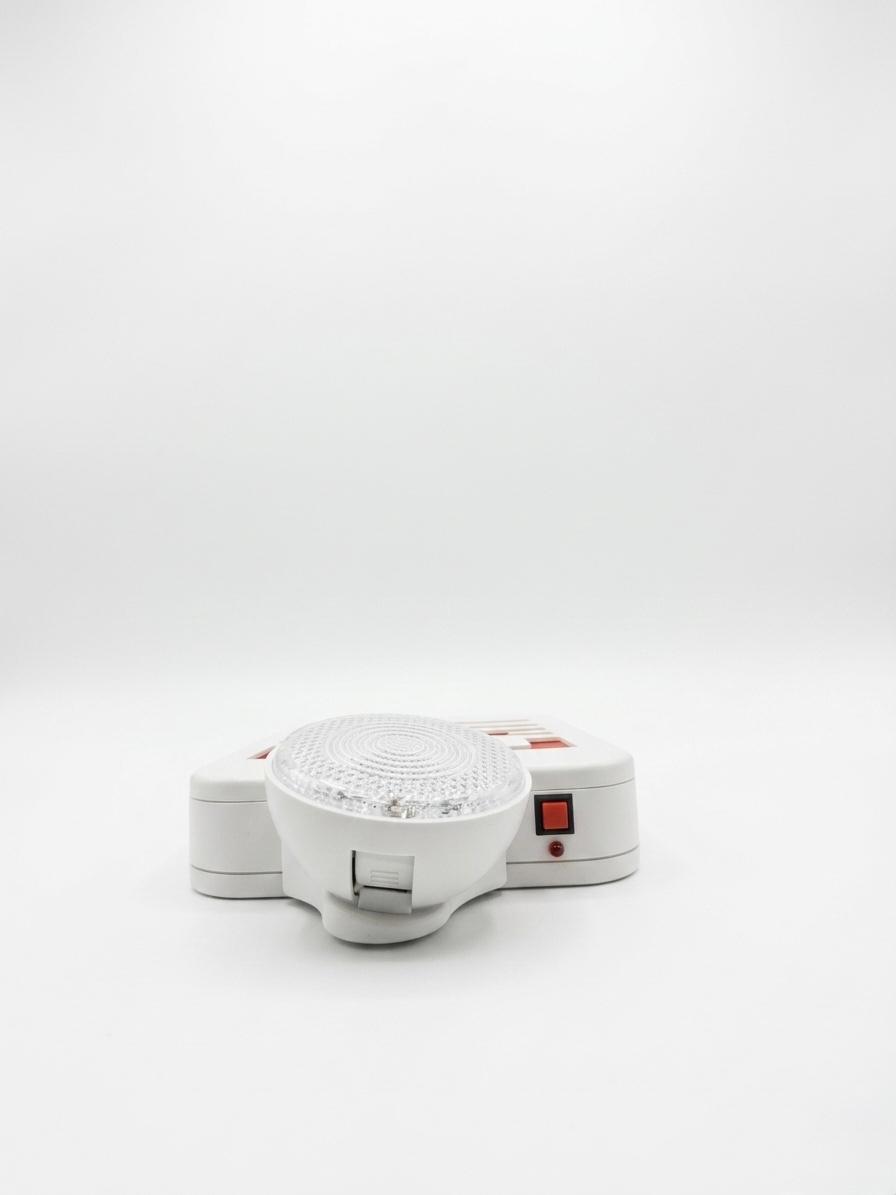

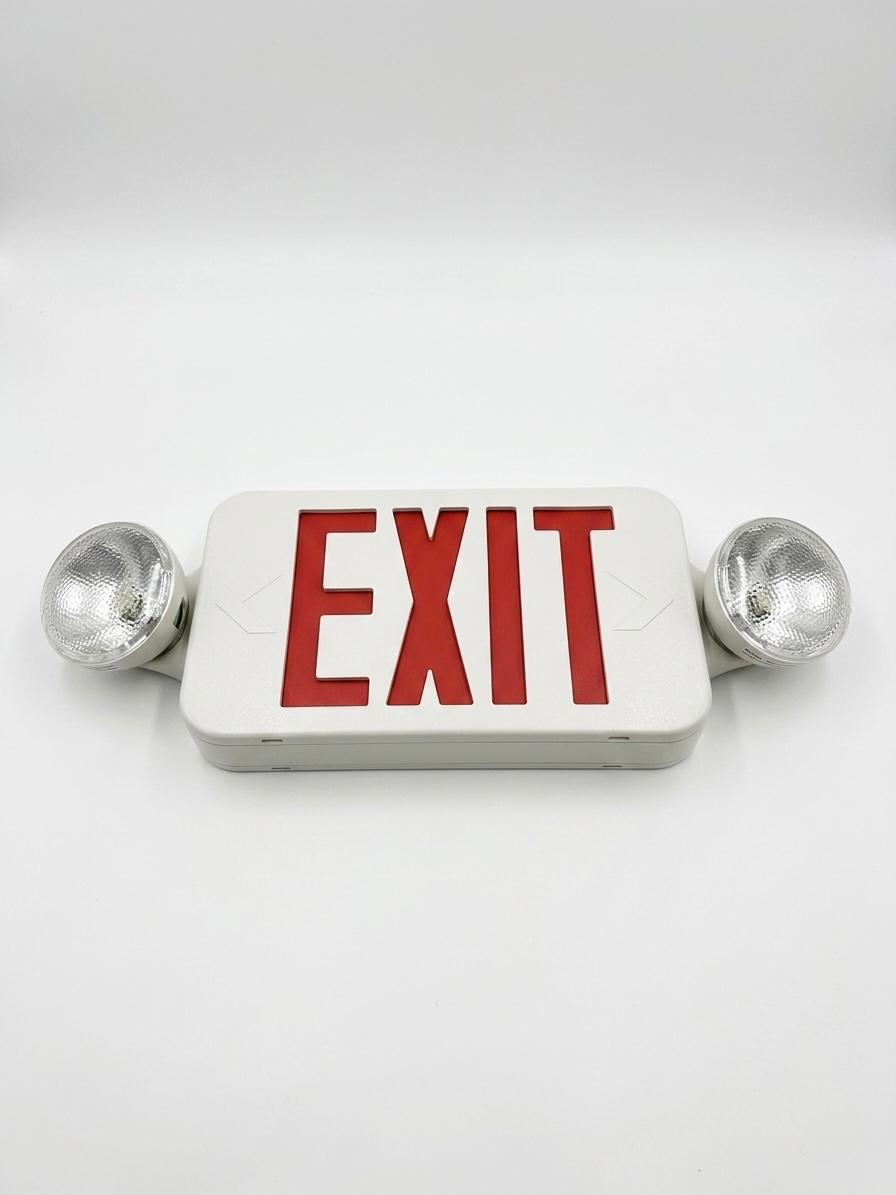

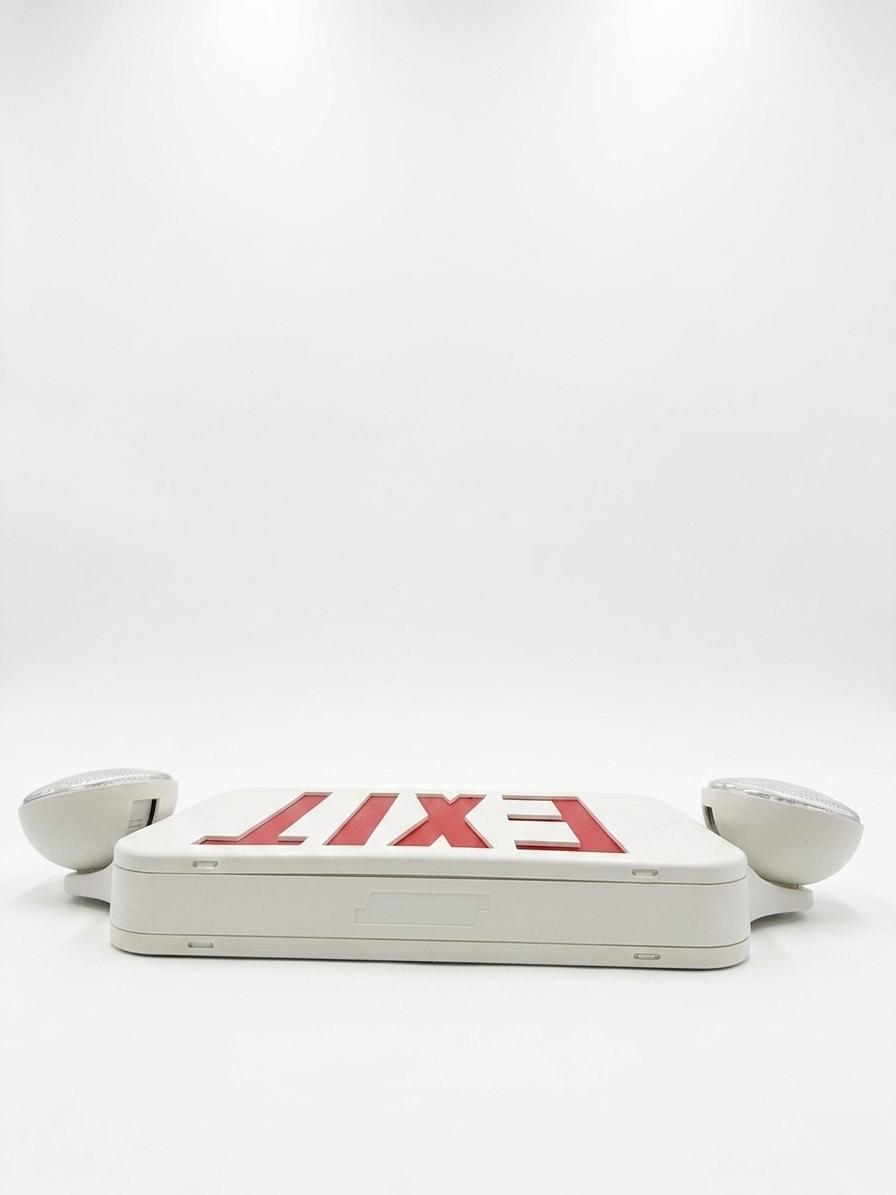

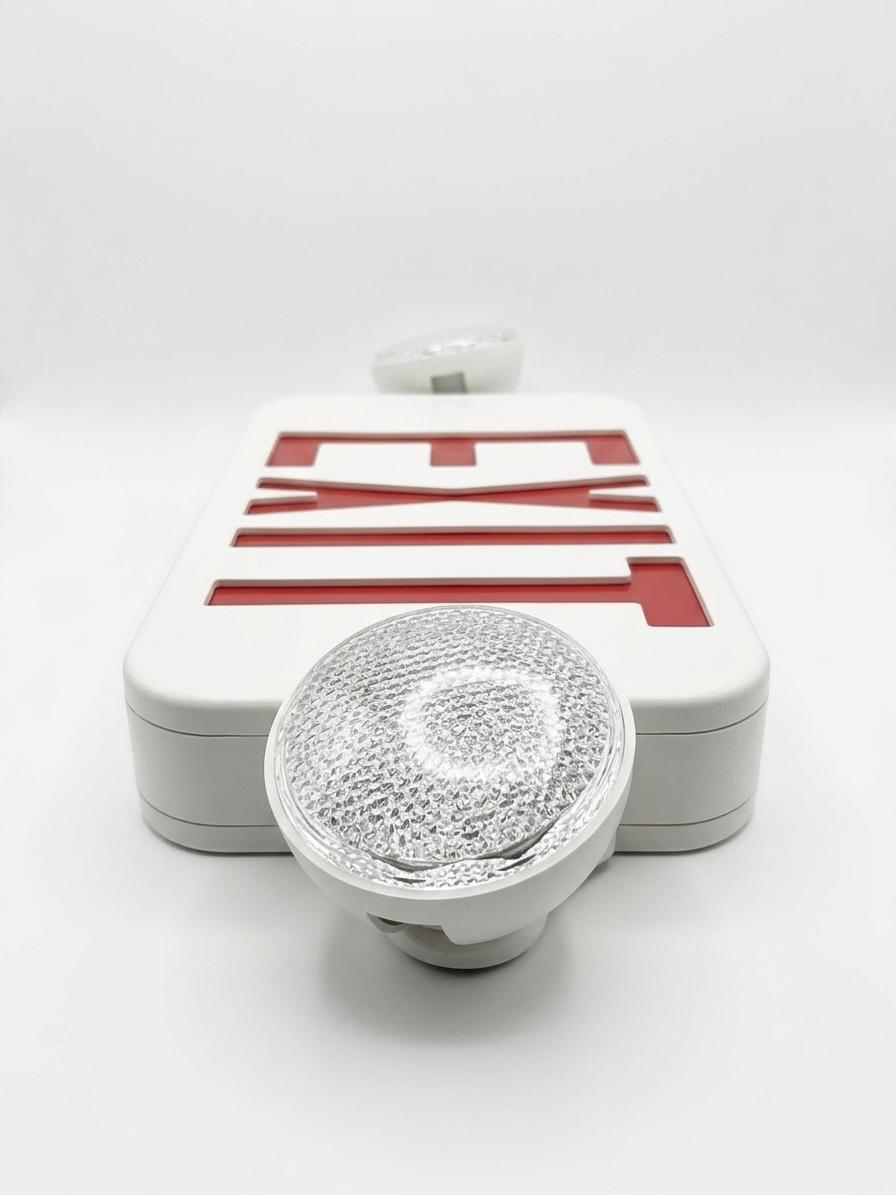

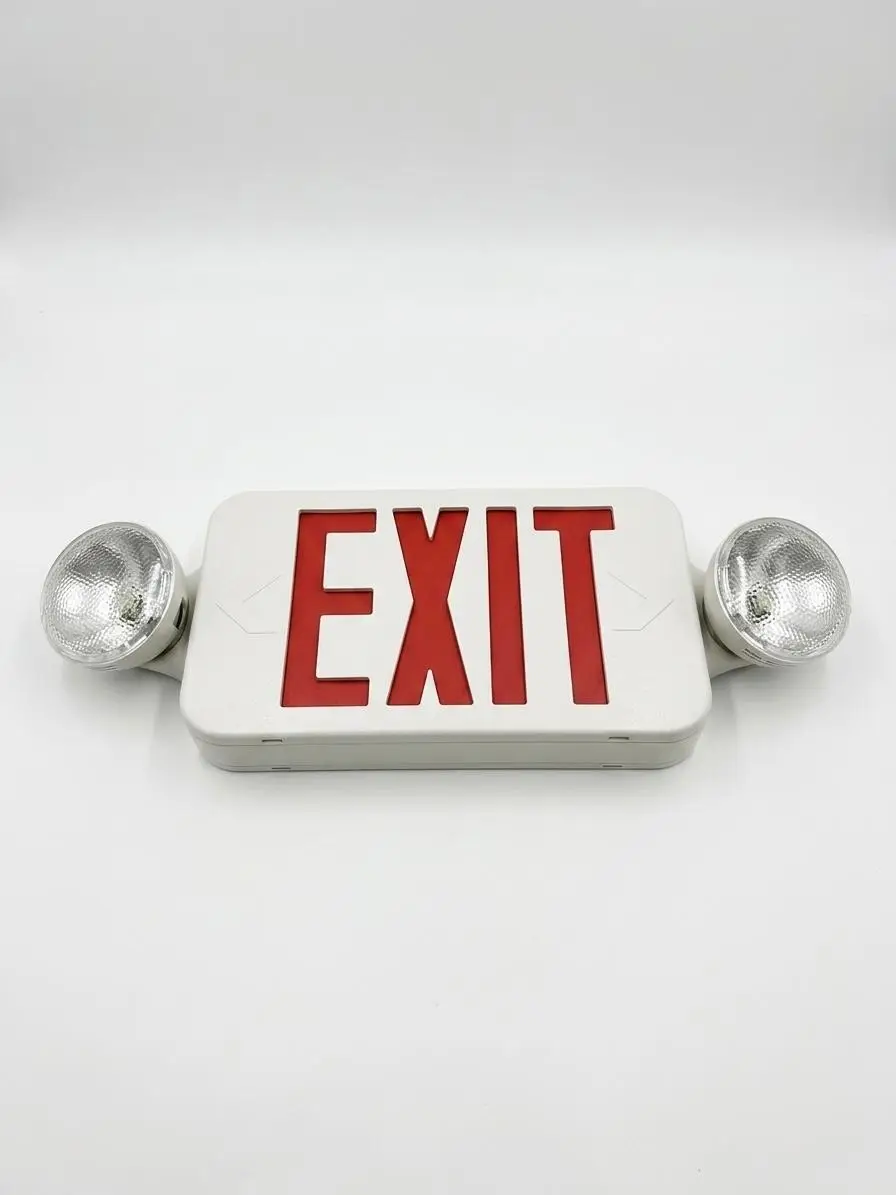

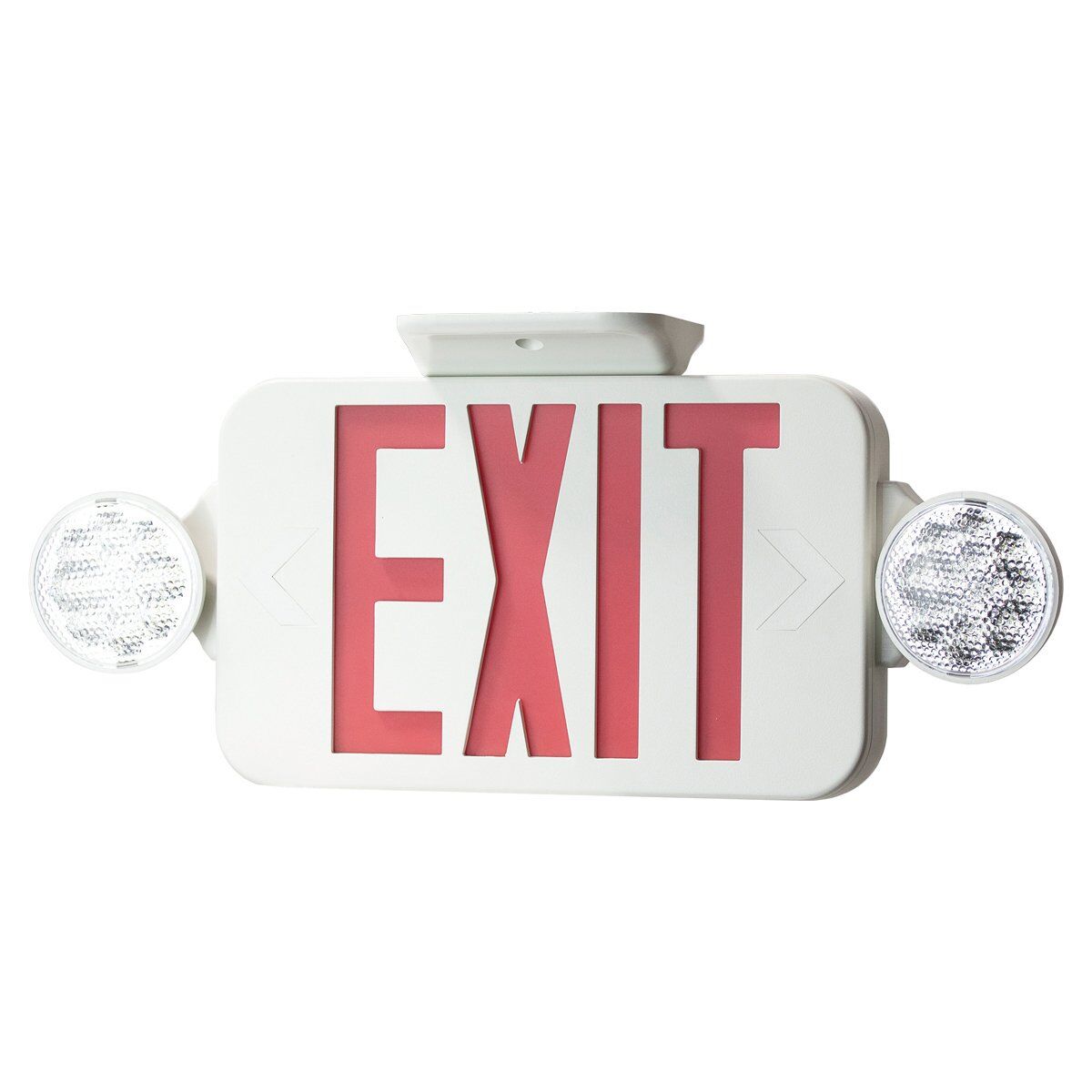

A red LED exit sign and aimable emergency light heads combined in one unit, giving exit identification and emergency illumination during a power outage. The integrated, maintenance-free battery runs it for 90 minutes, and a self-diagnostic test button and LED power-on indicator support routine checks.
It operates on 120 or 277V, drawing 4 or 5.2W, and mounts to a wall or ceiling. Rated for damp locations, the sign is 7.125 in high and 1.75 in deep and is not dimmable.
UL and cUL listed to UL 924, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Exit sign |
| Series | E2 SETC22 exit sign combo |
| Electrical | |
|---|---|
| Voltage | 120 / 277V |
| Wattage | 4W (at 120V) / 5.2W (at 277V) |
| Physical | |
|---|---|
| Dimensions | 1.75 in (depth) |
| Height | 7.125 in |
| Mounting | Ceiling / Wall (back) |
| Maintenance | Maintenance-free (emergency battery) |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED power-on indicator (power on) |
| Legend Illumination | Indirect placement for diffused output |
| Test Switch | Self-diagnostic test button (manual, button) |
| Controls | |
|---|---|
| Dimmable | No |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cUL / UL |
| Location Rating | Damp location |
| Standards | UL 924 |
