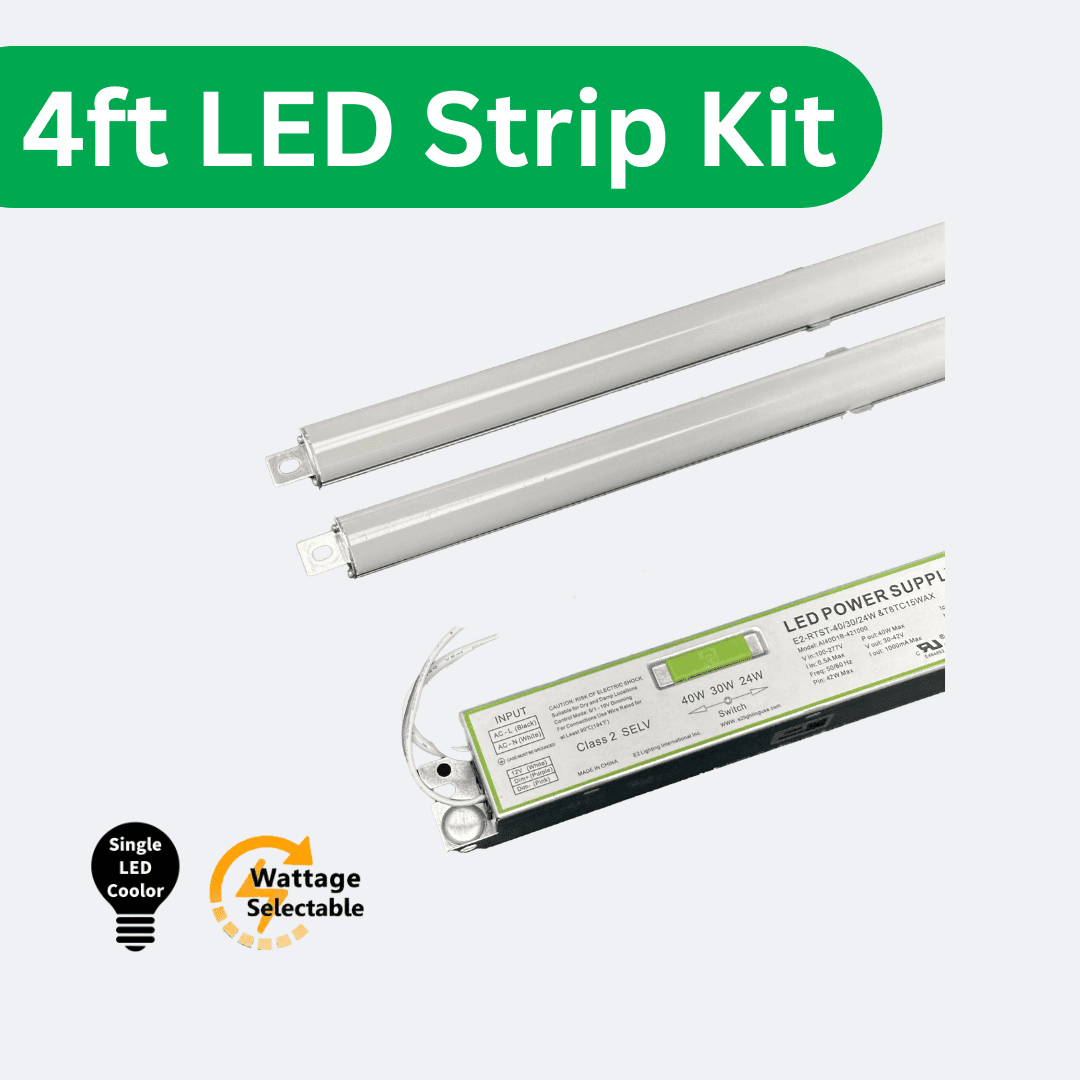

4FT Magnetic LED Strip Retrofit Kit CCT Tunable 3000k to 6500K
4FT Magnetic LED Strip Retrofit Kit CCT Tunable 3000k to 6500K
Models: E2-RTST2230D-CCT, E2-RTST240D-CCT, E2-RTST240D-CCT-E

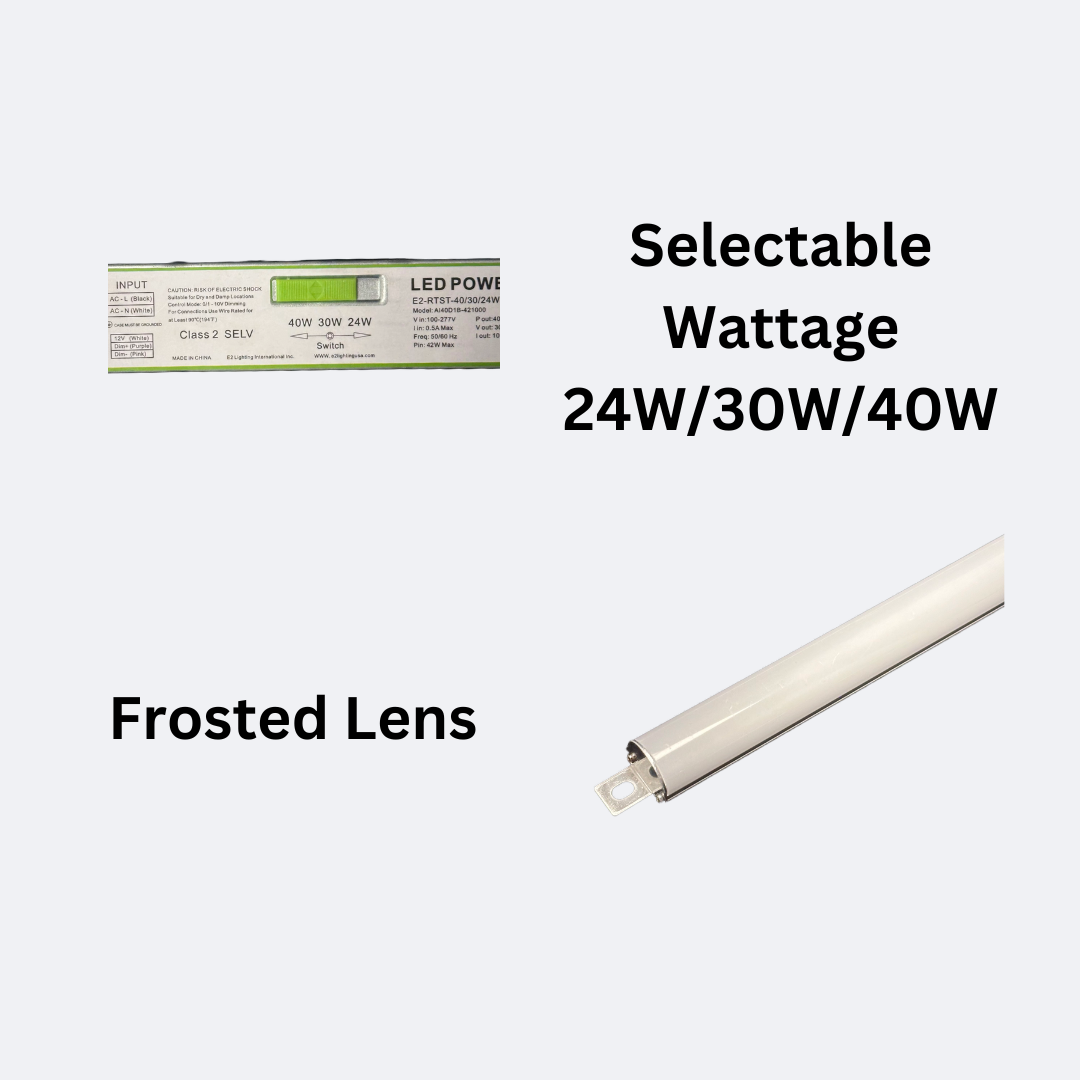

24/30/40W Wattage Selectable, Up to 10,560 Lumens
3000K/3500K/4000K/5000K/6500K CCT Selectable
0-10V Dimmable
120-277 Volt
IP20
Specifications
| Wattage | 24W / 30W / 40W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | > 80 |
| Lumens | 3120 - 10560 lm |
| Lifespan | 50,000 hours (at L70) |

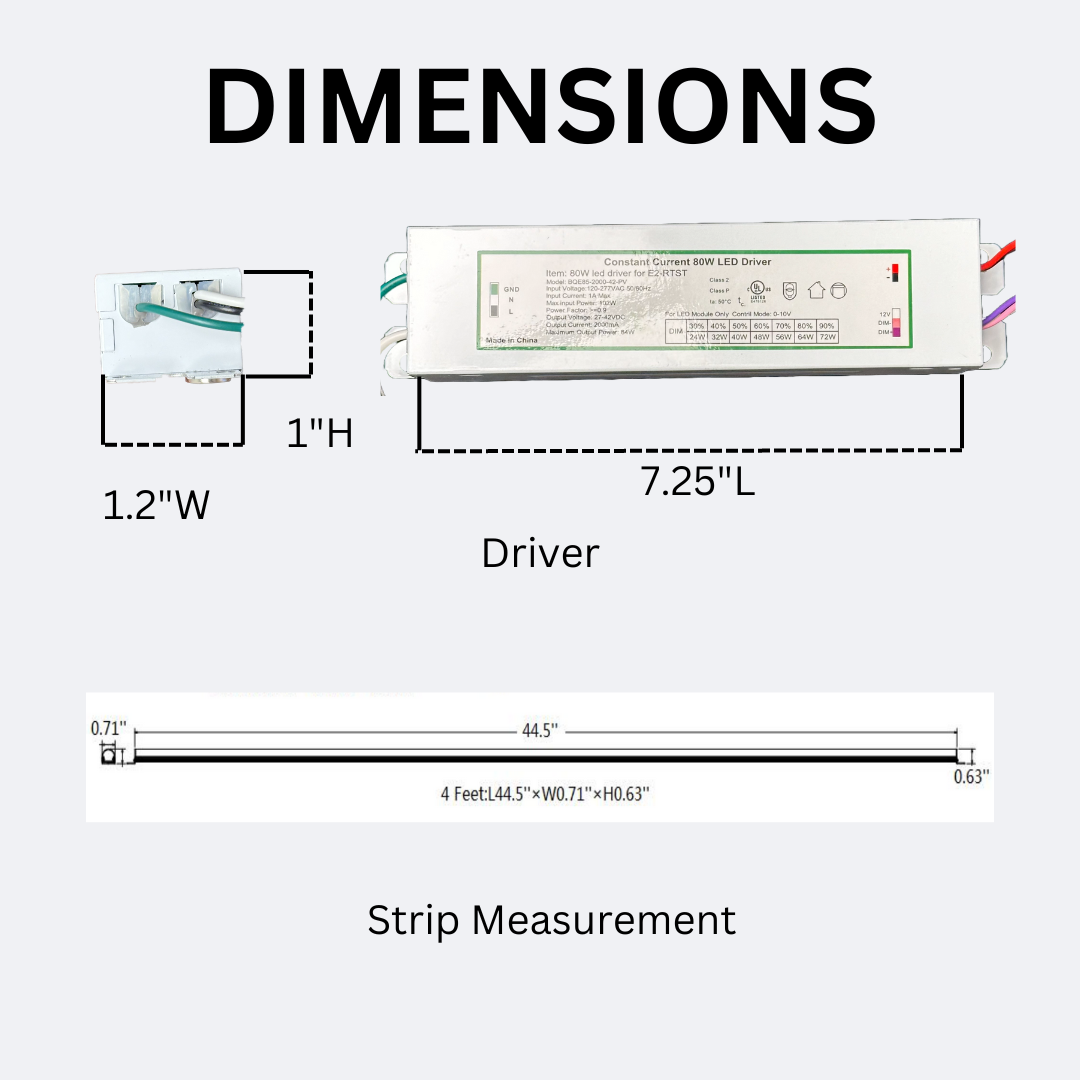

| Dimensions | 4FT strip: 44.5 × 0.71 × 0.63 in |
| Listings | DLC Premium / ETL / IP20 |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| THD | up to 15% |
| Ambient Temperature | -4–113 °F (working) |

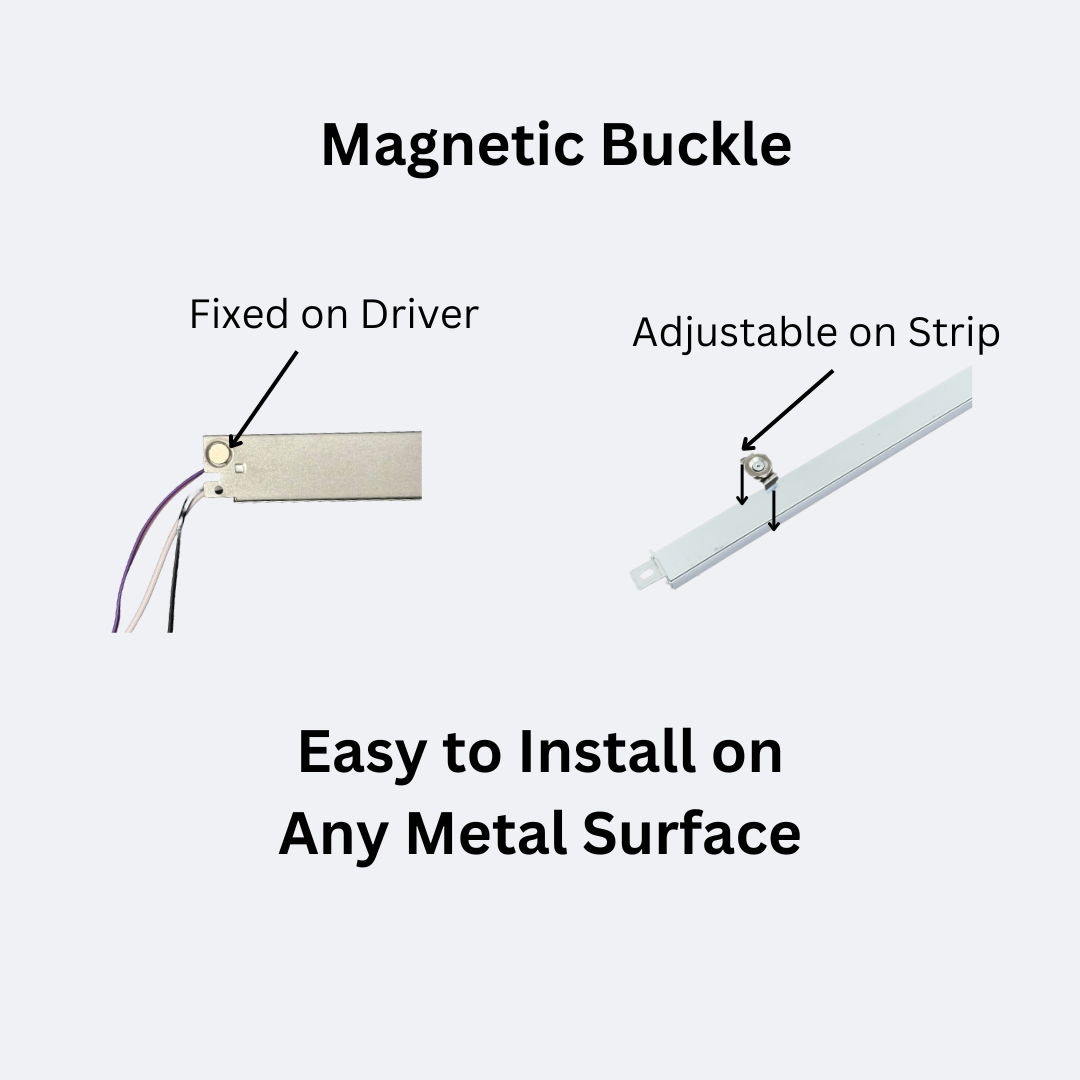

| Mounting | Magnetic (driver and strip) |

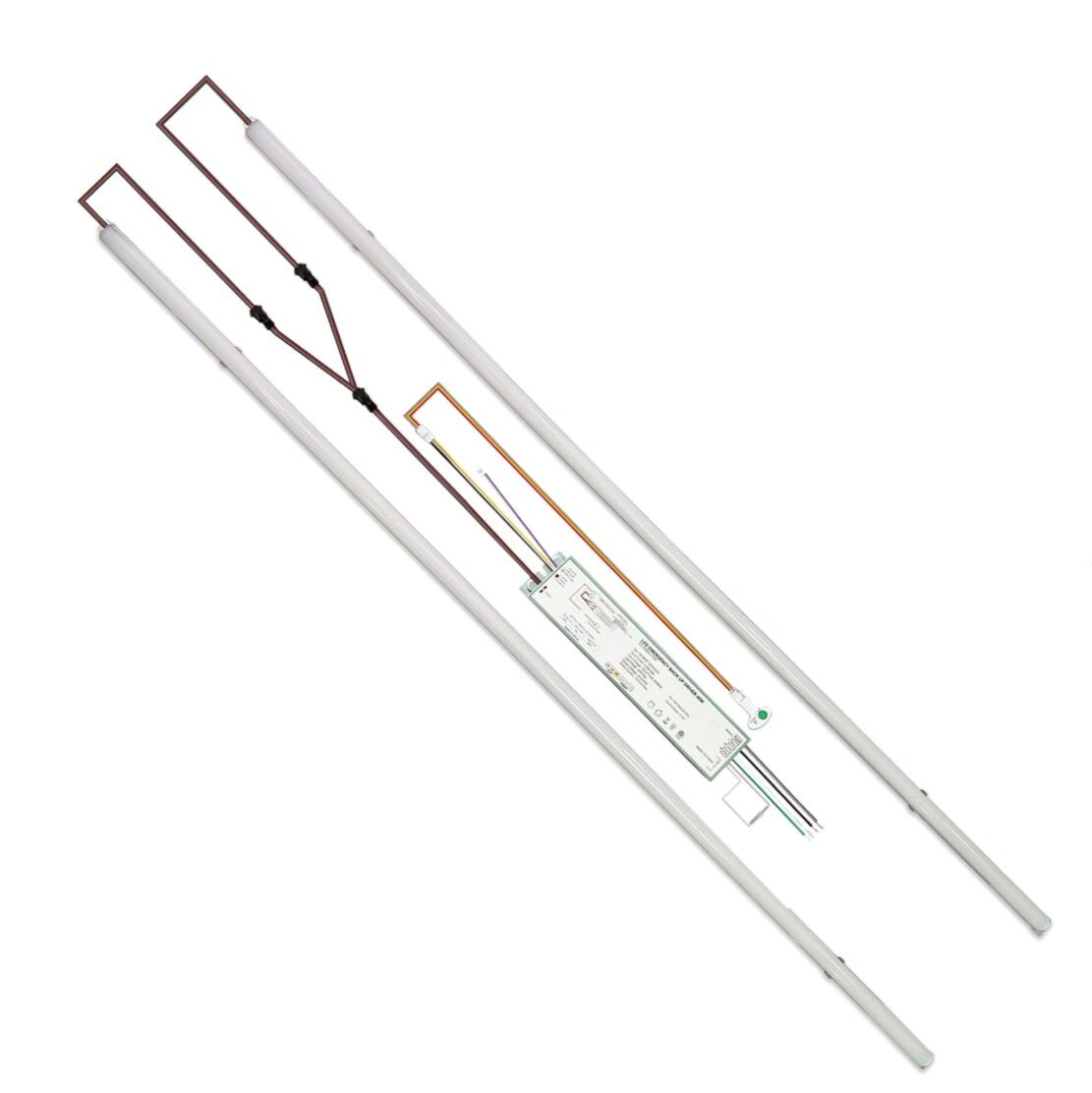

| Emergency Backup | Optional (family) |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Optional (PIR or microwave) |
| Wattage Selectable | Yes |
| Mercury Free | Yes |
| Standards | RoHS |
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
Description
This magnetic LED retrofit kit upgrades existing fluorescent troffers, strip fixtures and other linear fixtures with 4-foot LED strips and a driver, with magnetic mounting for a quick setup and quick connectors for wiring. Wattage is selectable at 24, 30 or 40W and color temperature at 3000K, 3500K, 4000K, 5000K or 6500K, with output from 3,120 to 10,560 lumens across the kit options.
It dims with 0–10V controls and runs on 120–277V at 50–60 Hz, with CRI 80+. PIR or microwave sensors and emergency backup are available as options. The mercury-free strips are rated IP20 for indoor use from -4°F to 113°F.
ETL and DLC Premium listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
| Size | 4 ft |
| Light | |
|---|---|
| CCT | 3000 / 3500 / 4000 / 5000 / 6500K |
| CRI | 80+ |
| Lumens | 3,120–10,560 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| THD | up to 15% |
| Voltage | 120–277V |
| Wattage | 24 / 30 / 40W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) |

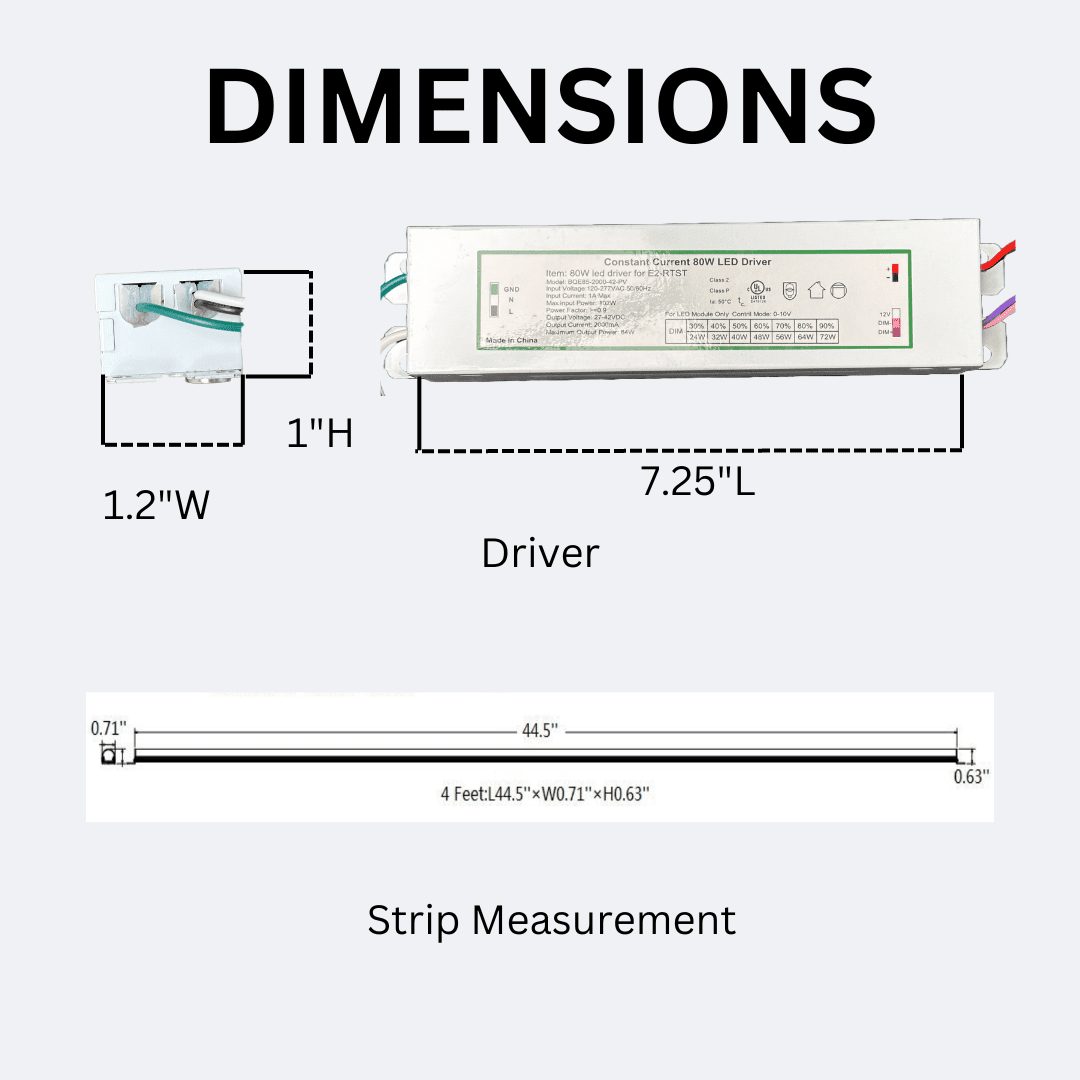

| Dimensions | 4FT strip: 44.5 × 0.71 × 0.63 in |
| Mounting | Magnetic (driver and strip) |
| Emergency | |
|---|---|
| Emergency Backup | Optional (family) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Optional (PIR or microwave) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium |
| IP Rating | IP20 |
| Mercury Free | Yes |
| Standards | RoHS |
