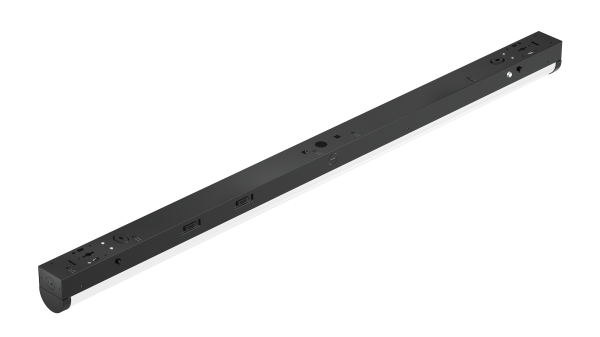

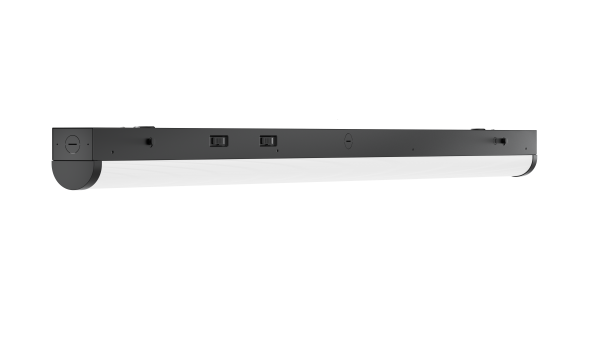

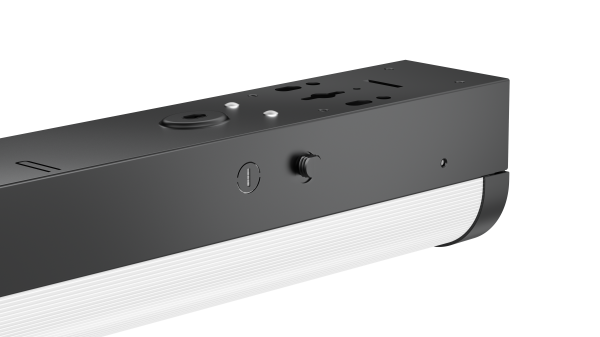

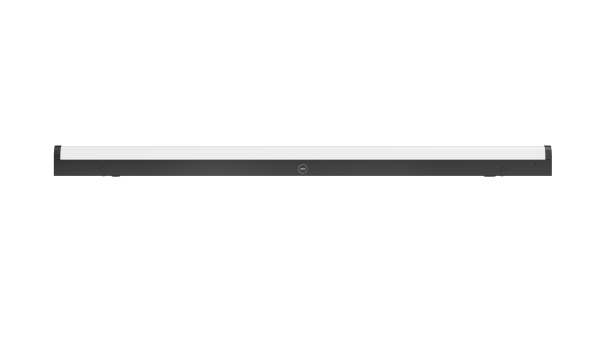

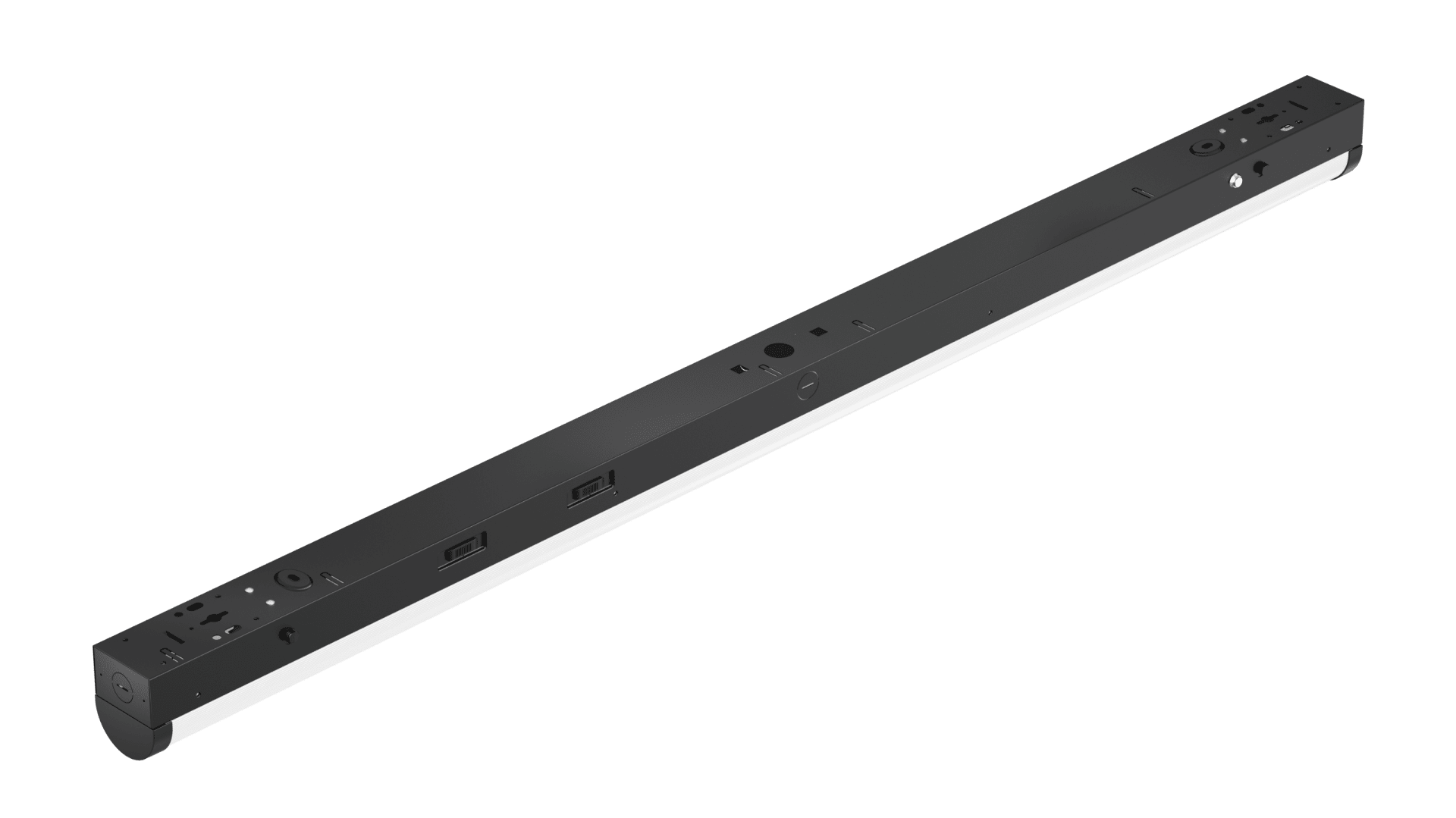

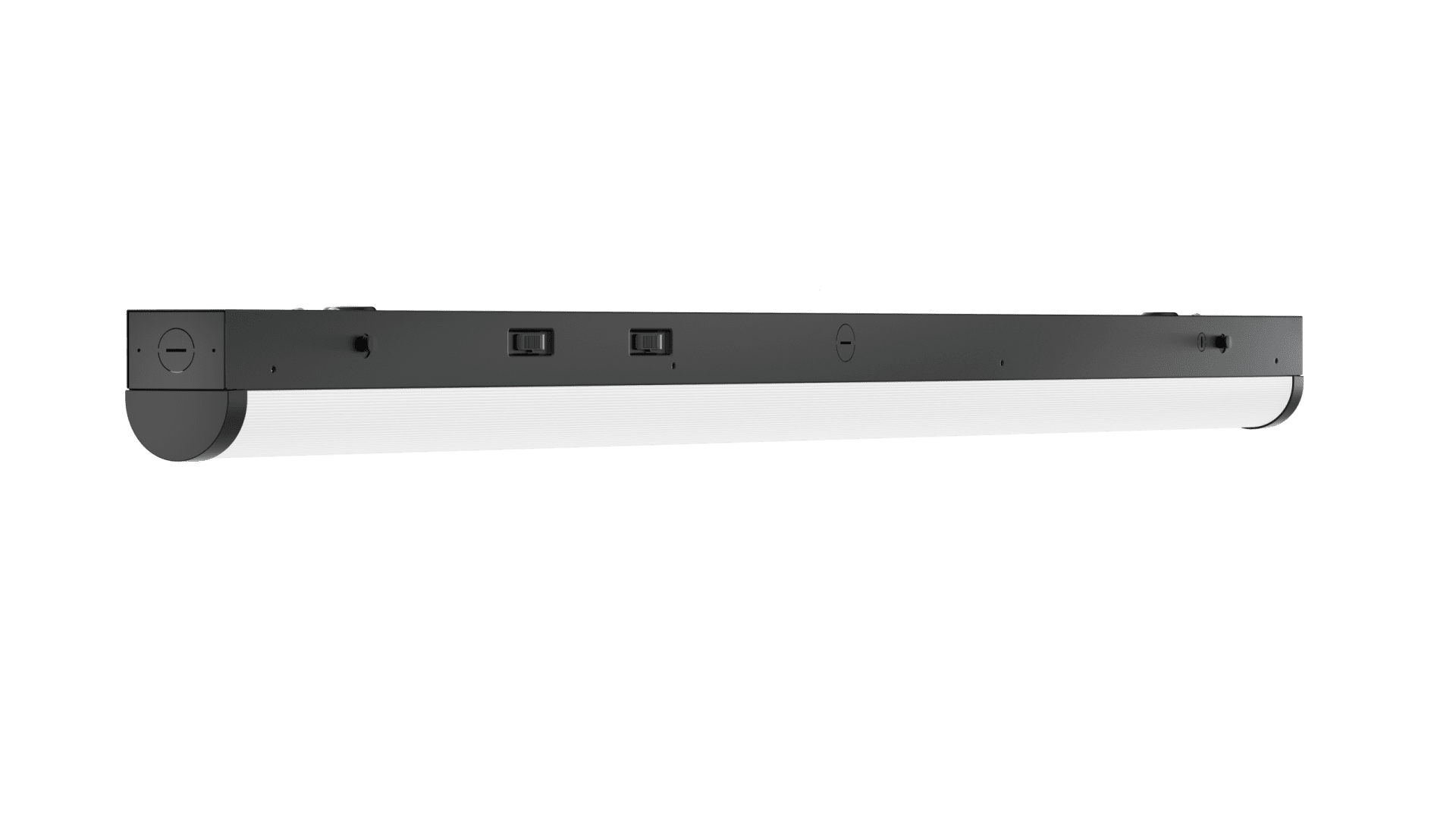

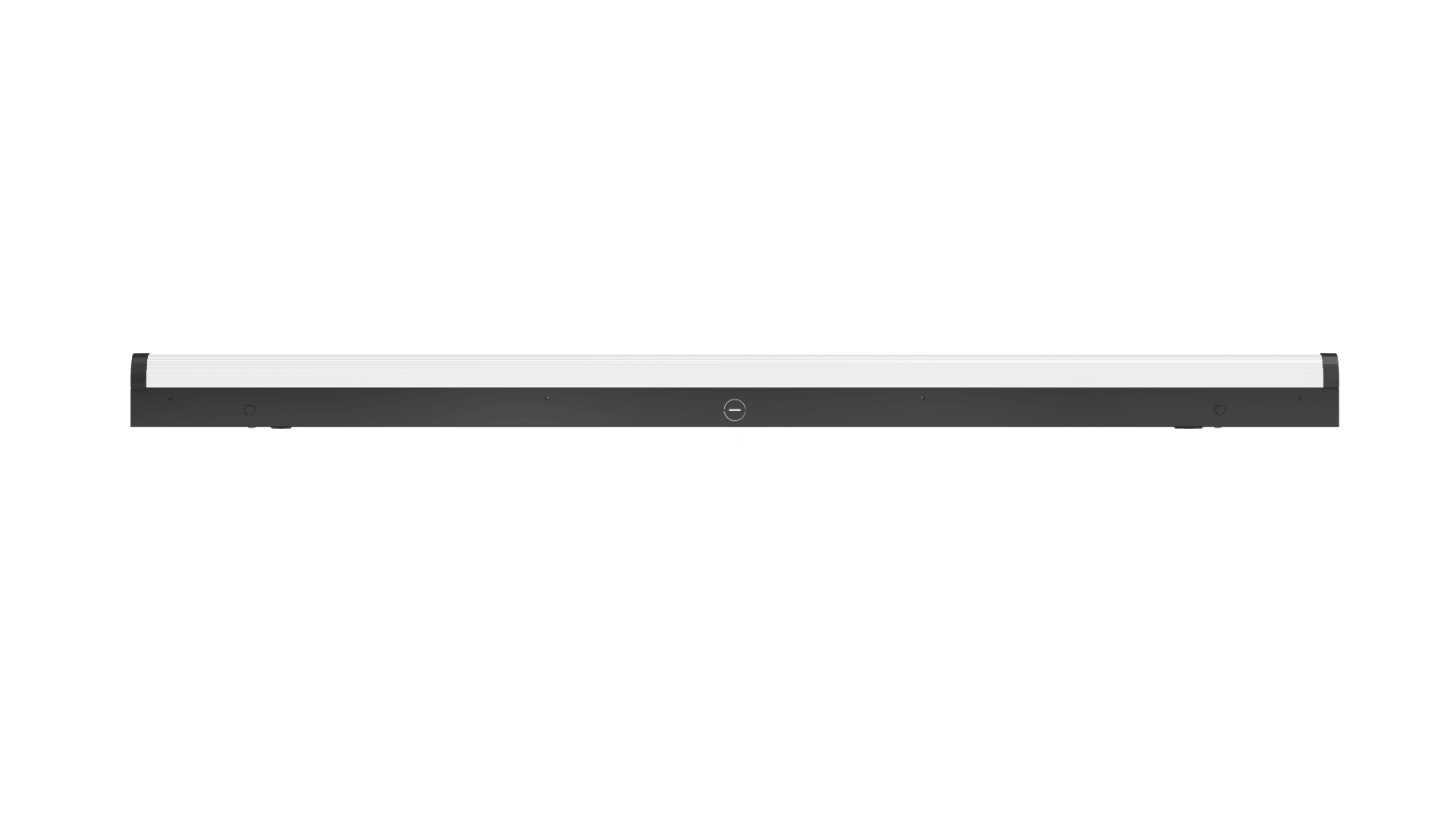

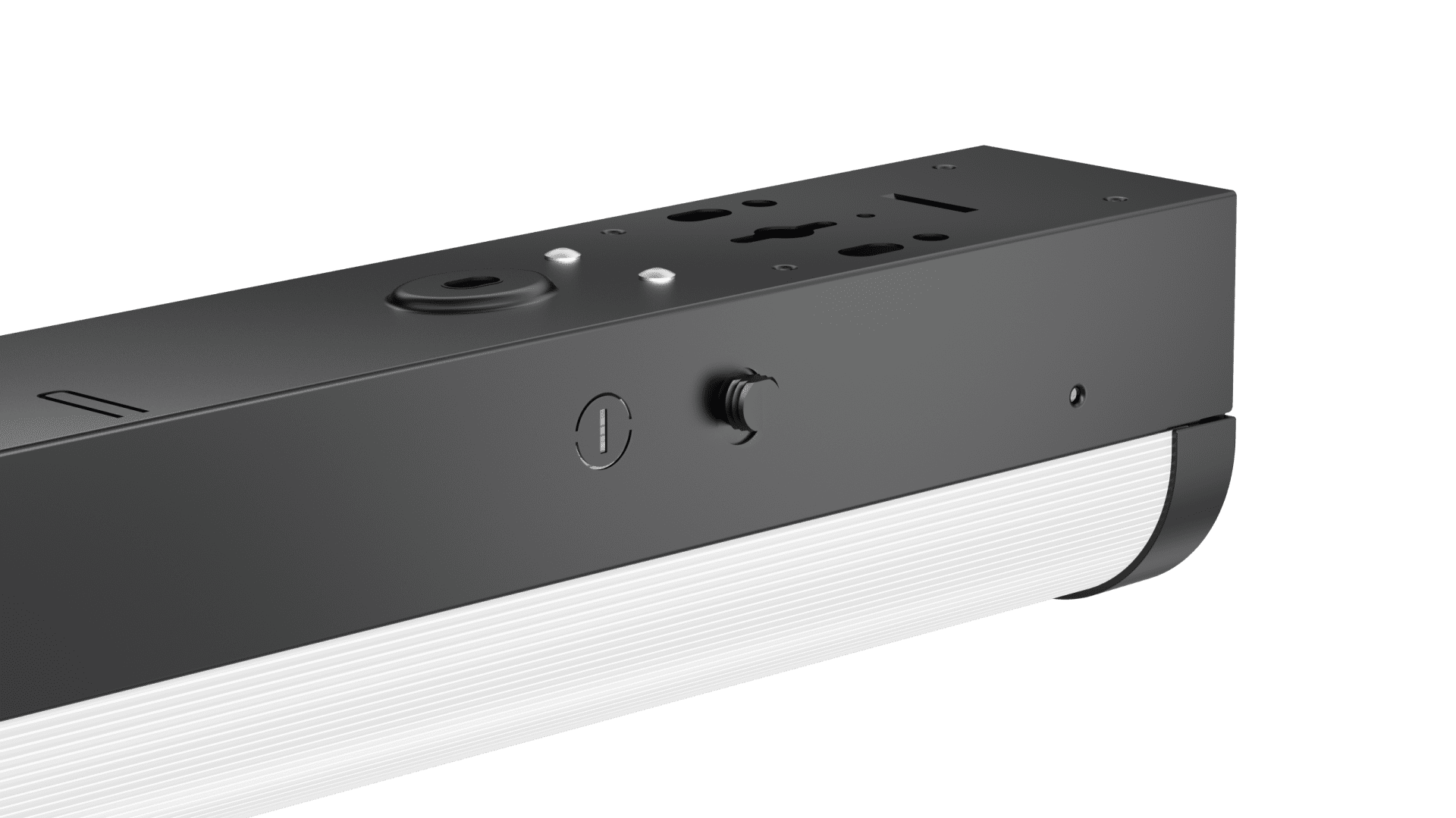

Black 4FT Standard LED Linear Strip
Black 4FT Standard LED Linear Strip
Model: E2-LS-STD-BLK-EM
20/25/30/35/40W Wattage Selectable, Up to 5,200 Lumens
3000K/3500K/4000K/5000K/6500K CCT Selectable
100-277 Volt
Specifications
| Size | 4 ft |
| CCT | 3000 / 3500 / 4000 / 5000 / 6500K |
| CRI | 80+ |
| Lumens | 3,200–5,200 lm |
| Frequency | 50–60 Hz |
| THD | 16% |
| Voltage | 100–277V |
| Wattage | 20 / 25 / 30 / 35 / 40W |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 48 × 3.35 × 3.56 in |
| Color | Black |
| Knockouts | 8 knockout locations |
| Mounting | Surface / Chain suspended |
| Weight | 8 lb (net) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Mercury Free | Yes |
| Standards | RoHS |
| Lifespan | 50,000 hours (at L70) |
| Warranty | 5 years |
| Listings | DLC Premium / UL |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
Description
A black 4-foot LED linear strip for indoor applications, offering adaptable lighting for healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. It replaces existing T12 and T8 strip fixtures, and switches at the fixture set the wattage and color temperature.
Wattage is selectable at 20, 25, 30, 35 or 40W, delivering 3,200–5,200 lumens, and color temperature at 3000K, 3500K, 4000K, 5000K or 6500K, with a CRI of 80+. It is dimmable and runs on 100–277V. The extruded aluminum housing with a polycarbonate lens mounts to the surface or hangs from chains, with 8 knockout locations for wiring.
UL and DLC Premium listed, mercury-free and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 4 ft |
| Light | |
|---|---|
| CCT | 3000 / 3500 / 4000 / 5000 / 6500K |
| CRI | 80+ |
| Lumens | 3,200–5,200 lm |
| Electrical | |
|---|---|
| Frequency | 50–60 Hz |
| THD | 16% |
| Voltage | 100–277V |
| Wattage | 20 / 25 / 30 / 35 / 40W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 48 × 3.35 × 3.56 in |
| Finish | Black |
| Knockouts | 8 knockout locations |
| Mounting | Surface / Chain suspended |
| Weight | 8 lb (net) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Mercury Free | Yes |
| Standards | RoHS |
