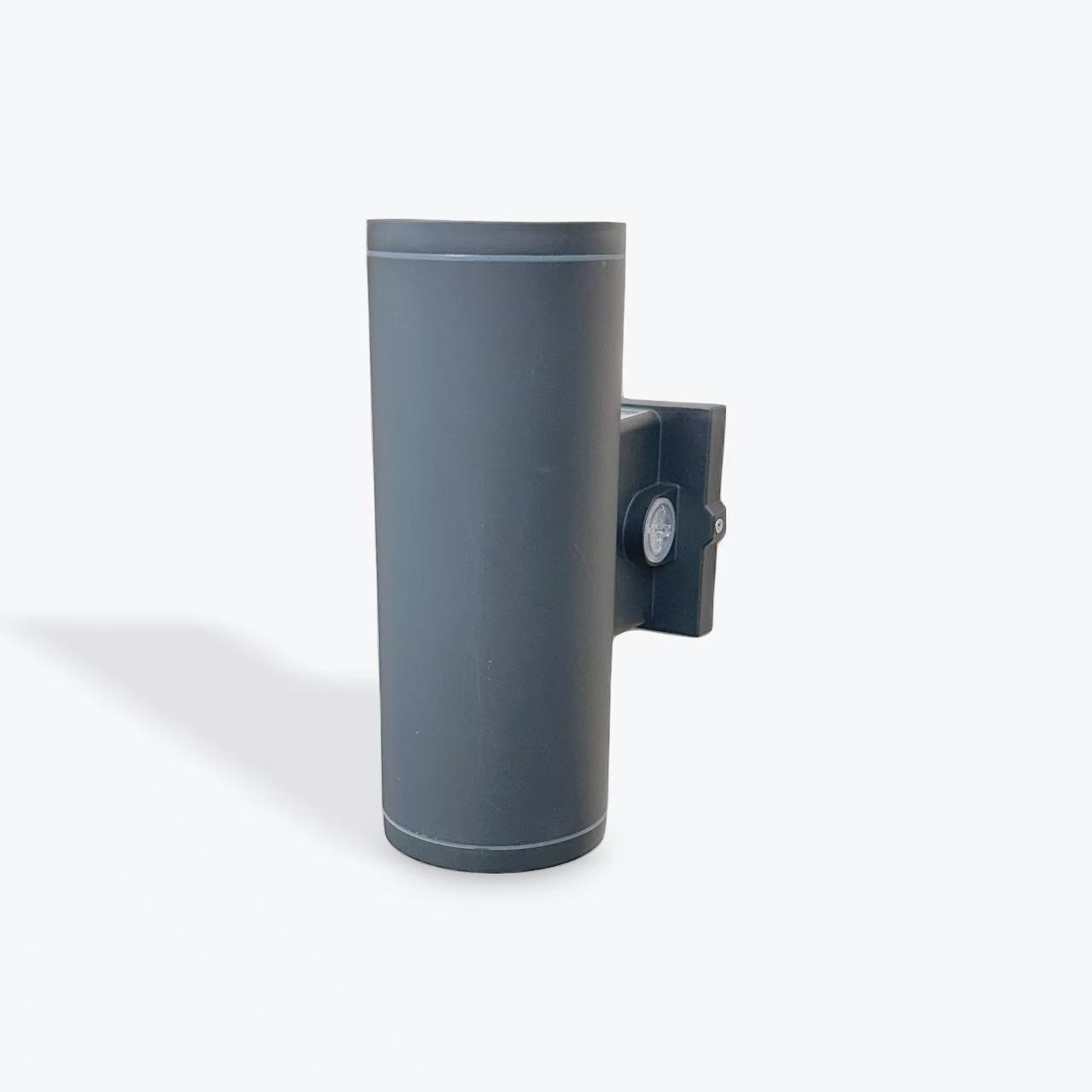

Architectural LED Up/Down Cylinder Wall Pack – Selectable Wattage, CCT & Beam Angles (4-inch) – Black
Architectural LED Up/Down Cylinder Wall Pack – Selectable Wattage, CCT & Beam Angles (4-inch) – Black
12/16/20W Wattage Selectable
3000K/4000K/5000K CCT Selectable
Integrated Photocell
120-347 Volt
Wet Location, IP65
Specifications
| Construction | Die-cast (end caps, mounting plate) |
| Light Source | SMD LED |

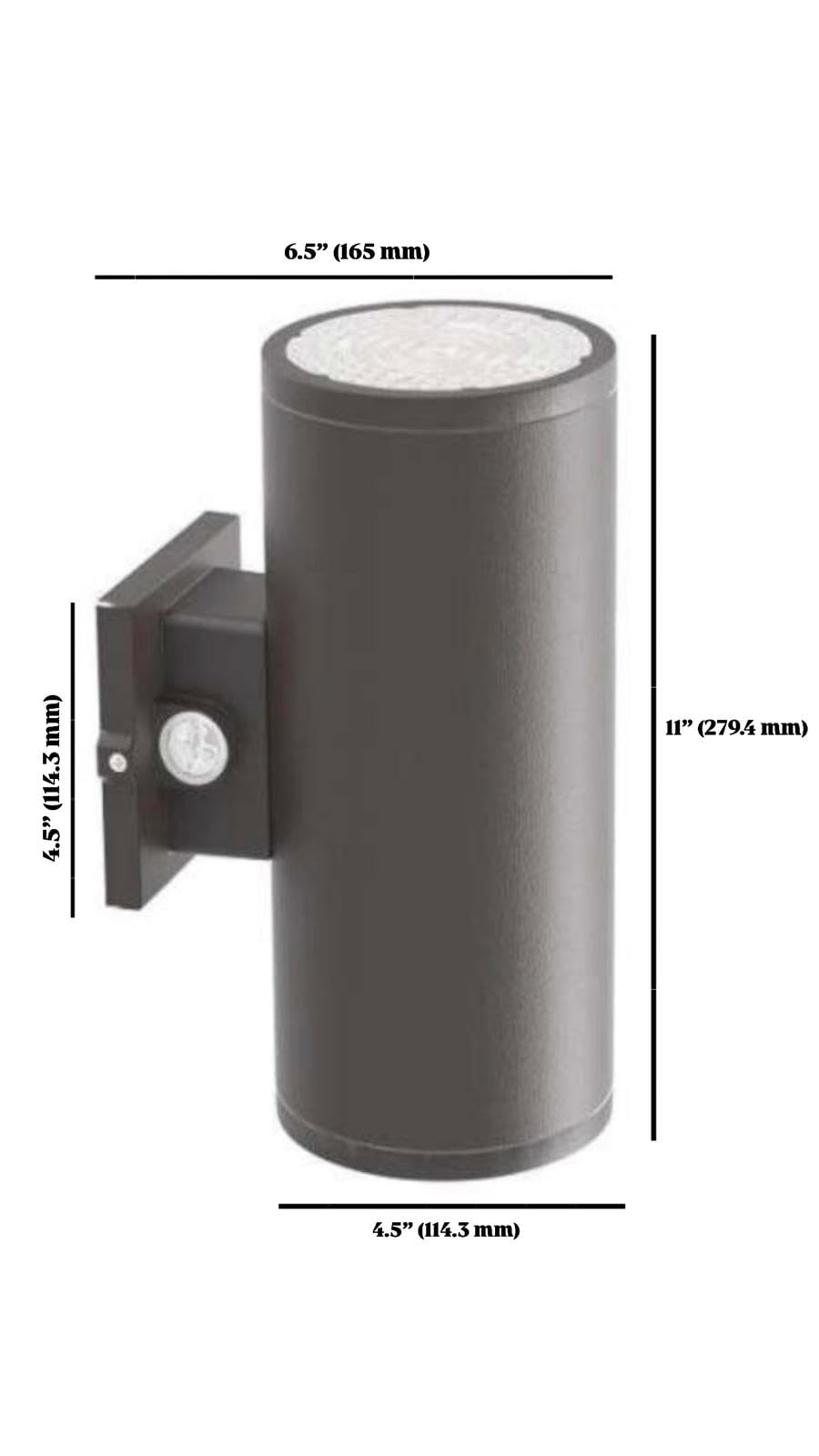

| Size | 4 in |
| CRI | 80+ |
| Efficacy | 150 lm/W (at CRI >80, at 4000K, at 40°, at Full) |

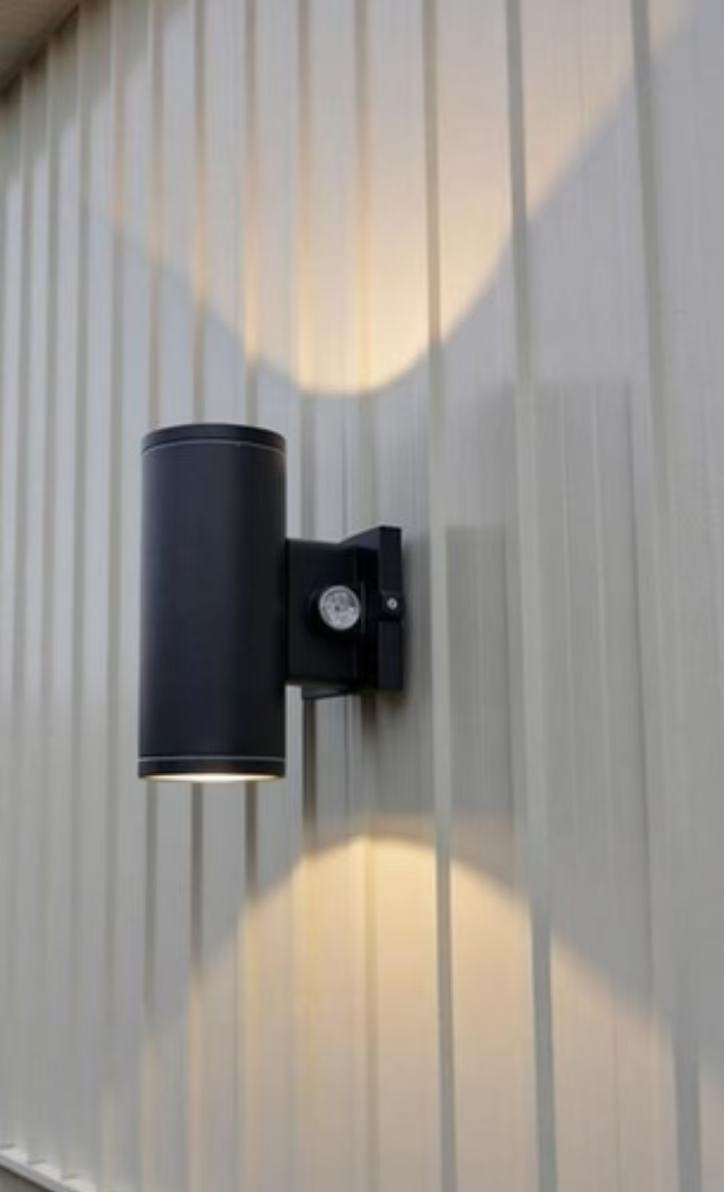

| Lighting Direction | Up only / Up and down / Down only |

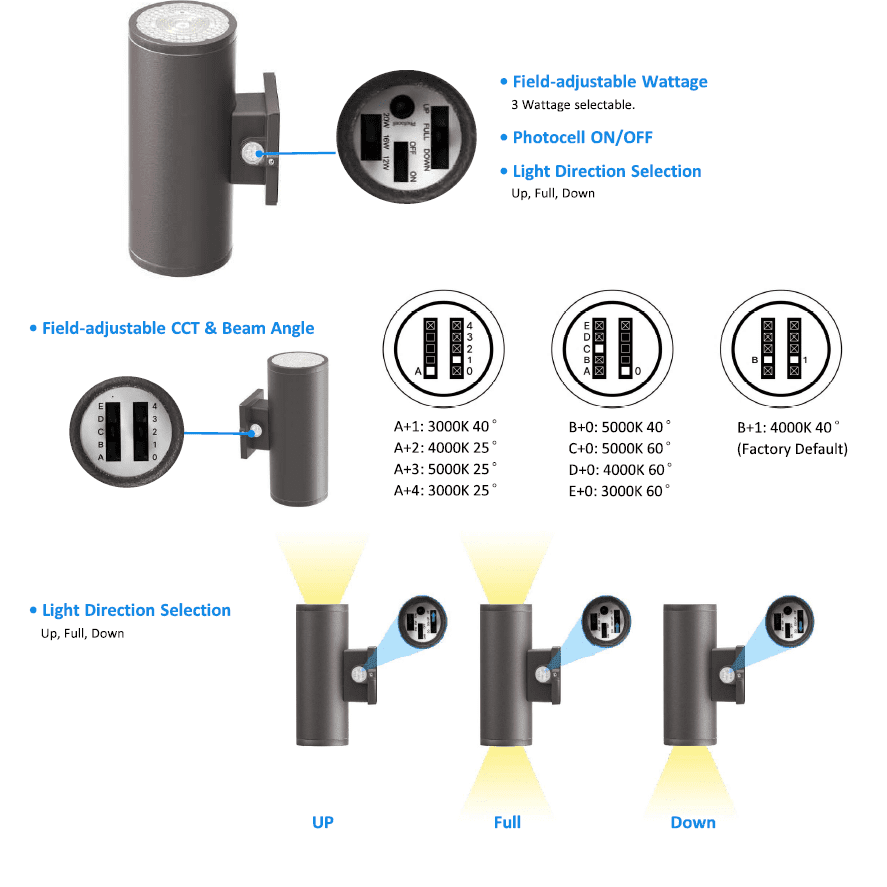

| Beam Angle | 40° (A+1, at 3000K) / 25° (A+2, at 4000K) / 25° (A+3, at 5000K) / 25° (A+4, at 3000K) / 40° (B+0, at 5000K) / 60° (C+0, at 5000K) / 60° (D+0, at 4000K) / 60° (E+0, at 3000K) / 40° (B+1, at 4000K) / 25 / 40 / 60° |
| CCT | 3000K (A+1, at 40°) / 4000K (A+2, at 25°) / 5000K (A+3, at 25°) / 3000K (A+4, at 25°) / 5000K (B+0, at 40°) / 5000K (C+0, at 60°) / 4000K (D+0, at 60°) / 3000K (E+0, at 60°) / 4000K (B+1, at 40°) / 3000 / 4000 / 5000K |
| Frequency | 50 / 60 Hz |
| Voltage | 120–347V |
| Wattage | 12 / 16 / 20W |
| Ambient Temperature | 5–30 °C (operating, emergency version) / -40–70 °C (storage) |
| Material | Aluminum (end caps, mounting plate) |
| Mounting | Wall |
| Emergency Backup | Optional (sold separately, emergency driver) |
| Dimming | 0–10V |
| Photocell | Included (ON/OFF selectable) |
| Wattage Selectable | Yes |
| CCT Selectable | Yes, switchable (coded selector setting, A+1) / Yes, switchable (coded selector setting, A+2) / Yes, switchable (coded selector setting, A+3) / Yes, switchable (coded selector setting, A+4) / Yes, switchable (coded selector setting, B+0) / Yes, switchable (coded selector setting, C+0) / Yes, switchable (coded selector setting, D+0) / Yes, switchable (coded selector setting, E+0) / Yes, switchable (coded selector setting, B+1) / Yes, switchable |
| Selectable Distribution | Yes (CCT and beam selector, beam angle, A+1) / Yes (CCT and beam selector, beam angle, A+2) / Yes (CCT and beam selector, beam angle, A+3) / Yes (CCT and beam selector, beam angle, A+4) / Yes (CCT and beam selector, beam angle, B+0) / Yes (CCT and beam selector, beam angle, C+0) / Yes (CCT and beam selector, beam angle, D+0) / Yes (CCT and beam selector, beam angle, E+0) / Yes (CCT and beam selector, beam angle, B+1) / Yes (beam angle) |
| Location Rating | Wet location |
| Protection | Surge protection (surge, at 20W) |
| Warranty | 5 years |
| Listings | IP65 / UL |
| Family | Wall pack and wall luminaire |
| Series | WP29 cylinder wall mount |
Description

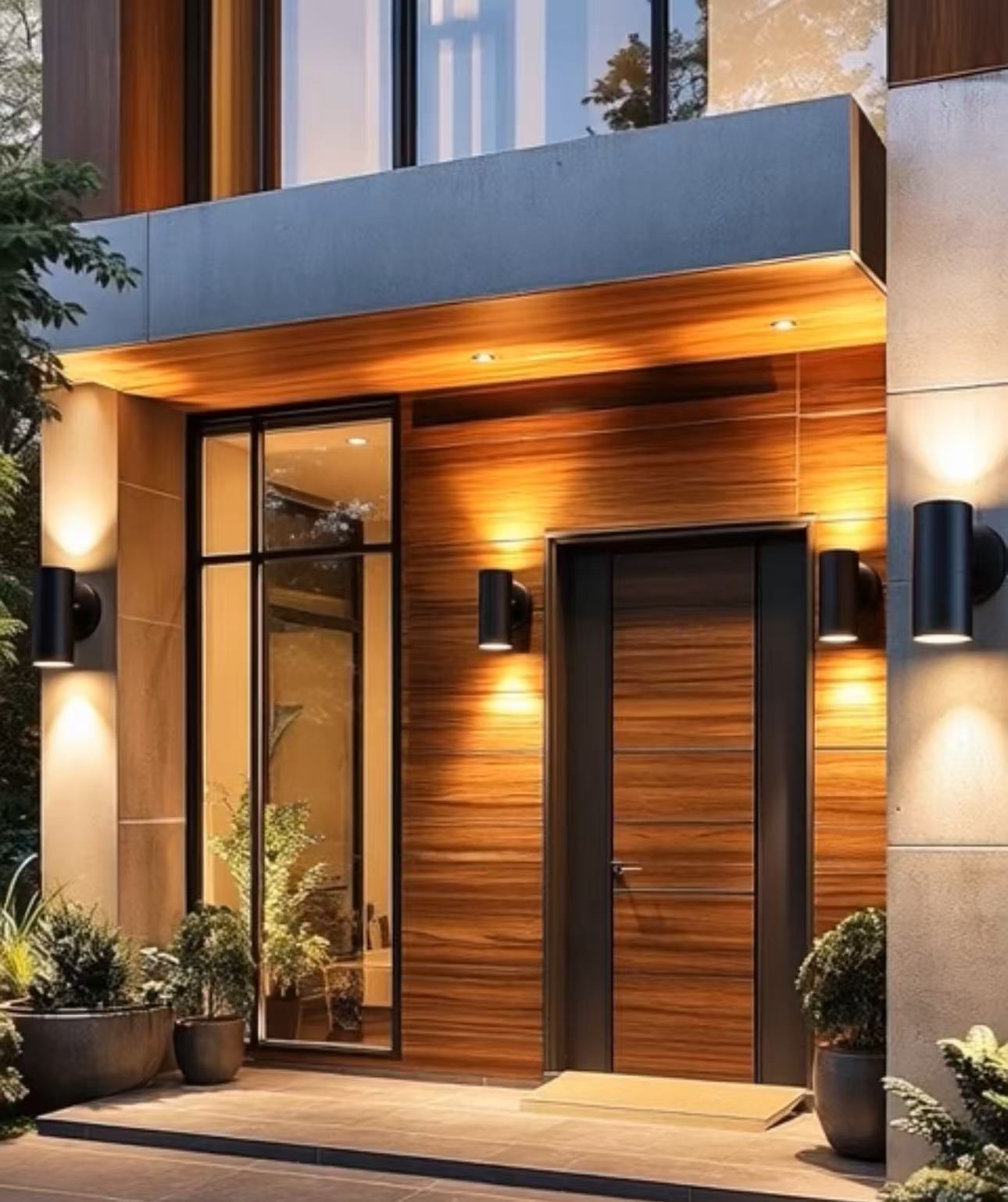

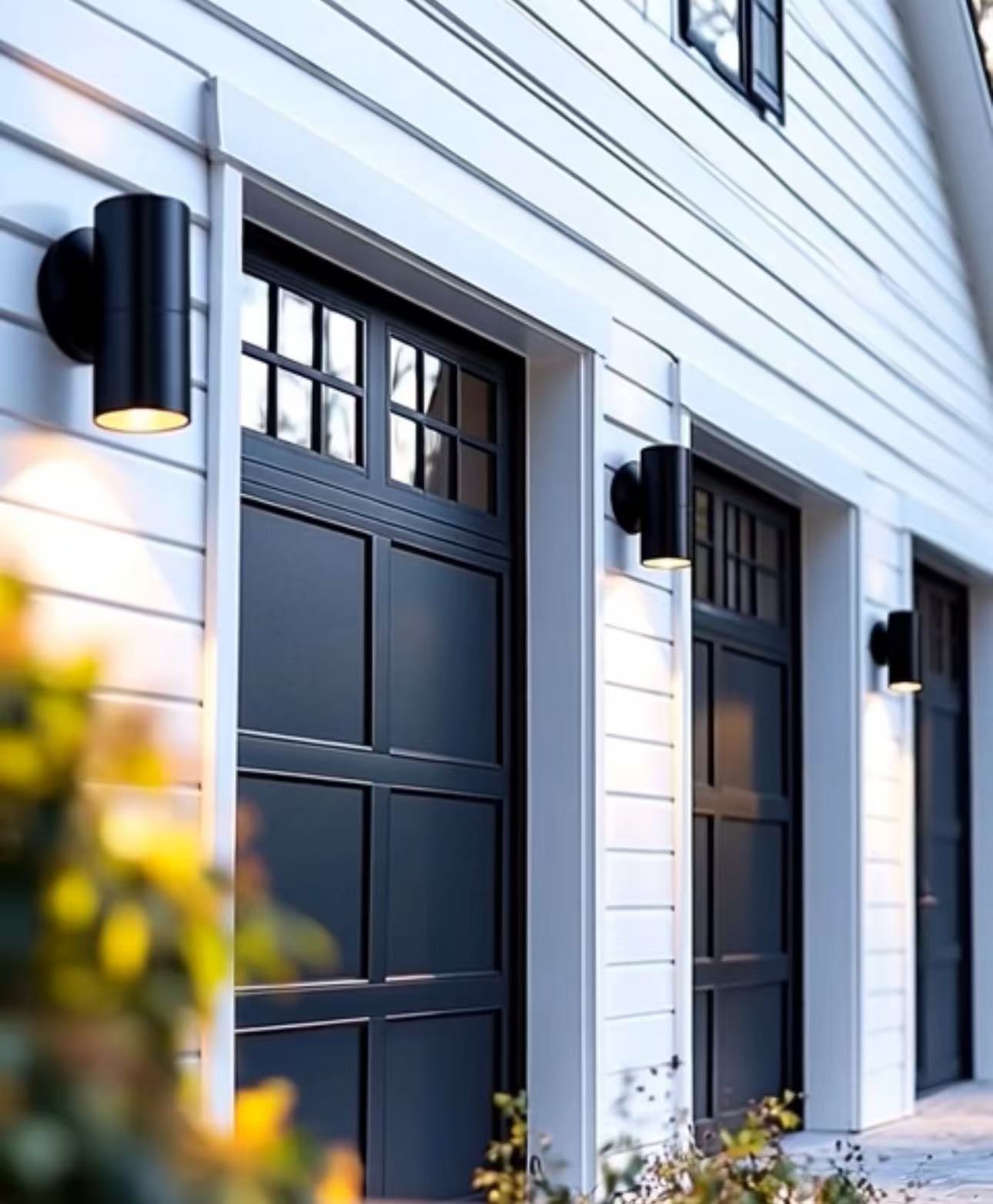

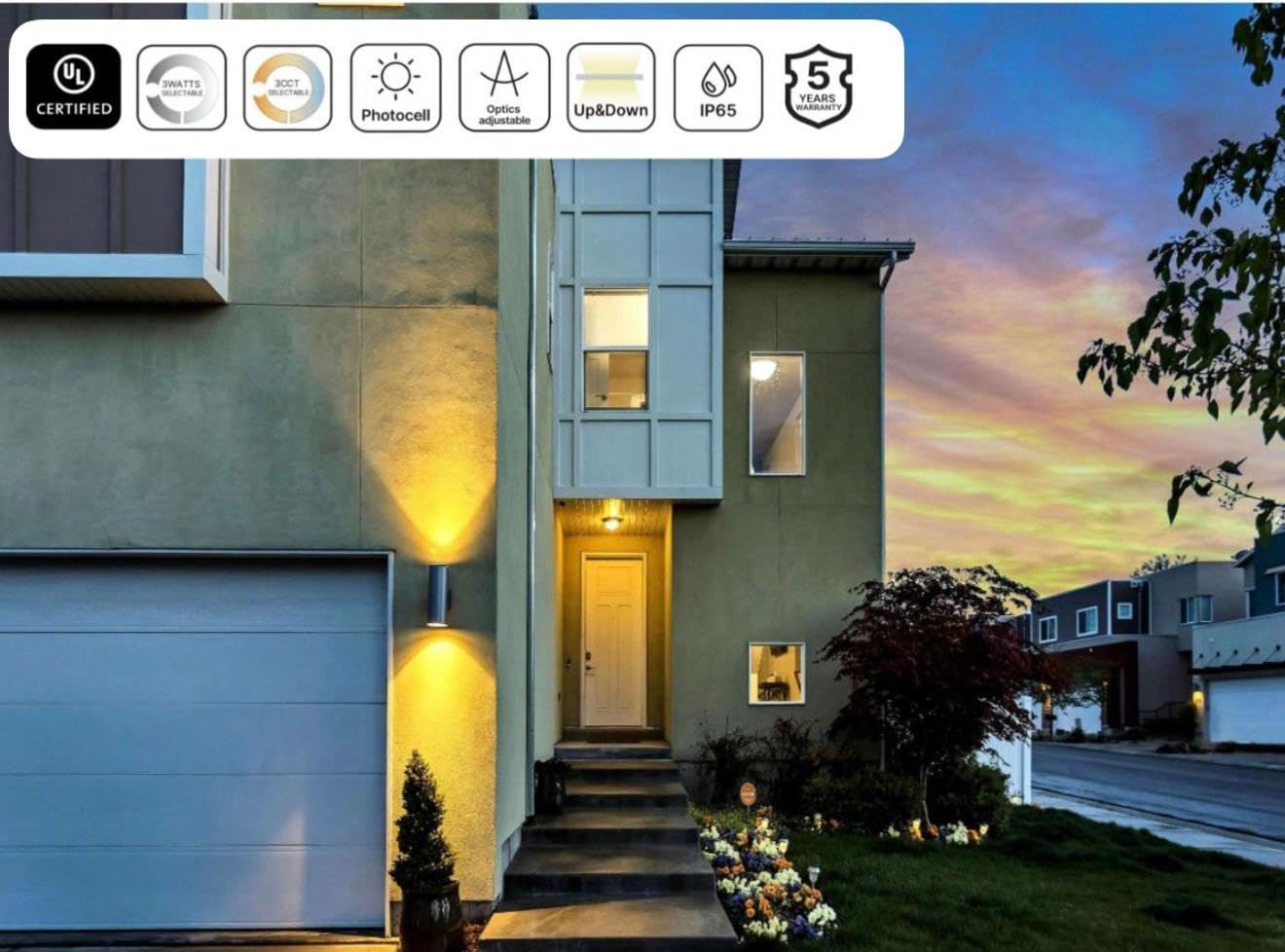

A 4-inch architectural LED cylinder for entryways, awnings, facades and wall washing, with selectable up, down or full up-and-down lighting and a switchable dusk-to-dawn photocell for automatic nighttime operation.

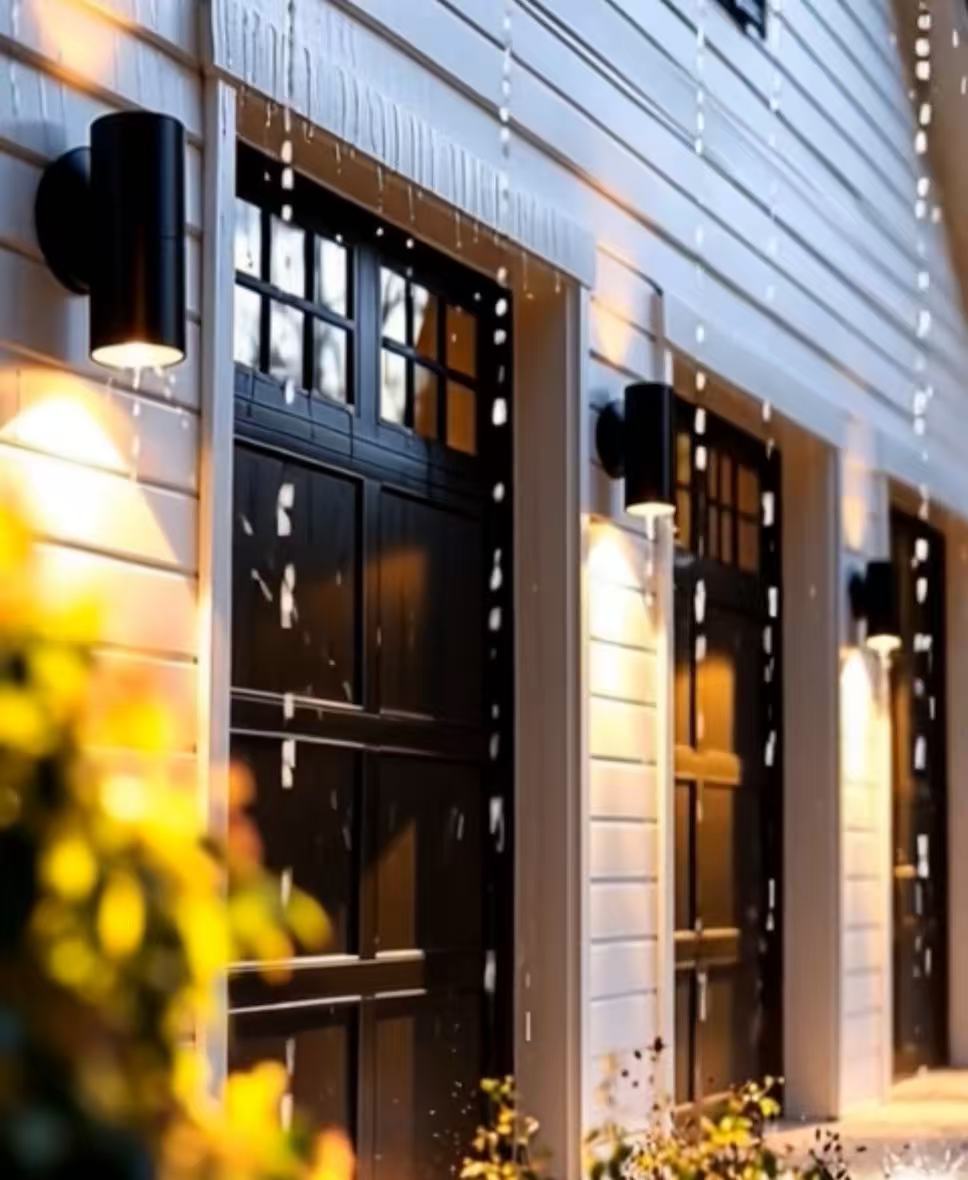

Wattage is selectable at 12, 16 or 20W at 150 lm/W, color temperature at 3000K, 4000K or 5000K with a CRI of 80+, and beam angle at 25°, 40° or 60°. It dims with 0–10V controls, runs on 120–347V and includes surge protection. The die-cast aluminum housing is wet-location and IP65 rated to withstand rain and harsh weather, operating from -40 to 70 °C, for outdoor or indoor use. A square shell accessory and a 4W emergency driver are sold separately.
UL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WP29 cylinder wall mount |
| Construction | Die-cast (end caps, mounting plate) |
| Light Source | SMD LED |
| Size | 4 in |
| Light | |
|---|---|
| CRI | 80+ |
| Efficacy | 150 lm/W (at CRI >80, at 4000K, at 40°, at Full) |
| Lighting Direction | Up only / Up and down / Down only |
| Beam Angle | 40° (A+1, at 3000K) / 25° (A+2, at 4000K) / 25° (A+3, at 5000K) / 25° (A+4, at 3000K) / 40° (B+0, at 5000K) / 60° (C+0, at 5000K) / 60° (D+0, at 4000K) / 60° (E+0, at 3000K) / 40° (B+1, at 4000K) / 25 / 40 / 60° |
| CCT | 3000K (A+1, at 40°) / 4000K (A+2, at 25°) / 5000K (A+3, at 25°) / 3000K (A+4, at 25°) / 5000K (B+0, at 40°) / 5000K (C+0, at 60°) / 4000K (D+0, at 60°) / 3000K (E+0, at 60°) / 4000K (B+1, at 40°) / 3000 / 4000 / 5000K |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Voltage | 120–347V |
| Wattage | 12 / 16 / 20W |
| Physical | |
|---|---|
| Ambient Temperature | 5–30 °C (operating, emergency version) / -40–70 °C (storage) |
| Material | Aluminum (end caps, mounting plate) |
| Mounting | Wall |
| Emergency | |
|---|---|
| Emergency Backup | Optional (sold separately, emergency driver) |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Photocell | Included (ON/OFF selectable) |
| Wattage Selectable | Yes |
| CCT Selectable | Yes, switchable (coded selector setting, A+1) / Yes, switchable (coded selector setting, A+2) / Yes, switchable (coded selector setting, A+3) / Yes, switchable (coded selector setting, A+4) / Yes, switchable (coded selector setting, B+0) / Yes, switchable (coded selector setting, C+0) / Yes, switchable (coded selector setting, D+0) / Yes, switchable (coded selector setting, E+0) / Yes, switchable (coded selector setting, B+1) / Yes, switchable |
| Selectable Distribution | Yes (CCT and beam selector, beam angle, A+1) / Yes (CCT and beam selector, beam angle, A+2) / Yes (CCT and beam selector, beam angle, A+3) / Yes (CCT and beam selector, beam angle, A+4) / Yes (CCT and beam selector, beam angle, B+0) / Yes (CCT and beam selector, beam angle, C+0) / Yes (CCT and beam selector, beam angle, D+0) / Yes (CCT and beam selector, beam angle, E+0) / Yes (CCT and beam selector, beam angle, B+1) / Yes (beam angle) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Protection | Surge protection (surge, at 20W) |
