Premium Commercial Downlights with Emergency Battery 6 Inch 24W
Premium Commercial Downlights with Emergency Battery 6 Inch 24W
Model: E2-DL-PCOM-6IN-16/20/24W-27/30/35/40/50K-E-2P
16/20/24W Wattage Selectable, Up to 2,400 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
0-10V Dimmable
100-277 Volt
IP65
Specifications
| Wattage | 16W / 20W / 24W |
| Voltage | 100-277V |
| Dimming | 0-10V, TRIAC Dimming |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | > 90 |
| Lumens | 1600 lm / 2000 lm / 2400 lm |
| Lifespan | 50,000 hours |

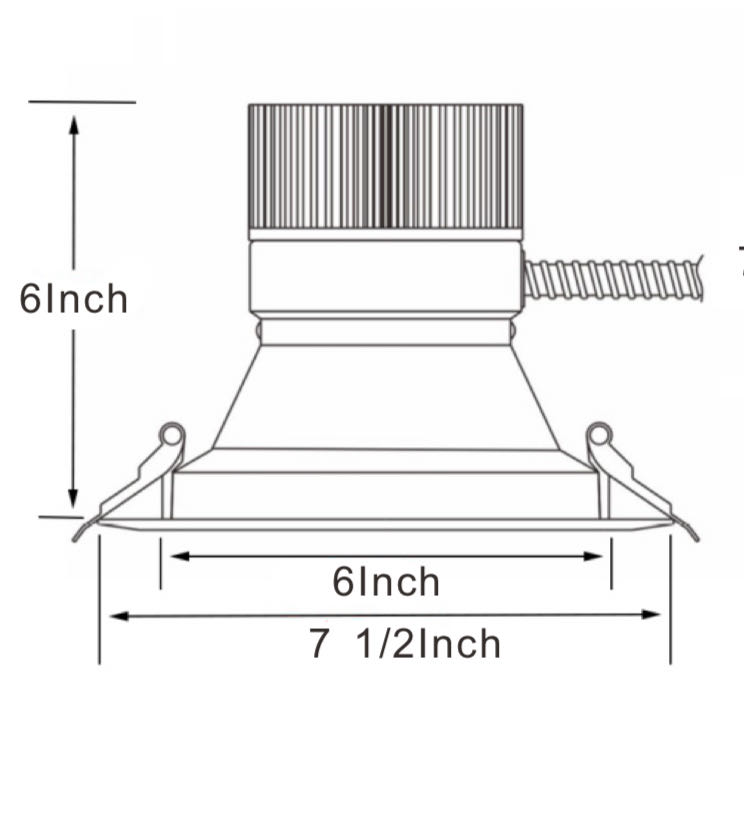

| Dimensions | 7.5" × 6" |
| Listings | IP65 / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 6 in |
| Efficacy | 100 lm/W |
| Mounting | Recessed / Spring clips |
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED indicator |
| Test Switch | Test button (button, manual) |
| CCT Selectable | Yes, switchable |
| Wattage Selectable | Yes |
| Standards | FCC |
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
Description

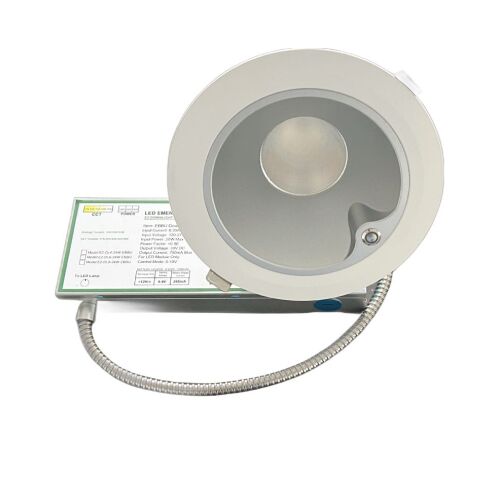

A 6-inch architectural LED downlight for commercial spaces, with a pre-wired emergency battery that keeps it running during a power outage. In emergency mode the 10W battery supplies 900–1,000 lumens for 90 minutes, and a test button with an LED indicator shows charging and emergency status.
Wattage is selectable at 16, 20 or 24W for 1,600–2,400 lumens at 100 lm/W, and color temperature at 2700K, 3000K, 3500K, 4000K or 5000K, with CRI 90+. It dims with 0–10V controls and runs on 100–277V. Spring clips mount it recessed for retrofit or new construction in schools, hospitals, retail spaces and offices, and it is IP65 rated.
cETLus listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
| Size | 6 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 90+ |
| Efficacy | 100 lm/W |
| Lumens | 1,600 / 2,000 / 2,400 lm |
| Electrical | |
|---|---|
| Voltage | 100–277V |
| Wattage | 16 / 20 / 24W |
| Physical | |
|---|---|
| Dimensions | 7.5 × 6 in |
| Mounting | Recessed / Spring clips |
| Emergency | |
|---|---|
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED indicator |
| Test Switch | Test button (button, manual) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus |
| IP Rating | IP65 |
| Standards | FCC |
