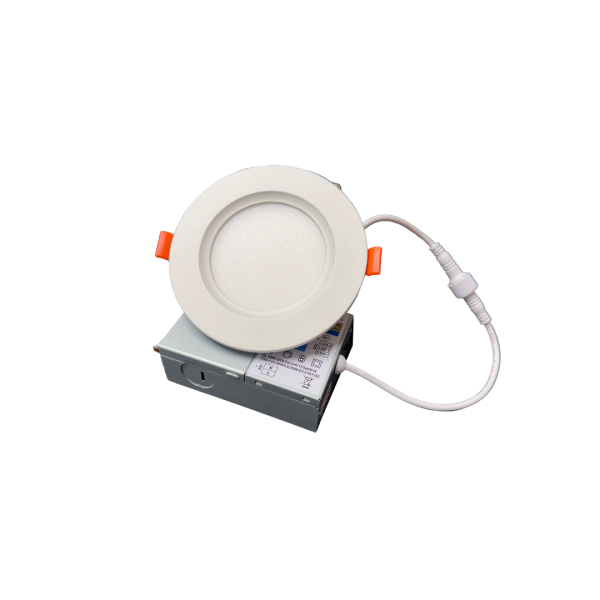

4″ LED Ultra Slim Recessed Downlight – 9W – 3 CCT Selectable (3000K/4000K/5000K) – 100-277V – Tri-Dimming & Type IC – Energy Star – 60W Equal
4″ LED Ultra Slim Recessed Downlight – 9W – 3 CCT Selectable (3000K/4000K/5000K) – 100-277V – Tri-Dimming & Type IC – Energy Star – 60W Equal
Model: E2-DL-SLIM-4IN-9W-30/40/50K
9W, 630 Lumens
3000K/4000K/5000K CCT Selectable
TRIAC Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 9W |
| Voltage | 120–277V |
| Dimming | TRIAC |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 630 lm |
| Lifespan | 50,000 hours |
| Listings | ENERGY STAR / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 in |
| Beam Angle | 110° |
| Power Factor | 0.95+ |
| Mounting | Pressure-fit clips |
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Accessories | Driver junction box (included) |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description
This 4-inch ultra-slim recessed downlight suits space-limited ceilings in living rooms, hallways, kitchens, bathrooms and offices. It is Type IC rated for insulation contact, comes with a driver junction box and installs with pressure-fit clips, with no recessed housing needed.
It draws 9W for 630+ lumens with a 110° beam, and a dip switch selects 3000K, 4000K or 5000K, with CRI 80. TRIAC dimming works with most wall dimmers, and it runs on 120–277V. It is rated for damp locations.
ENERGY STAR and cETLus listed, with a 50,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 4 in |
| Light | |
|---|---|
| Beam Angle | 110° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80 |
| Lumens | 630+ lm |
| Electrical | |
|---|---|
| Power Factor | 0.95+ |
| Voltage | 120–277V |
| Wattage | 9W |
| Physical | |
|---|---|
| Mounting | Pressure-fit clips |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus / ENERGY STAR |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Accessories | Driver junction box (included) |
