300W G6 Area Light WAT & CCT Tunable
300W G6 Area Light WAT & CCT Tunable
Model: E2-SB-G6-200/240/300W-30/40/50K-277V-DB
200/240/300W Wattage Selectable, Up to 39,000 Lumens
3000K/4000K/5000K CCT Selectable
Type III/IV/V Distribution
100-277 Volt
Wet Location, IP65
Specifications
| Wattage | 200W / 240W / 300W |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70, > 80 |
| Lumens | 26000 lm / 31200 lm / 39000 lm |
| Dimensions | 638.28 × 350 × 72 mm (25.13" × 13.78" × 2.83") |
| Listings | IP65 Rating, UL and DLC® Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Beam Angle | 120° (at Type V, T5) / 60° (Flood, 60) / 30° (Flood, 30) |
| Distribution Type | Type III (T3) / Type IV (T4) / Type V (T5) |
| Efficacy | up to 130 lm/W |
| Frequency | 50 / 60 Hz |
| THD | up to 20% |
| Ambient Temperature | -40–45 °C (operating) / -20–60 °C (storage) |
| Humidity | 10–90% (storage) |
| Mounting | Slip fitter / Square pole / Wall / Round pole |
| Motion Sensor | Optional (microwave, bi-level) |

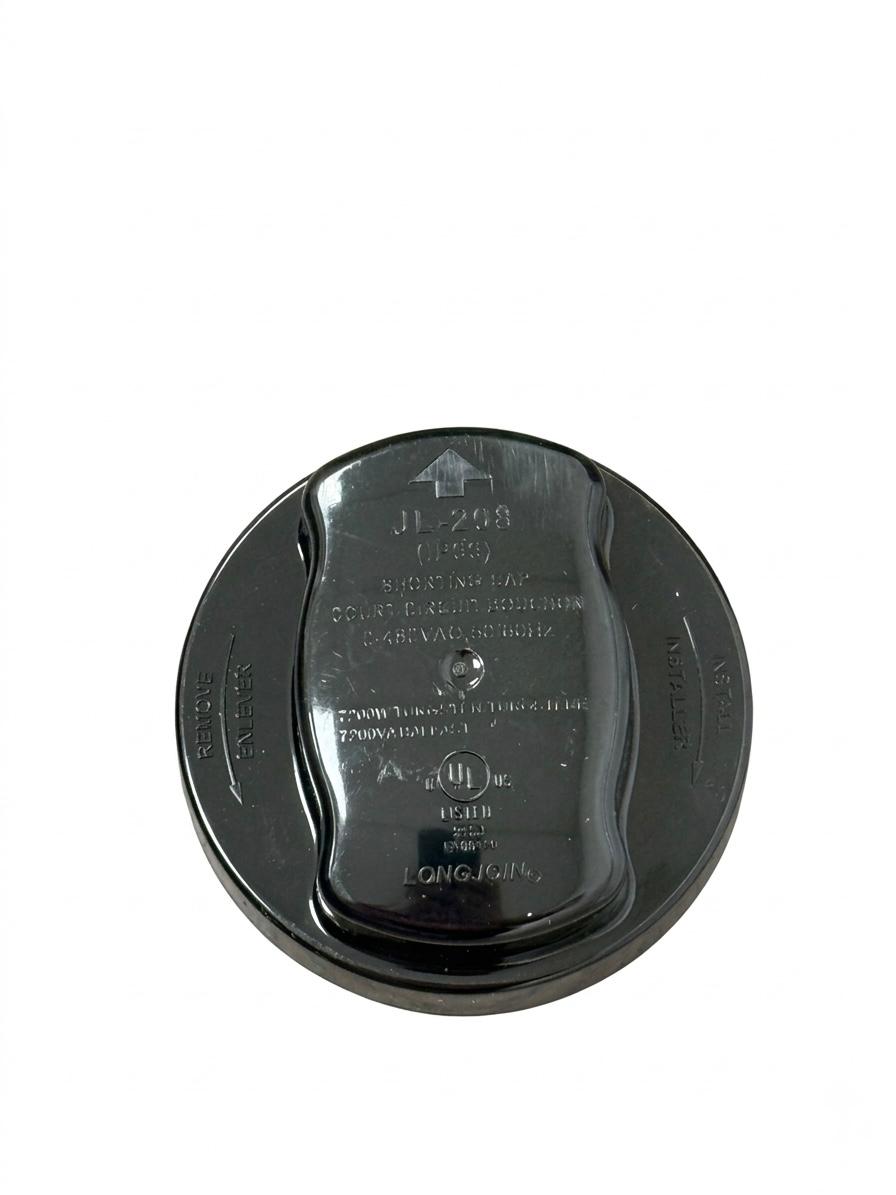

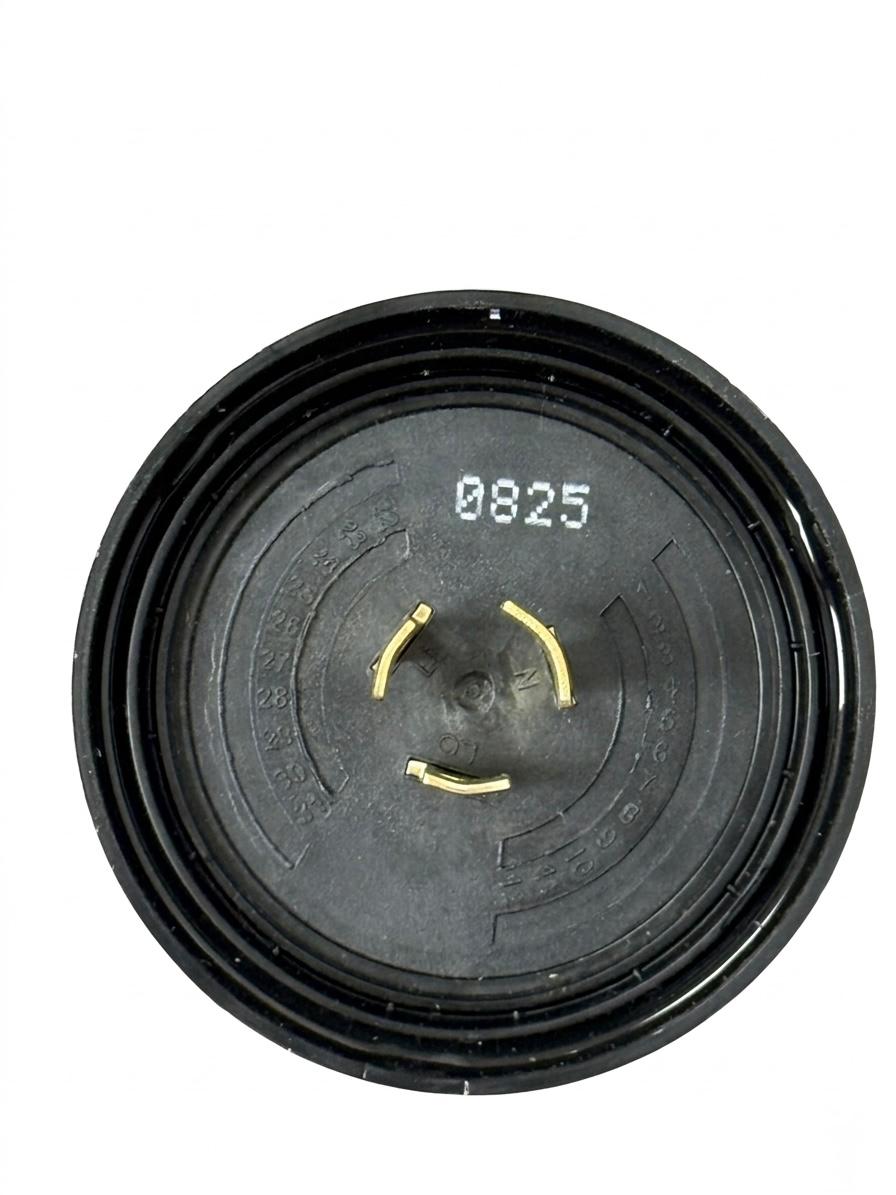

| Photocell | Optional (optional, built-in) / Optional (optional, twist-lock) |
| Wattage Selectable | Yes (DIP switch) |
| Location Rating | Wet location / Outdoor |
| Family | Area and roadway light |
| Series | G6 slim area light |
Description
A G6 slim LED area light, sold as the fixture only, for shopping centers, auto dealerships, sport fields and roadways. Wattage is selectable at 200W, 240W or 300W, giving 26,000, 31,200 or 39,000 lumens at up to 130 lm/W, and color temperature at 3000K, 4000K or 5000K.
It dims with 0–10V controls and runs on 100–277V. Type III, Type IV or Type V distribution is offered, and it mounts by slip fitter, square pole, round pole or wall bracket. The fixture is wet-location and IP65 rated for outdoor use, with motion sensor and photocell control available as options.
cULus and DLC Premium listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Area and roadway light |
| Series | G6 slim area light |
| Light Source | LED |
| Light | |
|---|---|
| Beam Angle | 120° (at Type V, T5) / 60° (Flood, 60) / 30° (Flood, 30) |
| CCT | 3000 / 4000 / 5000K |
| Distribution Type | Type III (T3) / Type IV (T4) / Type V (T5) |
| Efficacy | up to 130 lm/W |
| Lumens | 26,000 / 31,200 / 39,000 lm |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| THD | up to 20% |
| Voltage | 100–277V |
| Wattage | 200 / 240 / 300W |
| Physical | |
|---|---|
| Ambient Temperature | -40–45 °C (operating) / -20–60 °C (storage) |
| Humidity | 10–90% (storage) |
| Mounting | Slip fitter / Square pole / Wall / Round pole |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Motion Sensor | Optional (microwave, bi-level) |
| Photocell | Optional (optional, built-in) / Optional (optional, twist-lock) |
| Wattage Selectable | Yes (DIP switch) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Wet location / Outdoor |
