LED Exit Sign – Dual Face Lamp Heads
LED Exit Sign – Dual Face Lamp Heads
Model: E2-EX-119
4/5.2W Wattage Selectable
Built-in Emergency Battery, 90+ Minutes
Recharges in up to 24 Hours
120 / 277 Volt
Damp Location
Specifications
| Wattage | 4W (at 120V AC) / 5.2W (at 277V AC) |
| Voltage | 120-277V |
| CCT | 6500K |
| Dimensions | 16.92" × 7.36" |
| Listings | UL / cUL |
| Warranty | 5-Year Manufacturer's Warranty |
| Recharge Time | up to 24 hours |
| Emergency Backup | Integrated |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Charge indicator (charging) |
| Sign Faces | Double face |
| Test Switch | Yes (manual) |
| Dimmable | No |
| Location Rating | Damp location |
| Family | Exit sign |
| Series | E2 EX exit sign lamp heads |
Description

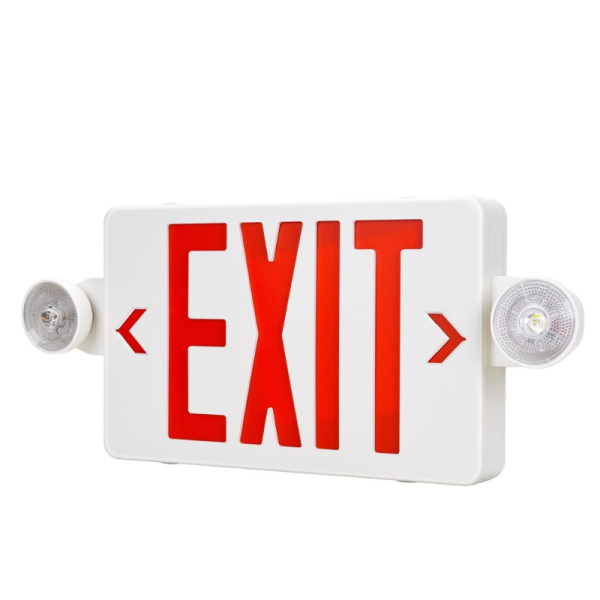

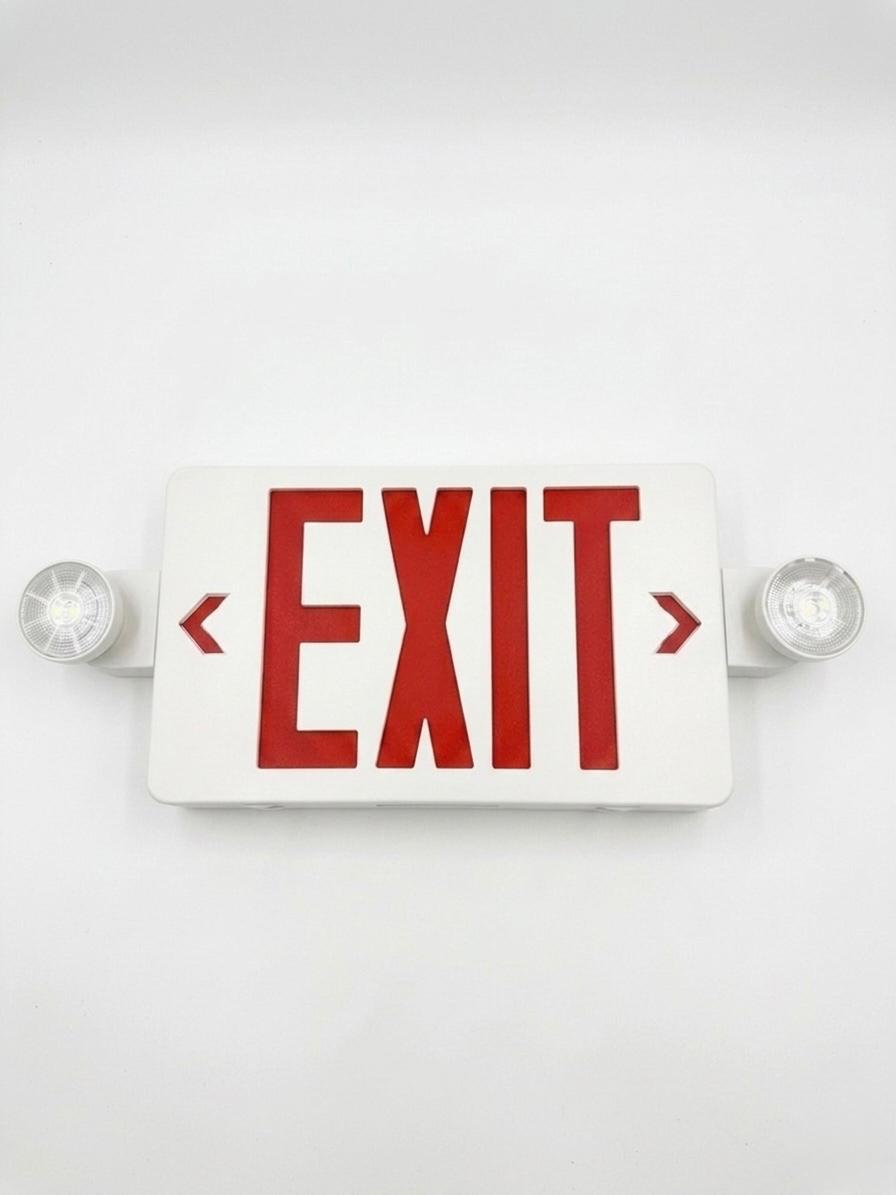

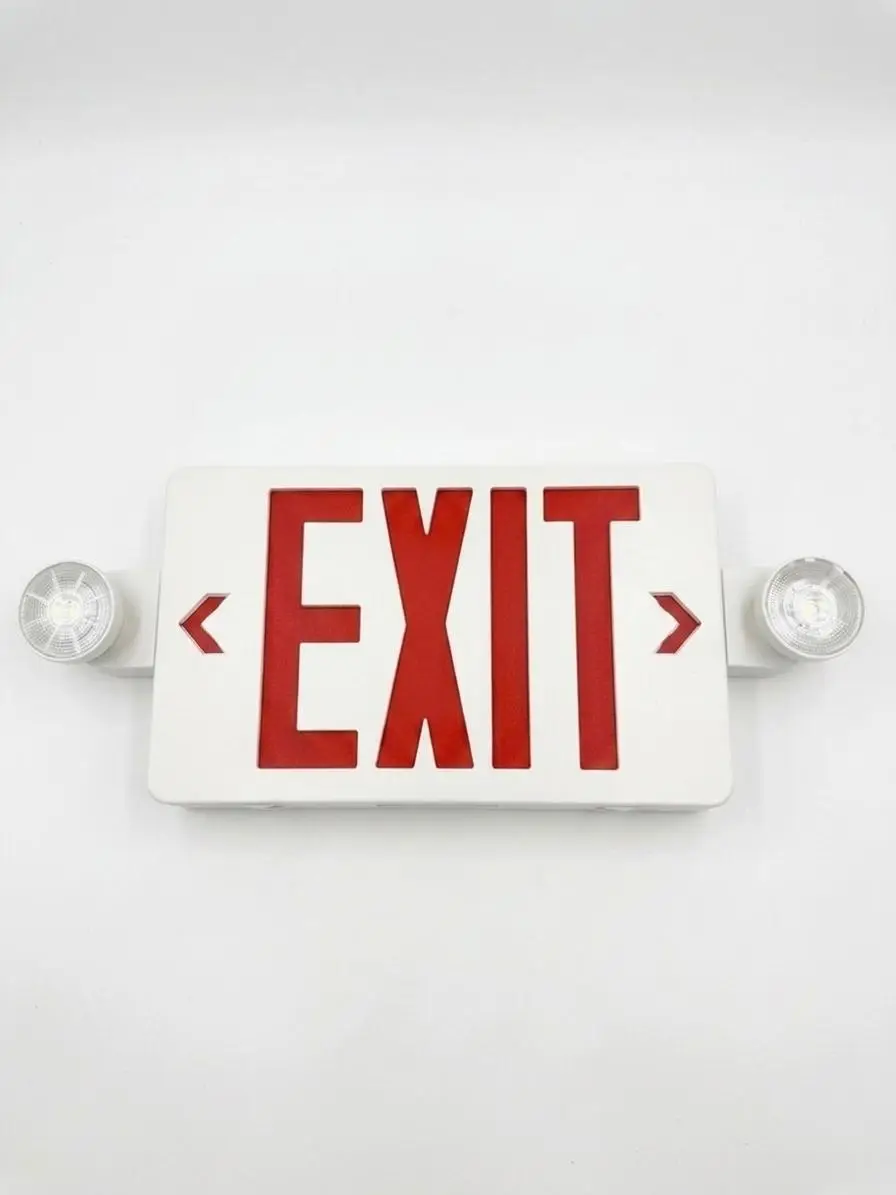

This exit sign combines adjustable LED lamp heads with integrated emergency battery backup, making it one of the latest versions of this industry standard. The heads can be aimed to the best angle to light the path, and the double-face sign runs for 90+ minutes when the power fails.

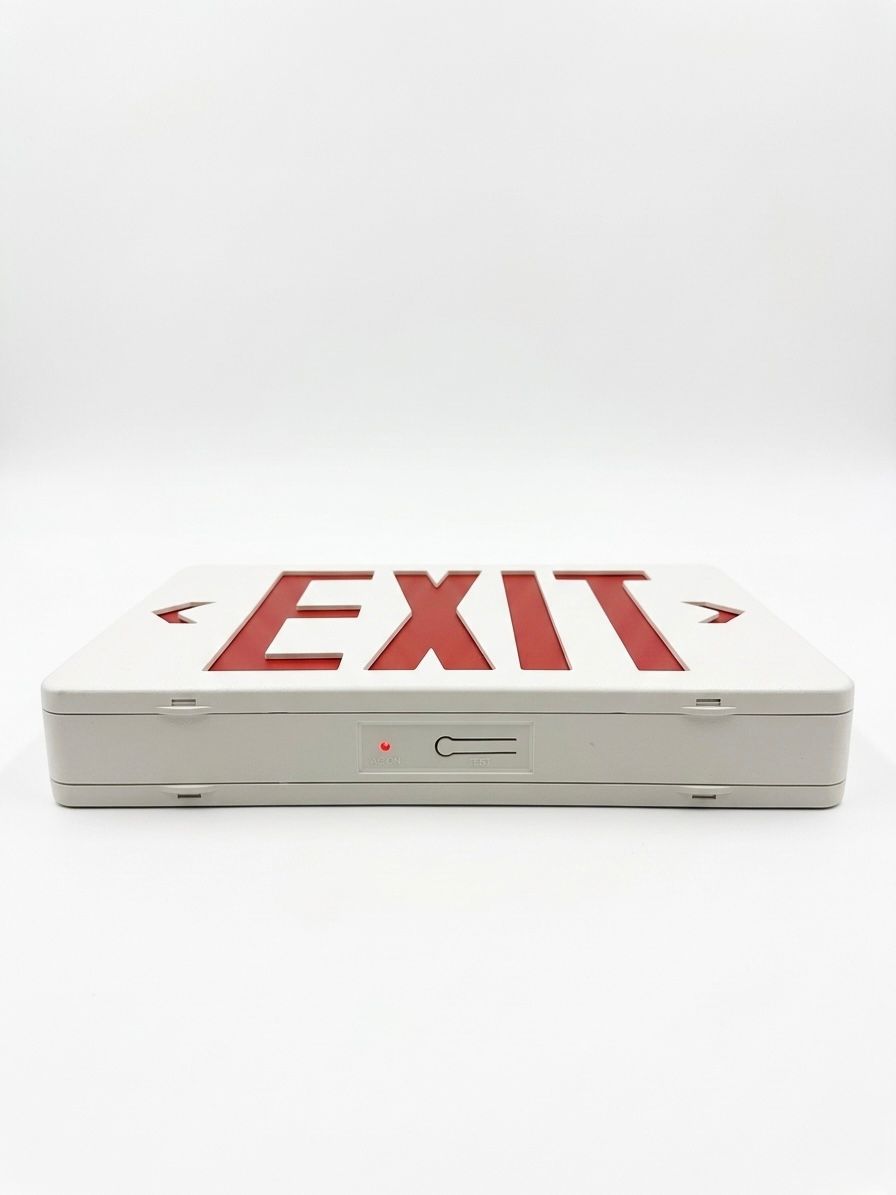

The sign is also equipped with a test switch and a charge indicator showing that the emergency battery backup system is operating properly. It operates on 120 or 277V, drawing 4 or 5.2W, and recharges in up to 24 hours. Rated for damp locations, it measures 16.92 × 7.36 in and is not dimmable.
UL and cUL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Exit sign |
| Series | E2 EX exit sign lamp heads |
| Electrical | |
|---|---|
| Voltage | 120 / 277V |
| Wattage | 4W (at 120V AC) / 5.2W (at 277V AC) |
| Physical | |
|---|---|
| Dimensions | 16.92 × 7.36 in |
| Emergency | |
|---|---|
| Charge Time | up to 24 hours |
| Emergency Backup | Integrated |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Charge indicator (charging) |
| Sign Faces | Double face |
| Test Switch | Yes (manual) |
| Controls | |
|---|---|
| Dimmable | No |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL / cUL |
| Location Rating | Damp location |
