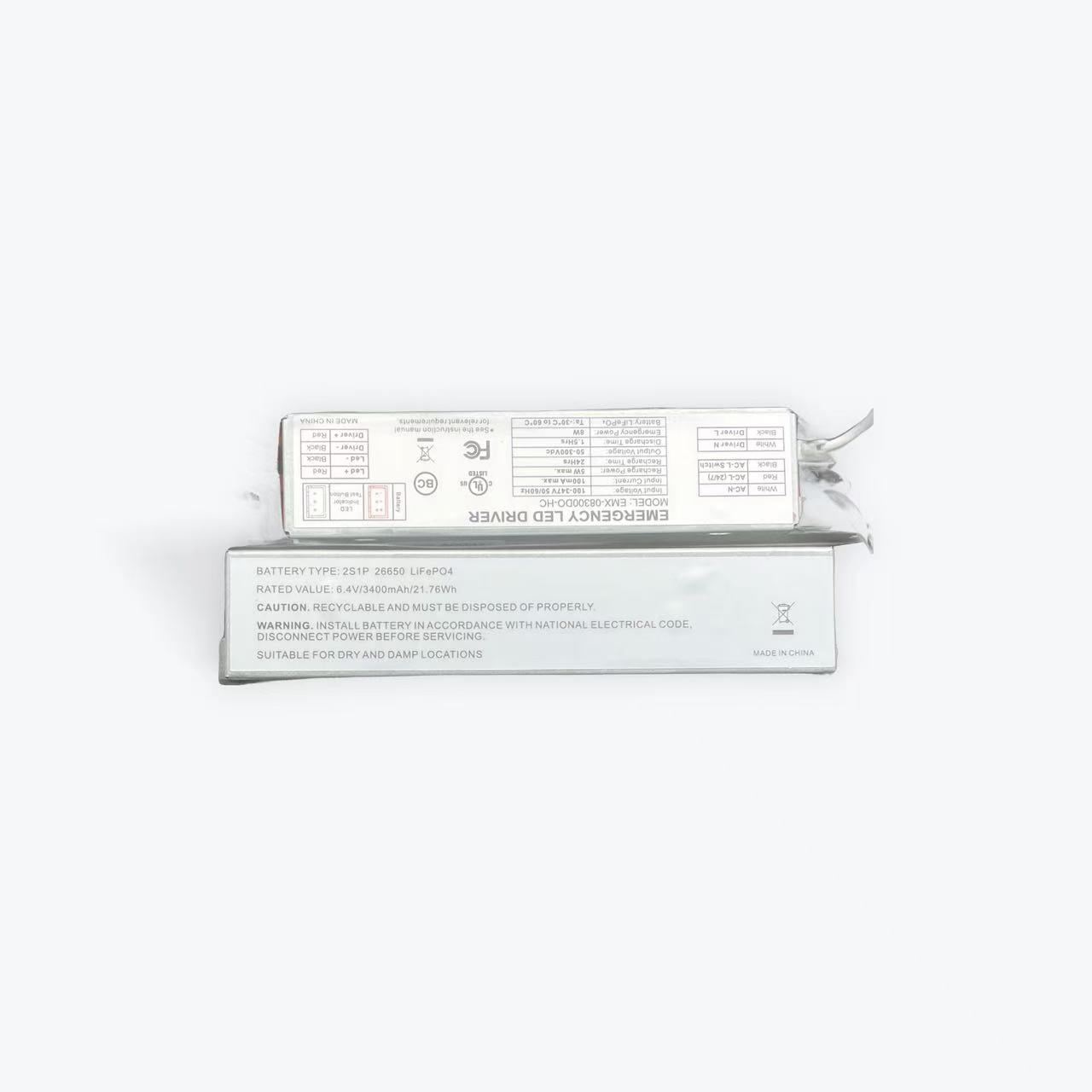

Low Temperature LED Emergency Battery 8W
Low Temperature LED Emergency Battery 8W
8W Emergency Output, 90+ Minutes
100-347 Volt
Output 10-58V or 50-300V
Recharges in 24 Hours
Ordinary Location
Specifications
| Current | up to 100mA (maximum) |
| Frequency | 50 / 60 Hz |
| Voltage | 100–347V |
| Weight | up to 0.88 lb |
| Maintenance | No maintenance (battery) |
| Battery Serviceability | No |
| Recharge Time | 24 hours |
| Emergency Power | 8W |
| Emergency Runtime | 90+ minutes |
| Output Voltage | EMX-08058DO-HC: 10–58V / EMX-08300DO-HC: 50–300V |
| Indicator Light | Malfunction indicator (malfunction) / Charging indicator / Status indicator (separate) / Status indicator (metal integrated) / Status indicator (plastic integrated) / Status indicator (FPC) |
| Test Switch | Self-test (automatic) / Yes (manual) / Yes (separate) / Yes (metal integrated) / Yes (plastic integrated) / Yes (FPC) |
| Location Rating | Indoor / Ordinary Location |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / FCC / RoHS |
| Warranty | 5 years |
| Listings | UL / cULus |
| Family | Emergency LED driver and battery |
| Series | Low Temperature Emergency LED Driver (EMX) |
Description
An 8W emergency battery driver for low-temperature locations. When normal power fails it keeps LED fixtures running for 90+ minutes, supplying 10–58V or 50–300V output from a 100–347V input.
The LiFePO4 battery recharges in 24 hours and needs no maintenance. A charging indicator, a test switch and a monthly self-test show its status. It installs permanently in a listed emergency luminaire, suited to commercial buildings, schools, hospitals, factories and data centers.
UL and cULus listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | Low Temperature Emergency LED Driver (EMX) |
| Electrical | |
|---|---|
| Current | up to 100mA (maximum) |
| Frequency | 50 / 60 Hz |
| Voltage | 100–347V |
| Physical | |
|---|---|
| Weight | up to 0.88 lb |
| Maintenance | No maintenance (battery) |
| Emergency | |
|---|---|
| Battery Serviceability | No |
| Charge Time | 24 hours |
| Emergency Power | 8W |
| Emergency Runtime | 90+ minutes |
| Output Voltage | EMX-08058DO-HC: 10–58V / EMX-08300DO-HC: 50–300V |
| Indicator Light | Malfunction indicator (malfunction) / Charging indicator / Status indicator (separate) / Status indicator (metal integrated) / Status indicator (plastic integrated) / Status indicator (FPC) |
| Test Switch | Self-test (automatic) / Yes (manual) / Yes (separate) / Yes (metal integrated) / Yes (plastic integrated) / Yes (FPC) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL / cULus |
| Location Rating | Indoor / Ordinary Location |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / FCC / RoHS |
