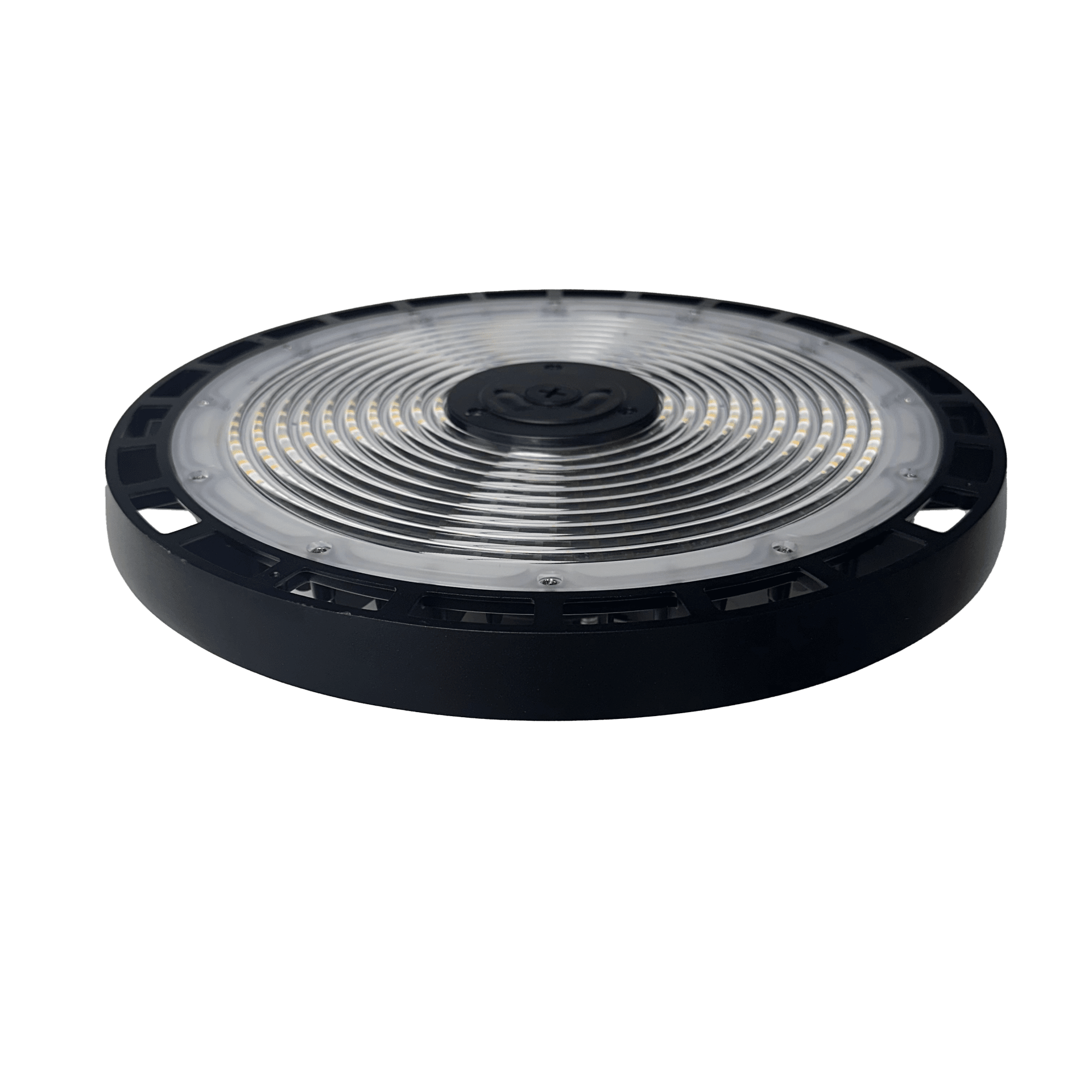

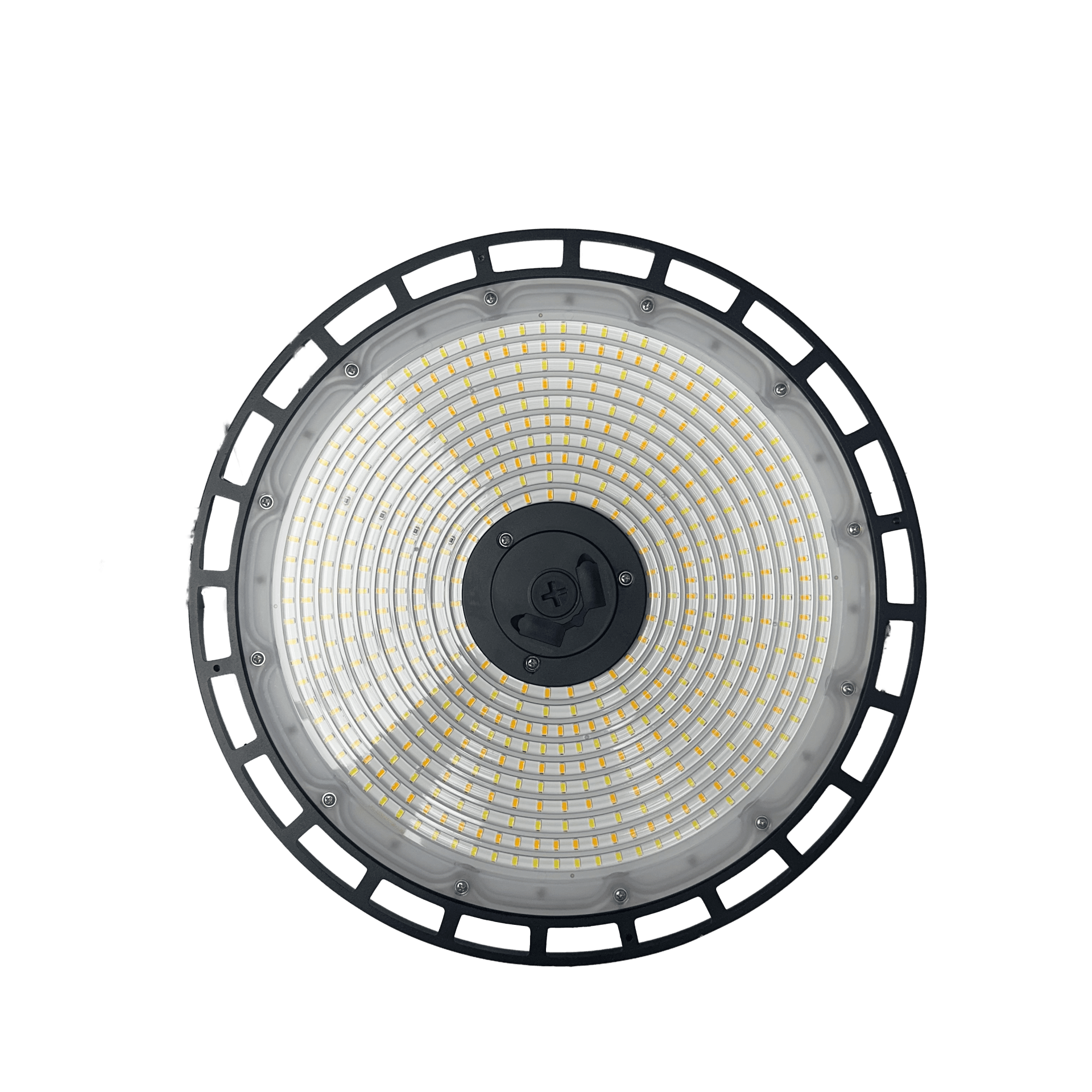

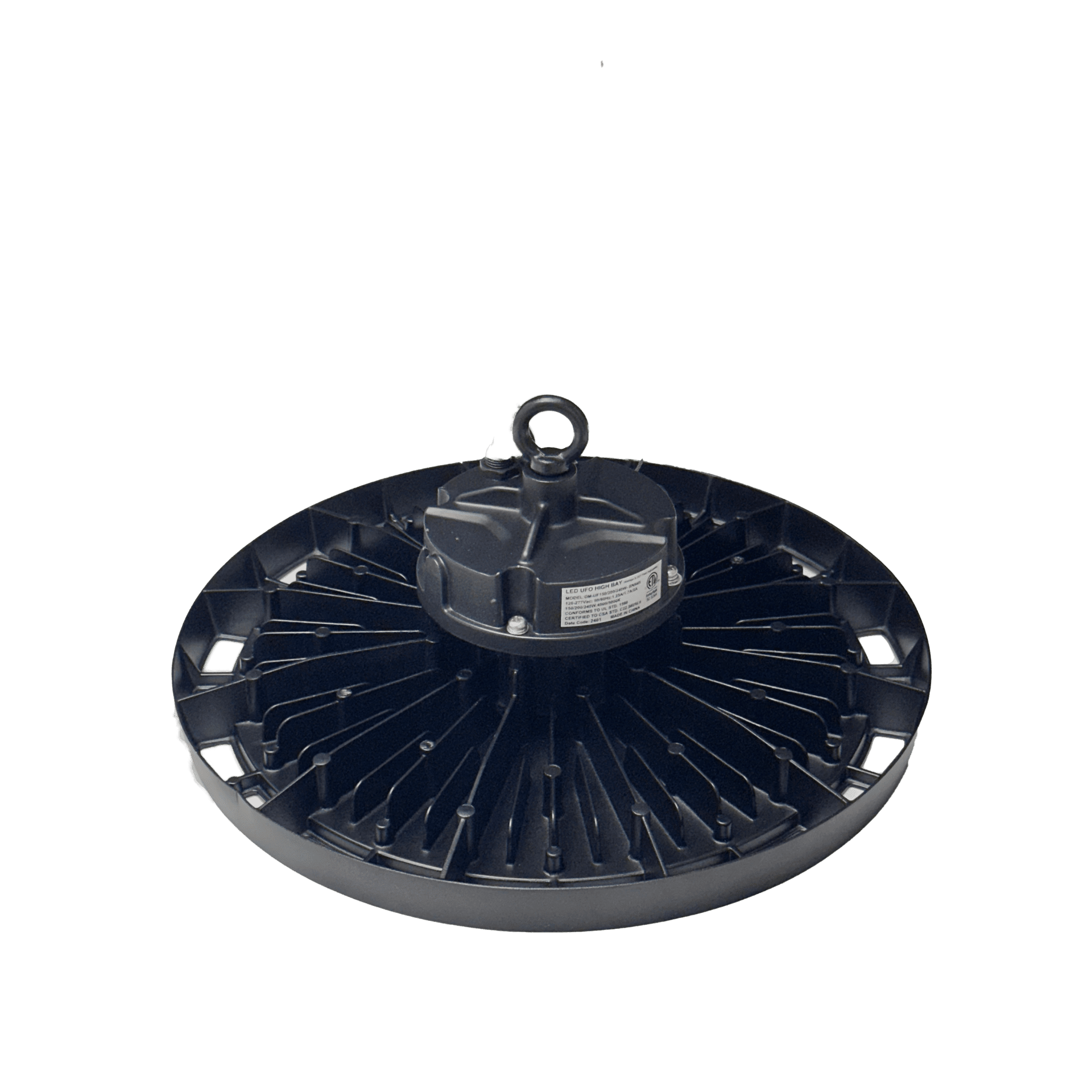

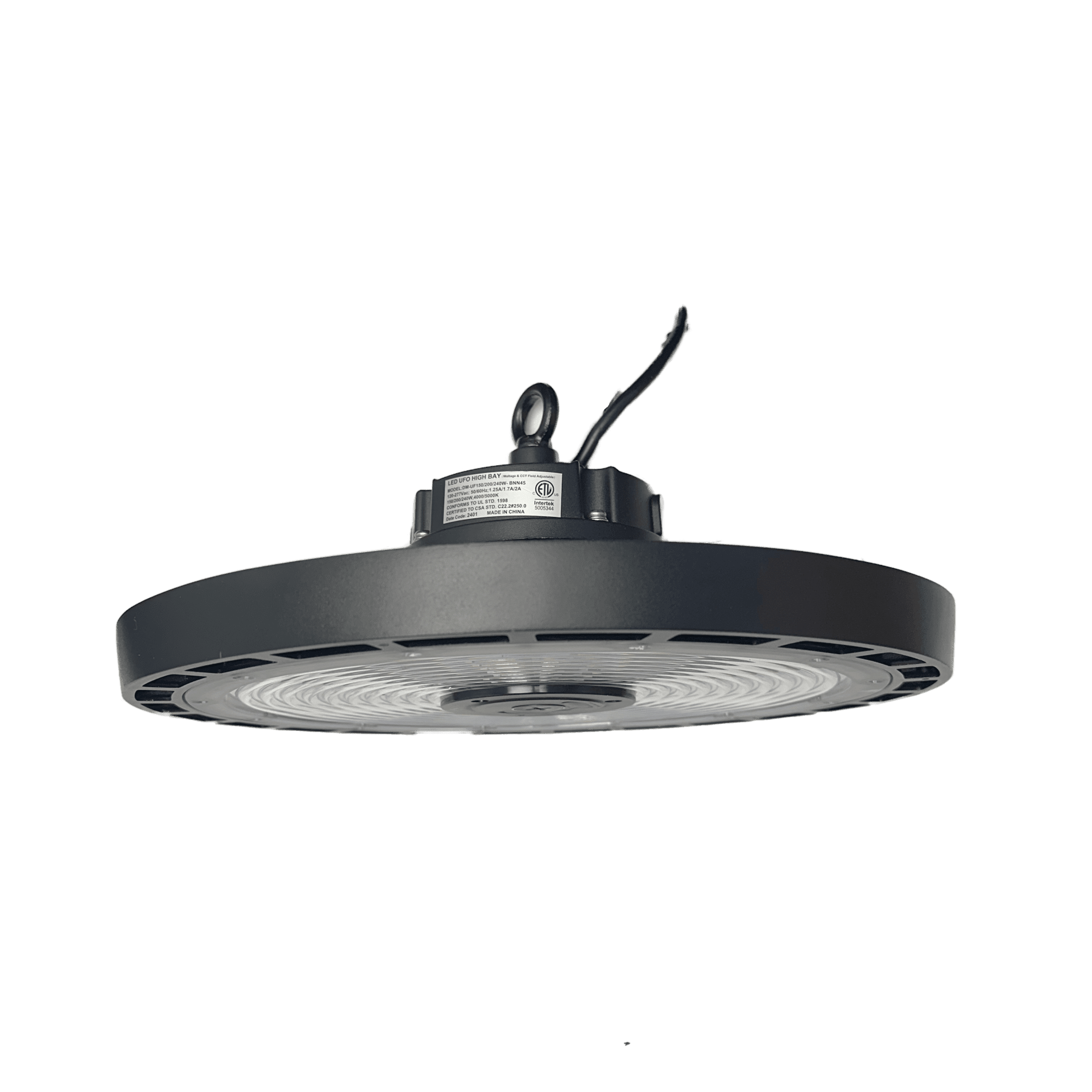

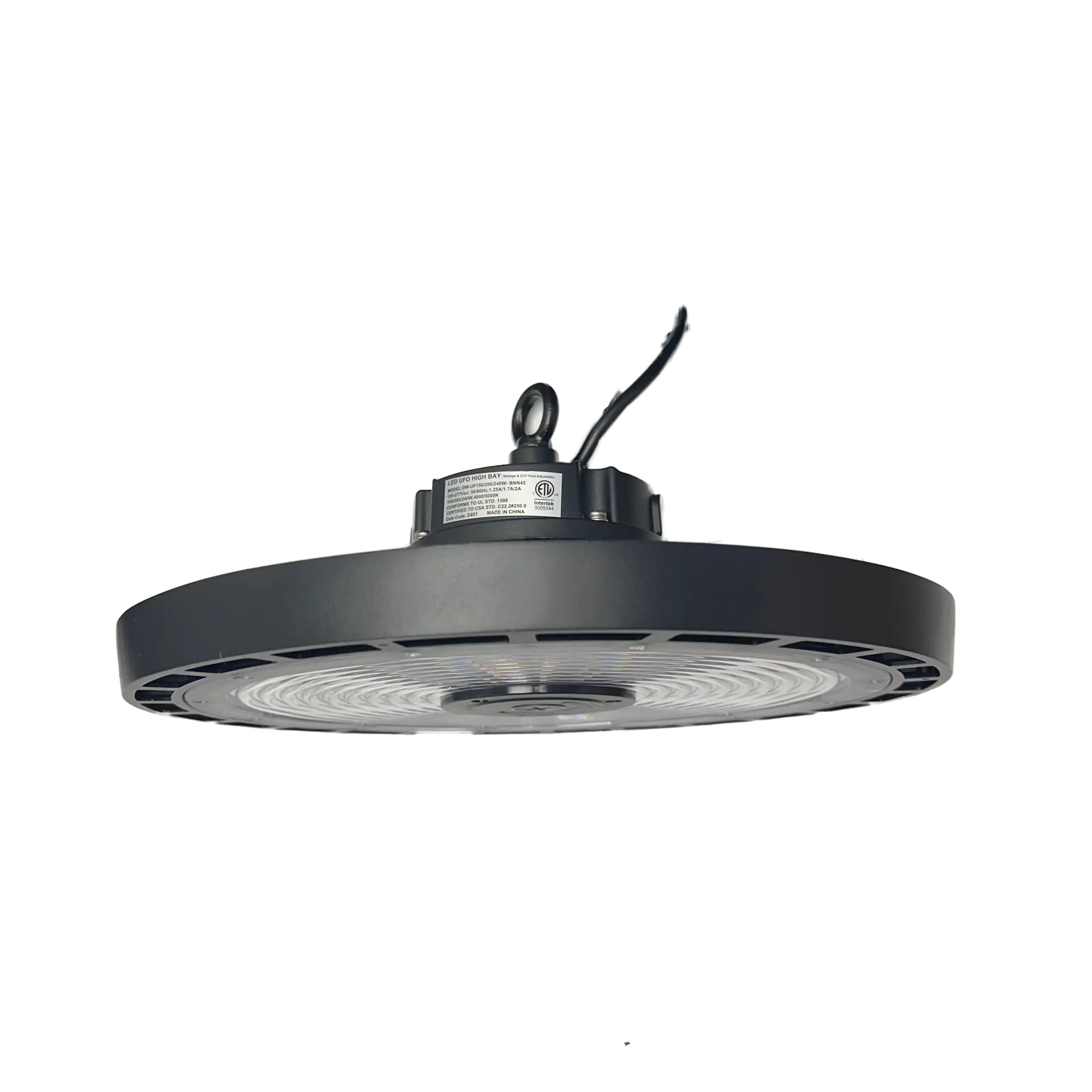

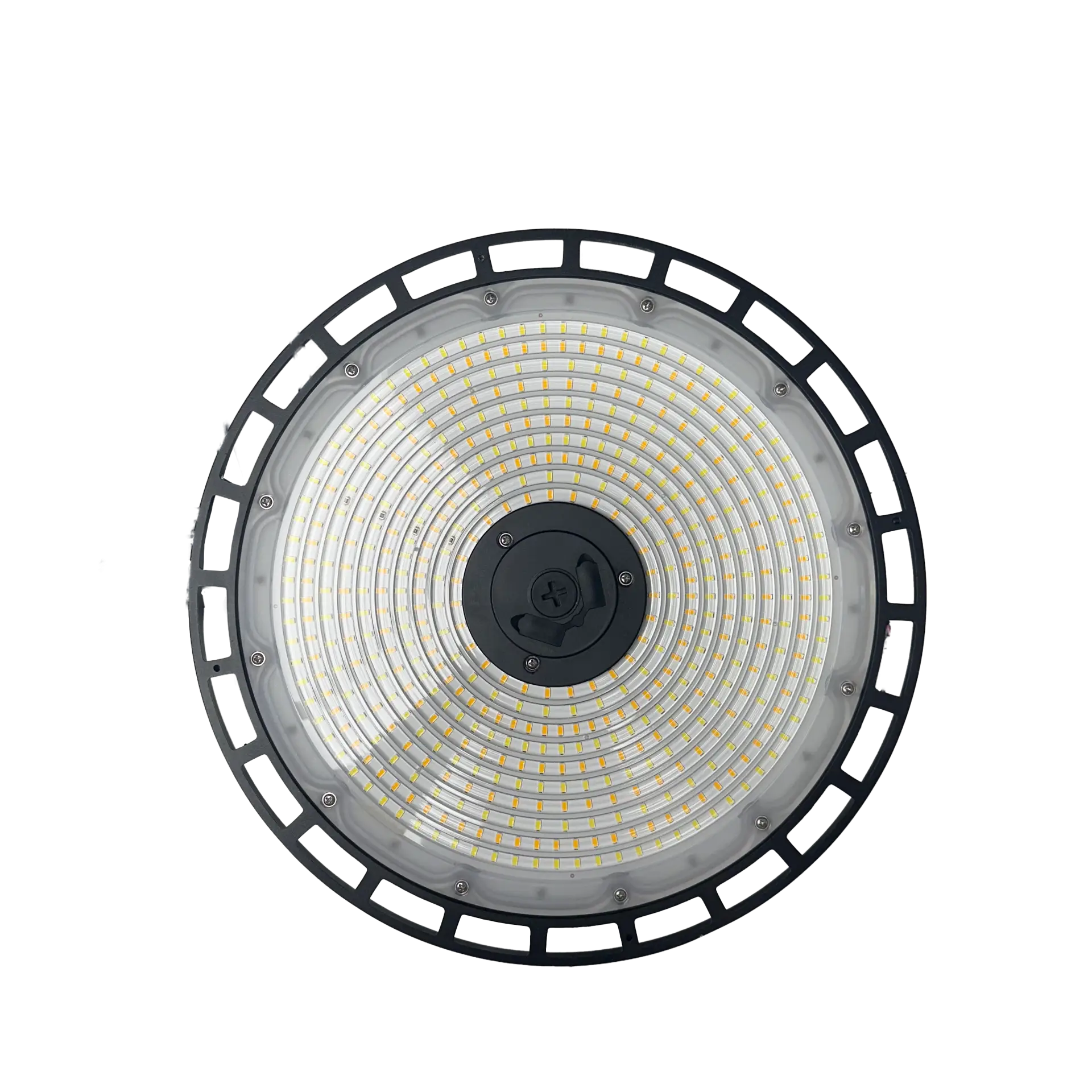

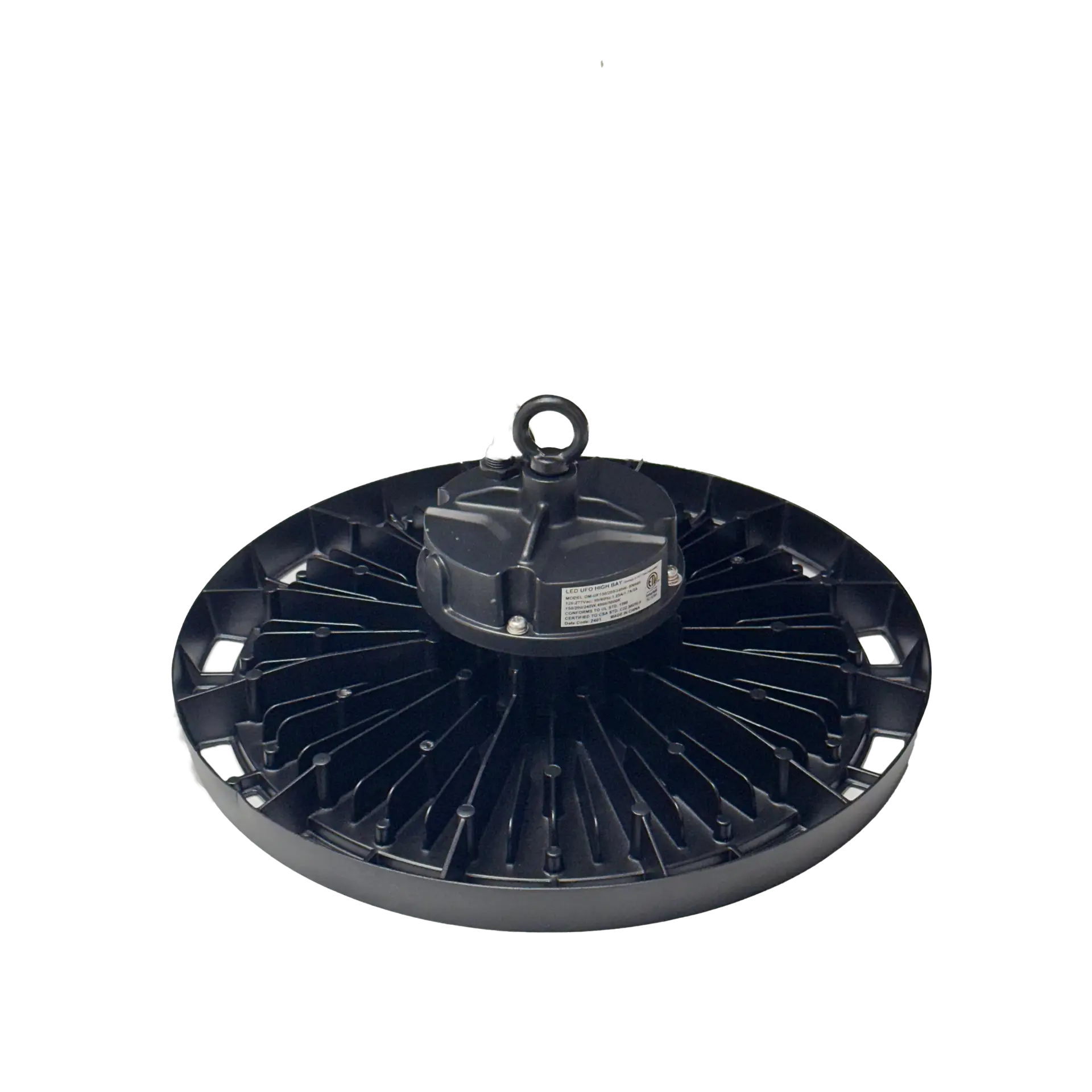

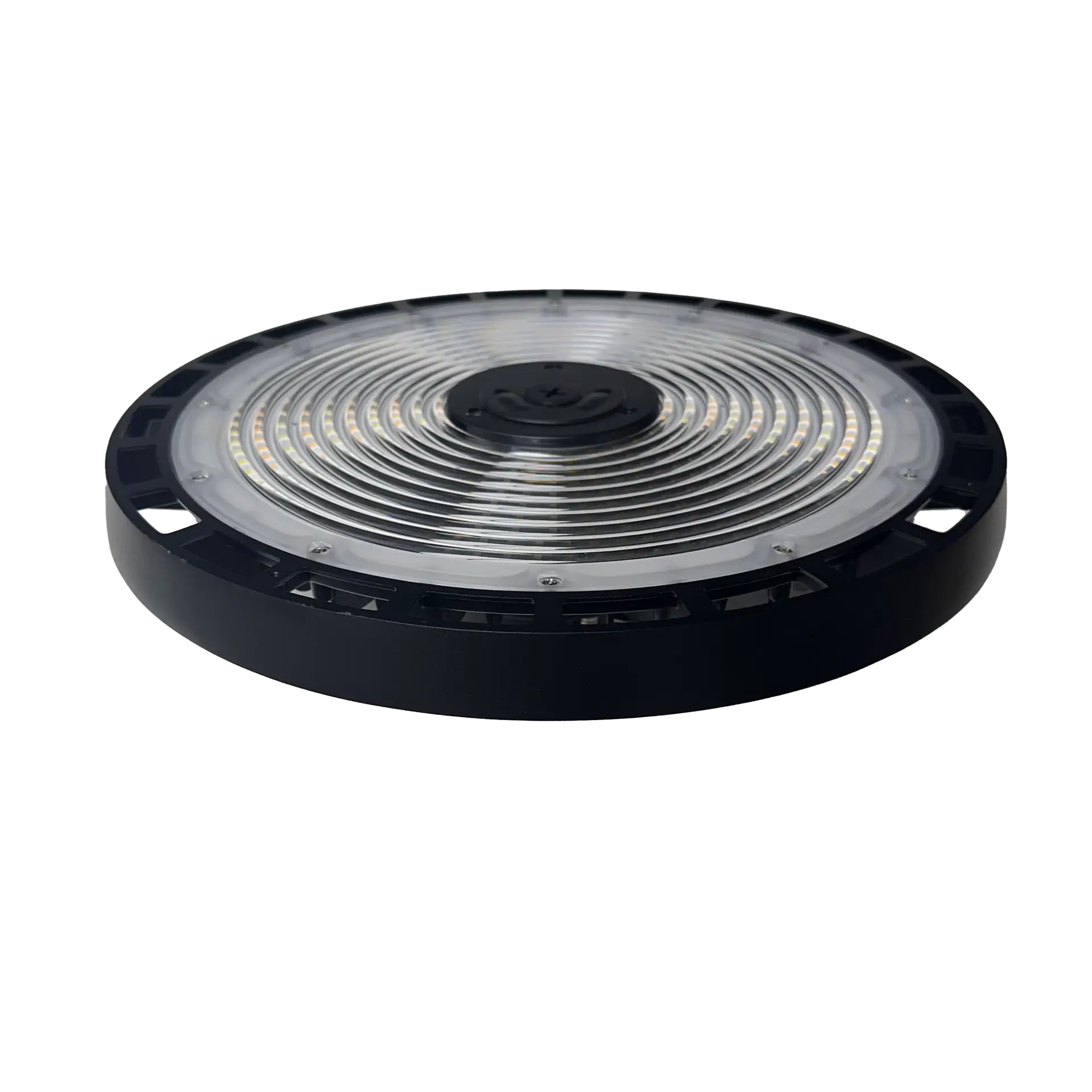

UFO High Bay Shop Light 240W Wattage & CCT Tunable
UFO High Bay Shop Light 240W Wattage & CCT Tunable
Model: E2-HB-UFO-150/200/240W-40/50K-120/277V
150/200/240W Wattage Selectable, Up to 38,400 Lumens
4000K/5000K CCT Selectable
1-10V Dimmable
120-277 Volt
IP65
Specifications
| Wattage | 150W / 200W / 240W |
| Voltage | 120-277V |
| CCT | 4000K / 5000K |
| CRI | 80+ (at 240W, at maximum CCT 5000K) |
| Lumens | 24,000 lm / 32,000 lm / 38,400 lm / 38,400 lm (at 240W, at maximum CCT 5000K) |
| Lifespan | 100,000+ hours (at L70, at Ta = 25°C) |
| Listings | cETLus, DLC Premium, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 14 in |
| Beam Angle | 88.3° (at 240W photometric configuration) |
| Efficacy | 160 lm/W |
| Power Factor | 0.998 (at 240W, at maximum CCT 5000K) |
| THD | 20.8% (at 240W, at maximum CCT 5000K) |
| Ambient Temperature | -40–50 °C (operating) |
| Diameter | Large size: 14.17 in |
| Dimensions | Large size: 6.48 in |
| Color | Black / White |
| Mounting | Surface (U bracket) / Suspended (ring) |
| Weight | Large size: 6.5 lb (net) / Large size: 6.94 lb (gross) |
| Emergency Backup | Optional (order separately) |
| Emergency Power | 30W (optional) / 40W (optional) |

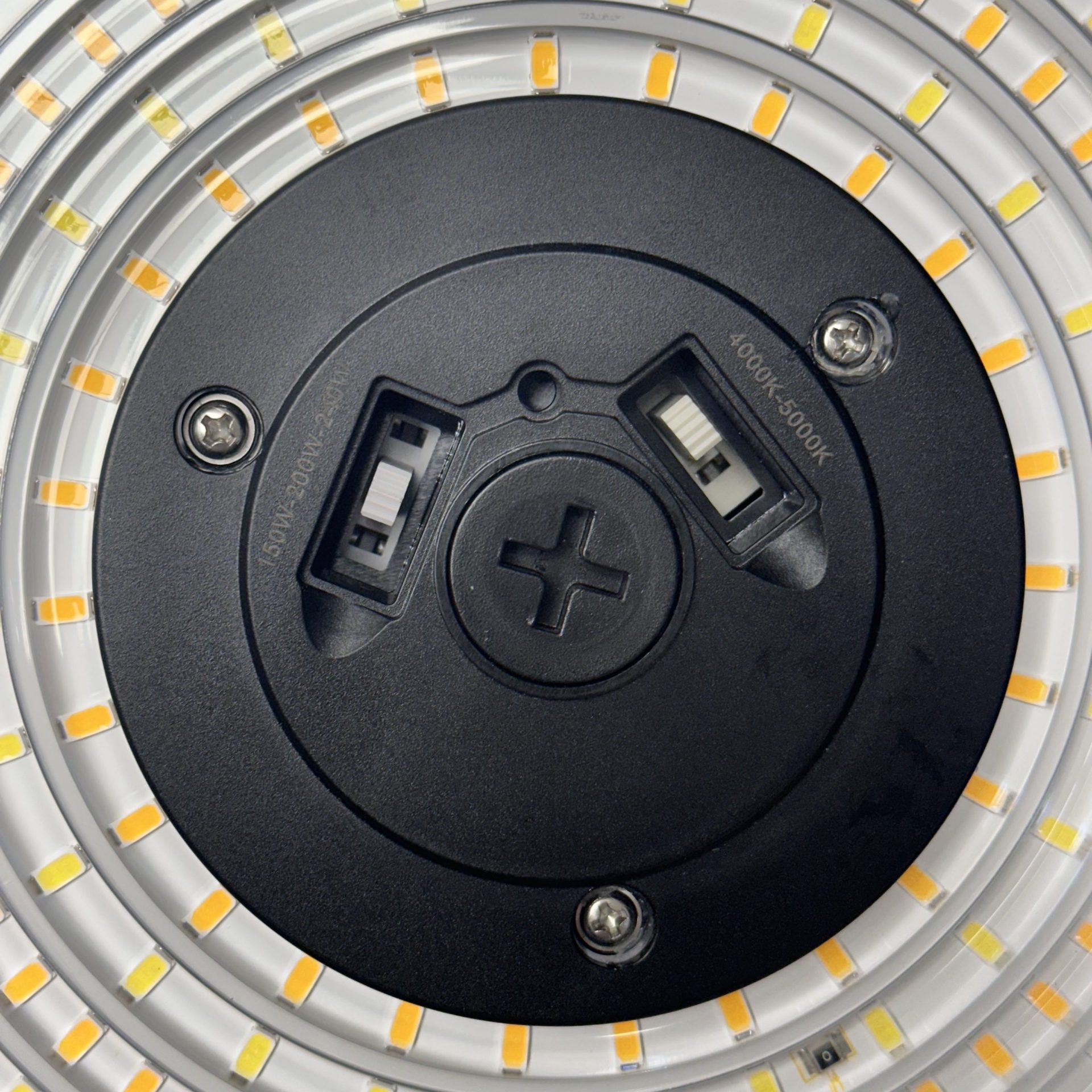

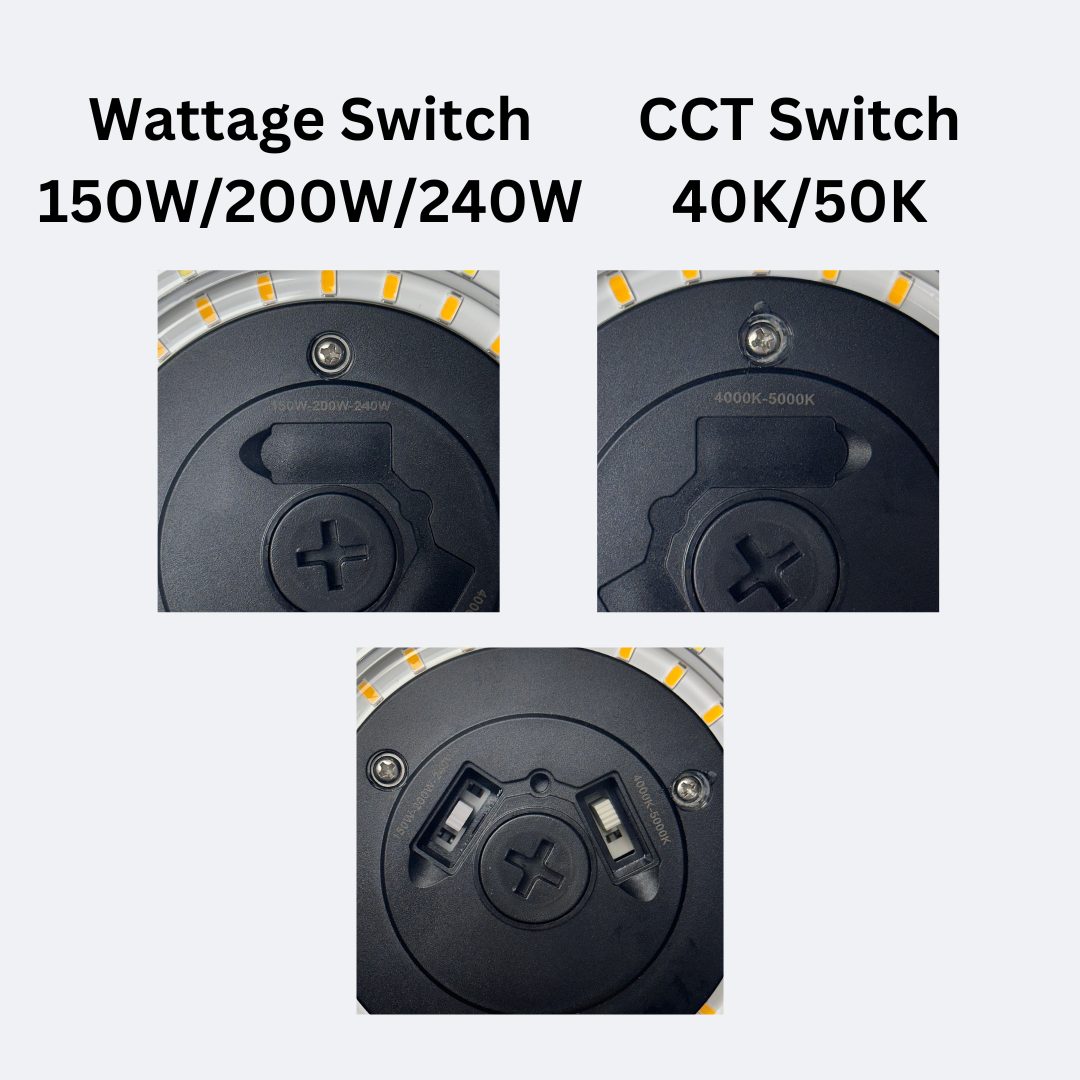

| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming | 1–10V |
| Motion Sensor | Optional (microwave) |
| Wattage Selectable | Yes (emergency power module) / Yes (DIP switch) |

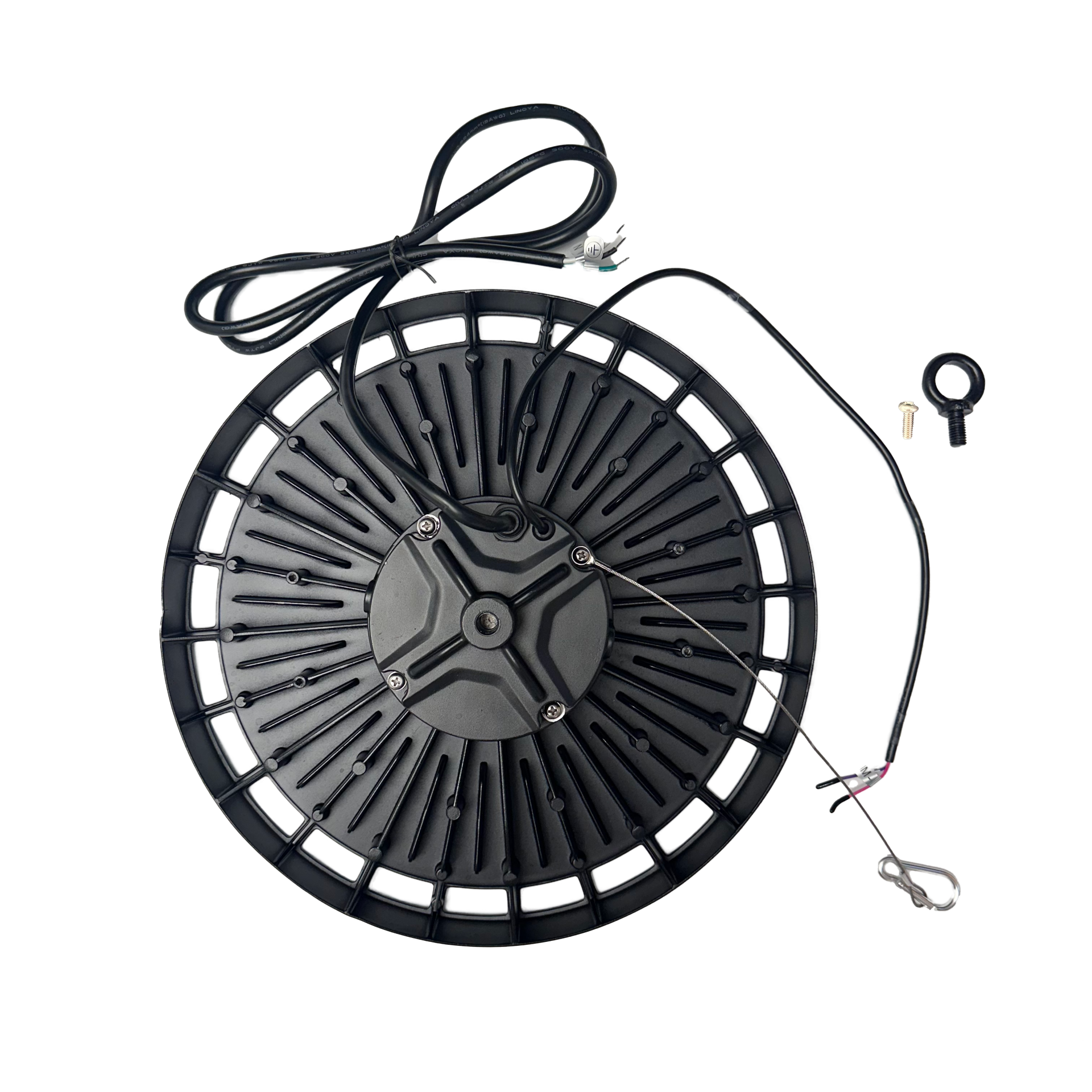

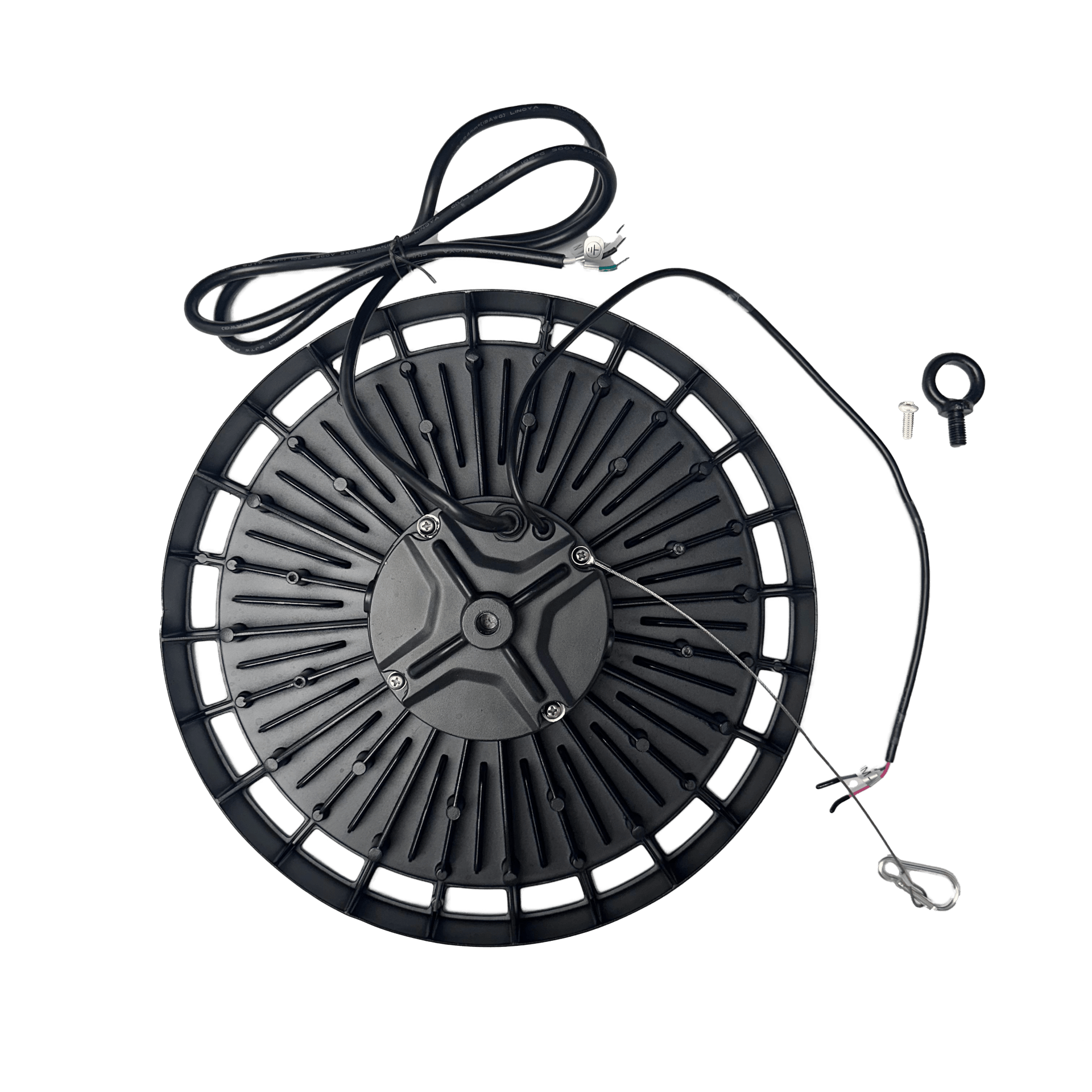

| Accessories | Safety rope (included) |
| Family | High bay |
| Series | E2 UFO high bay, wattage and CCT selectable (UF) |
Description

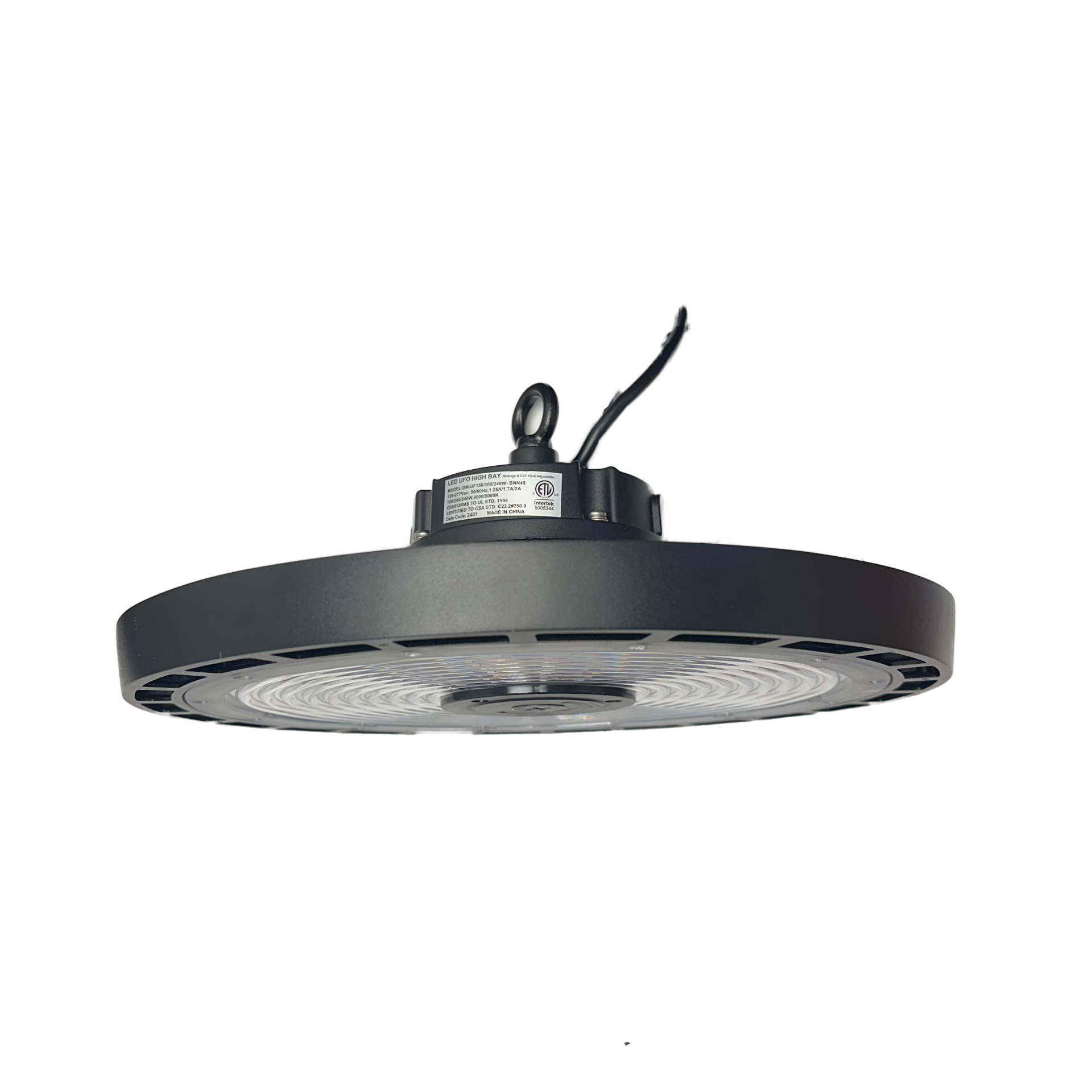

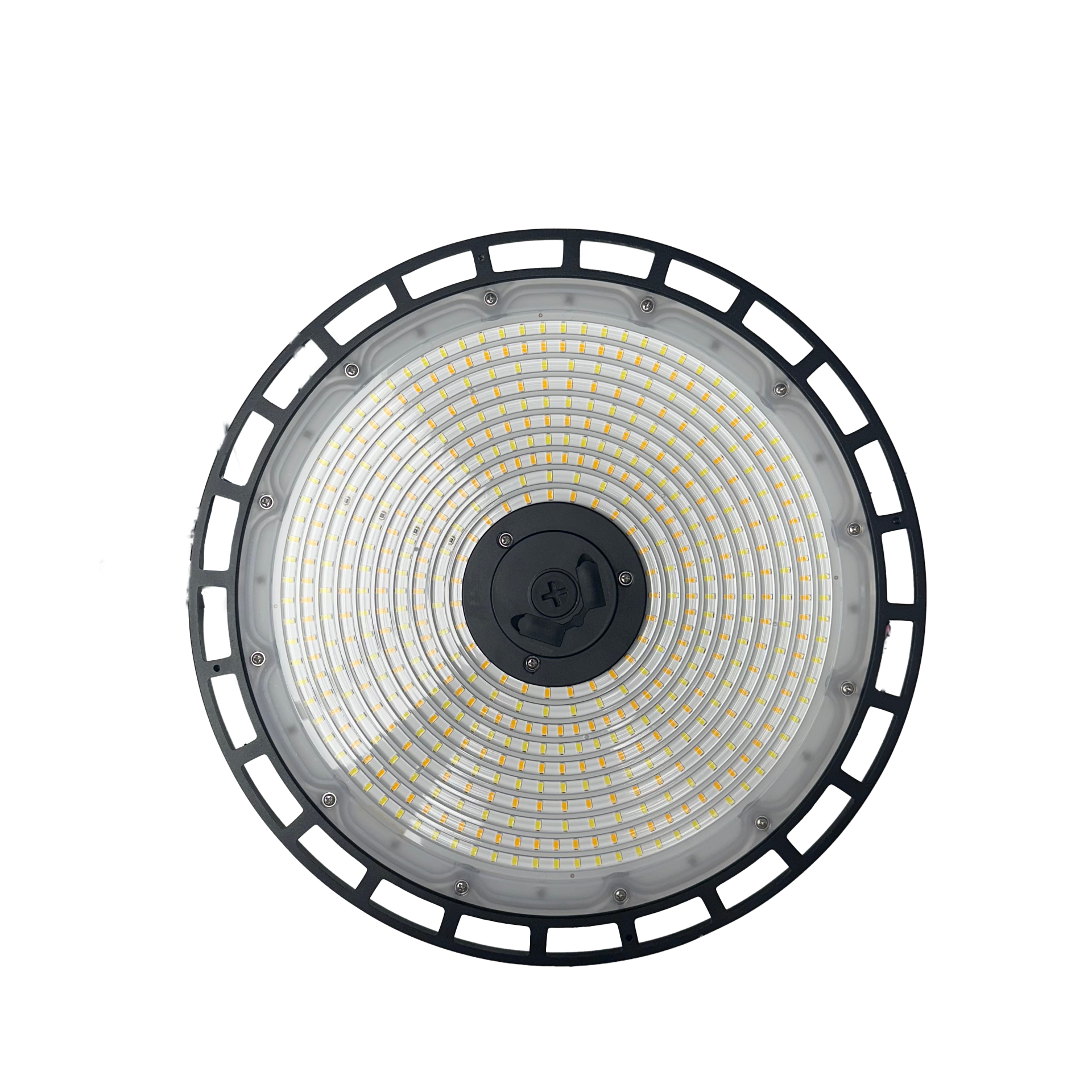

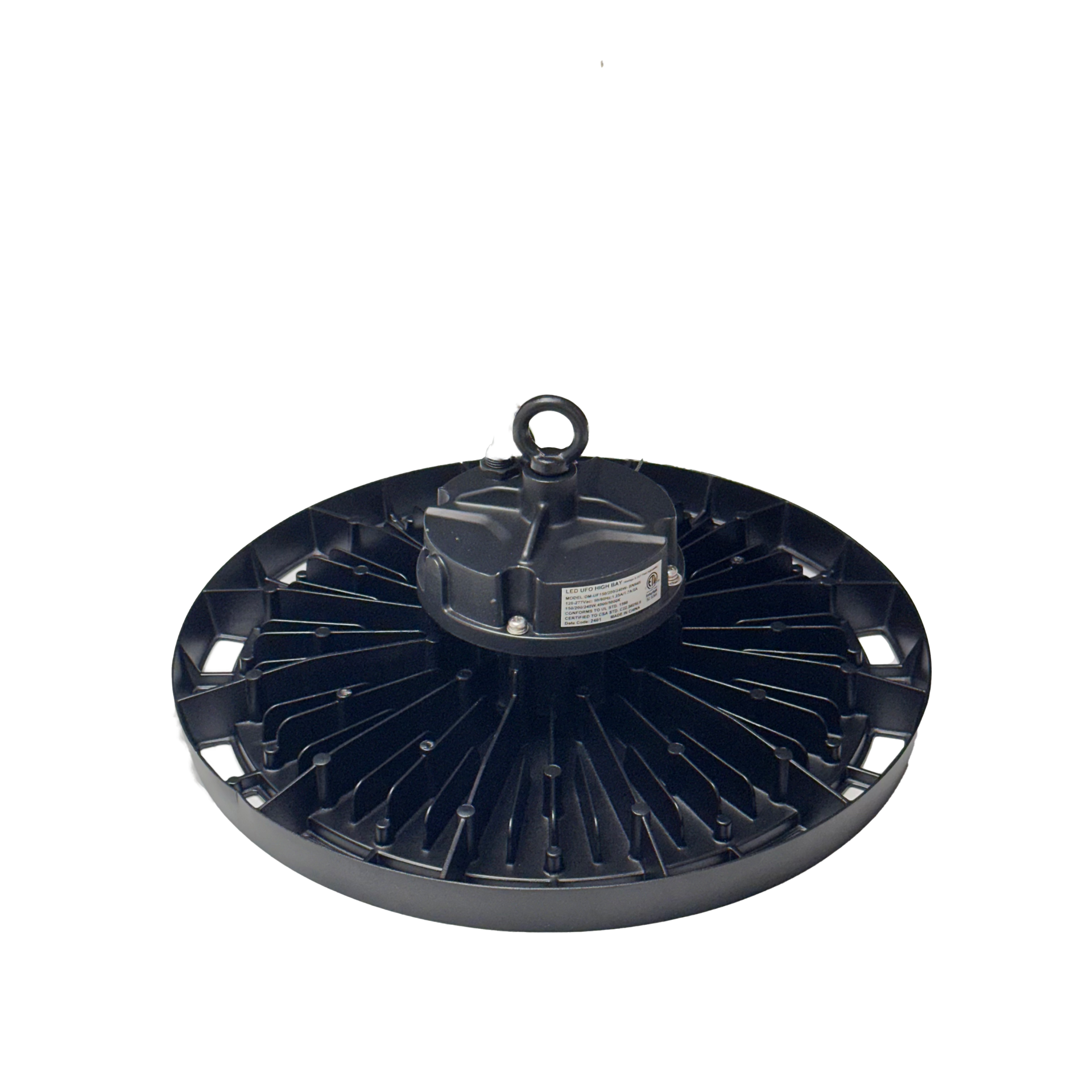

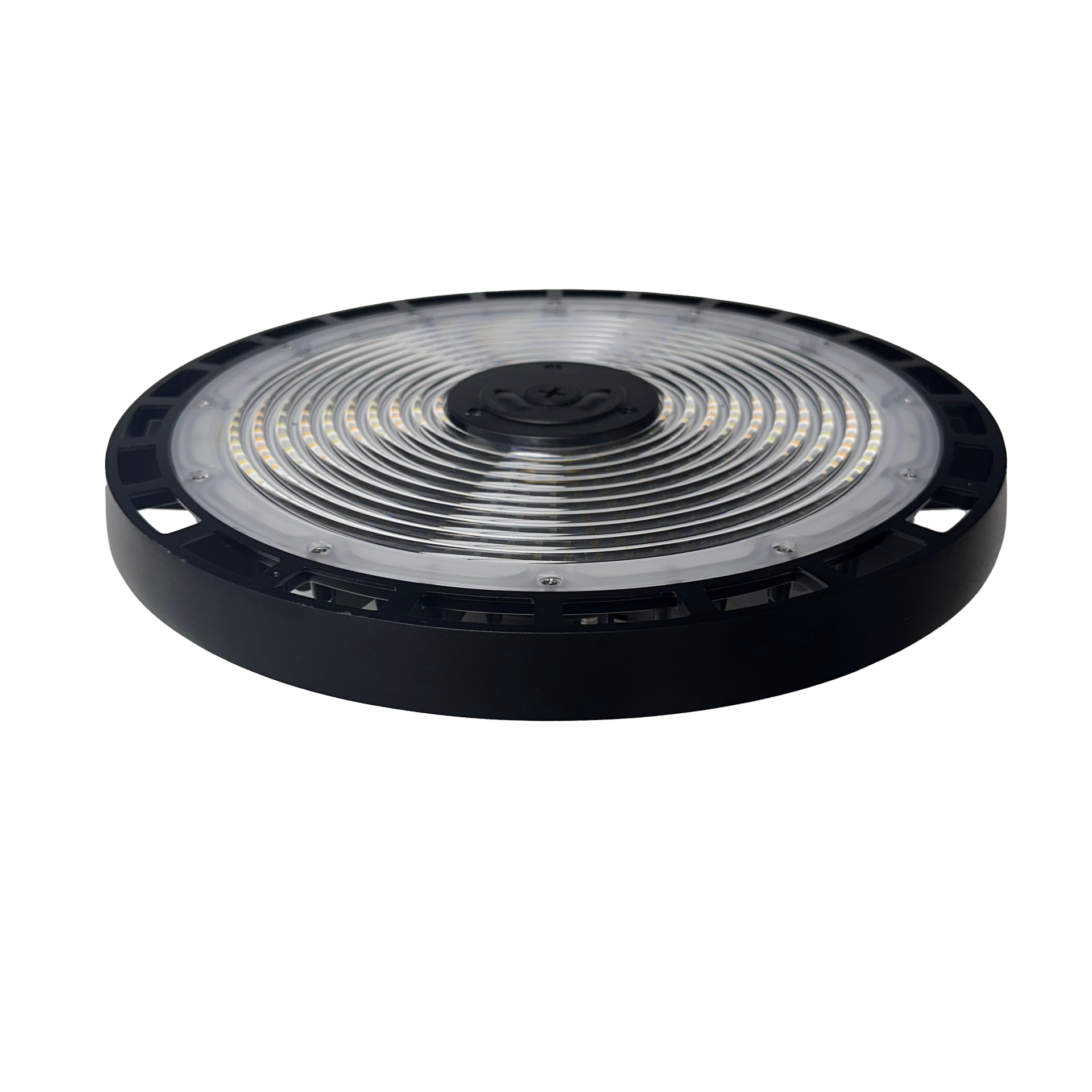

A UFO LED high bay for warehouses, gyms, factories, workshops and industrial spaces, with dip switches to set wattage at 150, 200 or 240W, giving 24,000, 32,000 or 38,400 lumens, and color temperature at 4000K or 5000K. It produces 160 lm/W through an 88.3° beam with CRI 80+.

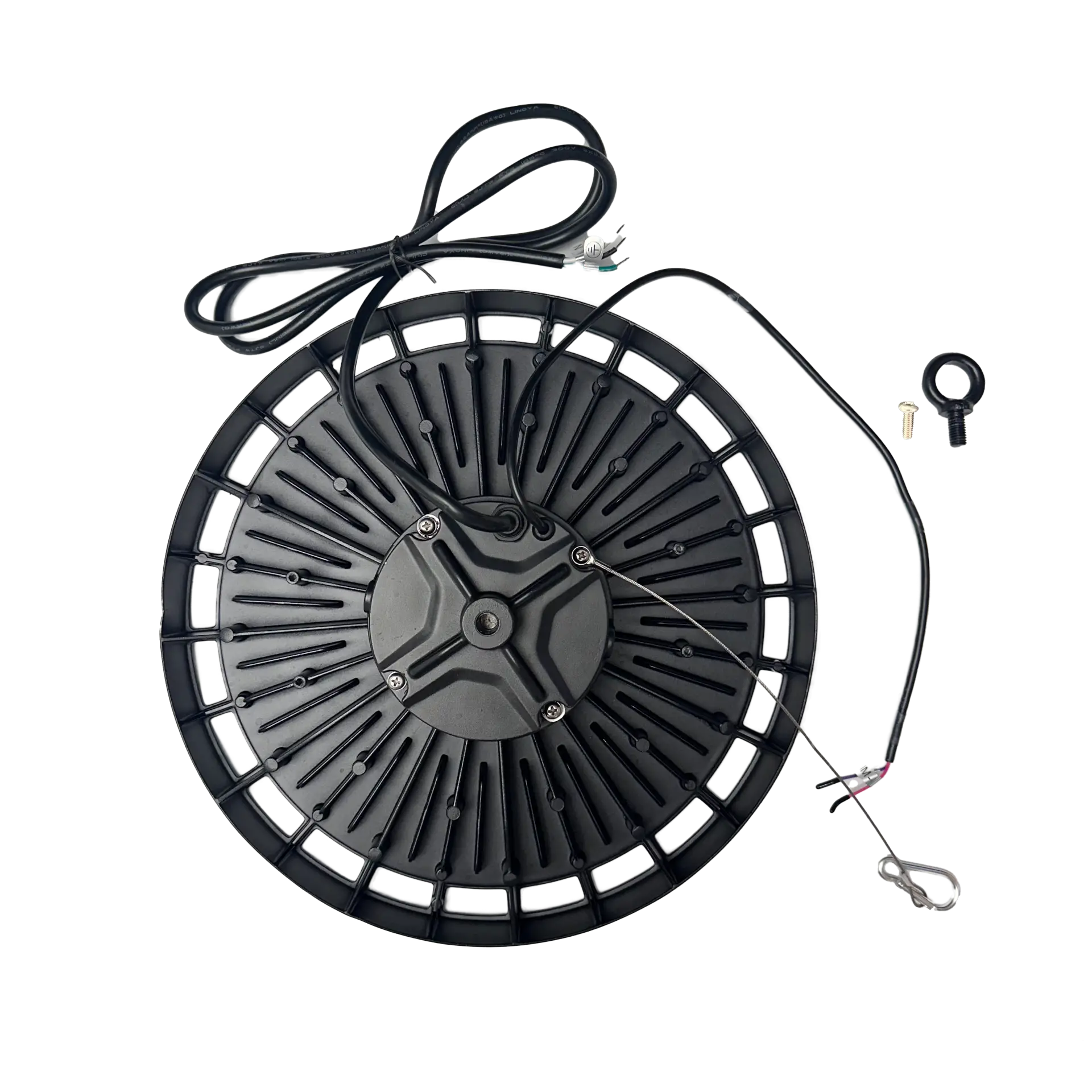

It dims with 1–10V controls and runs on 120–277V. The IP65-rated fixture operates from -40°C to 50°C, measures 14.17 in across, comes in black or white and mounts suspended or to a surface, with a safety rope included. A motion sensor and emergency backup can be ordered separately.
UL, cETLus and DLC Premium listed, with a 100,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | E2 UFO high bay, wattage and CCT selectable (UF) |
| Size | 14 in |
| Light | |
|---|---|
| Beam Angle | 88.3° (at 240W photometric configuration) |
| CCT | 4000 / 5000K |
| CRI | 80+ (at 240W, at maximum CCT 5000K) |
| Efficacy | 160 lm/W |
| Lumens | 24,000 lm / 32,000 lm / 38,400 lm / 38,400 lm (at 240W, at maximum CCT 5000K) |
| Electrical | |
|---|---|
| Power Factor | 0.998 (at 240W, at maximum CCT 5000K) |
| THD | 20.8% (at 240W, at maximum CCT 5000K) |
| Voltage | 120–277V |
| Wattage | 150 / 200 / 240W |
| Physical | |
|---|---|
| Ambient Temperature | -40–50 °C (operating) |
| Diameter | Large size: 14.17 in |
| Dimensions | Large size: 6.48 in |
| Finish | Black / White |
| Mounting | Surface (U bracket) / Suspended (ring) |
| Weight | Large size: 6.5 lb (net) / Large size: 6.94 lb (gross) |
| Emergency | |
|---|---|
| Emergency Backup | Optional (order separately) |
| Emergency Power | 30W (optional) / 40W (optional) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Motion Sensor | Optional (microwave) |
| Wattage Selectable | Yes (emergency power module) / Yes (DIP switch) |
| Warranty | |
|---|---|
| Rated Life | 100,000+ hours (at L70, at Ta = 25°C) |
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium / UL |
| IP Rating | IP65 |
| Accessories | Safety rope (included) |
