4FT/8FT Vapor Tight Fixture with Motion Sensor

4FT/8FT Vapor Tight Fixture with Motion Sensor

Models: E2-VT-FOR-4FT-40/50/60W-30/40/50K, E2-VTFOR-8FT-60/80/100W-30/40/50K

40/50/60W (4 ft) or 60/80/100W (8 ft) Wattage Selectable
Up to 8,100 or 13,500 Lumens
3000K/4000K/5000K CCT Selectable
100-277 Volt
IP65

📄 Download Spec Sheet (PDF)

Specifications

Wattage8 ft: 60 / 80 / 100W; 4 ft: 40 / 50 / 60W
Voltage100-277V
CCT3000K / 4000K / 5000K
CRI> 80
Lumens8FT: 8,100 / 10,800 / 13,500 lm; 4FT: 5,400 / 6,750 / 8,100 lm

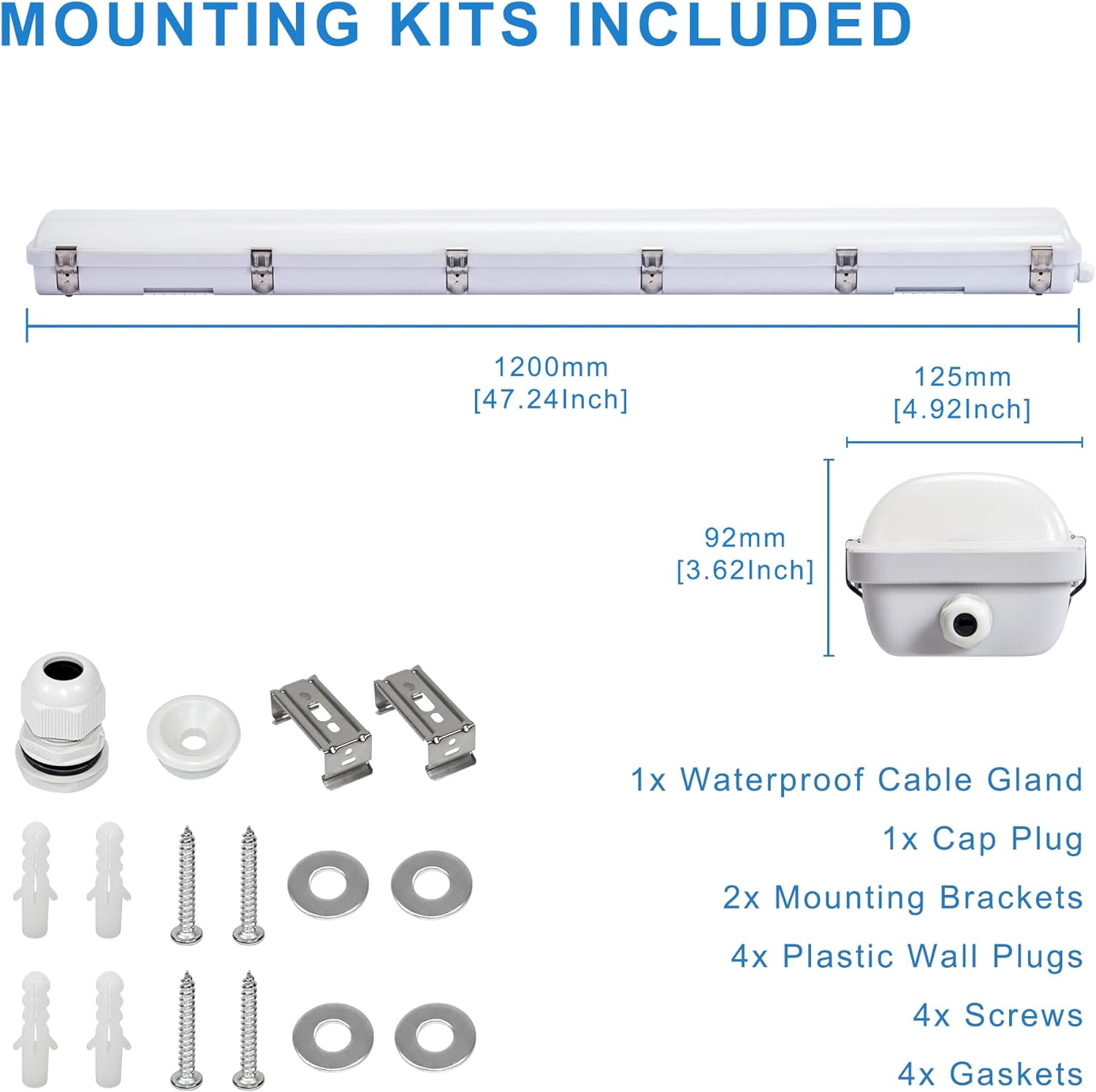

Dimensions8FT: 94.5 × 4.33 × 3.46 in / 4FT: 47.2 × 4.33 × 3.46 in
ListingscETLus, DLC Premium, FCC, IP65 Rating
Size4 / 8 ft
Warranty5-Year Manufacturer's Warranty
Efficacy135 lm/W
Frequency50–60 Hz
Power Factor0.95+
THDup to 20%
Ambient Temperature-22–140 °F (storage)
Linking OptionYes (at fixtures)

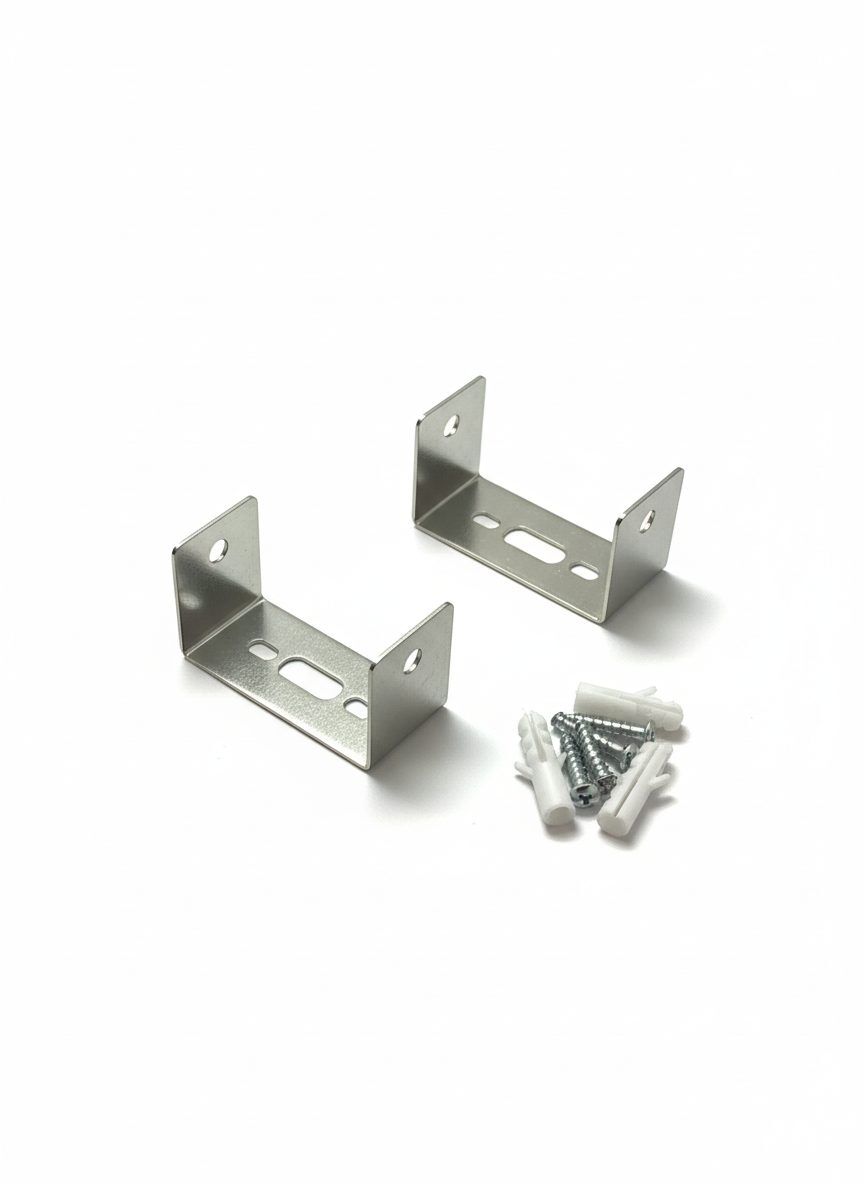

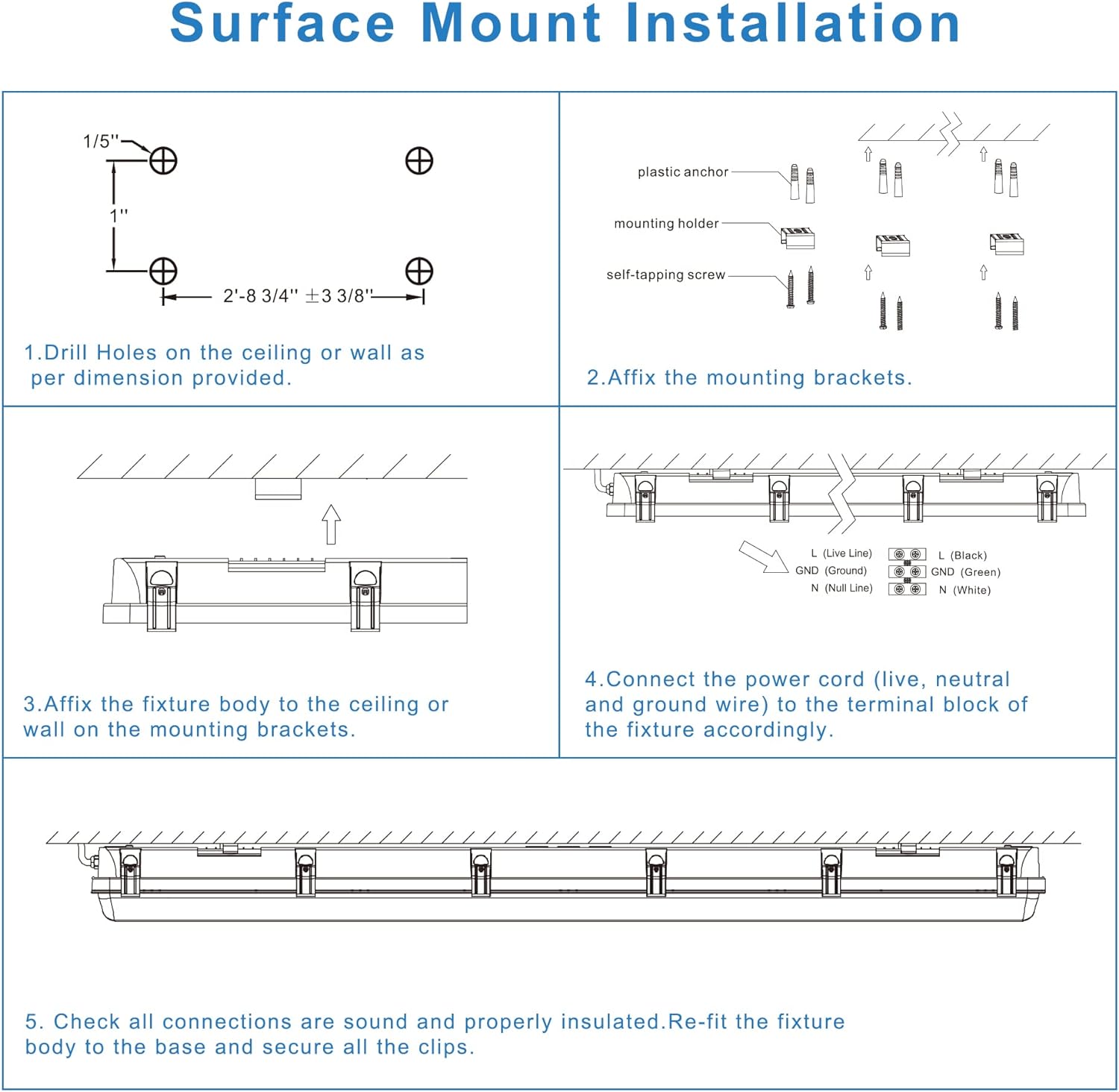

MountingCeiling (quick mount plate)
Emergency BackupOptional (8W300V)
CCT SelectableYes, switchable
DimmableYes
Motion SensorIntegrated
Wattage SelectableYes
Mercury FreeYes
StandardsFCC
Lifespan50,000 hours
FamilyVapor-tight linear luminaire
SeriesE2 VT-FOR vapor tight

Description

This LED vapor tight fixture with a built-in motion sensor comes in a 4-foot and an 8-foot model, for commercial, industrial and residential lighting in areas exposed to harsh conditions, and is a great replacement for traditional fluorescent fixtures. Its IP65 rating suits garages, stairwells, storage areas, subways, tunnels, barns, swimming pools, automotive repair facilities, car washes and food processing facilities such as freezers, bakeries and kitchens.

Wattage is selectable at 40, 50 or 60W on the 4-foot model (5,400, 6,750 or 8,100 lumens) and at 60, 80 or 100W on the 8-foot model (8,100, 10,800 or 13,500 lumens), at 135 lm/W. Color temperature is 3000K, 4000K or 5000K with CRI 80+, both set before installation. It is dimmable, runs on 100–277V and operates from -22 to 140 °F. The fixture measures 47.2 × 4.33 × 3.46 in in the 4-foot model and 94.5 × 4.33 × 3.46 in in the 8-foot model, mounts to the ceiling with a quick mount plate and links to further fixtures through a fast connection.

cETLus and DLC Premium listed and mercury-free, with a 50,000-hour rated life and a 5-year limited warranty.

Specifications

General
FamilyVapor-tight linear luminaire
SeriesE2 VT-FOR vapor tight
Size4 / 8 ft
Light
CCT3000 / 4000 / 5000K
CRI80+
Efficacy135 lm/W
Lumens8FT: 8,100 / 10,800 / 13,500 lm; 4FT: 5,400 / 6,750 / 8,100 lm
Electrical
Frequency50–60 Hz
Power Factor0.95+
THDup to 20%
Voltage100–277V
Wattage8 ft: 60 / 80 / 100W; 4 ft: 40 / 50 / 60W
Physical
Ambient Temperature-22–140 °F (storage)
Dimensions8FT: 94.5 × 4.33 × 3.46 in / 4FT: 47.2 × 4.33 × 3.46 in
Linking OptionYes (at fixtures)
MountingCeiling (quick mount plate)
Emergency
Emergency BackupOptional (8W300V)
Controls
CCT SelectableYes, switchable
DimmableYes
Motion SensorIntegrated
Wattage SelectableYes
Warranty
Rated Life50,000 hours
Warranty5 years
CertificationscETLus / DLC Premium
IP RatingIP65
Mercury FreeYes
StandardsFCC
