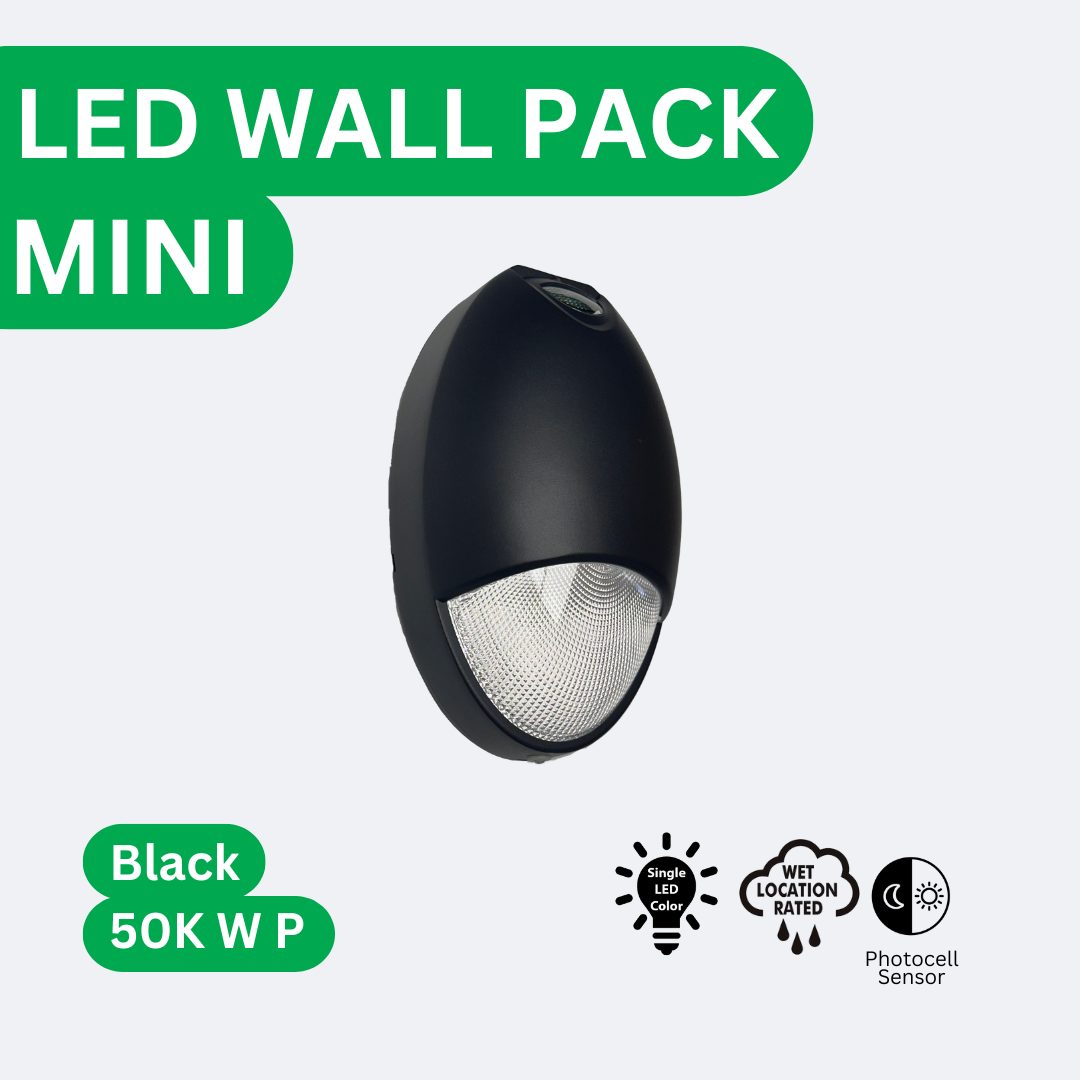

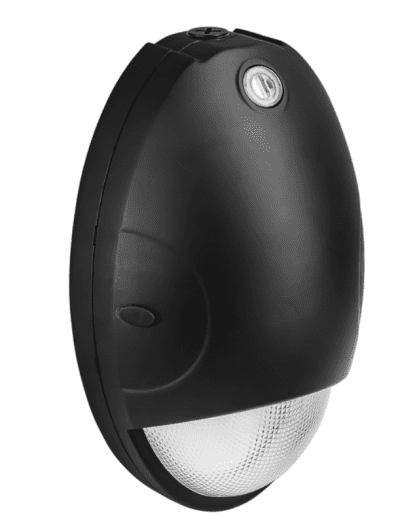

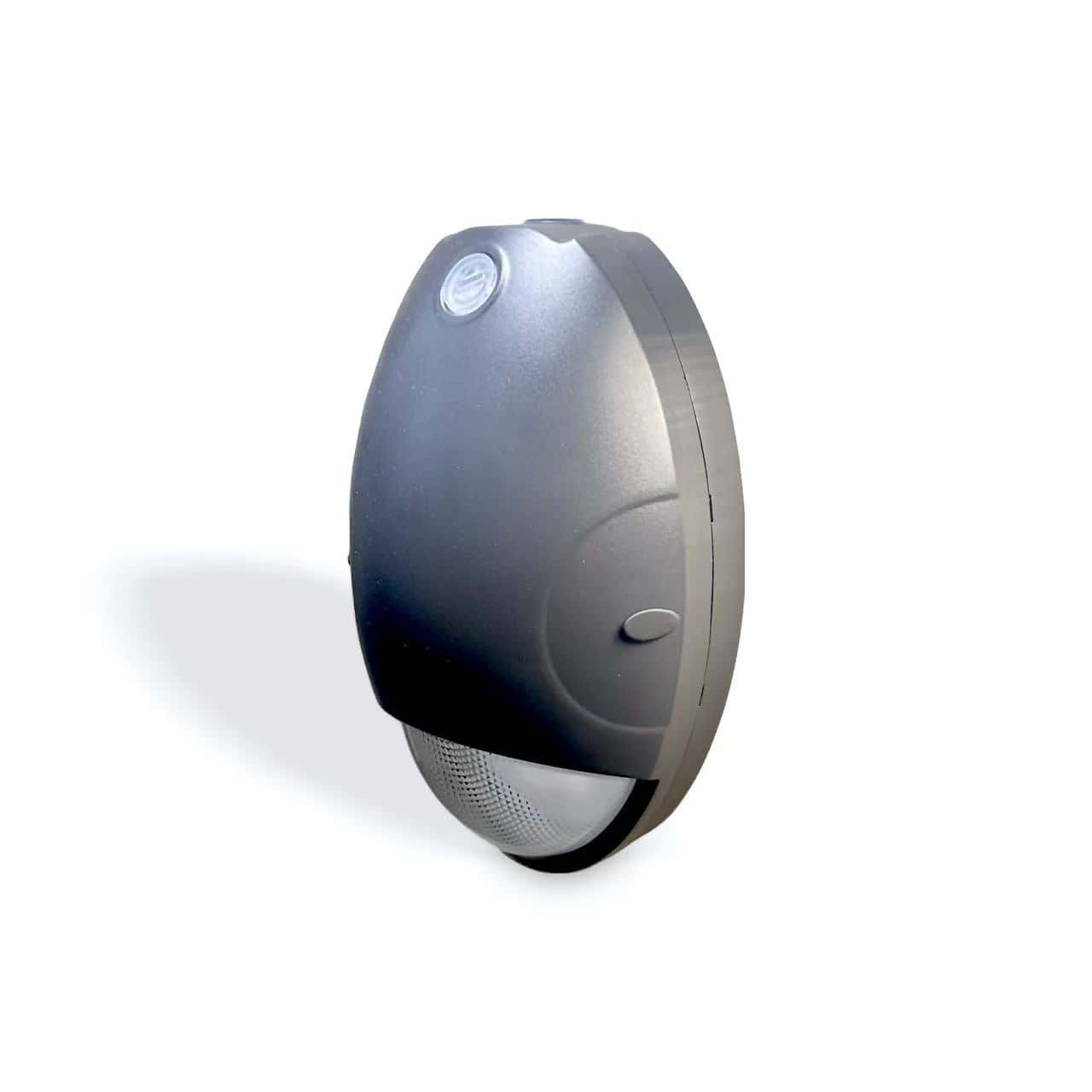

15W Black Mini Wall Pack With Emergency Battery Backup CCT Tunable
15W Black Mini Wall Pack With Emergency Battery Backup CCT Tunable
Model: E2-WP-M-15W-35/40/50K-E-BK
15W, 1,870 Lumens
3500K/4000K/5000K CCT Selectable
Built-in 5W Emergency Battery, 90 Minutes
120-277 Volt
IP65
Specifications
| Wattage | 15W |
| Voltage | 120-277V |
| CCT | 3500K / 4000K / 5000K |
| CRI | 72+ |
| Lumens | 1,870 lm (at 15W) |
| Lifespan | 50,000 hours |

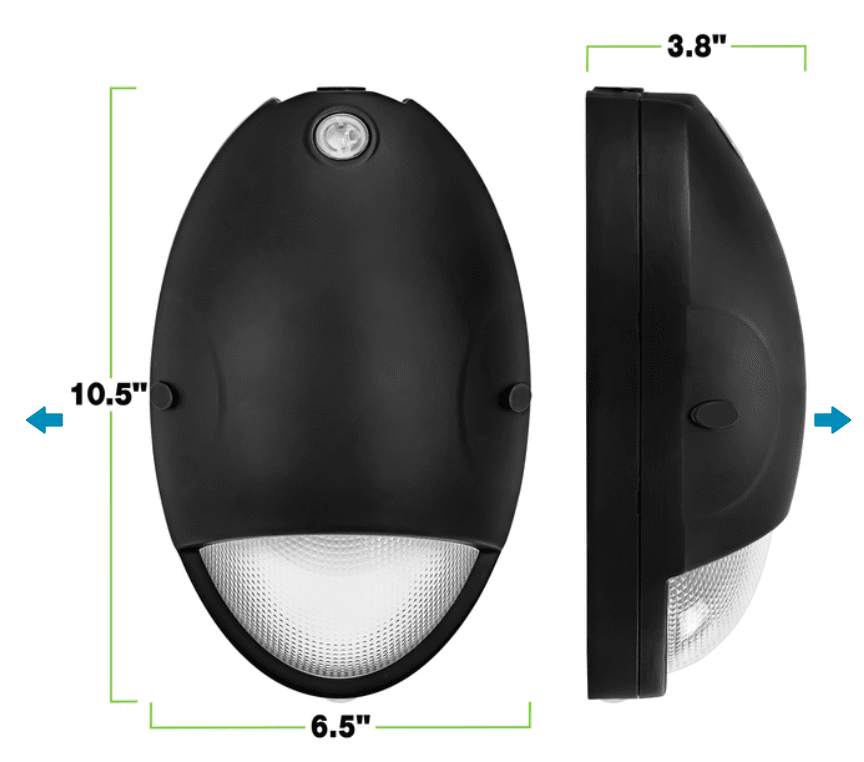

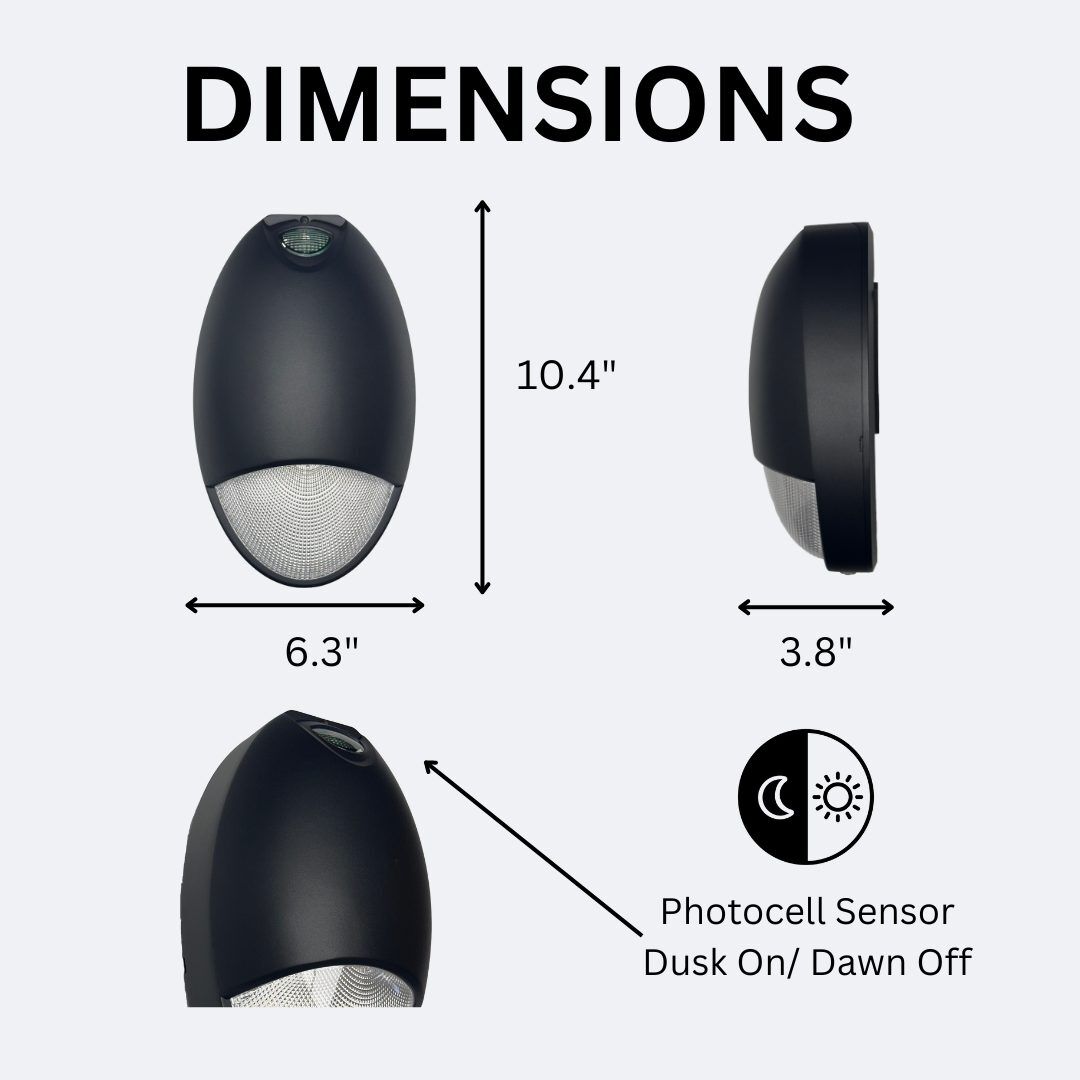

| Dimensions | 10.4" × 6.5" × 3.8" |
| Listings | DLC Standard, IP65 Rating, UL Listed |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | COB LED |
| Efficacy | 120 lm/W |
| Current | 0.14A (at 120V) / 0.05A (at 277V) |
| Ambient Temperature | -10–40 °C (operating) |
| Recharge Time | 24 hours |
| Conversion Time | up to 0.2 seconds |
| Emergency Backup | Integrated |
| Emergency Lumens | 600 lm |
| Emergency Power | 5W |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button (button, manual) |
| Daylight Threshold | 3 fc |
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
Description

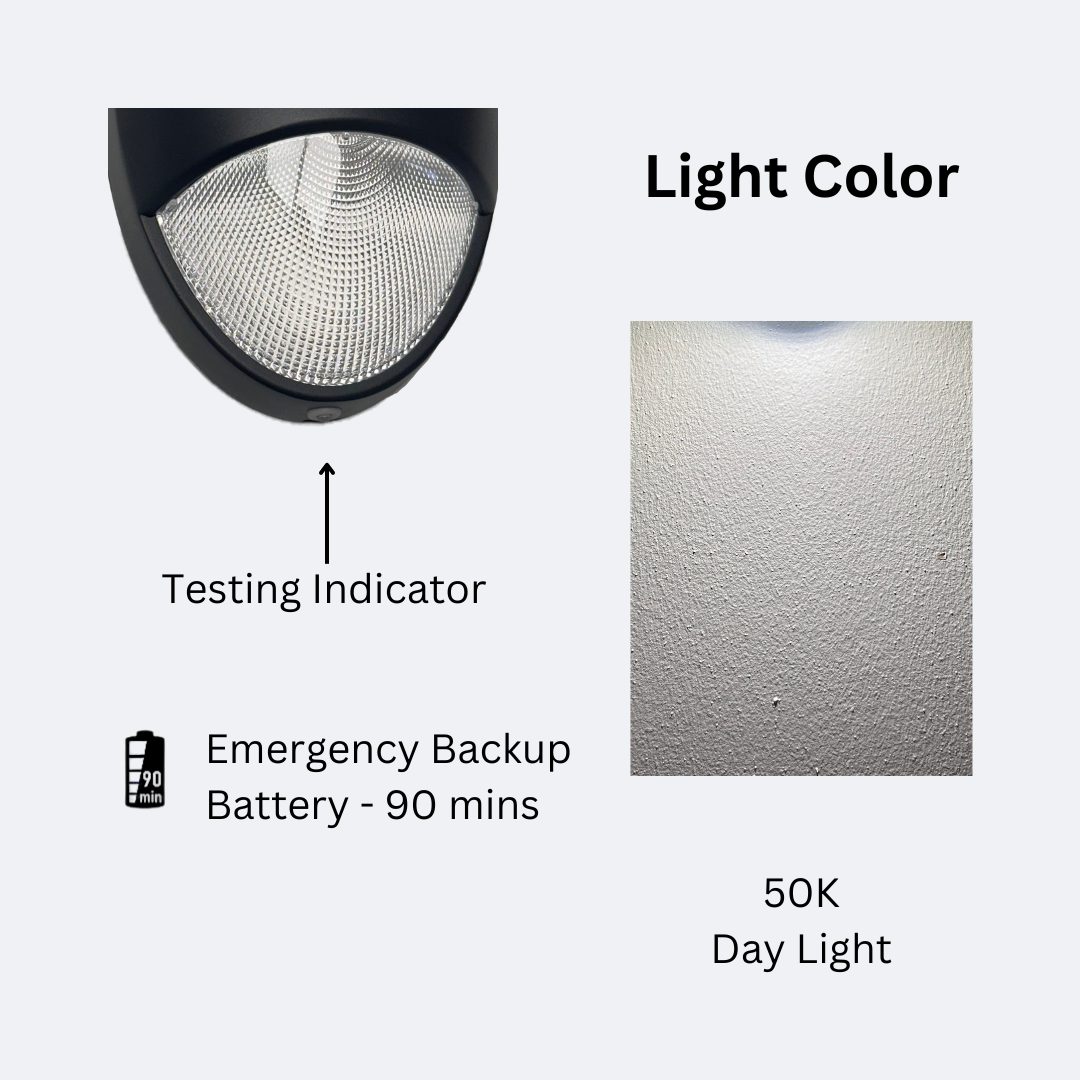

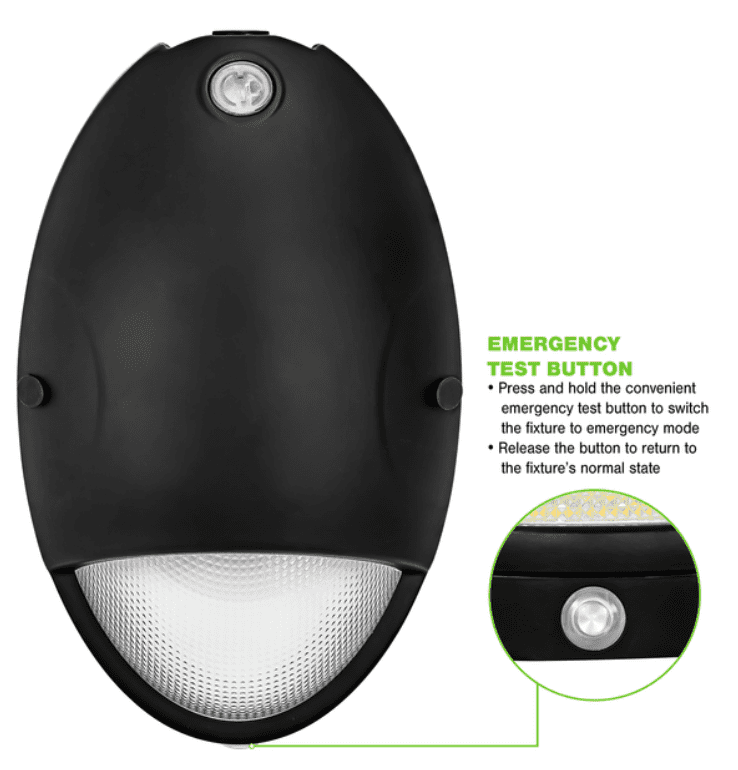

This 15W LED mini wall pack has an emergency battery backup that provides 90 minutes of light at 5W and 600 lumens in a power outage, switching over in up to 0.2 second, which makes it a good choice for safety and security lighting. A press-and-hold test button checks emergency operation, and the battery recharges in 24 hours.
It delivers 1,870 lumens at 120 lm/W, with color temperature selectable at 3500K, 4000K or 5000K and a CRI of 72+. A built-in light sensor switches it on and off with ambient light, and it runs on 120–277V. A die-cast aluminum housing with a polycarbonate lens and mirror reflector is IP65 rated for outdoor or indoor use, from -10 to 40 °C.
UL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
| Light Source | COB LED |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 72+ |
| Efficacy | 120 lm/W |
| Lumens | 1,870 lm (at 15W) |
| Electrical | |
|---|---|
| Current | 0.14A (at 120V) / 0.05A (at 277V) |
| Voltage | 120–277V |
| Wattage | 15W |
| Physical | |
|---|---|
| Ambient Temperature | -10–40 °C (operating) |
| Dimensions | 10.4 × 6.5 × 3.8 in |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Conversion Time | up to 0.2 seconds |
| Emergency Backup | Integrated |
| Emergency Lumens | 600 lm |
| Emergency Power | 5W |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button (button, manual) |
| Controls | |
|---|---|
| Daylight Threshold | 3 fc |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
