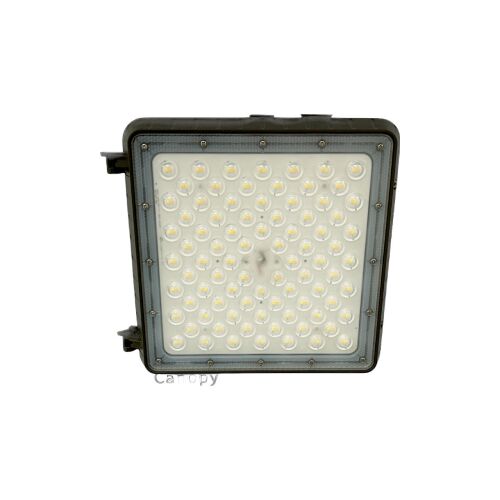

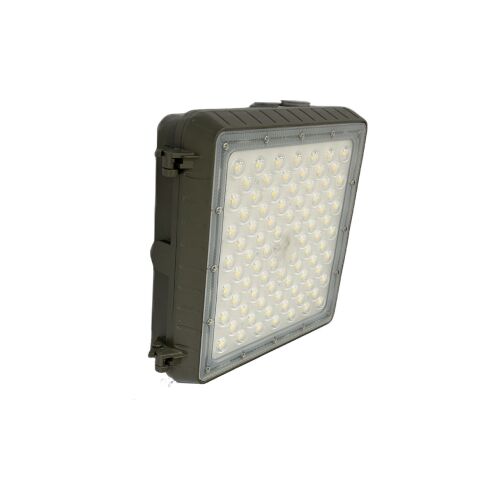

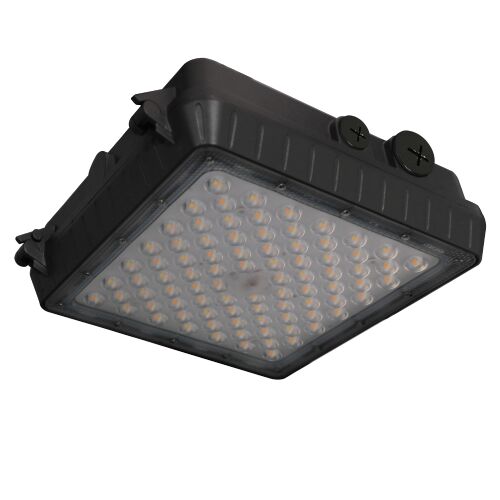

Canopy WAT & CCT Tunable 55W
Canopy WAT & CCT Tunable 55W
Model: E2-CAN-25/45/55W-30/40/50K
25/45/55W Wattage Selectable, Up to 7,150 Lumens
3000K/4000K/5000K CCT Selectable
0-10V Dimmable
120-277 Volt
IP65
Specifications
| Wattage | 25W / 45W / 55W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 3250 lm / 5850 lm / 7150 lm |
| Dimensions | 10.55 × 9.88 × 2.83 × 3.43 in |
| Listings | IP65 Rating, UL Listed |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Emergency Backup | Not included |
| CCT Selectable | Yes, switchable |
| Wattage Selectable | Yes |
| Family | Canopy and garage light |
| Series | CSA canopy |
Description
Take control of your lighting with this LED canopy light's field-adjustable wattage and color temperature. Wattage sets to 25W, 45W or 55W, giving 3,250, 5,850 or 7,150 lumens at 130 lm/W, so you can match the light level to the space. Color temperature sets to 3000K, 4000K or 5000K, with CRI 80+.
It dims with 0–10V controls and runs on 120–277V. The low-profile, IP65-rated housing measures 10.55 × 9.88 inches and suits canopies, garages and covered outdoor areas.
UL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Canopy and garage light |
| Series | CSA canopy |
| Light Source | SMD LED |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 3,250 / 5,850 / 7,150 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 120–277V |
| Wattage | 25 / 45 / 55W |
| Physical | |
|---|---|
| Dimensions | 10.55 × 9.88 × 2.83 × 3.43 in |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
