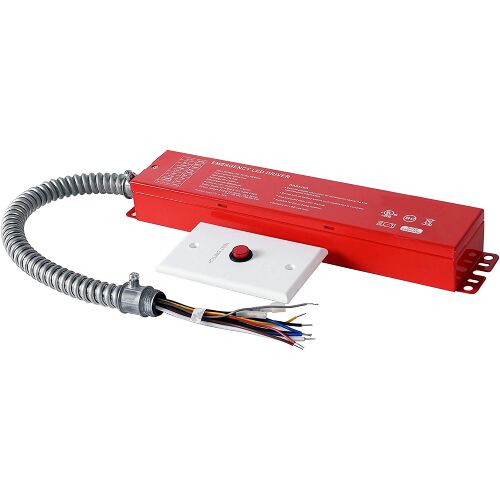

LED Emergency Battery 40W 227-480V
LED Emergency Battery 40W 227-480V
Model: E2-EM-AFY-40W-HV
40W Emergency Output, 1.5 Hours
Input Voltage: 277-480 Volt
Output 310-500V
Recharges in 24 Hours
Specifications
| Wattage | 12W |
| Emergency Power | 40W |
| Input Voltage | 277-480V |
| Output Voltage | 310-500V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Recharge Time | 24 hours |

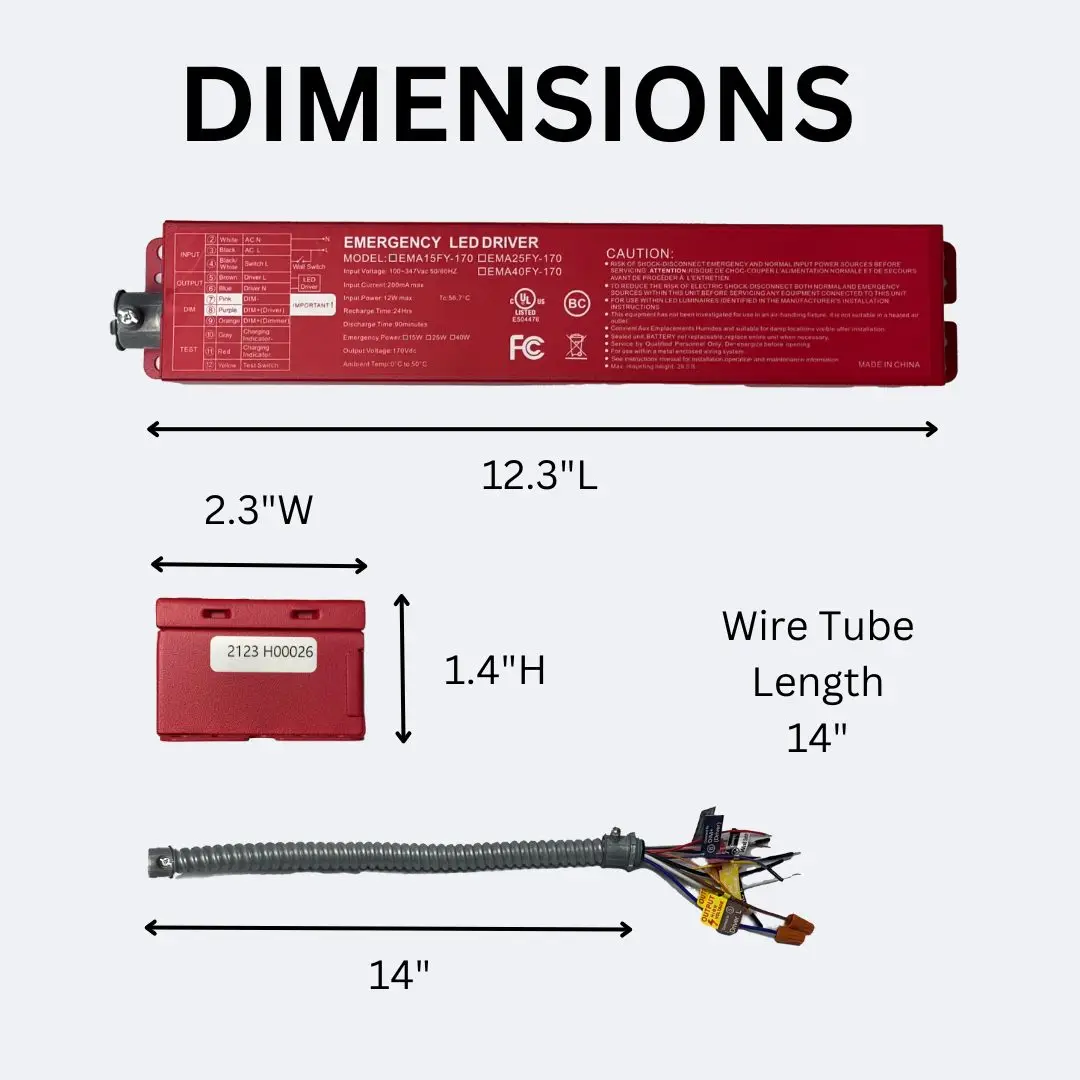

| Dimensions | 298 mm (mounting-hole spacing) / 42 mm (mounting-hole spacing) |
| Listings | ETL / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) / 0.2A (at 12V DC) |
| Frequency | 50 / 60 Hz |
| Weight | up to 1.22 kg |
| Emergency Runtime | 1.5 hours |
| Indicator Light | Status indicator (optional, metal one-piece) / Status indicator (optional, plastic integrated) |
| Test Switch | Self-test (automatic) / Yes (optional, metal one-piece) / Yes (optional, plastic integrated) |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
Description
This high-voltage 40W LED emergency battery provides 1.5 hours of continuous lighting in the event of a power outage. It is designed for LED fixtures that operate at 277–480V, connecting to the fixture driver’s AC input rather than directly to the LED array.
During an outage it delivers a constant 40W at 310–500V, and it recharges in 24 hours. Self-testing and surge protection are built in, and an indicator/test switch is available as an option. Rated for 0–50 °C ambient, it is ideal for commercial buildings, schools, hospitals, factories and data centers.
ETL and UL listed, compliant with California Title 20, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
| Electrical | |
|---|---|
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) / 0.2A (at 12V DC) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 310–500V |
| Voltage | 277–480V |
| Wattage | 12W |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Dimensions | 298 mm (mounting-hole spacing) / 42 mm (mounting-hole spacing) |
| Weight | up to 1.22 kg |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 40W |
| Emergency Runtime | 1.5 hours |
| Indicator Light | Status indicator (optional, metal one-piece) / Status indicator (optional, plastic integrated) |
| Test Switch | Self-test (automatic) / Yes (optional, metal one-piece) / Yes (optional, plastic integrated) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | ETL / UL |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
