UFO Emergency LED Driver 25W
UFO Emergency LED Driver 25W
Model: E2-EM-UFO-25W-170VAC
25W Emergency Output, 90+ Minutes
100-347 Volt
Output 170V
Recharges in 24 Hours
Specifications
| Wattage | 10W |
| Emergency Power | 25W |
| Input Voltage | 100-347V |
| Output Voltage | 170V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Dimensions | 166 mm |
| Listings | cULus |
| Warranty | 5-Year Manufacturer's Warranty |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Diameter | 100 mm |
| Flexible Conduit | 13 in (13 inches) |
| Length | 280 mm |
| Weight | 7.3 lb |
| Recharge Time | 24 hours |
| Emergency Runtime | 90+ minutes |

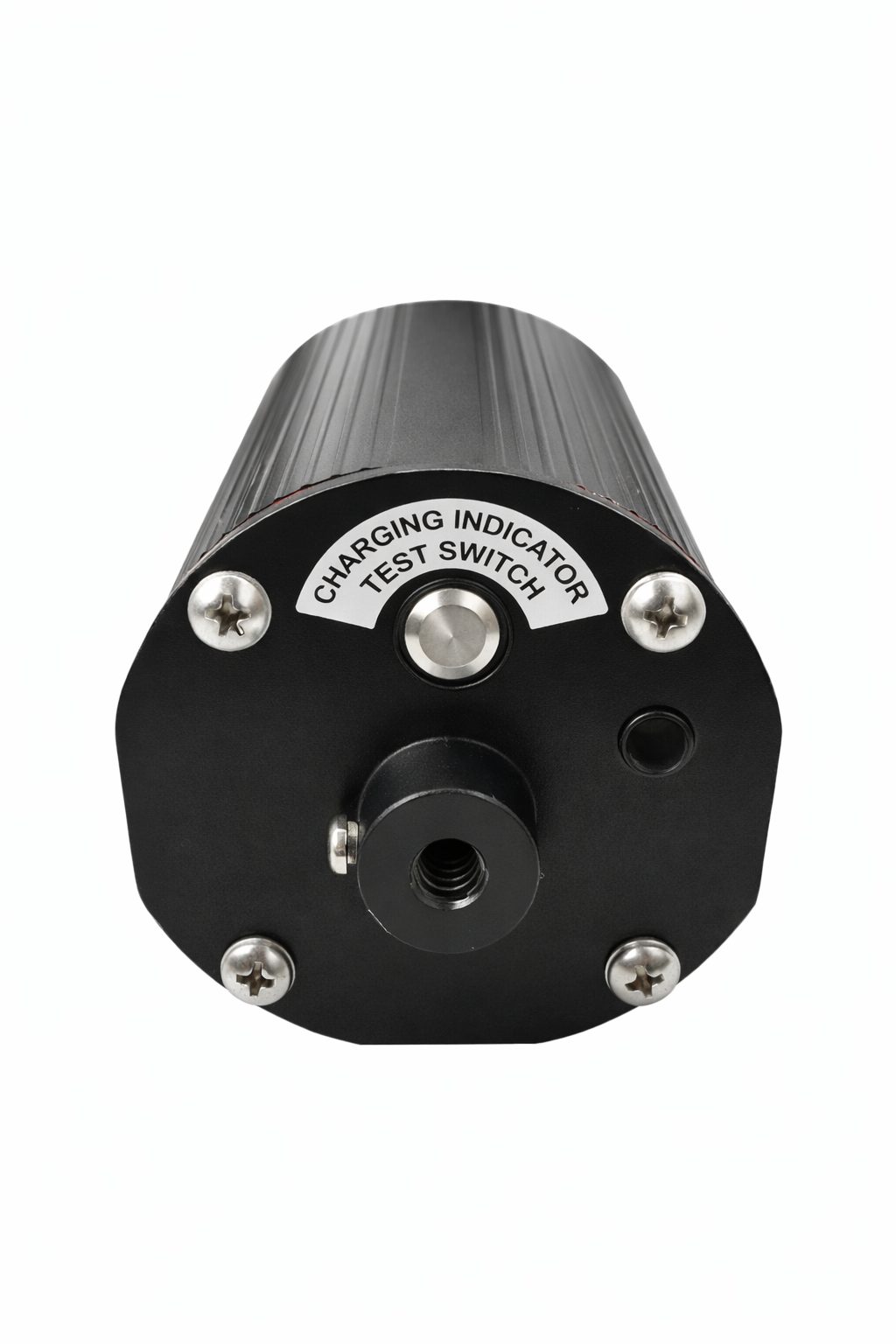

| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / RoHS |

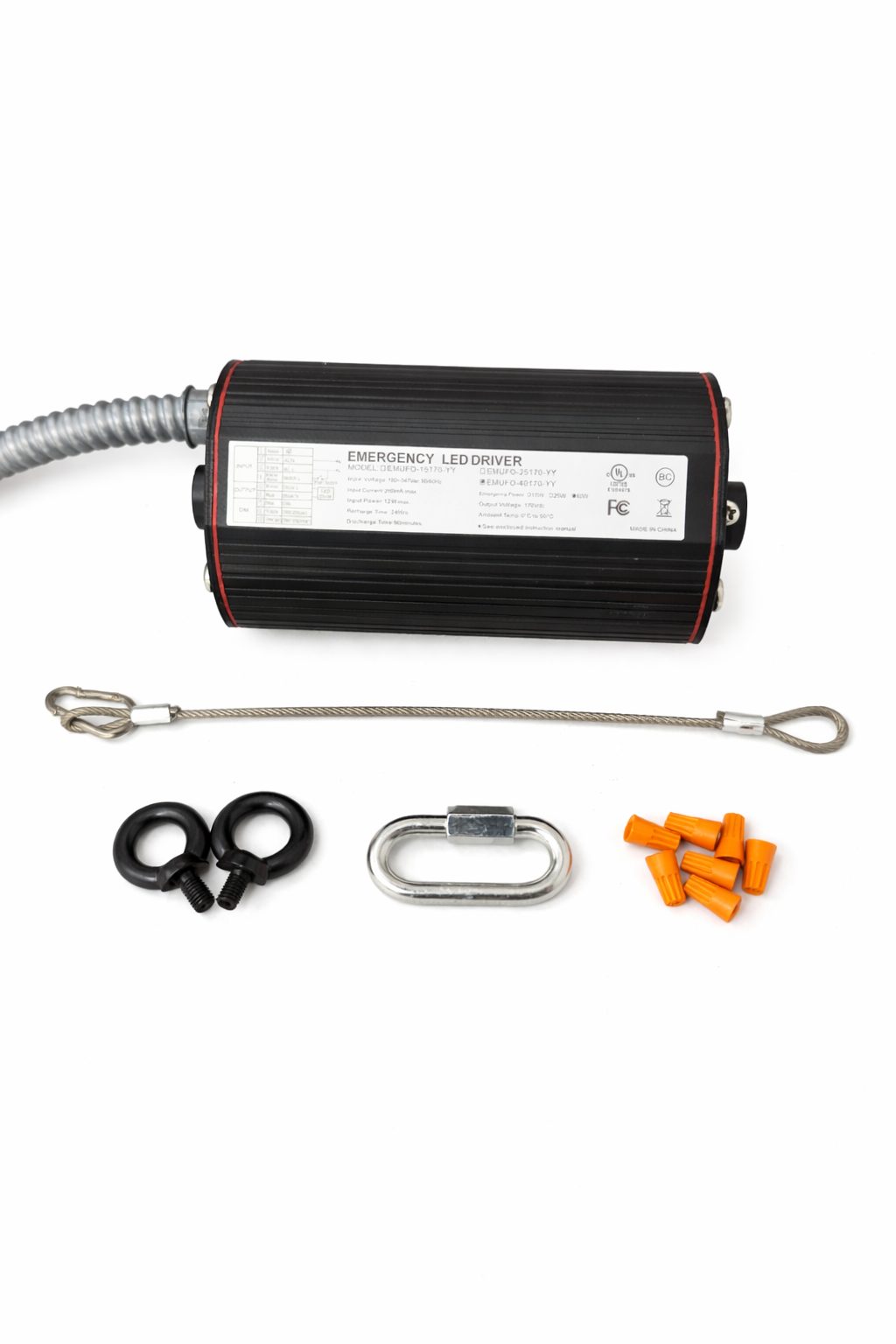

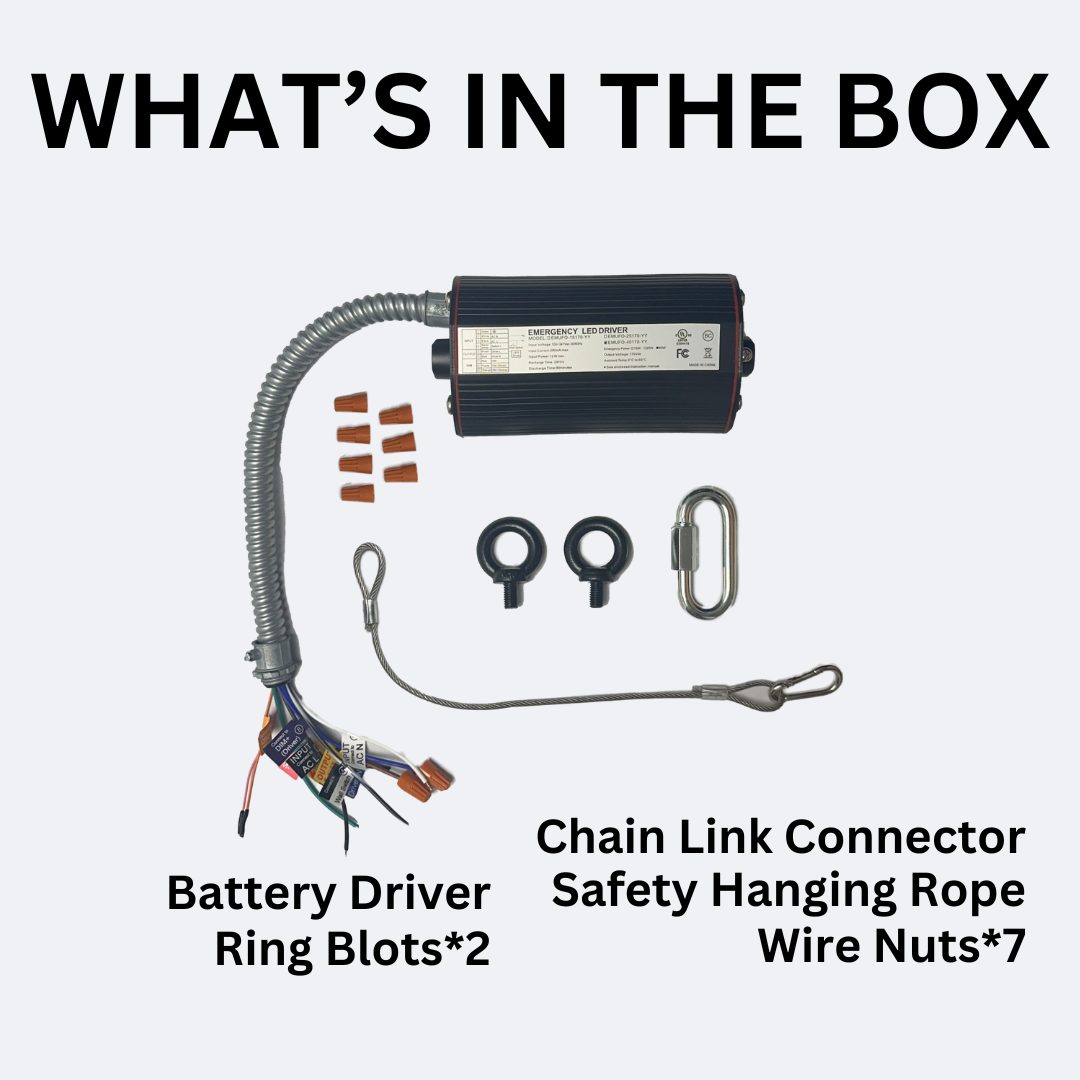

| Accessories | Test button (included) / Button installation faceplate (included) |
| Family | Emergency LED driver and battery |
| Series | Emergency driver for UFO high bay |
Description

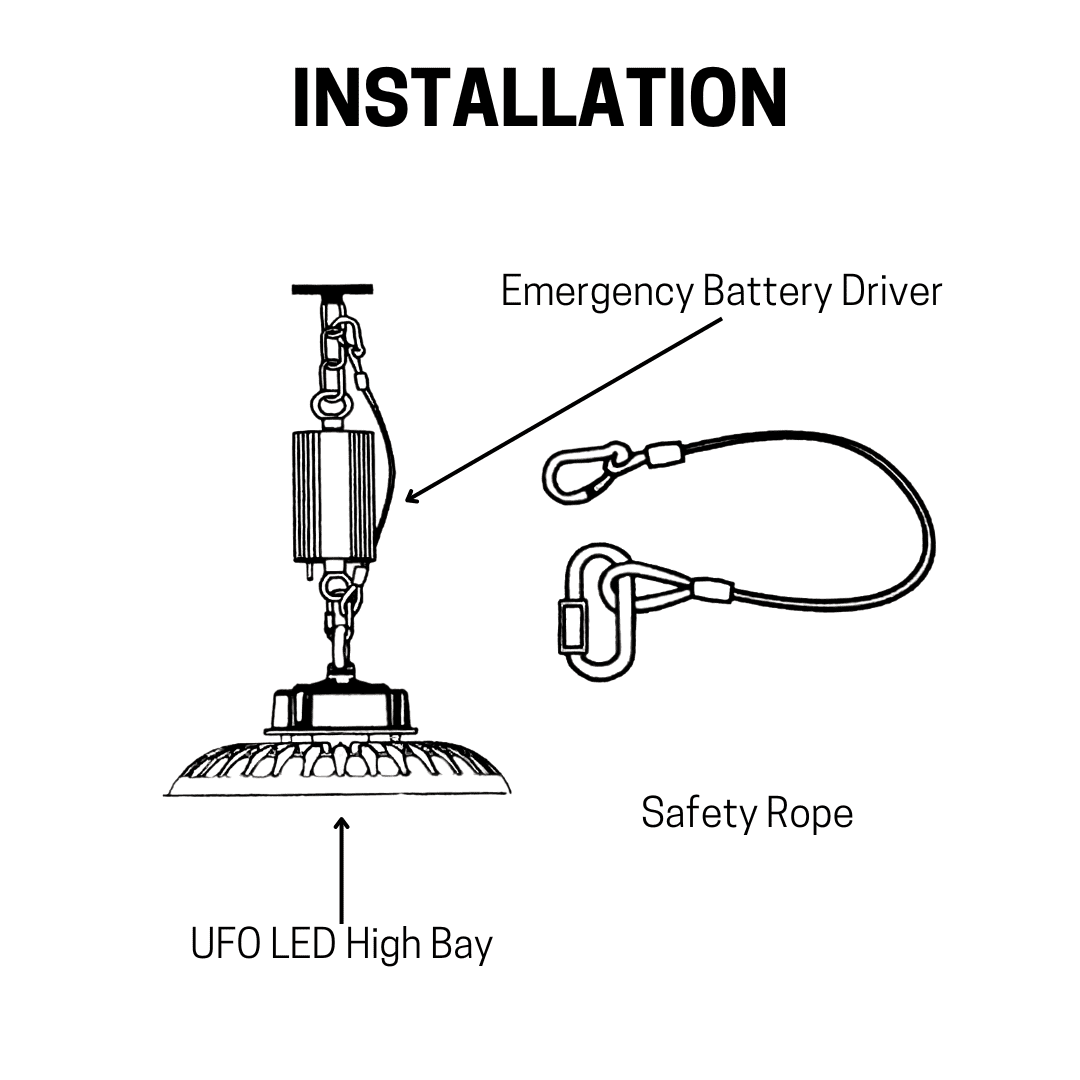

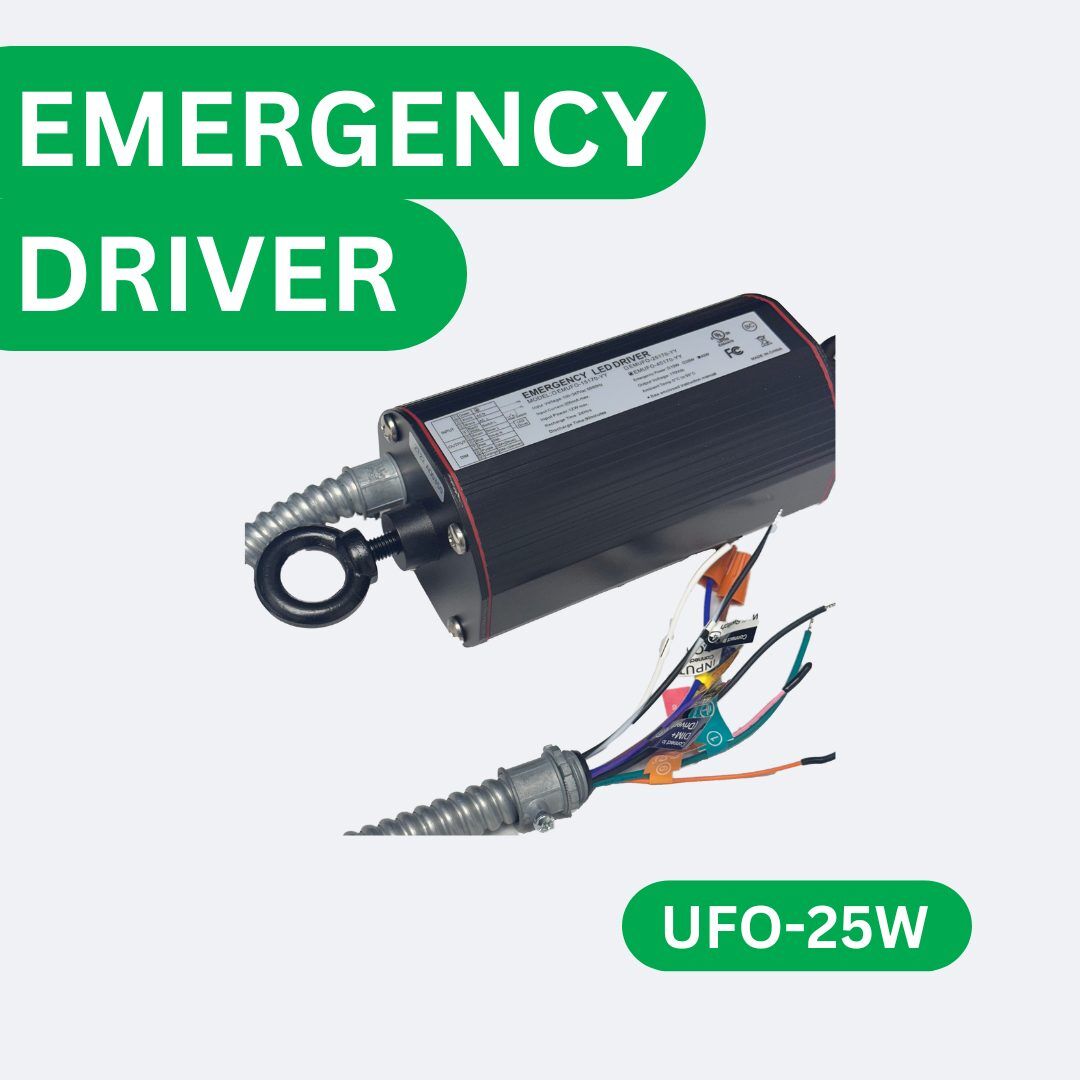

A 25W emergency battery backup driver for UFO high bay LED fixtures, keeping the space lit when the power fails. During a power loss it delivers 25W at 170V for 90+ minutes, then returns automatically to charging when AC power is restored, recharging in 24 hours.

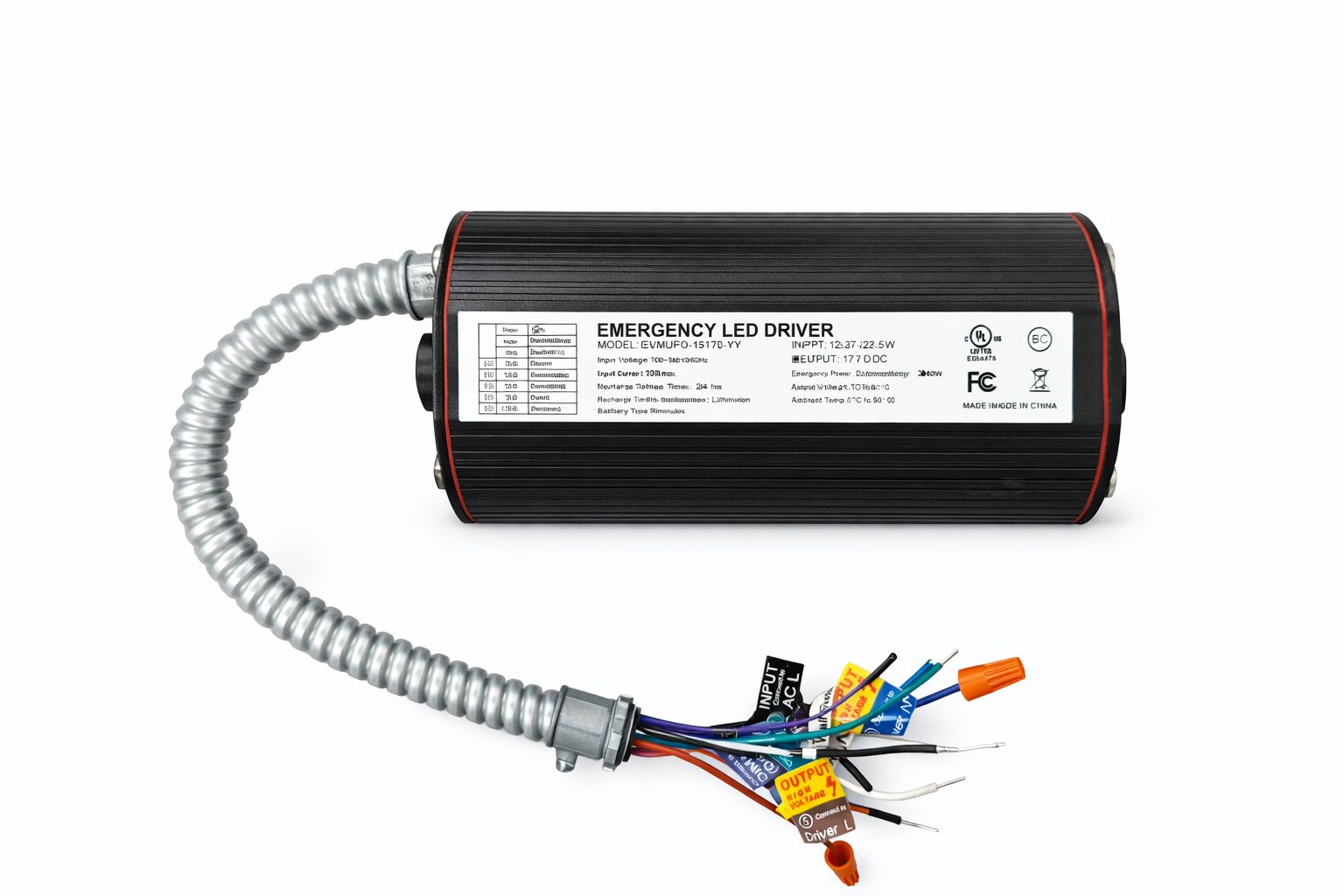

It runs on 100–347V input and includes self-testing, with a test button and a button installation faceplate in the box. Wiring runs through flexible conduit, and the body measures 100 mm in diameter and 280 mm long, with a weight of 7.3 lb.
cULus listed to UL 924, tested to CSA C22.2 No. 141 and compliant with California Title 20 and RoHS, it is rated for 0–50 °C ambient and carries a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | Emergency driver for UFO high bay |
| Electrical | |
|---|---|
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 170V |
| Voltage | 100–347V |
| Wattage | 10W |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Diameter | 100 mm |
| Dimensions | 166 mm |
| Flexible Conduit | 13 in (13 inches) |
| Length | 280 mm |
| Weight | 7.3 lb |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 25W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / RoHS |
| Accessories | Test button (included) / Button installation faceplate (included) |
