UFO Emergency LED Driver 40W – Gen 2
UFO Emergency LED Driver 40W – Gen 2
Model: E2-EM-UFO-40W-170VAC-G2
40W Emergency Output, 90+ Minutes
100-347 Volt
Output 170V
Recharges in 24 Hours
Specifications
| Wattage | 12W |
| Emergency Power | 40W |
| Input Voltage | 100–347V |
| Output Voltage | 170V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Operating Temperature | 10°C(50°F) - 50°C(122°F) |
| Recharge Time | 24 hours |

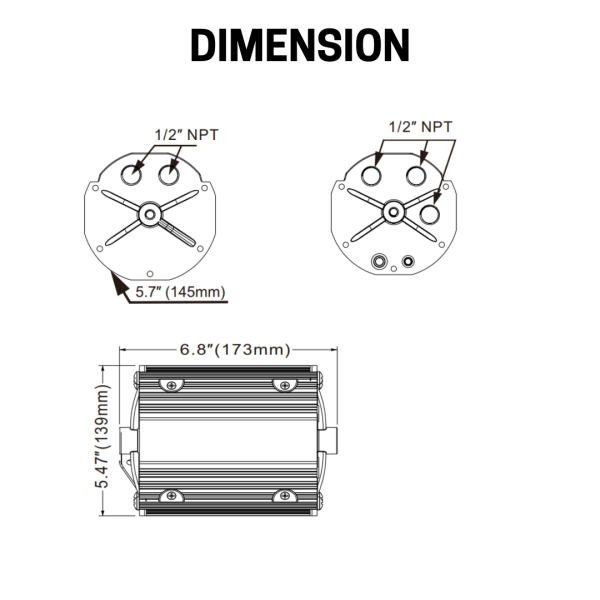

| Dimensions | 5.7 × 6.8 × 5.47 in |
| Listings | UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Weight | 3.96 lb |
| Maintenance | No maintenance (battery) |
| Battery Serviceability | No |
| Emergency Runtime | 90+ minutes |

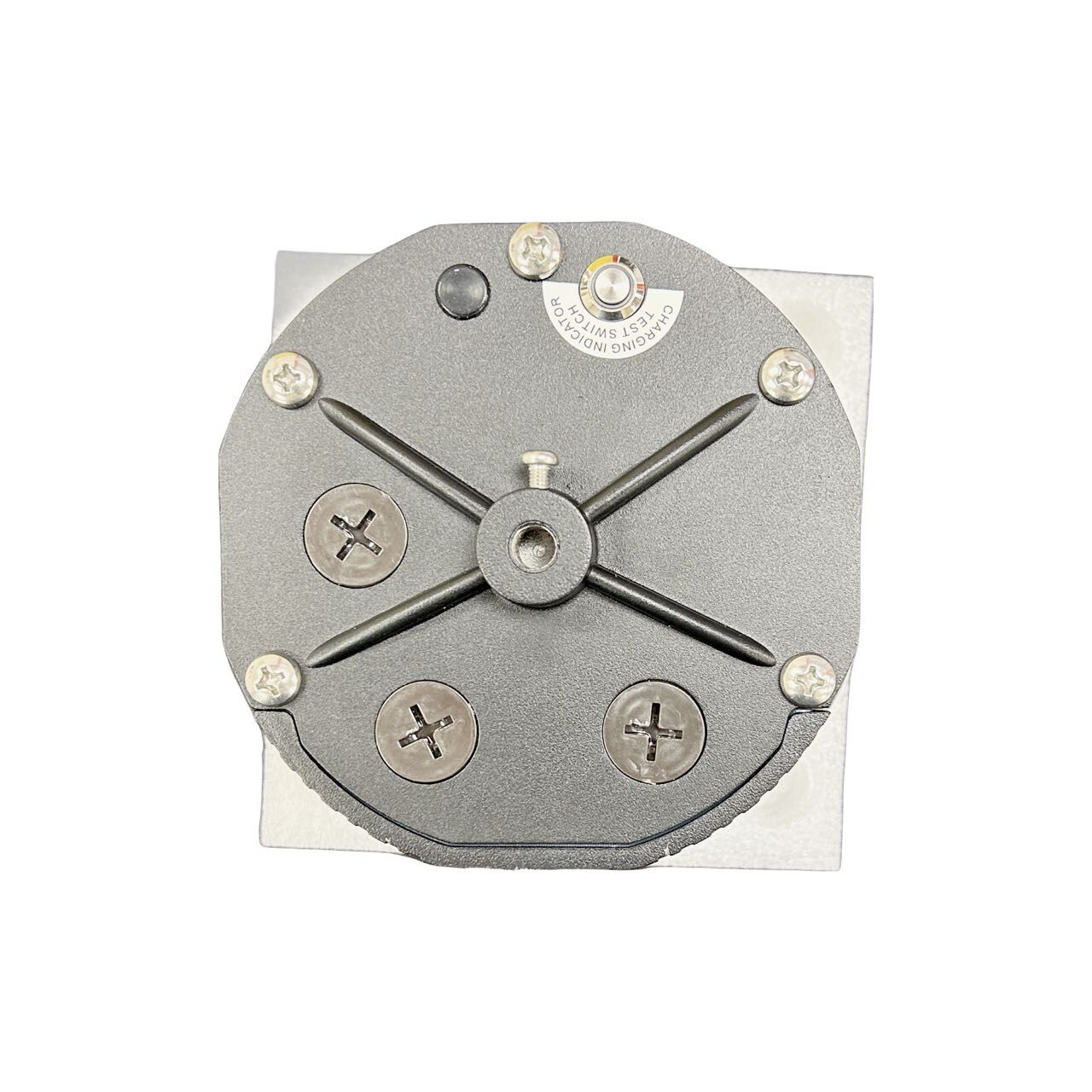

| Indicator Light | Charge indicator |
| Test Switch | Self-test (automatic) / Yes (manual) |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |

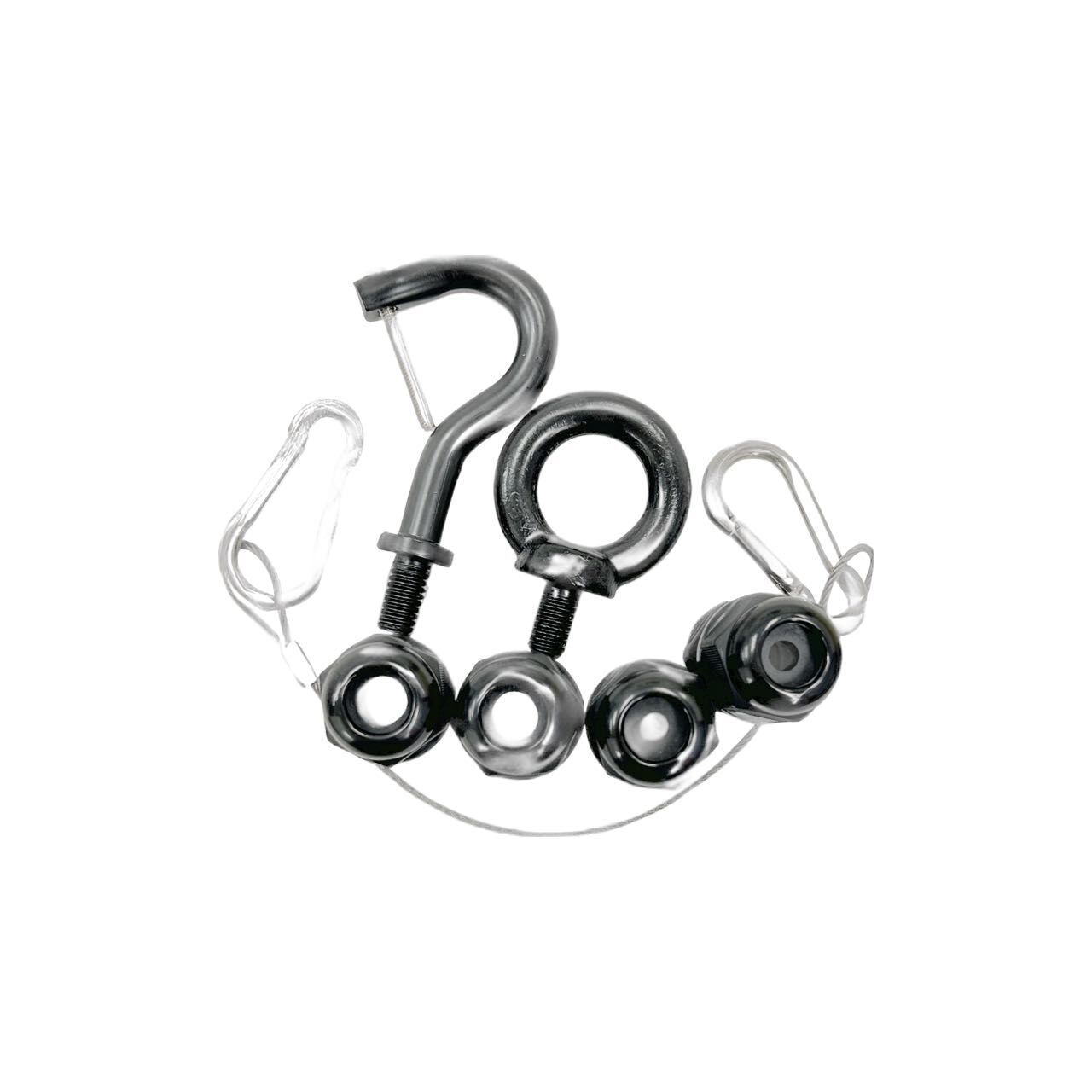

| Accessories | Junction box (included) / 2 × M10 hanging ring bolts / 11 × Wire nuts |
| Family | Emergency LED driver and battery |
| Series | Emergency driver for UFO high bay |
Description
A second-generation 40W emergency driver for UFO high bay lighting, connecting to the input of the LED driver through its integrated junction box. When the power fails it delivers 40W at 170V DC for 90+ minutes, and its sealed battery needs no maintenance.
It runs on 100–347V input, draws up to 12W and recharges in 24 hours, with self-testing, a test switch, a charge indicator and surge protection. The unit measures 5.7 × 6.8 × 5.47 in, weighs 3.96 lb and is rated for 0–50 °C ambient.
UL listed for emergency use and compliant with California Title 20, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | Emergency driver for UFO high bay |
| Electrical | |
|---|---|
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Voltage | 100–347V |
| Wattage | up to 12W (input, maximum) |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Dimensions | 5.7 × 6.8 × 5.47 in |
| Weight | 3.96 lb |
| Maintenance | No maintenance (battery) |
| Emergency | |
|---|---|
| Battery Serviceability | No |
| Charge Time | 24 hours |
| Emergency Power | 40W |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Charge indicator |
| Output Voltage | 170V |
| Test Switch | Self-test (automatic) / Yes (manual) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
| Accessories | Junction box (included) / 2 × M10 hanging ring bolts / 11 × Wire nuts |
