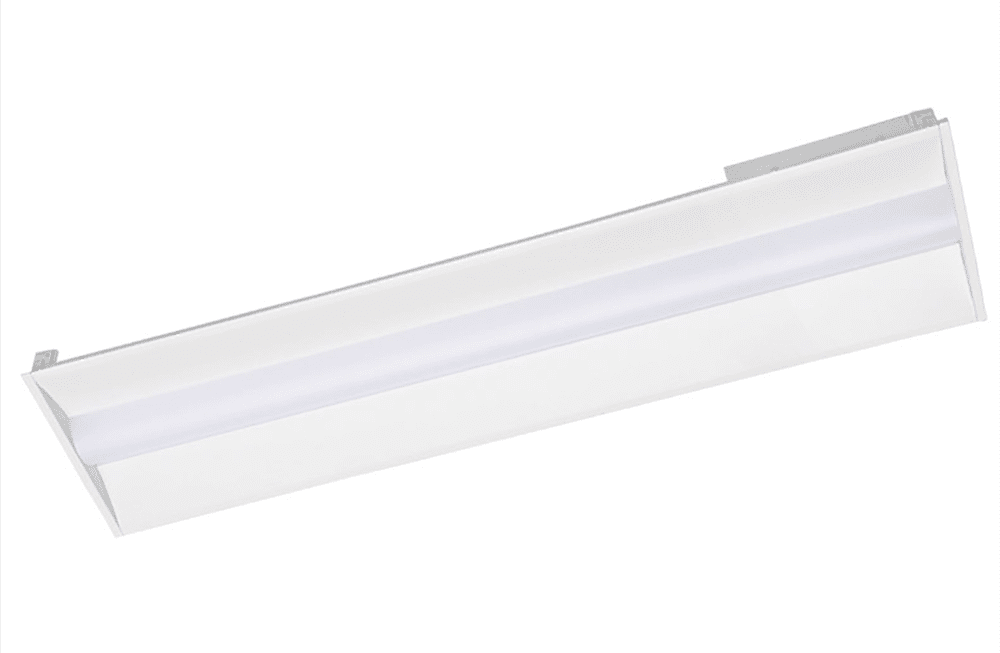

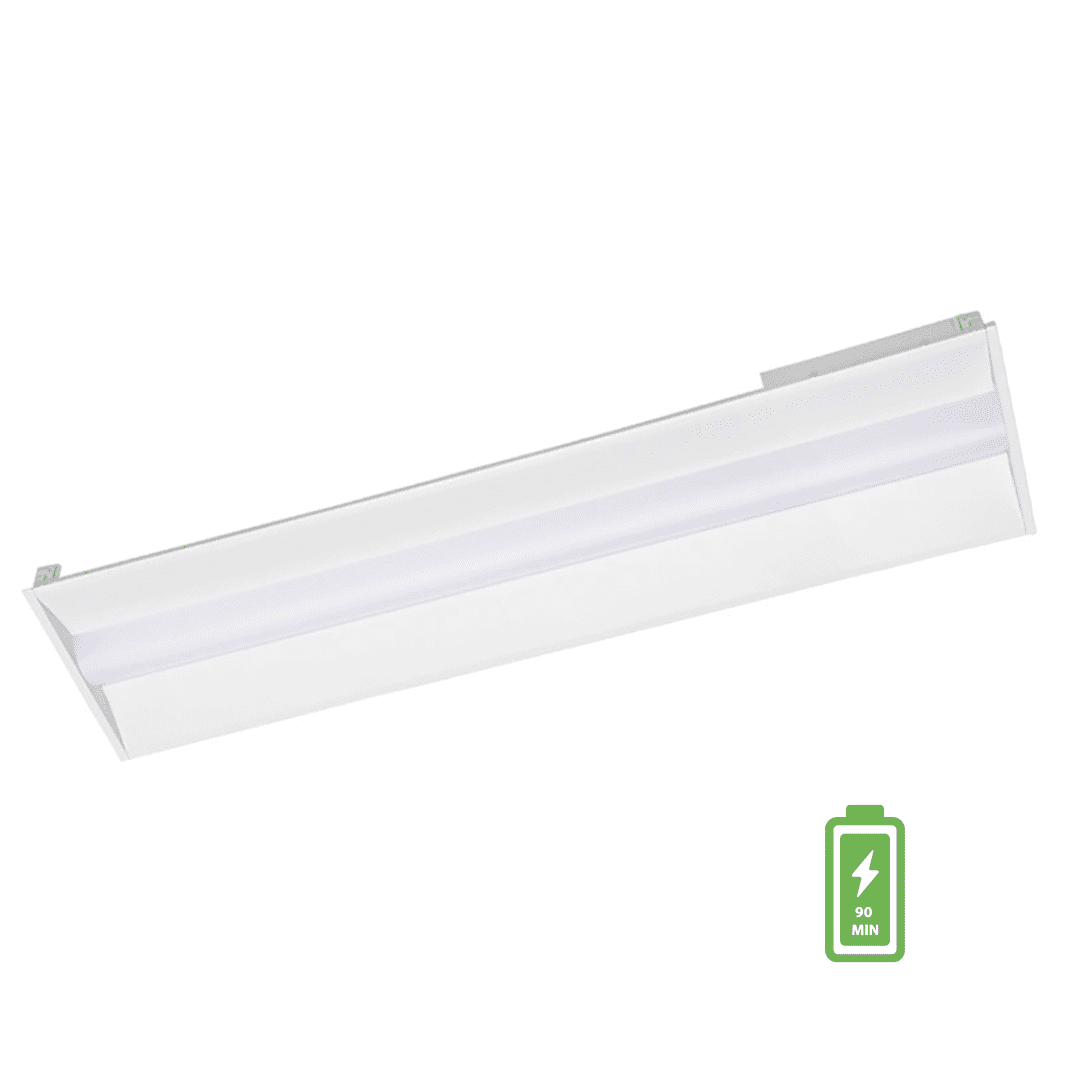

1X4 LED Troffer With Emergency Battery Backup 3CCT Tunable 30W
1X4 LED Troffer With Emergency Battery Backup 3CCT Tunable 30W
Model: E2-TR-F-1×4-20/25/30W-35/40/50K
20/25/30W Wattage Selectable, Up to 3,950 Lumens
3500K/4000K/5000K CCT Selectable
Built-in Emergency Battery, 90 Minutes
1-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 20W / 25W / 30W |
| Voltage | 120-277V |
| Dimming | 1-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 2500 lm / 3225 lm / 3950 lm |
| Lifespan | 75,000 hours |
| Dimensions | 1,213 × 298 × 50 mm |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 1×4 ft |
| Efficacy | 125+ lm/W |
| Power Factor | 0.98+ |
| Mounting | Recessed (embedded) |
| Weight | 7.7 lb |
| Emergency Backup | Integrated |
| Emergency Runtime | 90 minutes |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Standards | RoHS |
| Accessories | Fixture whips (sold separately) |
| Pack Quantity | 2 (carton, pieces) |
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
Description
Ideal for versatile indoor applications in damp environments, this 1×4 LED troffer includes emergency battery backup that keeps it lit for 90 minutes during a power outage. Rear-mounted controls select the wattage and color temperature, for healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more.
Wattage is selectable at 20, 25 or 30W, giving 2,500, 3,225 or 3,950 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+. It dims on 1–10V controls and runs on 120–277V with a power factor of 0.98+. The fixture recesses into the ceiling and measures 1,213 × 298 × 50 mm.
Rated for damp locations, UL and DLC Premium listed and RoHS compliant, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
| Light Source | SMD LED |
| Size | 1×4 ft |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 2,500 / 3,225 / 3,950 lm |
| Electrical | |
|---|---|
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 20 / 25 / 30W |
| Physical | |
|---|---|
| Dimensions | 1,213 × 298 × 50 mm |
| Mounting | Recessed (embedded) |
| Weight | 7.7 lb |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Runtime | 90 minutes |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Damp location |
| Standards | RoHS |
| Accessories | Fixture whips (sold separately) |
| Pack Quantity | 2 (carton, pieces) |
