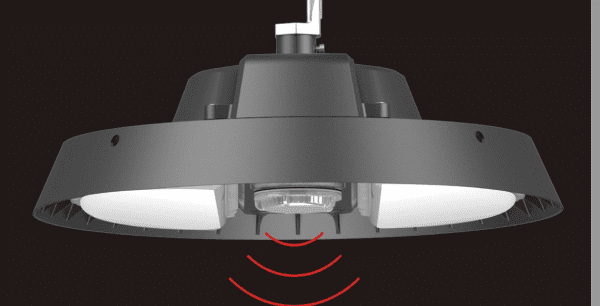

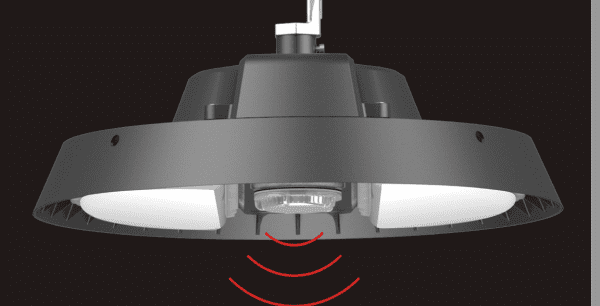

Garage Light with motion sensor and up light add on kit
Garage Light with motion sensor and up light add on kit
Model: E2-HB-UFO-200W-50K-120/277V
50/75/100/120/145/180W Wattage Selectable, Up to 30,500 Lumens
5000K CCT
1-10V Dimmable
100-240 or 120-277 or 249-528 Volt
IP65
Specifications
| Wattage | 50W / 75W / 100W / 120W / 145W / 180W |
| Voltage | 100-240V, 120-277V, 249-528V |
| Dimming | 1-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 73, > 80 |
| Lumens | 7,200 lm (Economic, ±5%, at E2-EHB50, at 50W) / 10,800 lm (Economic, ±5%, at E2-EHB75, at 75W) / 14,500 lm (Economic, ±5%, at E2-EHB100, at 100W) / 17,000 lm (Economic, ±5%, at E2-EHB120, at 120W) / 21,000 lm (Economic, ±5%, at E2-EHB145, at 145W) / 25,200 lm (Economic, ±5%, at E2-EHB180, at 180W) / 8,500 lm (Standard, ±5%, at E2-EHB50, at 50W) / 12,750 lm (Standard, ±5%, at E2-EHB75, at 75W) / 17,000 lm (Standard, ±5%, at E2-EHB100, at 100W) / 20,400 lm (Standard, ±5%, at E2-EHB120, at 120W) / 24,650 lm (Standard, ±5%, at E2-EHB145, at 145W) / 30,500 lm (Standard, ±5%, at E2-EHB180, at 180W) |
| Listings | cETLus, DLC Premium, ETL Classified, FCC, CE, & RoHS Compliant, IP65 Rating |
| Beam Angle | 60 / 90 / 120° |
| Warranty | 5-Year Manufacturer's Warranty |
| Efficacy | 165–180 lm/W (Standard, ±5%) / 135–150 lm/W (Economic, ±5%) |
| Lighting Direction | Uplight |
| Connection Type | Zhaga |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.95+ |
| Adjustable Aiming | Yes (bracket) |
| Ambient Temperature | -40–122 °F (operating) |
| Color | Black / Silver / White / Custom color |
| Mounting | Bracket / Cable suspended (steel rope) / Indirect / Pipe / Pole top |
| Motion Sensor | Optional (plug-and-play) |
| Photocell | Optional (optional, daylight sensor) |
| Standards | FCC / CE / RoHS |
| Accessories | PC reflector (optional) / Aluminum reflector (optional) / Cable with plug (optional) / Steel chain (optional) / Cable connector (optional) / 3/4-inch NPT converter (optional) |
| Family | High bay |
| Series | EHB smart high bay |
Description
This garage and high bay light uses a plug-and-play Zhaga connection, so an ordinary fixture can be upgraded to a smart one by plugging in the optional motion sensor. Snap-on lenses in wide, medium, narrow and dome choices make the lens quick to replace, and an optional field-installable uplight kit lights dark ceilings and corners.
It is offered at 50, 75, 100, 120, 145 or 180W, giving 7,200 to 30,500 lumens at 135–150 or 165–180 lm/W depending on the output version, with 5000K light as standard. It dims with 1–10V controls and runs on 120–277V as standard, with 100–240V and 249–528V versions. The IP65 rating suits indoor garages and outdoor settings from -40°F to 122°F, and it mounts by bracket, cable, pipe, pole top or indirect mounting.
ETL, cETL, DLC Premium, SAA and NSF listed, with a 5-year warranty that can be extended to 10 years.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | EHB smart high bay |
| Light | |
|---|---|
| Beam Angle | 60 / 90 / 120° |
| CCT | 5000K |
| CRI | 73+ (standard) / 80+ (optional) |
| Efficacy | 165–180 lm/W (Standard, ±5%) / 135–150 lm/W (Economic, ±5%) |
| Lighting Direction | Uplight |
| Lumens | 7,200 lm (Economic, ±5%, at E2-EHB50, at 50W) / 10,800 lm (Economic, ±5%, at E2-EHB75, at 75W) / 14,500 lm (Economic, ±5%, at E2-EHB100, at 100W) / 17,000 lm (Economic, ±5%, at E2-EHB120, at 120W) / 21,000 lm (Economic, ±5%, at E2-EHB145, at 145W) / 25,200 lm (Economic, ±5%, at E2-EHB180, at 180W) / 8,500 lm (Standard, ±5%, at E2-EHB50, at 50W) / 12,750 lm (Standard, ±5%, at E2-EHB75, at 75W) / 17,000 lm (Standard, ±5%, at E2-EHB100, at 100W) / 20,400 lm (Standard, ±5%, at E2-EHB120, at 120W) / 24,650 lm (Standard, ±5%, at E2-EHB145, at 145W) / 30,500 lm (Standard, ±5%, at E2-EHB180, at 180W) |
| Electrical | |
|---|---|
| Connection Type | Zhaga |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.95+ |
| Voltage | 100–240V / 120–277V / 249–528V |
| Wattage | 50 / 75 / 100 / 120 / 145 / 180W |
| Physical | |
|---|---|
| Adjustable Aiming | Yes (bracket) |
| Ambient Temperature | -40–122 °F (operating) |
| Finish | Black / Silver / White / Custom color |
| Mounting | Bracket / Cable suspended (steel rope) / Indirect / Pipe / Pole top |
| Controls | |
|---|---|
| Dimming Type | 1–10V |
| Motion Sensor | Optional (plug-and-play) |
| Photocell | Optional (optional, daylight sensor) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | ETL / cETL / DLC Premium / SAA / NSF |
| IP Rating | IP65 |
| Standards | FCC / CE / RoHS |
| Accessories | PC reflector (optional) / Aluminum reflector (optional) / Cable with plug (optional) / Steel chain (optional) / Cable connector (optional) / 3/4-inch NPT converter (optional) |
