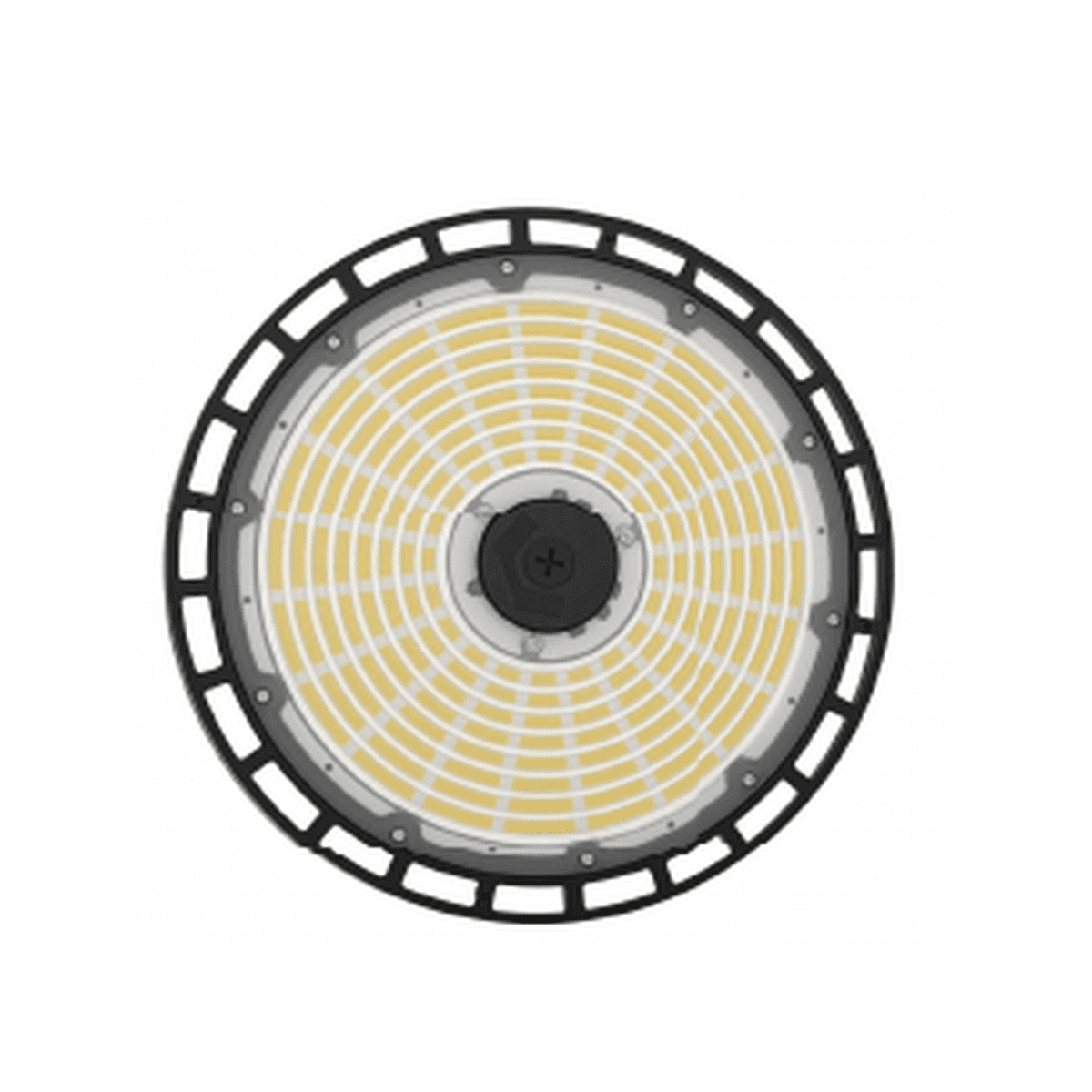

UFO High Bay Shop Light 150W Wattage & CCT Tunable
UFO High Bay Shop Light 150W Wattage & CCT Tunable
Model: E2-UF80/100/150W-BNN45
80/100/150W Wattage Selectable, Up to 24,000 Lumens
4000K/5000K CCT Selectable
1-10V Dimmable
120-277 Volt
IP65
Specifications
| Wattage | 150W / 200W / 240W, 80W / 100W / 150W |
| Voltage | 120-277V |
| CCT | 4000K / 5000K |
| CRI | 80+ (at 150W, at 5000K) |
| Lumens | 12800 lm / 16000 lm / 24000 lm, 24000 lm / 32000 lm / 38400 lm |
| Dimensions | Small size: 6.48 in |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 12 in |
| Beam Angle | 89° (at 150W, at 5000K) |
| Efficacy | 160 lm/W |
| Power Factor | 0.998 (at 150W, at 5000K) |
| THD | up to 20% (at 150W, at 5000K) |
| Ambient Temperature | -40–50 °C (operating) |
| Diameter | Small size: 12.59 in |
| Color | Black / White |
| Mounting | Surface (U bracket) / Suspended (ring) |
| Weight | Small (S): 5.29 lb (net) / Small (S): 5.73 lb (gross) |
| Emergency Backup | Optional (order separately) |
| Emergency Power | optional: 30 / 40W |
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming | 1–10V |
| Motion Sensor | Optional (microwave, order separately) |
| Wattage Selectable | Yes (emergency power module) / Yes (DIP switch) |
| Lifespan | 100,000+ hours (at L70, at Ta = 25°C) |
| Accessories | Safety rope (included) |
| Listings | DLC Premium / IP65 / UL / cETLus |
| Family | High bay |
| Series | E2 UFO high bay, wattage and CCT selectable (UF) |
Description
A compact UFO LED high bay for warehouses, gyms, factories, workshops and industrial spaces, with dip switches to set wattage at 80, 100 or 150W, giving 12,800, 16,000 or 24,000 lumens, and color temperature at 4000K or 5000K. It produces 160 lm/W through an 89° beam with CRI 80+.
It dims with 1–10V controls and runs on 120–277V. The IP65-rated fixture operates from -40°C to 50°C, measures 12.59 in across, comes in black or white and mounts suspended or to a surface, with a safety rope included. A motion sensor and emergency backup can be ordered separately.
UL, cETLus and DLC Premium listed, with a 100,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | E2 UFO high bay, wattage and CCT selectable (UF) |
| Size | 12 in |
| Light | |
|---|---|
| Beam Angle | 89° (at 150W, at 5000K) |
| CCT | 4000 / 5000K |
| CRI | 80+ (at 150W, at 5000K) |
| Efficacy | 160 lm/W |
| Lumens | 12,800 / 16,000 / 24,000 lm |
| Electrical | |
|---|---|
| Power Factor | 0.998 (at 150W, at 5000K) |
| THD | up to 20% (at 150W, at 5000K) |
| Voltage | 120–277V |
| Wattage | 80 / 100 / 150W |
| Physical | |
|---|---|
| Ambient Temperature | -40–50 °C (operating) |

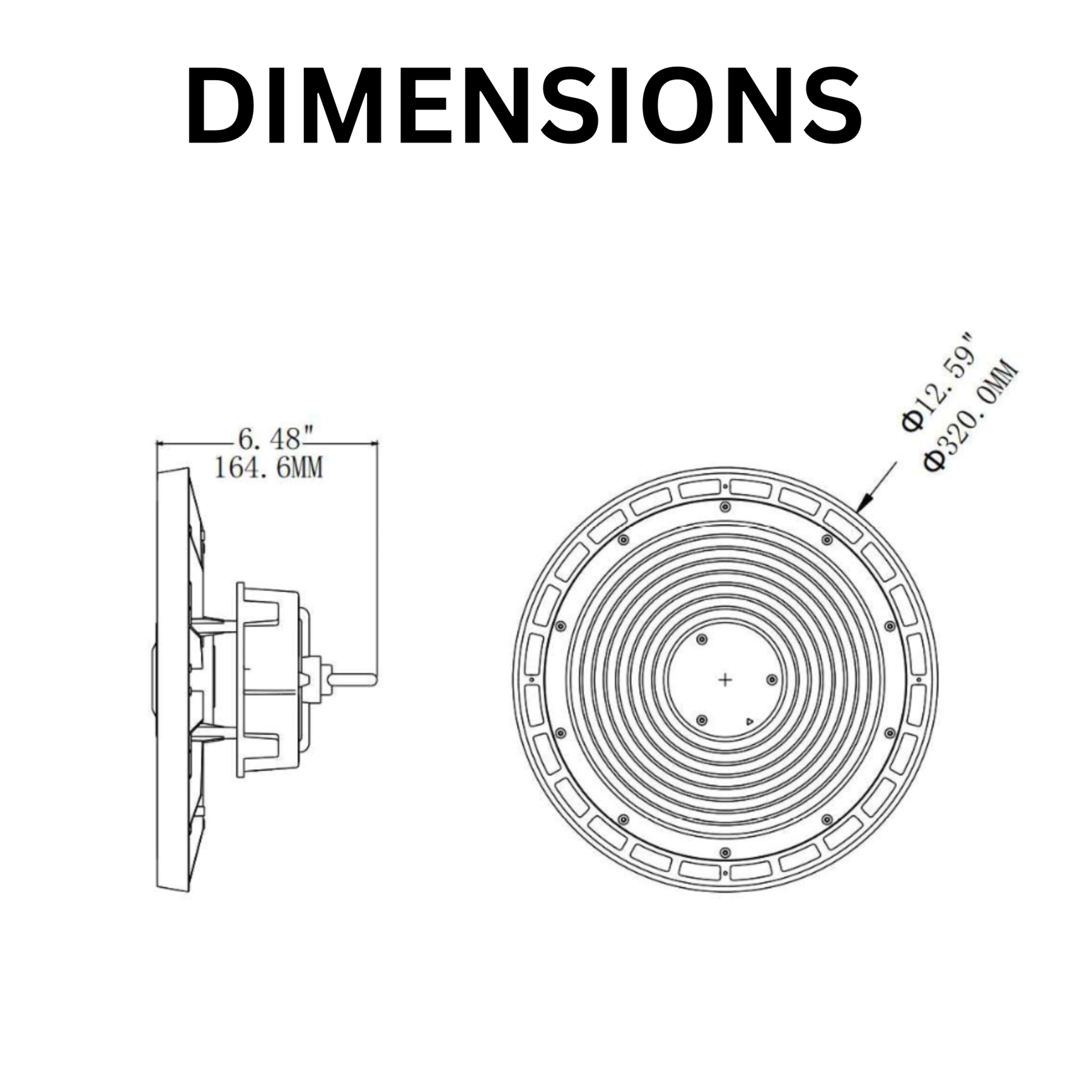

| Diameter | Small size: 12.59 in |
| Dimensions | Small size: 6.48 in |
| Finish | Black / White |
| Mounting | Surface (U bracket) / Suspended (ring) |
| Weight | Small (S): 5.29 lb (net) / Small (S): 5.73 lb (gross) |
| Emergency | |
|---|---|
| Emergency Backup | Optional (order separately) |
| Emergency Power | optional: 30 / 40W |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Motion Sensor | Optional (microwave, order separately) |
| Wattage Selectable | Yes (emergency power module) / Yes (DIP switch) |
| Warranty | |
|---|---|
| Rated Life | 100,000+ hours (at L70, at Ta = 25°C) |
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium / UL |
| IP Rating | IP65 |
| Accessories | Safety rope (included) |
