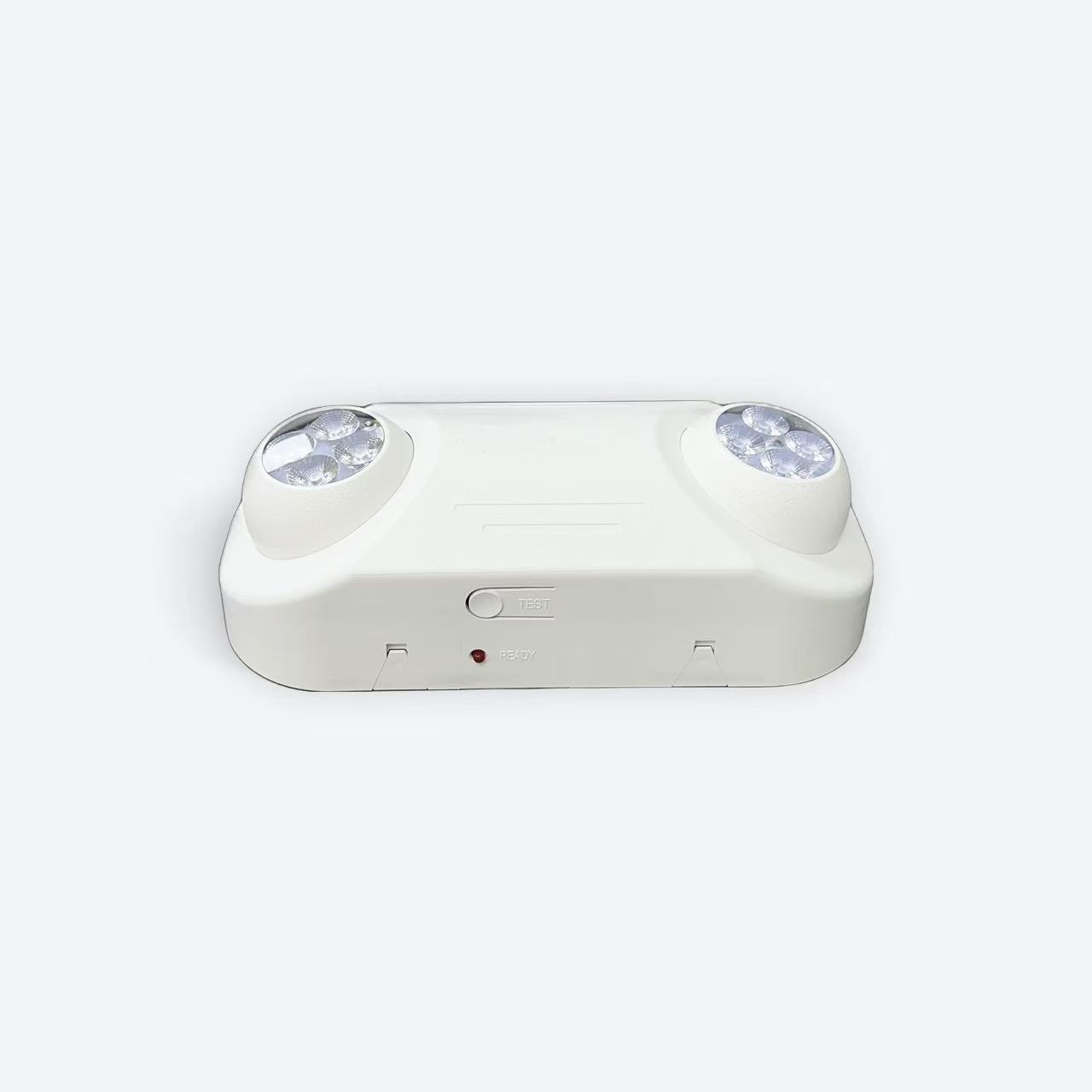

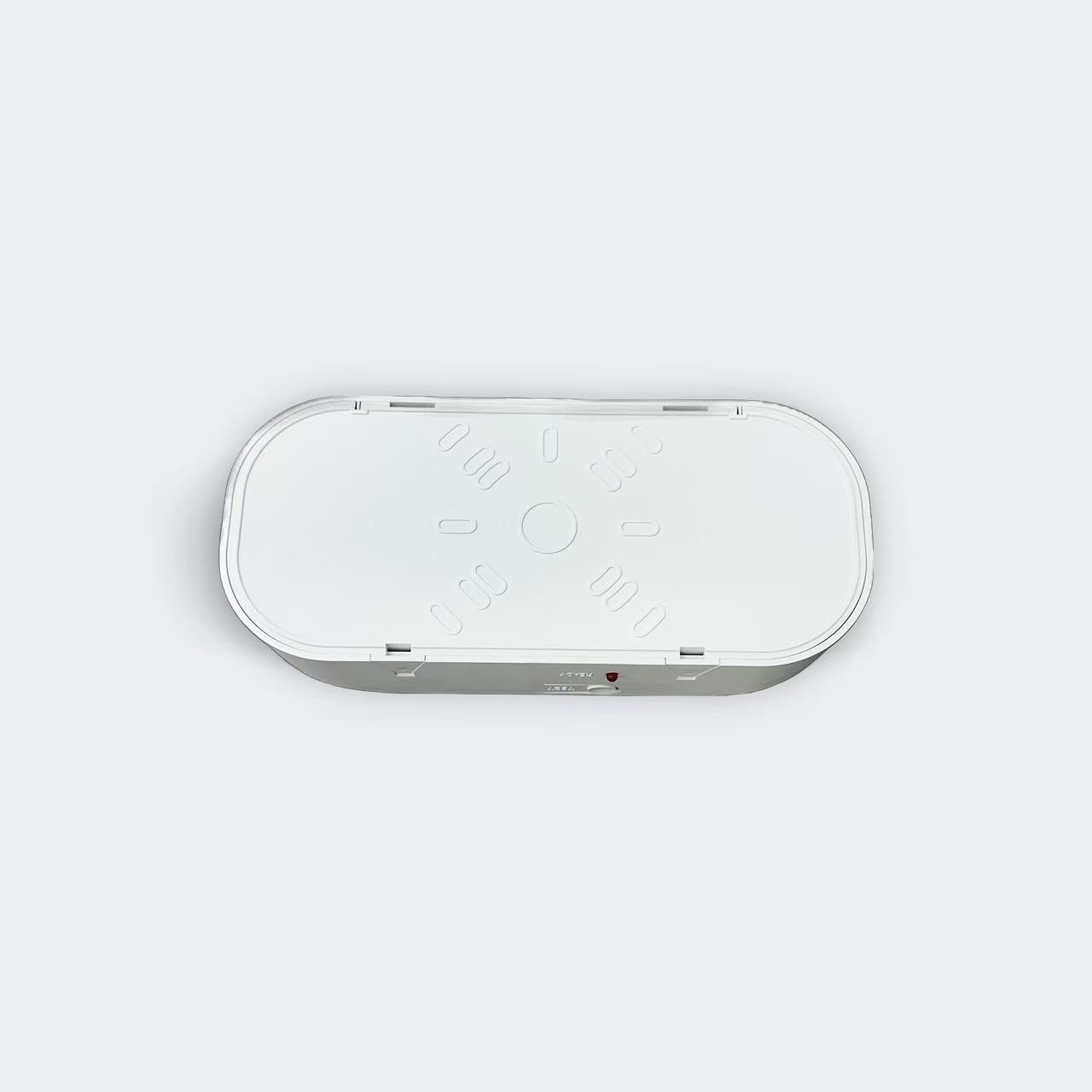

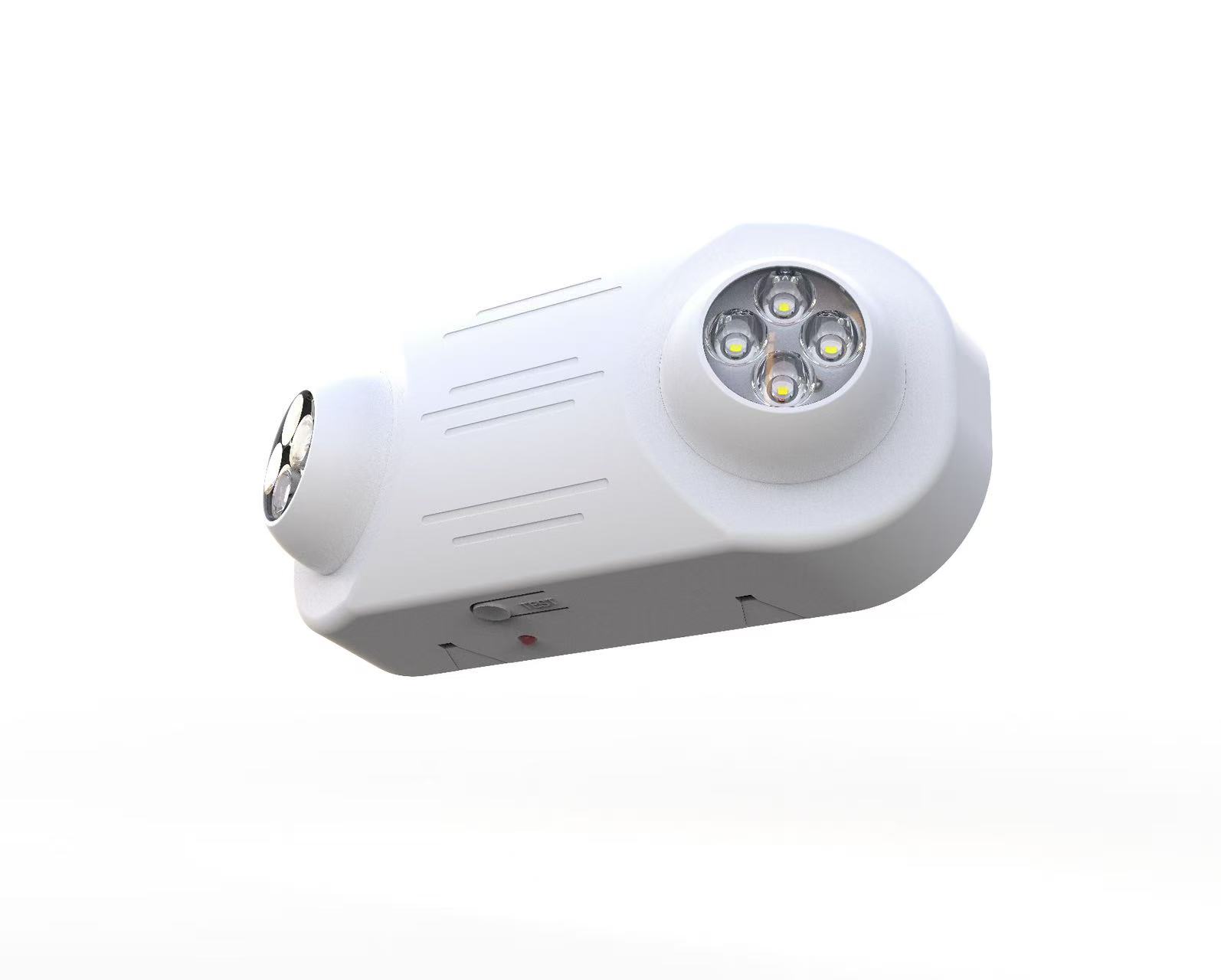

E2 700LM High Output Aimable Bug Eye Low Profile Exit Light – 90 Min Battery Backup
E2 700LM High Output Aimable Bug Eye Low Profile Exit Light – 90 Min Battery Backup
Model: E2-EX-M8-700LM
5W
Built-in Emergency Battery, 90 Minutes
Recharges in 24 Hours
120-277 Volt
Damp Location
Specifications
| Wattage | 5W |
| Voltage | 120-277V |
| Lumens | 700 lm |
| Dimensions | 11" × 3.47" |
| Listings | cULus |
| Warranty | 5-Year Manufacturer's Warranty |
| CCT | 5000K |
| Current | 70mA |
| Frequency | 50 / 60 Hz |
| Ambient Temperature | 5–50 °C (operating) |
| Mounting | Ceiling / Conduit / Wall |
| Recharge Time | 24 hours |
| Emergency Lumens | 700 lm |
| Emergency Runtime | 90 minutes |
| Indicator Light | Charge indicator (charging) |
| Test Switch | Yes (manual) / Self-test and self-diagnostics (automatic, optional, CT) |
| Location Rating | Damp location |
| Standards | FCC / California Title 20 / RoHS |
| Family | Emergency luminaire |
| Series | E2 LED emergency light M8 (bug-eye, M8-A/B/HO) |
Description
A slim, high-output LED emergency light that delivers 700 lumens of 5000K light for 90 minutes during a power outage, built for egress lighting in commercial and industrial applications. Two fully adjustable heads direct light along the egress route.
It is compatible with 120–277V, draws 5W and recharges in 24 hours. The injection-molded ABS enclosure supports wall, ceiling and top-entry conduit mounting and measures 11 × 3.47 in. A test switch and charge indicator support routine checks, with self-testing and diagnostics available as an option.
Rated for damp locations at 5–50 °C, it is cULus listed and FCC, California Title 20 and RoHS compliant, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency luminaire |
| Series | E2 LED emergency light M8 (bug-eye, M8-A/B/HO) |
| Light | |
|---|---|
| CCT | 5000K |
| Electrical | |
|---|---|
| Current | 70mA |
| Frequency | 50 / 60 Hz |
| Voltage | 120–277V |
| Wattage | 5W (input) |
| Physical | |
|---|---|
| Ambient Temperature | 5–50 °C (operating) |
| Dimensions | 11 × 3.47 in |
| Mounting | Ceiling / Conduit / Wall |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Lumens | 700 lm |
| Emergency Runtime | 90 minutes |
| Indicator Light | Charge indicator (charging) |
| Test Switch | Yes (manual) / Self-test and self-diagnostics (automatic, optional, CT) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus |
| Location Rating | Damp location |
| Standards | FCC / California Title 20 / RoHS |
