Indoor Standalone AC Input PIR Sensor
Indoor Standalone AC Input PIR Sensor
Passive infrared (PIR) Sensor, Ceiling or Recessed Mount
Integrated Photocell
0-10V Dimmable
100-347 Volt
IP20
Specifications
| Voltage | 100-347V |
| Dimming | 0–10V |
| Mounting Height | 39 ft (12m) |
| Detection Radius | maximum mounting height: 12 m (39 ft): 2–5 m / 6–16 ft |
| PIR Parameters | -14µm wavelength, ≥3500mV signal peak, 3200V/W sensitivity |
| Adjustable Settings | Detection area (25% / 50% / 75% /1 00%), hold time (5s–30min), and warm-up period (50s) |
| Ambient Temperature | -20–60 °C (working) / -40–80 °C (storage) |
| Diameter | HP401V-02: 90 mm / HP401V-02: 74 mm / HP401V-01: 90 mm |
| Dimensions | HP401V-02: 121 × 38 × 21 mm / HP401V-01: 40 mm |
| Mounting | Recessed / Spring clips / Ceiling |
| Coverage Area | up to 800 sqft (up to) |
| Detection Angle | up to 120° |
| Dimmable | Yes |
| Photocell | Included (photocell function) |
| Sensor Type | Passive infrared (PIR) |
| Switching Current Capacity | maximum: up to 3A (at 100V, at 277V) / up to 1.2A (at 347V) |
| Detection Notes | results vary with object size and speed, mounting height, and real-life conditions / Near 36–37°C ambient temperature, PIR detection performance significantly weakens or may become non-responsive; above 40°C it significantly weakens. (PIR) |
| Sensor Settings | Detection area: 25% / 50% / 75% / 100%; Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; Daylight threshold: disable / 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux; Standby dimming level: 10% / 20% / 30% / 50%; Standby period: 0 seconds / 5 seconds / 2 minutes / 15 minutes / 25 minutes / 30 minutes / 45 minutes / 60 minutes / +∞ |
| Switching Capacity | maximum: up to 400W (at 100V, control gear, at 347V) / up to 800W (at 100V, ballast or incandescent, at 277V, control gear, at 347V) / up to 1,200W (at 277V, ballast or incandescent) |
| Warm-Up Time | 50 seconds (at light is at 100% for about 45 seconds before dimming to standby level or off) |
| Standards | CE / RoHS |
| Warranty | 3 years |
| Listings | IP20 / UL |
| Family | Occupancy and daylight sensor |
Description

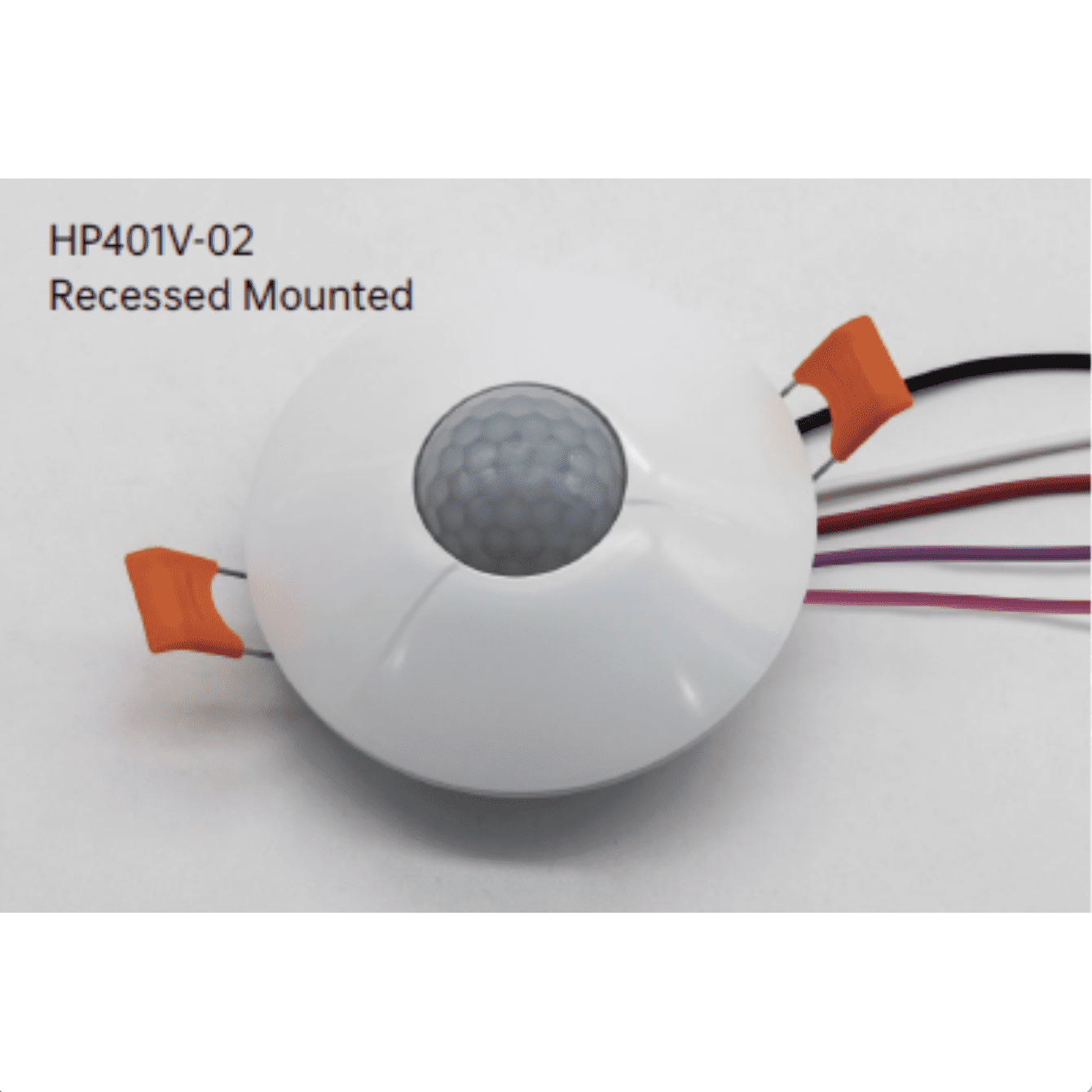

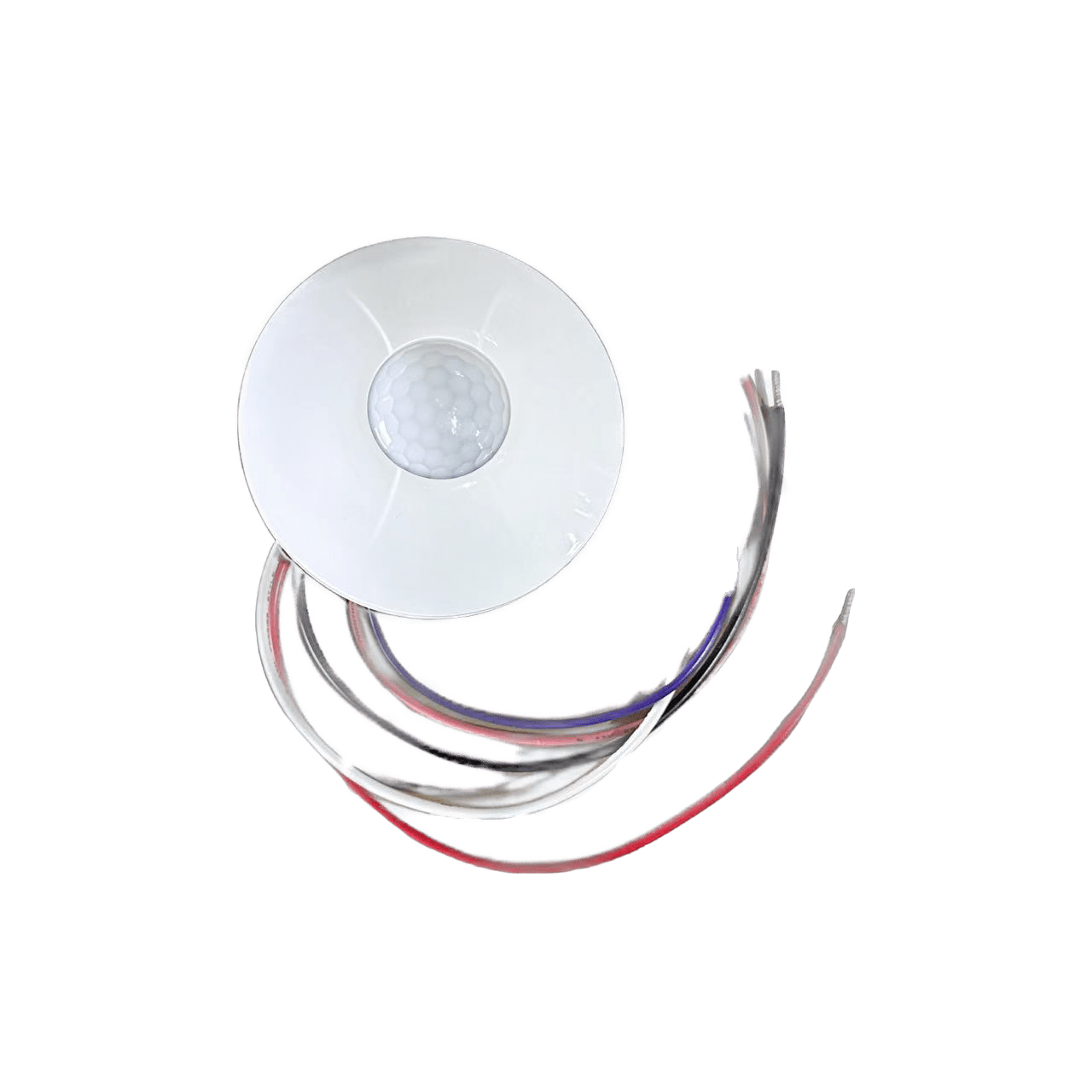

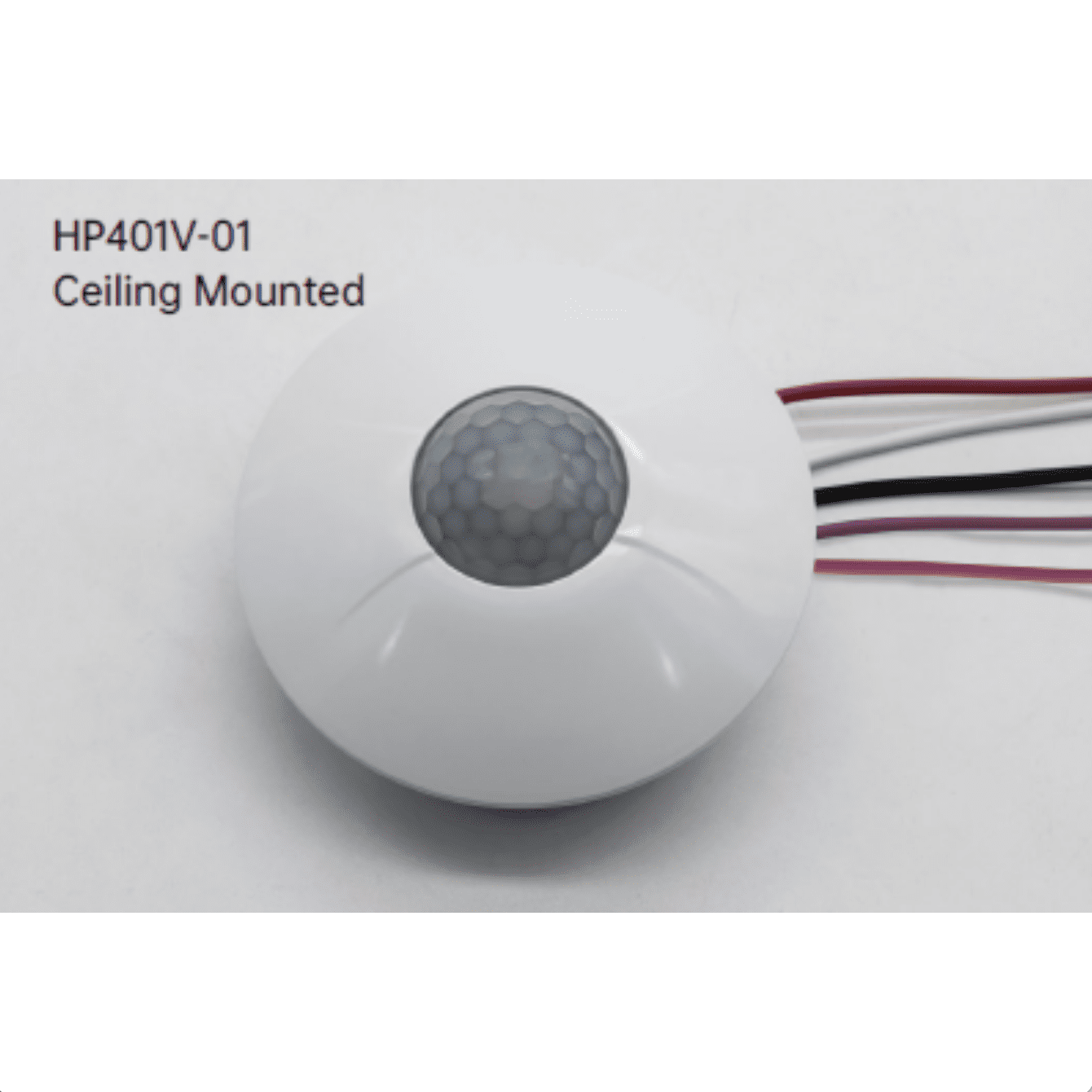

This standalone indoor PIR sensor combines motion detection with a built-in photocell to switch lights automatically based on occupancy and ambient light. It comes in two models: one mounts on the ceiling and covers up to 800 sq ft, while the other recesses into the ceiling, holds with spring clips and detects up to 120°.
Both provide 0–10V dimming control, run on 100–347V and mount at heights up to 12 m. They are rated IP20 for indoor use, which suits offices, hallways, storage areas and retail spaces.
UL listed and CE and RoHS compliant, with a 3-year warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Voltage | 100–347V |
| Physical | |
|---|---|
| Ambient Temperature | -20–60 °C (working) / -40–80 °C (storage) |
| Diameter | HP401V-02: 90 mm / HP401V-02: 74 mm / HP401V-01: 90 mm |
| Dimensions | HP401V-02: 121 × 38 × 21 mm / HP401V-01: 40 mm |
| Mounting | Recessed / Spring clips / Ceiling |
| Mounting Height | up to 12 m |
| Controls | |
|---|---|
| Coverage Area | up to 800 sqft (up to) |
| Detection Angle | up to 120° |
| Detection Range | maximum mounting height: 12 m (39 ft): 2–5 m / 6–16 ft |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Photocell | Included (photocell function) |
| Sensor Type | Passive infrared (PIR) |
| Switching Current Capacity | maximum: up to 3A (at 100V, at 277V) / up to 1.2A (at 347V) |
| Detection Notes | results vary with object size and speed, mounting height, and real-life conditions / Near 36–37°C ambient temperature, PIR detection performance significantly weakens or may become non-responsive; above 40°C it significantly weakens. (PIR) |
| Sensor Settings | Detection area: 25% / 50% / 75% / 100%; Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; Daylight threshold: disable / 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux; Standby dimming level: 10% / 20% / 30% / 50%; Standby period: 0 seconds / 5 seconds / 2 minutes / 15 minutes / 25 minutes / 30 minutes / 45 minutes / 60 minutes / +∞ |
| Switching Capacity | maximum: up to 400W (at 100V, control gear, at 347V) / up to 800W (at 100V, ballast or incandescent, at 277V, control gear, at 347V) / up to 1,200W (at 277V, ballast or incandescent) |
| Warm-Up Time | 50 seconds (at light is at 100% for about 45 seconds before dimming to standby level or off) |
| Warranty | |
|---|---|
| Warranty | 3 years |
| Certifications | UL |
| IP Rating | IP20 |
| Standards | CE / RoHS |
