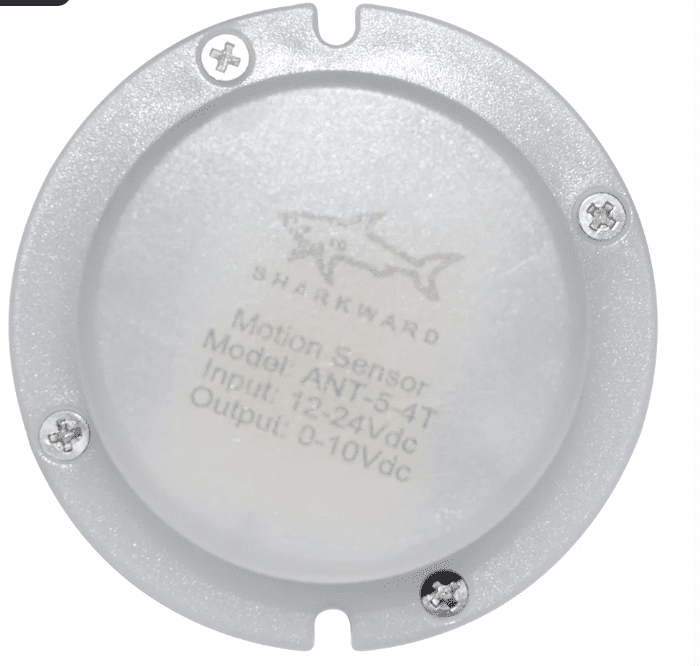

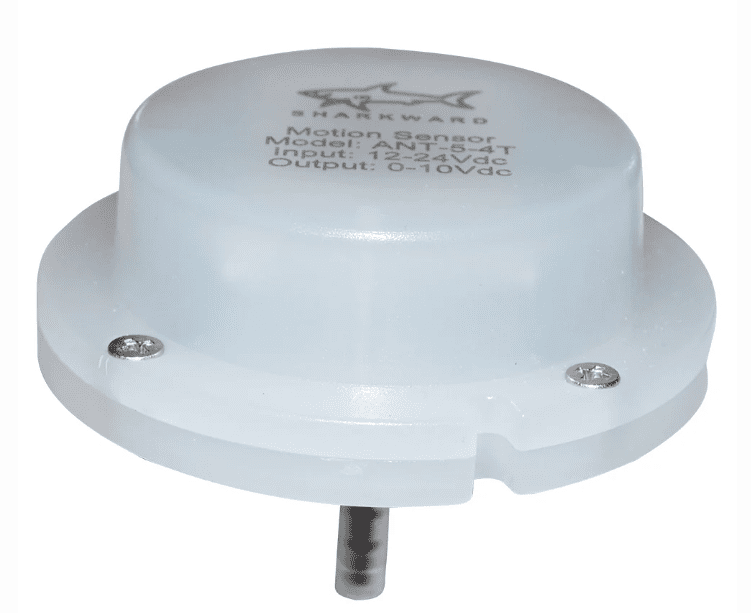

ANT-5-4T Bi-Level Motion Sensor (DC12V Supply)
ANT-5-4T Bi-Level Motion Sensor (DC12V Supply)
Model: ANT-5-4T-RUBBER GASKET
Microwave Sensor
0-10V Dimmable
12-24 Volt
IP65
Specifications
| Voltage | 12-24V |
| Dimming | 0-10V |
| Frequency | Microwave 5.8 GHz ±75 MHz |
| Mounting Height | up to 40 ft |
| Detection Radius | 1-8m |
| Current | 50+mA (power supply current) / up to 25mA (sinking current, maximum, at 0–10V) |
| Ambient Temperature | -40–158 °F (operating) |
| Mounting | Fixture-mounted (inside the bottom of the fixture body) |
| Sensor Type | Microwave |
| Transmission Power | up to 0.2 mW |
| Warm-Up Time | 15 seconds |
| Control Functions | stepped stand-by dimming |
| Sensor Settings | detection radius: Detection radius: 20% / 50% / 75% / 100%; Hold time: 10 seconds (hold time); Hold time: 1 minute (hold time); Hold time: 5 minutes (hold time); Hold time: 10 minutes (hold time); Hold time: 15 minutes (hold time); Hold time: 20 minutes (hold time); Hold time: 30 minutes (hold time); Hold time: 60 minutes (hold time); Light control: 24 H (light control); Light control: 10 lux (light control); Light control: 30 lux (light control); Light control: 50 lux (light control); Sensitivity: 100%; Hold time: 5 minutes; Dimming level: 30%; Dimming time: 60 minutes (factory default) |
| Listings | IP65 |
| Family | Occupancy and daylight sensor |
| Series | ANT-5 bi-level motion sensor |
Description
This bi-level microwave motion sensor brings occupancy control to high bay fixtures. Its slim, low-profile design fits inside the bottom of the fixture body, and when motion stops it steps the light from high output down to a dimmed standby level after the hold time.
The sensor operates on 12–24V DC at mounting heights up to 40 ft. Detection reaches 1–8 m, adjustable to 20%, 50%, 75% or 100%, and it provides 0–10V dim control output. Hold time is selectable at 10 s, or 1, 5, 10, 15, 20, 30 or 60 min, with a daylight threshold of 10, 30 or 50 lux. Rated IP65 and -40–158 °F.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Series | ANT-5 bi-level motion sensor |
| Electrical | |
|---|---|
| Current | 50+mA (power supply current) / up to 25mA (sinking current, maximum, at 0–10V) |
| Voltage | 12–24V |
| Physical | |
|---|---|
| Ambient Temperature | -40–158 °F (operating) |
| Mounting | Fixture-mounted (inside the bottom of the fixture body) |
| Mounting Height | up to 40 ft |
| Controls | |
|---|---|
| Detection Range | 1–8 m |
| Dimming Type | 0–10V |
| Sensor Type | Microwave |
| Transmission Power | up to 0.2 mW |
| Warm-Up Time | 15 seconds |
| Control Functions | stepped stand-by dimming |
| Sensor Settings | detection radius: Detection radius: 20% / 50% / 75% / 100%; Hold time: 10 seconds (hold time); Hold time: 1 minute (hold time); Hold time: 5 minutes (hold time); Hold time: 10 minutes (hold time); Hold time: 15 minutes (hold time); Hold time: 20 minutes (hold time); Hold time: 30 minutes (hold time); Hold time: 60 minutes (hold time); Light control: 24 H (light control); Light control: 10 lux (light control); Light control: 30 lux (light control); Light control: 50 lux (light control); Sensitivity: 100%; Hold time: 5 minutes; Dimming level: 30%; Dimming time: 60 minutes (factory default) |
| IP Rating | IP65 |
