360 Deg. Occupancy Sensor – Passive Infrared (PIR) BLE 120-277V
360 Deg. Occupancy Sensor – Passive Infrared (PIR) BLE 120-277V
Passive infrared (PIR) Sensor, 1,600 sq ft Coverage
120 / 277 Volt
Specifications
| Input Voltage | 120-277V |
| Output Voltage | 0-10V single-channel |
| Cable | Hardwire |
| Frequency | 50 / 60 Hz |
| Operating Temperature | 0–55 °C (operating) |
| Listings | cULus |
| Compatibility | Incandescent (lighting loads, incandescent) / Fluorescent (lighting loads, fluorescent) / CFL (lighting loads, CFL) / LED (lighting loads, LED) |
| Diameter | 4.5625 in |
| Color | White |
| Height | 1.375 in |
| Mounting | Ceiling |
| Weight | 0.5 lb |
| Coverage Area | 1,600 sq ft (PIR) |
| Detection Angle | 360° (PIR) |
| Sensor Type | Passive infrared (PIR) |
| Switching Capacity | 800W (tungsten, at 120V AC) / 800W (resistive, at 120V AC) |
| Control Functions | adjustable ambient light override |
| Standards | California Title 20 / California Title 24 |
| Warranty | 2 years |
| Family | Occupancy and daylight sensor |
Description

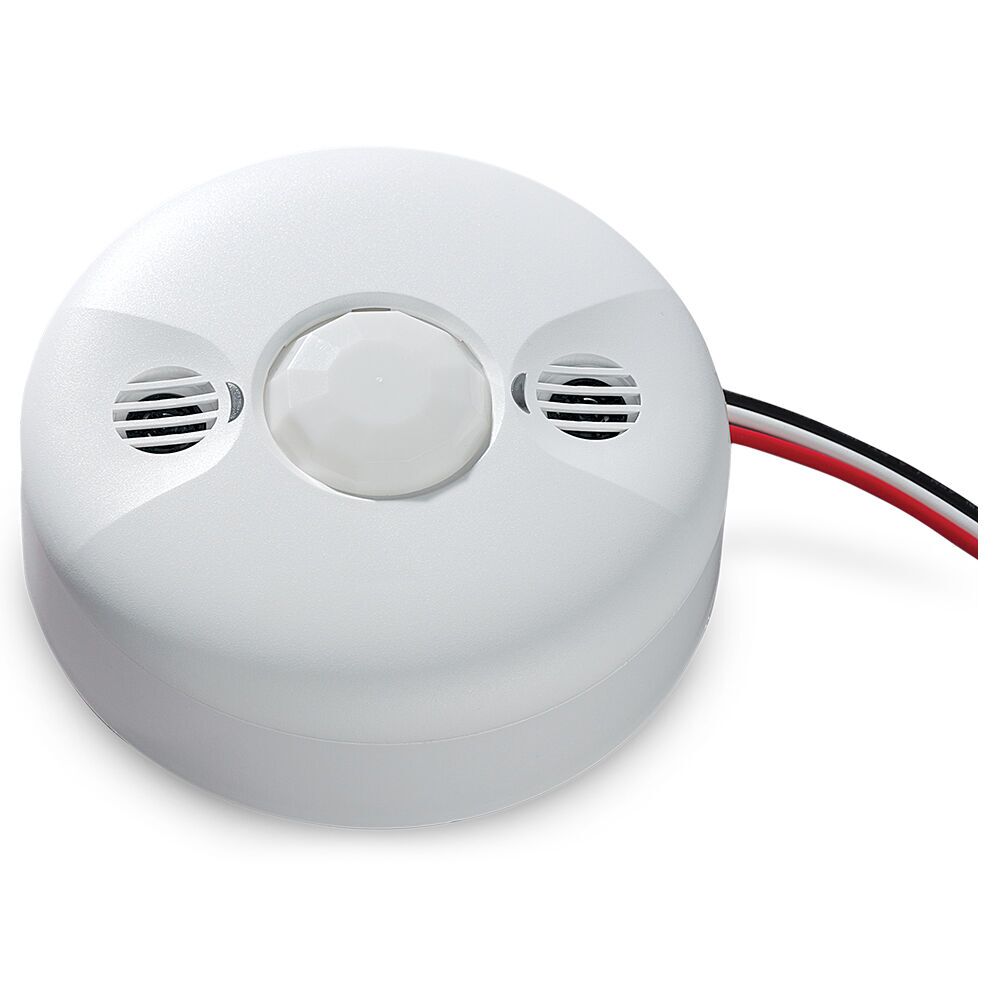

A 360° ceiling-mount PIR occupancy sensor that detects motion and ambient light to switch room lighting automatically, covering up to 1,600 sq ft. The self-contained design needs no separate power pack, which suits commercial, industrial, residential and utility spaces.
It runs on 120 / 277V, requires a neutral connection and switches up to 800W of incandescent, fluorescent, CFL or LED lighting. Both the time delay and the ambient light override are adjustable to suit the space. The white sensor measures 4.5625 inches across and 1.375 inches high.
It is cULus listed, with a 2-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Connection Type | Hardwire |
| Frequency | 50 / 60 Hz |
| Output Voltage | 0–10V |
| Voltage | 120 / 277V |
| Compatibility | Incandescent (lighting loads, incandescent) / Fluorescent (lighting loads, fluorescent) / CFL (lighting loads, CFL) / LED (lighting loads, LED) |
| Physical | |
|---|---|
| Ambient Temperature | 0–55 °C (operating) |
| Diameter | 4.5625 in |
| Finish | White |
| Height | 1.375 in |
| Mounting | Ceiling |
| Weight | 0.5 lb |
| Controls | |
|---|---|
| Coverage Area | 1,600 sq ft (PIR) |
| Detection Angle | 360° (PIR) |
| Sensor Type | Passive infrared (PIR) |
| Switching Capacity | 800W (tungsten, at 120V AC) / 800W (resistive, at 120V AC) |
| Control Functions | adjustable ambient light override |
| Warranty | |
|---|---|
| Warranty | 2 years |
| Certifications | cULus |
| Standards | California Title 20 / California Title 24 |
