Smart Control System 12V Microwave Sensor Round
Smart Control System 12V Microwave Sensor Round

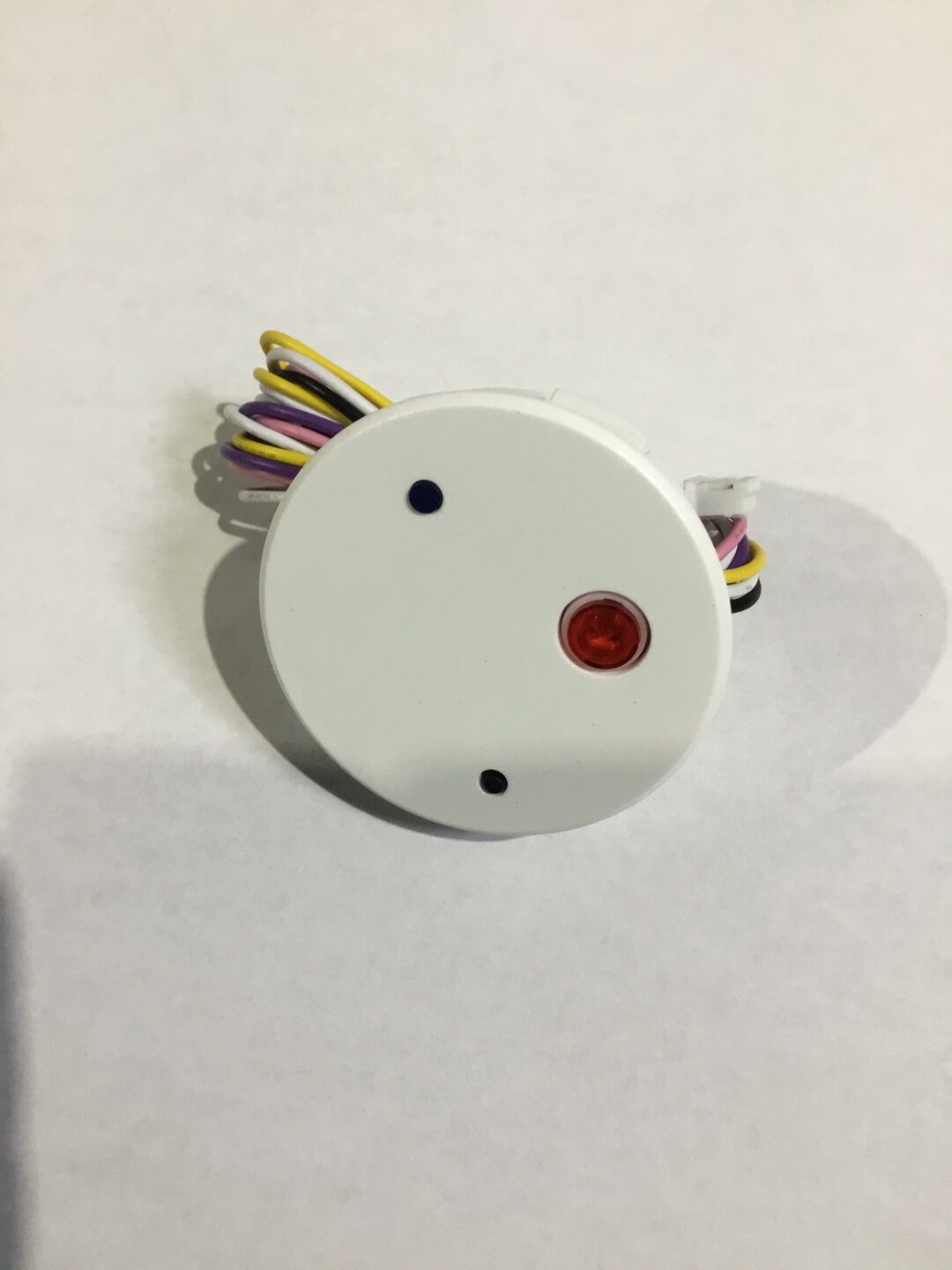

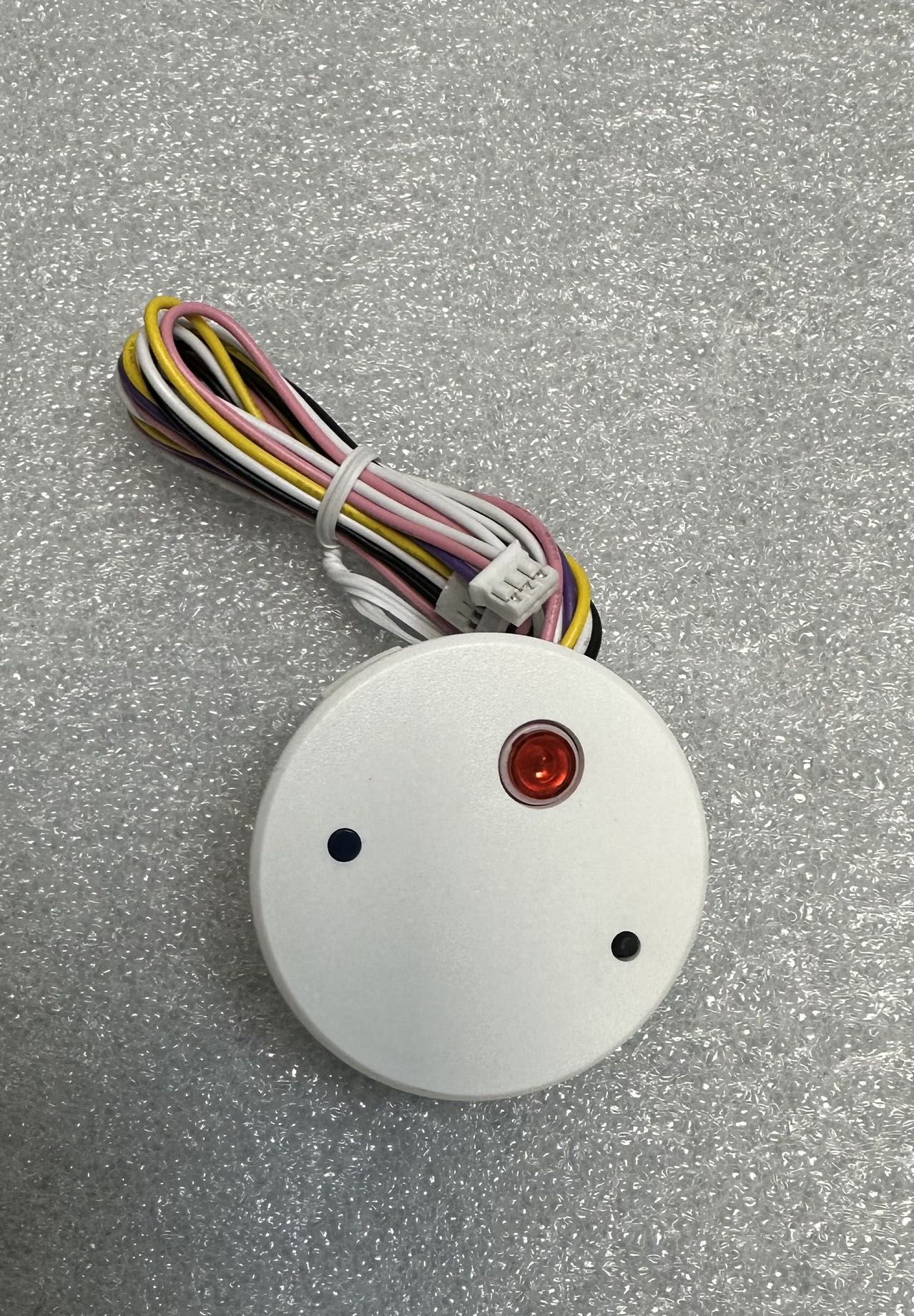

Model: E2-SMW-L-E-12
Microwave Sensor, Daylight Harvesting, Bluetooth Low Energy
Integrated Photocell
0-10V Dimmable
12 Volt
Specifications
| Voltage | 12V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -40°C(-40°F)-70°C(158°F) |
| Features | Non-Waterproof |
| Current | up to 25mA (sinking current, maximum) |
| Dimensions | 48 × 44 mm |
| Color | White |
| Connectivity | Bluetooth Low Energy |
| Daylight Harvesting | Yes |
| Encryption | AES 128-bit (AES) |
| Mesh Range | 100 ft (node-to-node) / 50 ft (node-to-device commissioning) |
| Photocell | Included (daylight) |
| Sensor Type | Microwave |
| Control Functions | Individual addressability / Grouping / Time-clock scheduling (lights, groups, scenes) / Manual on/off / Automatic on/off / Automatic partial on/off |
| Standards | RoHS / DLC networked lighting control technical requirements |
| Warranty | 5 years |
| Listings | cULus |
| Family | Occupancy and daylight sensor |
| Series | Smart microwave sensor |
Description

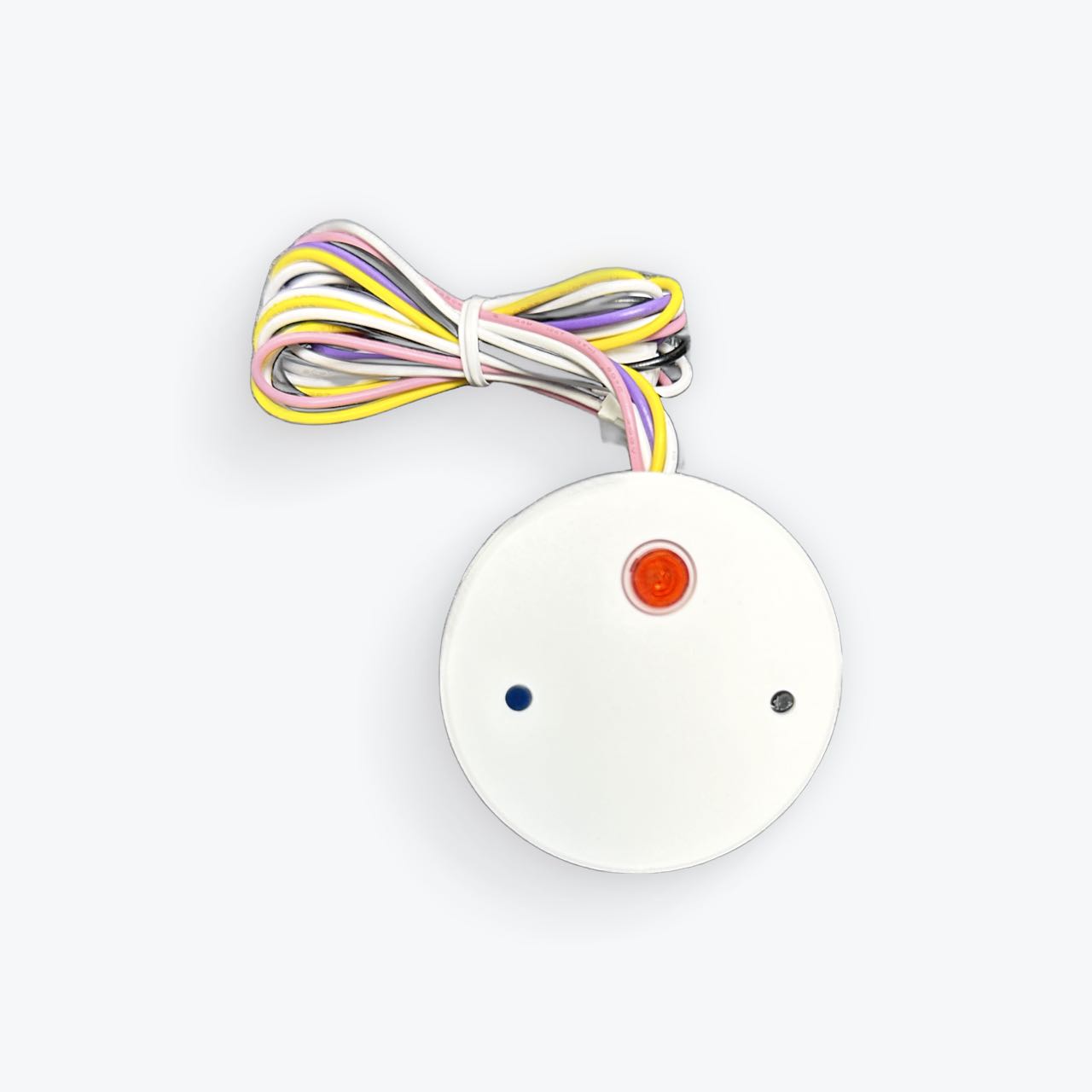

A round microwave and daylight sensor that installs inside indoor lighting fixtures for multi-level control over Bluetooth Low Energy. It provides daylight harvesting, individual addressability, grouping, scene control and time-clock scheduling for individual lights, groups or scenes.
It runs on 12V and provides 0–10V dimming with manual on/off, automatic on/off and automatic partial on/off. The white 48 × 44 mm sensor has a built-in light sensor, and connections use AES encryption. It is rated for -40–70 °C.
cULus listed and RoHS compliant, conforming to DLC networked lighting control technical requirements, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Series | Smart microwave sensor |
| Features | Non-Waterproof |
| Electrical | |
|---|---|
| Current | up to 25mA (sinking current, maximum) |
| Voltage | 12V |
| Physical | |
|---|---|
| Ambient Temperature | -40–70 °C (operating) |
| Dimensions | 48 × 44 mm |
| Finish | White |
| Controls | |
|---|---|
| Connectivity | Bluetooth Low Energy |
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Encryption | AES 128-bit (AES) |
| Mesh Range | 100 ft (node-to-node) / 50 ft (node-to-device commissioning) |
| Photocell | Included (daylight) |
| Sensor Type | Microwave |
| Control Functions | Individual addressability / Grouping / Time-clock scheduling (lights, groups, scenes) / Manual on/off / Automatic on/off / Automatic partial on/off |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus |
| Standards | RoHS / DLC networked lighting control technical requirements |
