Smart Control System 12V PIR Sensor Outdoor Zhaga
Smart Control System 12V PIR Sensor Outdoor Zhaga
Model: TL-ZH-BPRN-MF-12-02
Passive infrared (PIR) Sensor, Daylight Harvesting
0-10V Dimmable
12 Volt
IP65
Specifications
| Voltage | 12V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -20–45 °C (operating) |
| Features | Daylight Harvesting |
| Listings | IP65 Rating |
| Connection Type | Zhaga |
| Current | up to 100mA (operating current, maximum) |
| Dimensions | 86.5 × 26 × 34 mm |
| Weight | 92 g |
| Daylight Harvesting | Yes |
| Sensor Type | Passive infrared (PIR) |
| Control Functions | Single-light control (Single light) / Group control (Group) / All-devices control (All devices) |
| Family | Occupancy and daylight sensor |
Description

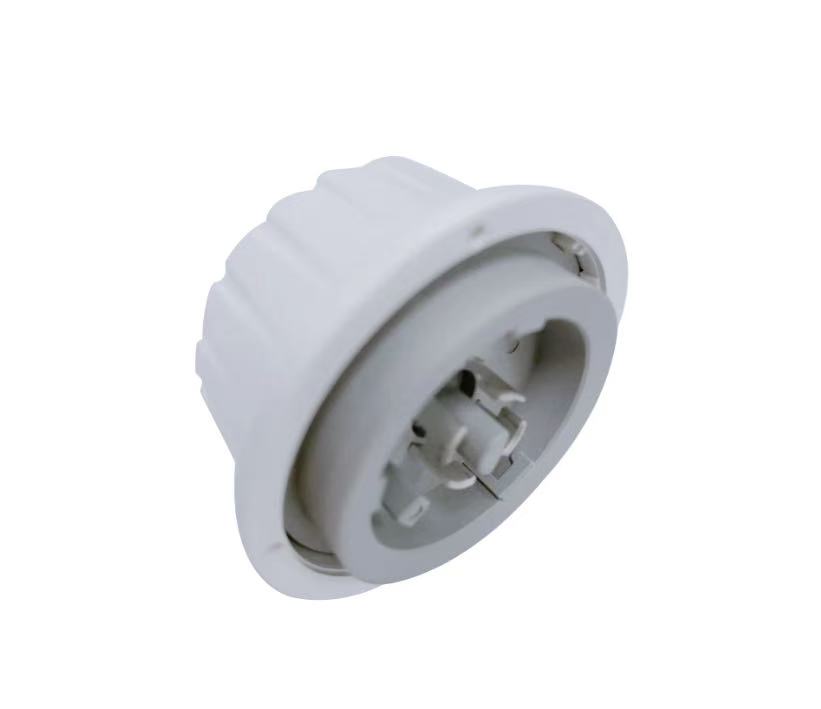

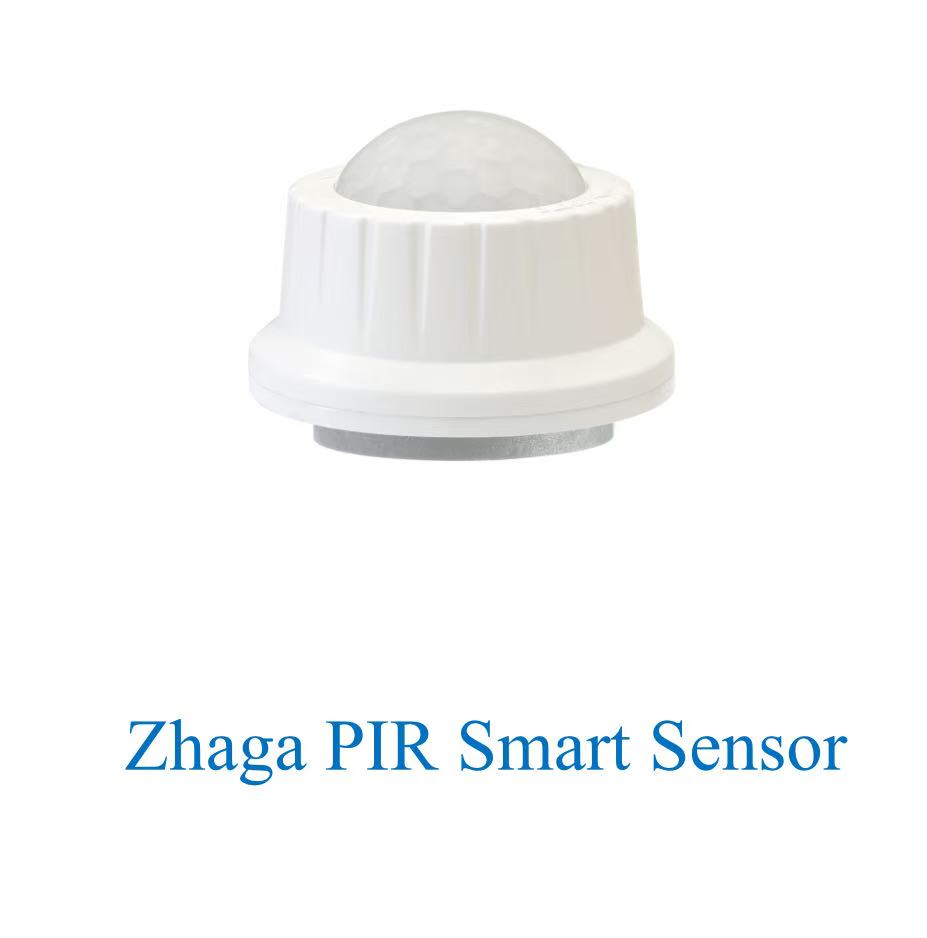

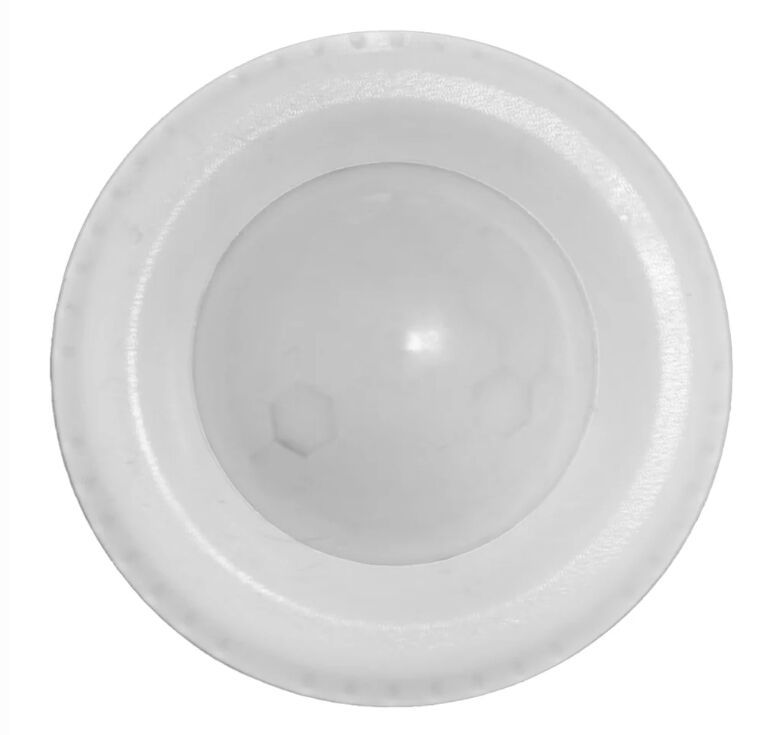

A Zhaga PIR smart sensor that plugs into compatible luminaires through a Zhaga connector. It suits wall packs, LED panels, UFO high bays and linear high bays, adding occupancy sensing and daylight harvesting, with app-based control of a single light, a group or all devices.
It runs on 12V, drawing up to 100mA, and connects to a 0–10V dimming power supply. Its IP65 housing measures 86.5 × 26 × 34 mm, weighs 92 g and is rated for -20–45 °C.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Connection Type | Zhaga |
| Current | up to 100mA (operating current, maximum) |
| Voltage | 12V |
| Physical | |
|---|---|
| Ambient Temperature | -20–45 °C (operating) |
| Dimensions | 86.5 × 26 × 34 mm |
| Weight | 92 g |
| Controls | |
|---|---|
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Sensor Type | Passive infrared (PIR) |
| Control Functions | Single-light control (Single light) / Group control (Group) / All-devices control (All devices) |
| IP Rating | IP65 |
