Smart Control System 12V PIR Sensor 12V
Smart Control System 12V PIR Sensor 12V

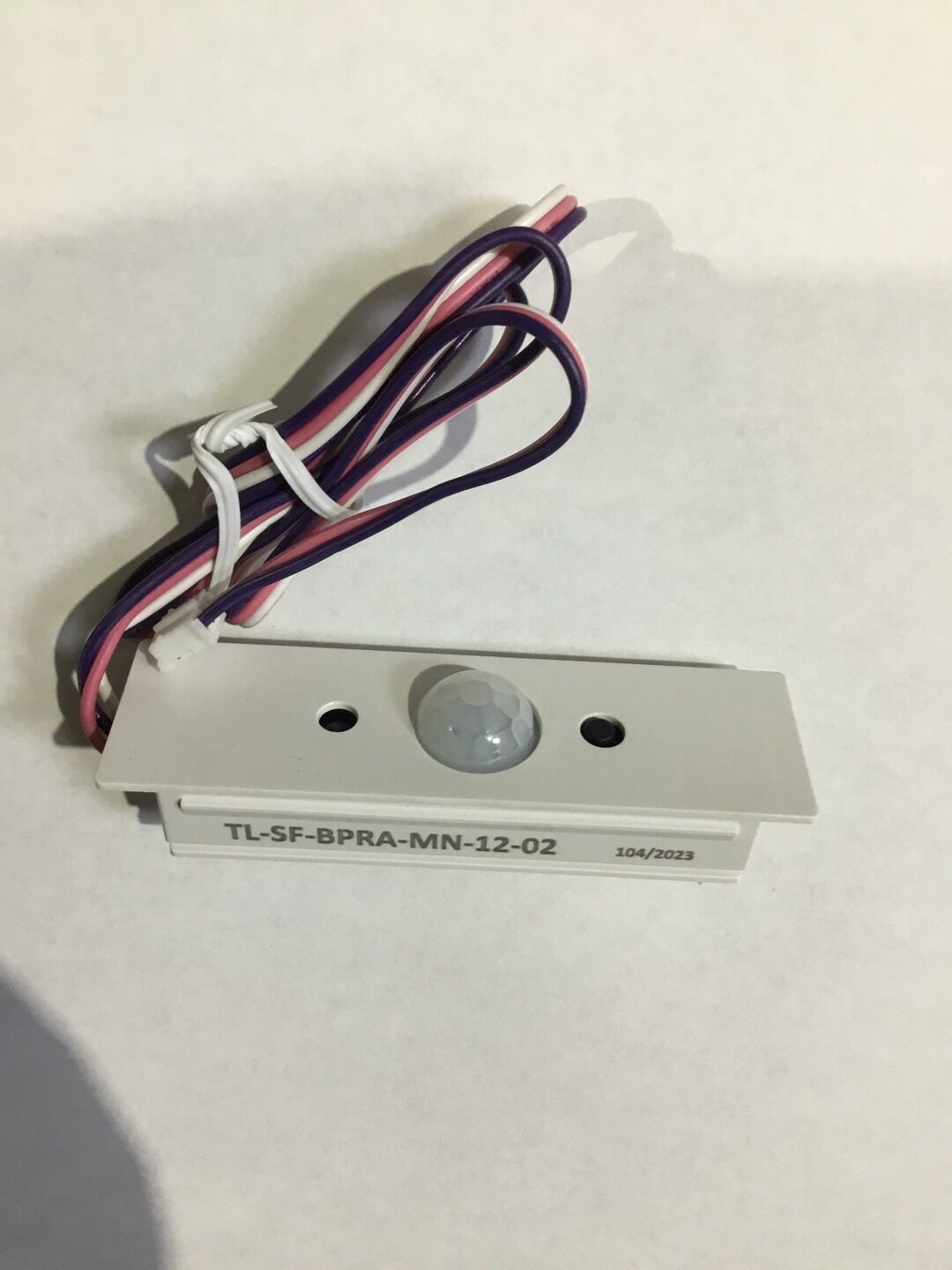

Model: TL-SF-BPRA-MN-12-02
Passive infrared (PIR) Sensor, Daylight Harvesting, Bluetooth Mesh, Up to 20 ft Coverage
Integrated Photocell
0-10V Dimmable
12 Volt
IP20
Specifications
| Voltage | 12V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -20–60 °C (operating) |
| Features | Daylight Harvesting, Non-Waterproof |
| Current | up to 100mA (operating current, maximum) |
| Dimensions | 0.78 × 2.755 × 0.73 in |
| Mounting Height | up to 20 ft |
| Connectivity | Bluetooth Mesh |
| Daylight Harvesting | Yes |
| Mesh Range | up to 100 m |
| Photocell | Included (daylight sensor) |
| Photosensitive Range | 10–1,000 lux |
| Radio Frequency | 2,405–2,480 MHz |
| Receiver Sensitivity | -92 dB |
| Sensor Type | Passive infrared (PIR) |
| Transmission Power | up to 8 dBm (maximum) |
| Accessories | Reset button (included) |
| Listings | IP20 |
| Family | Occupancy and daylight sensor |
Description

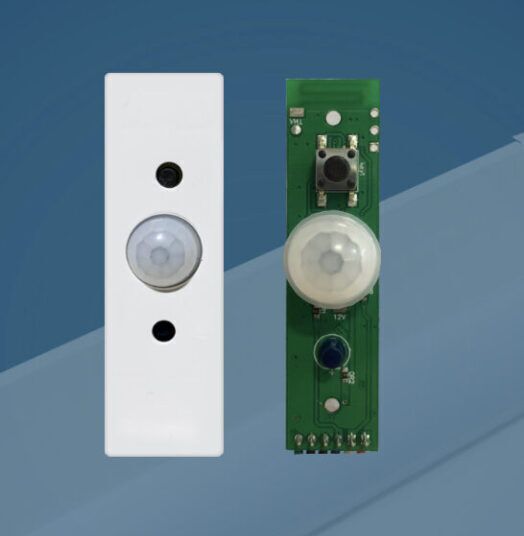

A 12V PIR and daylight sensor that mounts in the fixture and joins a Bluetooth Mesh network for smart lighting control. It suits LED troffers, magnetic LED retrofit strip kits and LED batten lights, adding occupancy sensing and daylight harvesting at the luminaire.
It runs on a 12V supply drawing up to 100mA and provides 0–10V dimming. The built-in light sensor reads 10–1,000 lux, the PIR sensor works at mounting heights up to 20 ft, and the mesh reaches up to 100 m. It is rated IP20 for indoor use and comes with a reset button.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Current | up to 100mA (operating current, maximum) |
| Voltage | 12V |
| Physical | |
|---|---|
| Ambient Temperature | -20–60 °C (operating) |
| Dimensions | 0.78 × 2.755 × 0.73 in |
| Mounting Height | up to 20 ft |
| Controls | |
|---|---|
| Connectivity | Bluetooth Mesh |
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Mesh Range | up to 100 m |
| Photocell | Included (daylight sensor) |
| Photosensitive Range | 10–1,000 lux |
| Radio Frequency | 2,405–2,480 MHz |
| Receiver Sensitivity | -92 dB |
| Sensor Type | Passive infrared (PIR) |
| Transmission Power | up to 8 dBm (maximum) |
| IP Rating | IP20 |
| Accessories | Reset button (included) |
