Smart Control System 12V Microwave Sensor
Smart Control System 12V Microwave Sensor
Model: E2-SEN-Micro-Indoor-Smart-Motion & daylight sensor
Daylight Harvesting, IR Switch Control, Touch Control, Bluetooth Low Energy
0-10V Dimmable
Specifications
| Voltage | 12V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -40–50 °C (operating) |
| Features | Daylight Harvesting, Non-Waterproof |
| Connection Type | Wire leads (wire colour designation) |
| Current | up to 25mA (sinking current, maximum) |
| Dimensions | 48 × 44 mm |
| Color | White |
| Mounting | Fixture-mounted / Magnetic (carrier or carrier opening) |
| Connectivity | Bluetooth Low Energy |
| Control Type | IR Switch / Touch |
| Daylight Harvesting | Yes |
| Encryption | AES 128-bit (AES) |
| Mesh Range | 100 ft (node-to-node) / 50 ft (node-to-device commissioning) |
| Press Time | 5 seconds (IR receiver alignment, release to reset) |
| Switching Capacity | up to 60W (maximum, LED driver only) |
| Switching Current Capacity | up to 5A (maximum, LED driver only) |
| Control Functions | individual addressability / grouping / scheduling for lights, groups and scenes / manual on/off / automatic on/off / automatic partial on/off / motion sensing |
| Standards | UL 1376 / RoHS / DLC networked lighting control technical requirements |
| Warranty | 5 years |
| Listings | cULus |
| Family | Occupancy and daylight sensor |
| Series | Smart microwave sensor |
Description

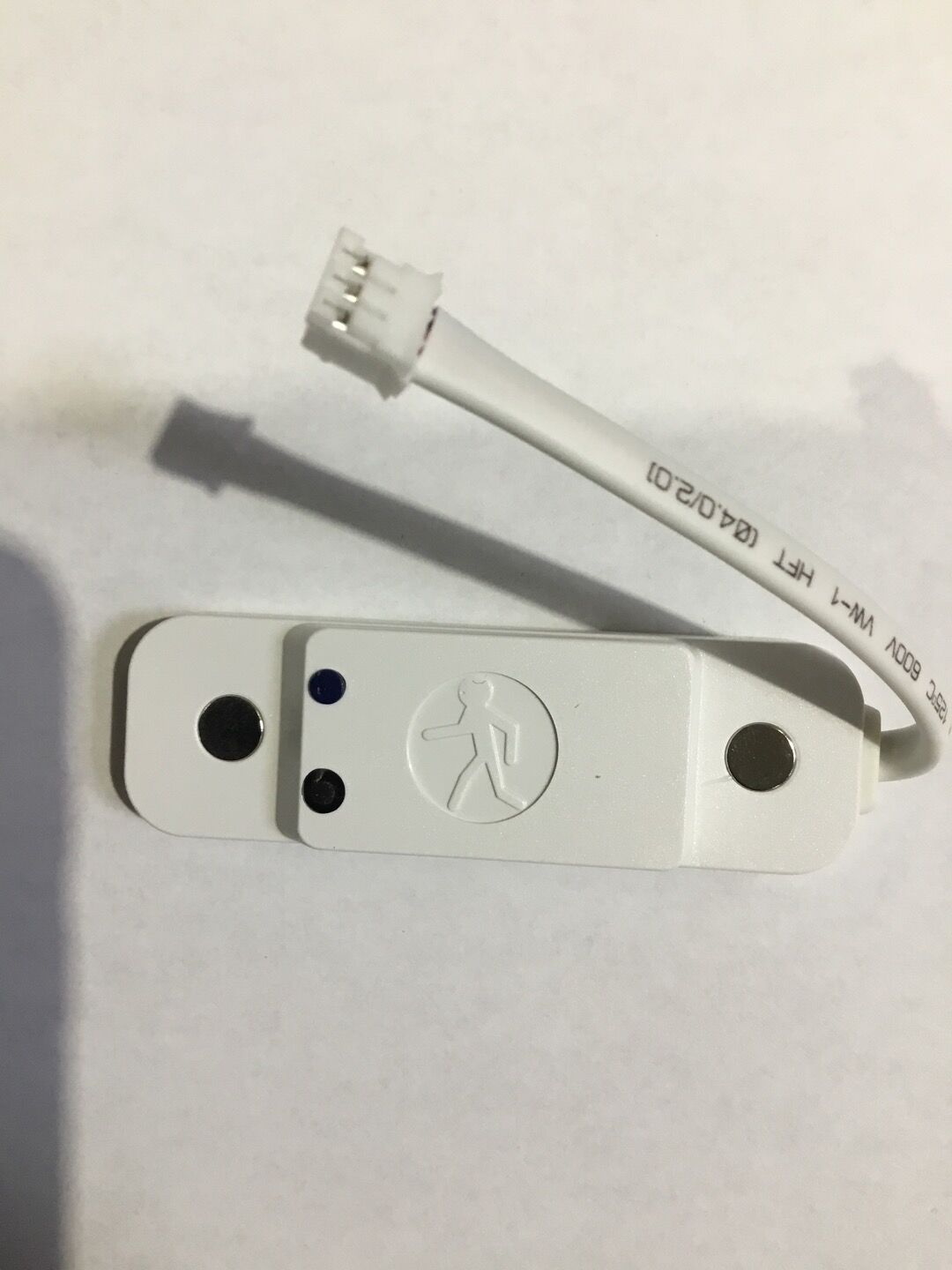

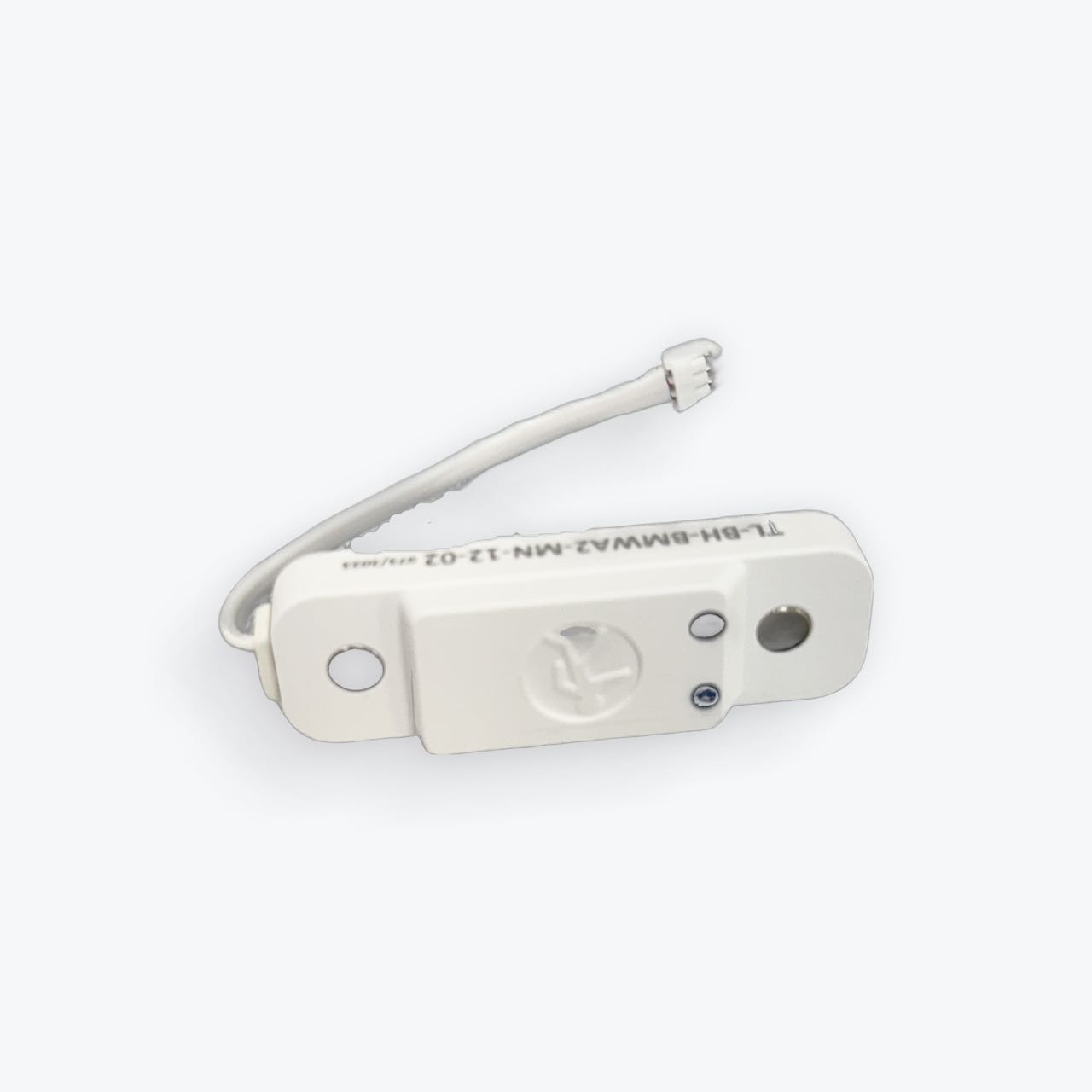

A smart microwave and daylight sensor for indoor fixtures, giving multi-level lighting control over Bluetooth Low Energy. It suits retrofit LED panels, downlights, pendant lights, low bays, high bays and track lighting, with individual addressability, grouping and scheduling for lights, groups and scenes.
It provides 0–10V dimming with manual on/off, automatic on/off and automatic partial on/off, and daylight harvesting. The 48 × 44 mm white sensor mounts to the fixture magnetically and connects by wire leads. It controls loads of up to 60W and 5A, and its connections use AES encryption.
cULus listed and RoHS compliant, conforming to UL 1376 and DLC networked lighting control technical requirements, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Series | Smart microwave sensor |
| Electrical | |
|---|---|
| Connection Type | Wire leads (wire colour designation) |
| Current | up to 25mA (sinking current, maximum) |
| Physical | |
|---|---|
| Ambient Temperature | -40–50 °C (operating) |
| Dimensions | 48 × 44 mm |
| Finish | White |
| Mounting | Fixture-mounted / Magnetic (carrier or carrier opening) |
| Controls | |
|---|---|
| Connectivity | Bluetooth Low Energy |
| Control Type | IR Switch / Touch |
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Encryption | AES 128-bit (AES) |
| Mesh Range | 100 ft (node-to-node) / 50 ft (node-to-device commissioning) |
| Press Time | 5 seconds (IR receiver alignment, release to reset) |
| Switching Capacity | up to 60W (maximum, LED driver only) |
| Switching Current Capacity | up to 5A (maximum, LED driver only) |
| Control Functions | individual addressability / grouping / scheduling for lights, groups and scenes / manual on/off / automatic on/off / automatic partial on/off / motion sensing |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus |
| Standards | UL 1376 / RoHS / DLC networked lighting control technical requirements |
