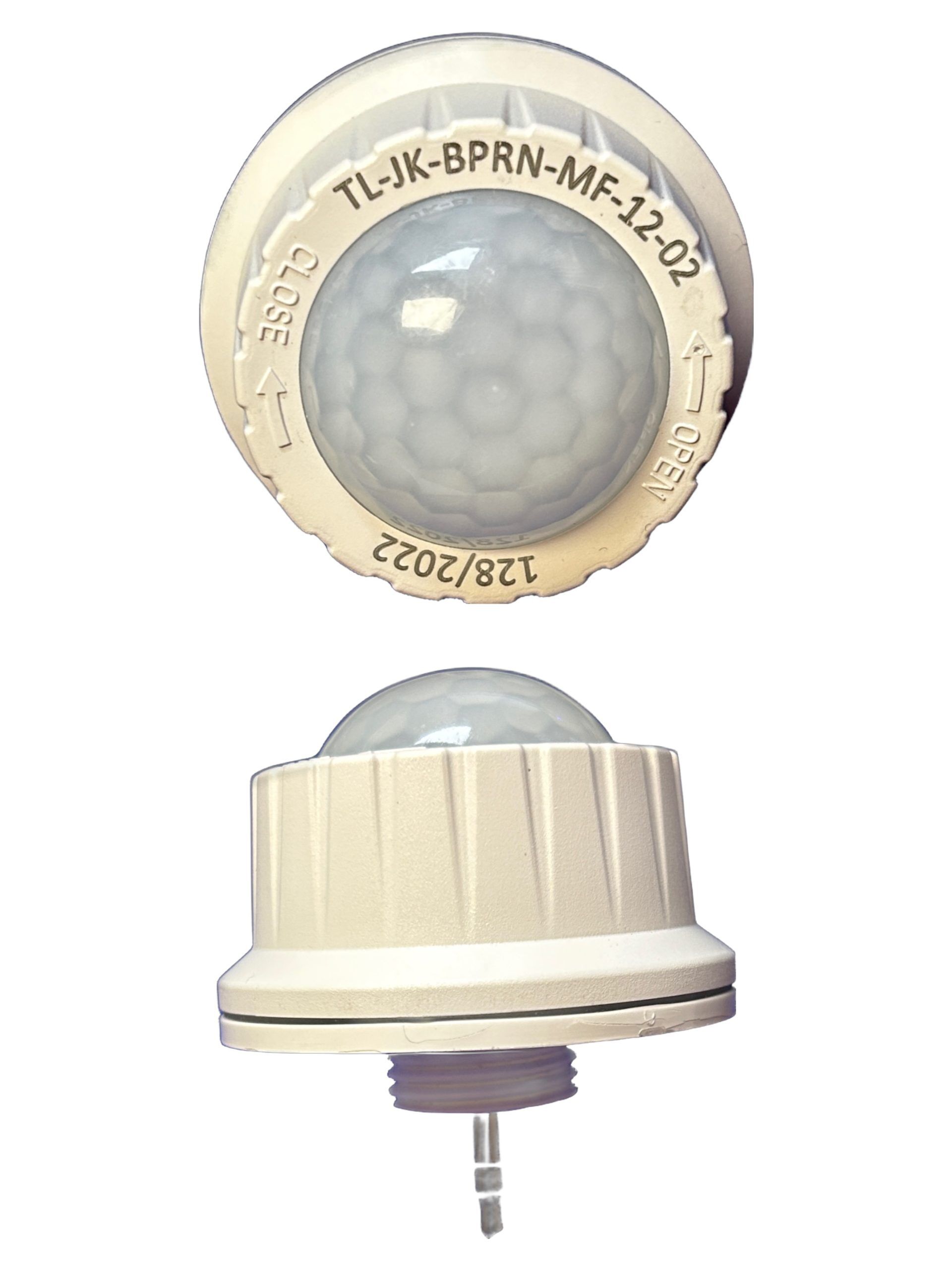

Smart Control System 12V PIR Sensor Outdoor
Smart Control System 12V PIR Sensor Outdoor
Specifications
| Voltage | 12V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -20–45 °C (operating) |
| Features | Daylight Harvesting |
| Listings | IP65 Rating |
| Connection Type | Terminal (terminal designation) |
| Current | up to 100mA (operating current, maximum) |
| Dimensions | 86.5 × 26 × 34 mm |
| Weight | 92 g |
| Daylight Harvesting | Yes |
| Detection Angle | 50° (wall) |
| Control Functions | single-light control (Single light) / group control (Group) / all-lights control (All lights) |
| Sensor Settings | Sensitivity: Low / Middle / High |
| Family | Occupancy and daylight sensor |
Description
A smart outdoor lighting sensor and DC controller that plugs into compatible fixtures through a jack connector. It suits wall packs, LED panels, UFO high bays and linear high bays, adding motion sensing and daylight harvesting, with app-based control of a single light, a group or all lights over a Bluetooth module.
It runs on 12V, drawing up to 100mA, and provides 0–10V dimming. The sensor has a 50° detection angle with low, middle or high sensitivity. Its IP65 housing measures 86.5 × 26 × 34 mm, weighs 92 g and is rated for -20–45 °C.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Connection Type | Terminal (terminal designation) |
| Current | up to 100mA (operating current, maximum) |
| Voltage | 12V |
| Physical | |
|---|---|
| Ambient Temperature | -20–45 °C (operating) |
| Dimensions | 86.5 × 26 × 34 mm |
| Weight | 92 g |
| Controls | |
|---|---|
| Daylight Harvesting | Yes |
| Detection Angle | 50° (wall) |
| Dimming Type | 0–10V |
| Control Functions | single-light control (Single light) / group control (Group) / all-lights control (All lights) |
| Sensor Settings | Sensitivity: Low / Middle / High |
| IP Rating | IP65 |
