Canopy With Emergency Battery Backup 75W
Canopy With Emergency Battery Backup 75W
25/45/55W Wattage Selectable
3000K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
0-10V Dimmable
120-277 Volt
IP65
Specifications
| Light Source | SMD LED |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Distribution Type | Type V |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Voltage | 120–277V |
| Wattage | 25 / 45 / 55W |
| Ambient Temperature | -20–131 °F (operating) / 40–167 °F (storage) |

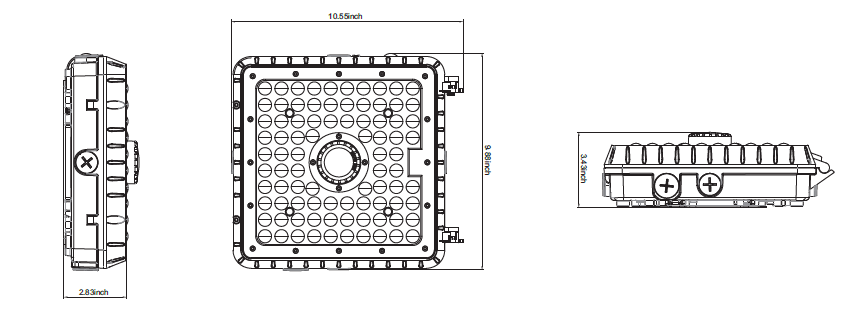

| Dimensions | 10.55 × 9.88 in (footprint) / 2.83 × 3.43 in |
| Humidity | 5–95% |
| Mounting | Ceiling (retaining plate) |
| Emergency Backup | Integrated |
| Emergency Lumens | 1,350 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| CCT Selectable | Yes, switchable |
| Dimming | 0–10V |
| Wattage Selectable | Yes |
| Warranty | 5 years |
| Listings | IP65 / UL |
| Family | Canopy and garage light |
| Series | CSA canopy |
Description
A low-profile LED canopy light with the emergency battery prewired in the same unit. When the power fails, it runs at 10W for 90 minutes and delivers 1,350 lumens in emergency mode.
Color temperature is selectable at 3000K, 4000K or 5000K, with CRI 80+ and an efficacy of 130 lm/W. It dims with 0–10V controls and runs on 120–277V. The IP65-rated fixture mounts to the ceiling, measures 10.55 × 9.88 inches and spreads light in a Type V pattern for garages and canopies.
UL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Canopy and garage light |
| Series | CSA canopy |
| Light Source | SMD LED |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Distribution Type | Type V |
| Efficacy | 130 lm/W |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 120–277V |
| Wattage | 25 / 45 / 55W |
| Physical | |
|---|---|
| Ambient Temperature | -20–131 °F (operating) / 40–167 °F (storage) |
| Dimensions | 10.55 × 9.88 in (footprint) / 2.83 × 3.43 in |
| Humidity | 5–95% |
| Mounting | Ceiling (retaining plate) |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 1,350 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
