2X2 LED Troffer With Emergency Battery Backup 3CCT Tunable
2X2 LED Troffer With Emergency Battery Backup 3CCT Tunable
Model: E2-TR-F-2×2-20/25/30W-35/40/50K
20/25/30W Wattage Selectable, Up to 3,850 Lumens
3500K/4000K/5000K CCT Selectable
Built-in 4W Emergency Battery, 90 Minutes
1-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 20W / 25W / 30W |
| Voltage | 120-277V |
| Dimming | 1-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 2,570 / 3,125 / 3,850 lm |
| Lifespan | 75,000 hours |

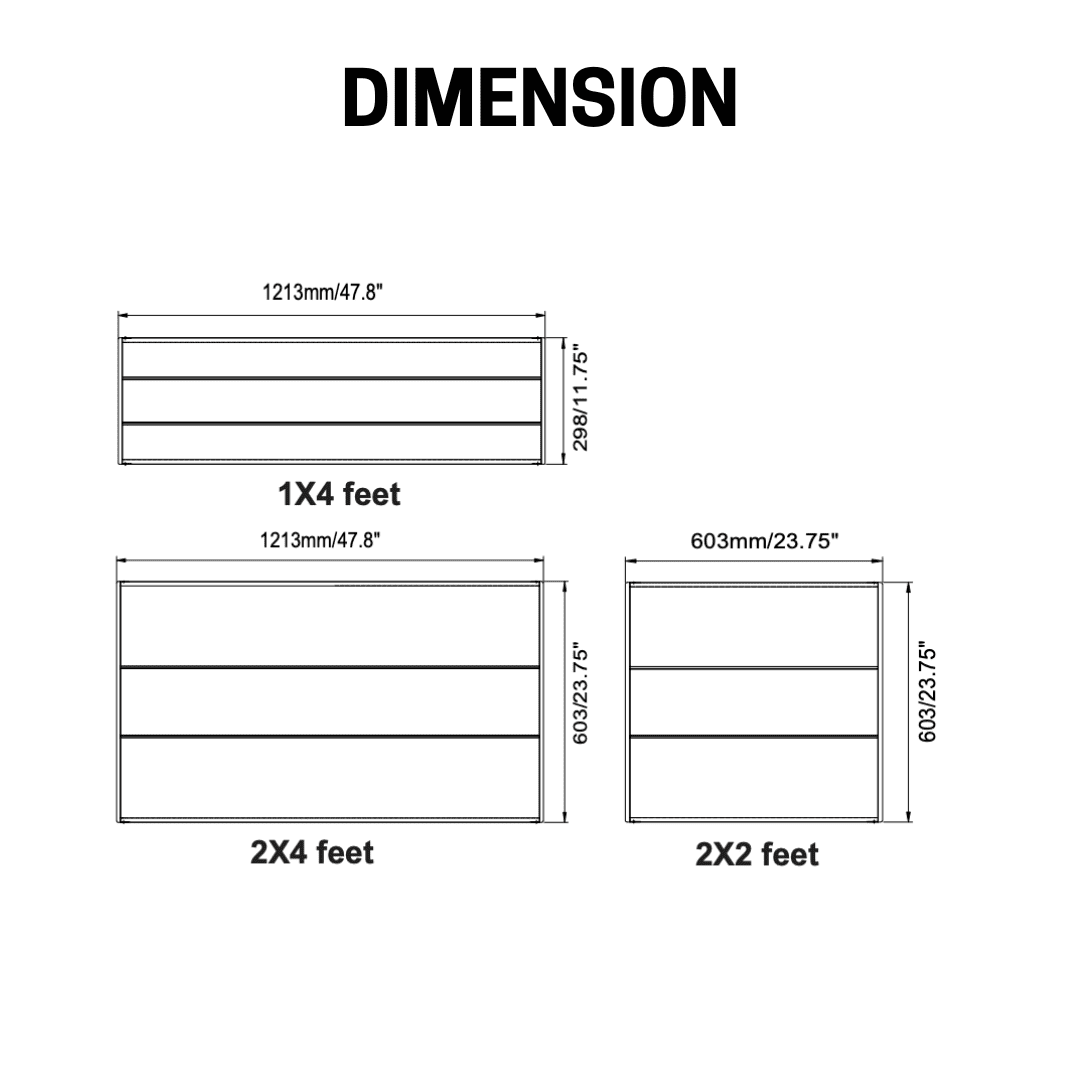

| Dimensions | base troffer: 603 × 603 × 54 mm |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Beam Angle | 119° |
| Efficacy | 125+ lm/W |
| Startup | Instant-on |
| Power Factor | 0.98+ |
| Mounting | Recessed (ceiling) |
| Weight | base troffer: 6.8 lb |
| Emergency Backup | Integrated |
| Emergency Power | 4W |
| Emergency Runtime | 90 minutes |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Motion Sensor | Optional (BRI810-B-M10-BLE, microwave, sold separately) |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (carton, base troffers) |
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
Description
Ideal for versatile indoor applications in damp environments, this 2×2 LED troffer includes a 4W emergency battery that keeps it lit for 90 minutes during a power outage. Rear-mounted selector switches set the wattage and color temperature, for healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more.
Wattage is selectable at 20, 25 or 30W, giving 2,570, 3,125 or 3,850 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+. It switches on instantly, dims on 1–10V controls and runs on 120–277V with a power factor of 0.98+. The fixture recesses into the ceiling and measures 603 × 603 × 54 mm.
Rated for damp locations, UL and DLC Premium listed and RoHS compliant, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Light | |
|---|---|
| Beam Angle | 119° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 2,570 / 3,125 / 3,850 lm |
| Startup | Instant-on |
| Electrical | |
|---|---|
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 20 / 25 / 30W |
| Physical | |
|---|---|
| Dimensions | base troffer: 603 × 603 × 54 mm |
| Mounting | Recessed (ceiling) |
| Weight | base troffer: 6.8 lb |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 4W |
| Emergency Runtime | 90 minutes |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Motion Sensor | Optional (BRI810-B-M10-BLE, microwave, sold separately) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (carton, base troffers) |
