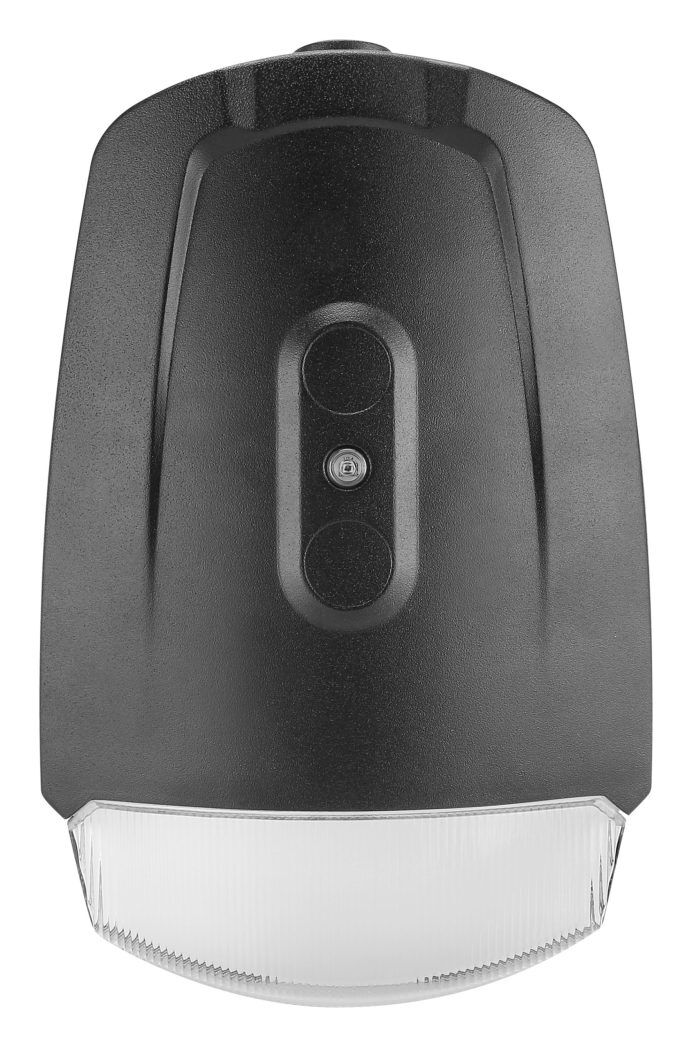

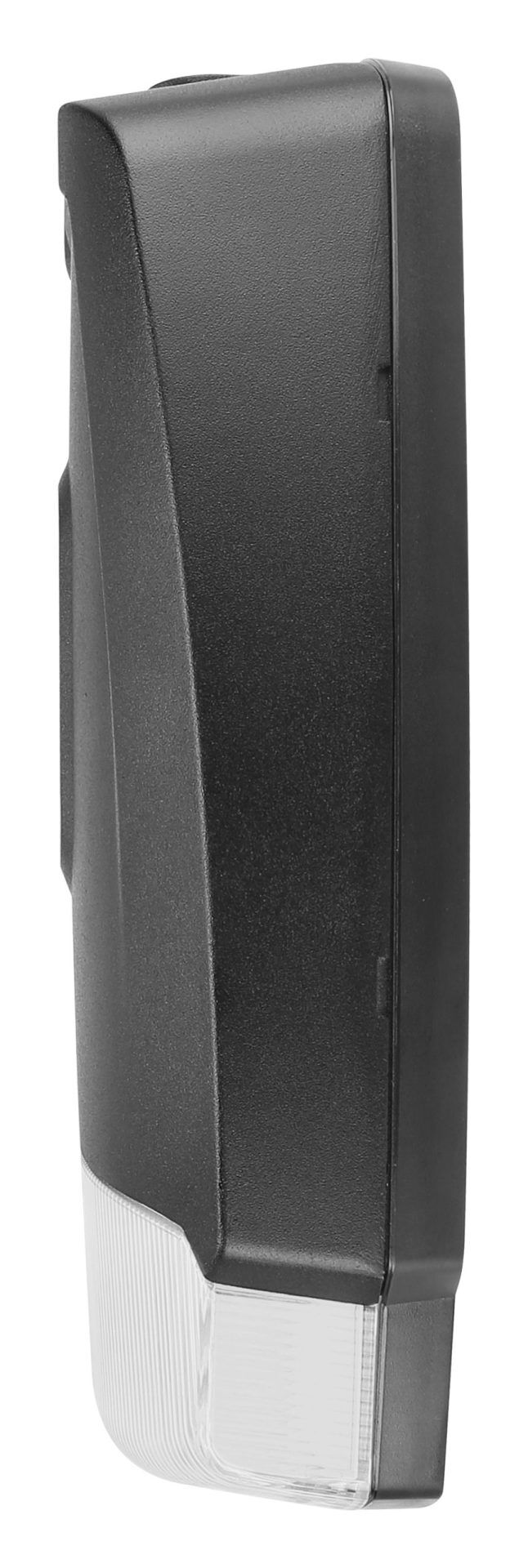

M02 Mini Wall Pack With Emergency Battery Backup – Black
M02 Mini Wall Pack With Emergency Battery Backup – Black
Model: E2-WP-M-20W-30/40/50K-E-BK
20W, Up to 2,660 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
Built-in 4W Emergency Battery, 190 Minutes
120-277 Volt
Wet Location
Black Finish
Specifications
| Wattage | 20W |
| Voltage | 120-277V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 2,550 lm (at 3000K) / 2,660 lm (at 4000K) / 2,600 lm (at 5000K) |
| Lifespan | 50,000 hours |
| Dimensions | 246.8 × 165.1 × 62.7 mm (9.7" × 6.5" × 2.5") |
| Listings | wet location: UL / cUL |
| Warranty | 5-Year Manufacturer's Warranty |
| Efficacy | 128 lm/W (at 3000K) / 133 lm/W (at 4000K) / 130 lm/W (at 5000K) |
| Current | 0.17A (at 120V) / 0.1A (at 208V) / 0.08A (at 240V) / 0.07A (at 277V) |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -20–40 °C (operating) |
| Color | Black |
| Impact Resistance | High-impact (housing, lens) |
| Weight | 20W fixture: 0.92 kg |
| Emergency Backup | Integrated |
| Emergency Lumens | 700+ lm |
| Emergency Power | 4W |
| Emergency Runtime | 190 minutes (at +18°C to +40°C) / 160 minutes (at 0°C) / 100 minutes (at −20°C) |
| Photocell | Included (enabled or disabled with on/off switch) |
| Location Rating | Wet location |
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
Description
This 20W LED mini wall pack has an integrated emergency battery backup for outdoor safety and security lighting, providing light through a power outage for up to 190 minutes in mild weather, 160 minutes near freezing and 100 minutes at -20 °C, with 700+ lumens in emergency mode. An integrated photocell handles dusk-to-dawn operation and can be enabled or disabled with an on/off switch.
Color temperature is field-adjustable at 3000K, 4000K or 5000K with a CRI of 80, giving 2,550, 2,660 or 2,600 lumens. It runs on 120–277V. The high-impact die-cast aluminum housing in black is wet-location listed for residential and commercial walls.
UL and cUL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80 |
| Efficacy | 128 lm/W (at 3000K) / 133 lm/W (at 4000K) / 130 lm/W (at 5000K) |
| Lumens | 2,550 lm (at 3000K) / 2,660 lm (at 4000K) / 2,600 lm (at 5000K) |
| Electrical | |
|---|---|
| Current | 0.17A (at 120V) / 0.1A (at 208V) / 0.08A (at 240V) / 0.07A (at 277V) |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 20W |
| Physical | |
|---|---|
| Ambient Temperature | -20–40 °C (operating) |
| Dimensions | 246.8 × 165.1 × 62.7 mm |
| Finish | Black |
| Impact Resistance | High-impact (housing, lens) |
| Weight | 20W fixture: 0.92 kg |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 700+ lm |
| Emergency Power | 4W |
| Emergency Runtime | 190 minutes (at +18°C to +40°C) / 160 minutes (at 0°C) / 100 minutes (at −20°C) |
| Controls | |
|---|---|
| Photocell | Included (enabled or disabled with on/off switch) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | wet location: UL / cUL |
| Location Rating | Wet location |
