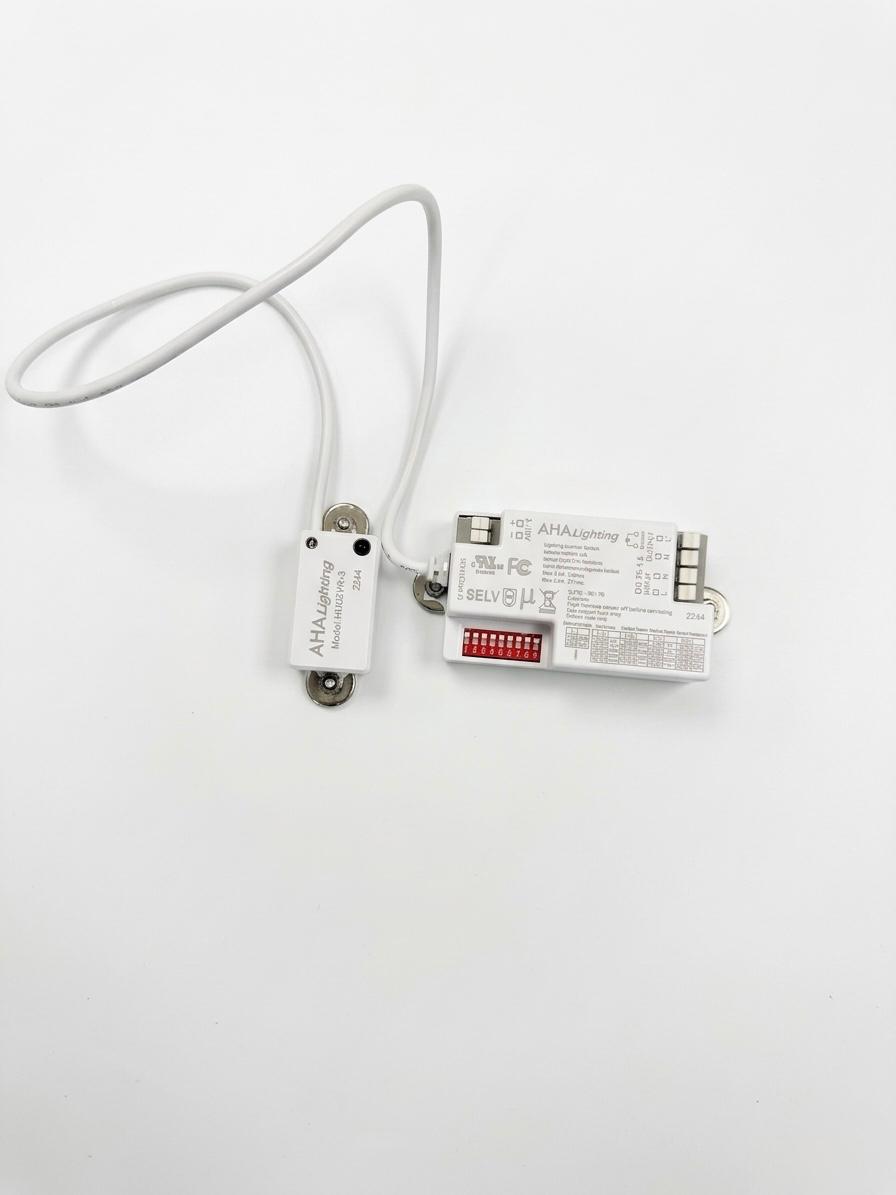

E2-SEN-MICRO-Motion Sensor 120-277V-HD407V-CR Tail-2

360 Deg. Occupancy Sensor – Microwave120-277V

Model: E2-SEN-MICRO-Motion Sensor 120-277V

Microwave Sensor
1-10V Dimmable
120-277 Volt
IP20

📄 Download Spec Sheet (PDF)

Specifications

Input Voltage	120-277V
Output Voltage	0-10V single-channel
Cable	Terminal block
Frequency	50 / 60 Hz
Operating Temperature	-20–55 °C (operating)
Mounting	Ceiling / Wall
Mounting Height	up to 15 m
Detection Distance	12 m (ceiling, at 15 m) / 20 m (wall, at 3 m)
Dimming	1–10V
Sensor Type	Microwave
Switching Capacity	up to 200W (maximum, control gear) / up to 400W (maximum, incandescent lamp)
Transmission Power	up to 0.3 mW
Control Functions	on/off control / dimmable control / corridor function
Sensor Settings	Detection area: 50% (detection area) / Detection area: 100% (detection area) / Hold time: 5 seconds (hold time) / Hold time: 30 seconds (hold time) / Hold time: 1 minute (hold time) / Hold time: 10 minutes (hold time) / Standby period: 0 seconds (standby period) / Standby period: 30 seconds (standby period) / Standby period: 20 minutes (standby period) / Standby period: +∞ (standby period) / Standby dimming level: 10% (standby dimming level) / Standby dimming level: 20% (standby dimming level) / Standby dimming level: 30% (standby dimming level) / Standby dimming level: 50% (standby dimming level) / Daylight threshold: 2 lux (daylight threshold) / Daylight threshold: 10 lux (daylight threshold) / Daylight threshold: 50 lux (daylight threshold) / Daylight threshold: Disable (daylight threshold)
Standards	FCC / RoHS
Listings	IP20 / cULus
Family	Occupancy and daylight sensor

Category: Smart Lighting Controls and Sensors Tags: 120-277V smart control, Controls

Request A Quote

Description

A microwave motion sensor for indoor lighting control that responds to both movement and daylight. Its corridor function keeps the light off when daylight is sufficient, turns it on when motion is detected in low light, and dims to the selected standby level after the hold time.

It runs on 120–277V, mounts on a ceiling or wall, and controls loads of up to 200W or 400W with 1–10V dimming through a terminal block. Settings include a 50% or 100% detection area; a hold time of 5 s, 30 s, 1 min or 10 min; a daylight threshold of 2, 10 or 50 lux, or disabled; a standby period of 0 s, 30 s, 20 min or indefinite; and a standby dimming level of 10%, 20%, 30% or 50%.

Rated IP20 and -20–55 °C, cULus listed and FCC and RoHS compliant.

Specifications

General
Family	Occupancy and daylight sensor

Electrical
Connection Type	Terminal block
Frequency	50 / 60 Hz
Output Voltage	0–10V
Voltage	120–277V

Physical
Ambient Temperature	-20–55 °C (operating)
Mounting	Ceiling / Wall
Mounting Height	up to 15 m

Controls
Detection Distance	12 m (ceiling, at 15 m) / 20 m (wall, at 3 m)
Dimming Type	1–10V
Sensor Type	Microwave
Switching Capacity	up to 200W (maximum, control gear) / up to 400W (maximum, incandescent lamp)
Transmission Power	up to 0.3 mW
Control Functions	on/off control / dimmable control / corridor function
Sensor Settings	Detection area: 50% (detection area) / Detection area: 100% (detection area) / Hold time: 5 seconds (hold time) / Hold time: 30 seconds (hold time) / Hold time: 1 minute (hold time) / Hold time: 10 minutes (hold time) / Standby period: 0 seconds (standby period) / Standby period: 30 seconds (standby period) / Standby period: 20 minutes (standby period) / Standby period: +∞ (standby period) / Standby dimming level: 10% (standby dimming level) / Standby dimming level: 20% (standby dimming level) / Standby dimming level: 30% (standby dimming level) / Standby dimming level: 50% (standby dimming level) / Daylight threshold: 2 lux (daylight threshold) / Daylight threshold: 10 lux (daylight threshold) / Daylight threshold: 50 lux (daylight threshold) / Daylight threshold: Disable (daylight threshold)
