Smart Control 12V Microwave Sensor
Smart Control 12V Microwave Sensor

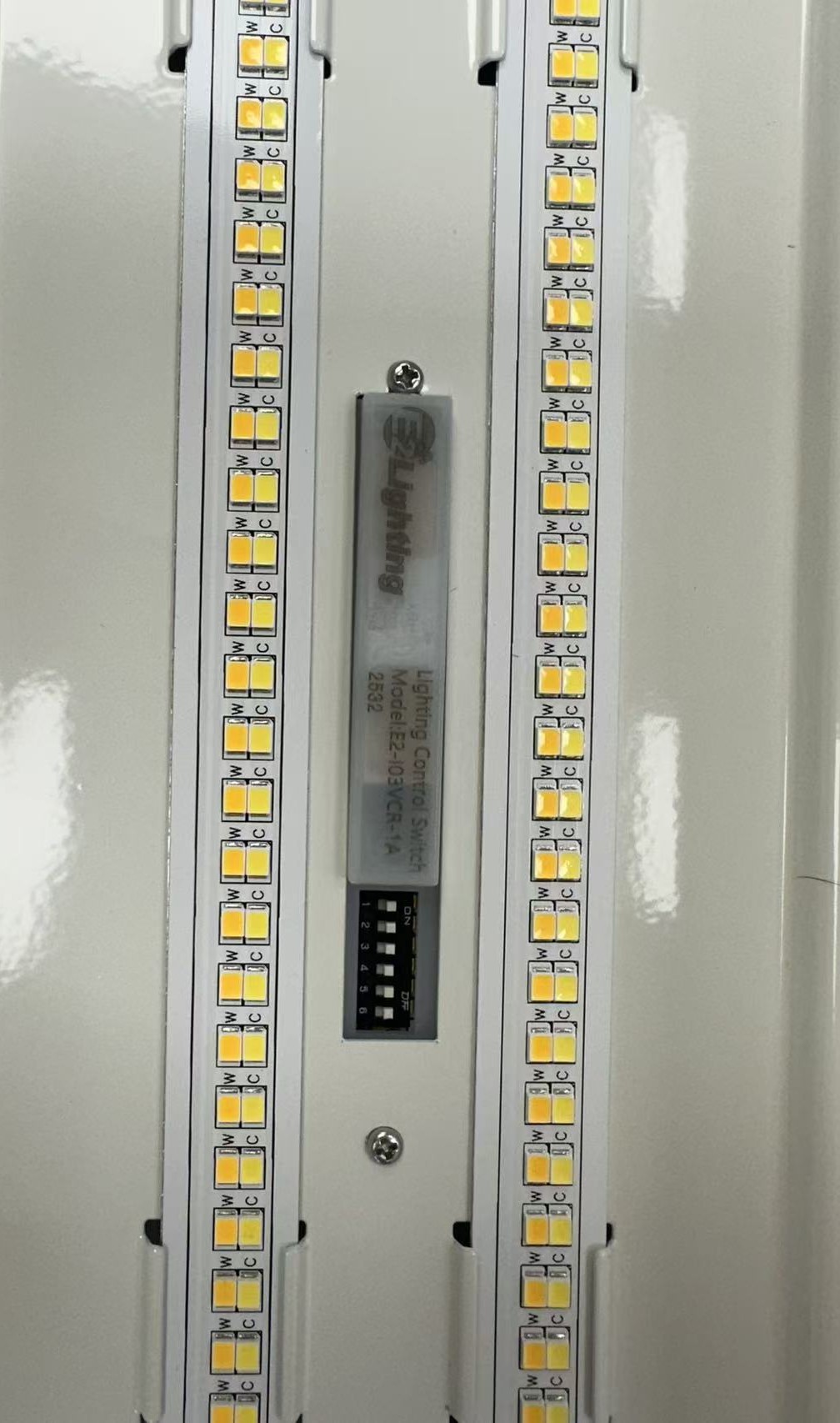

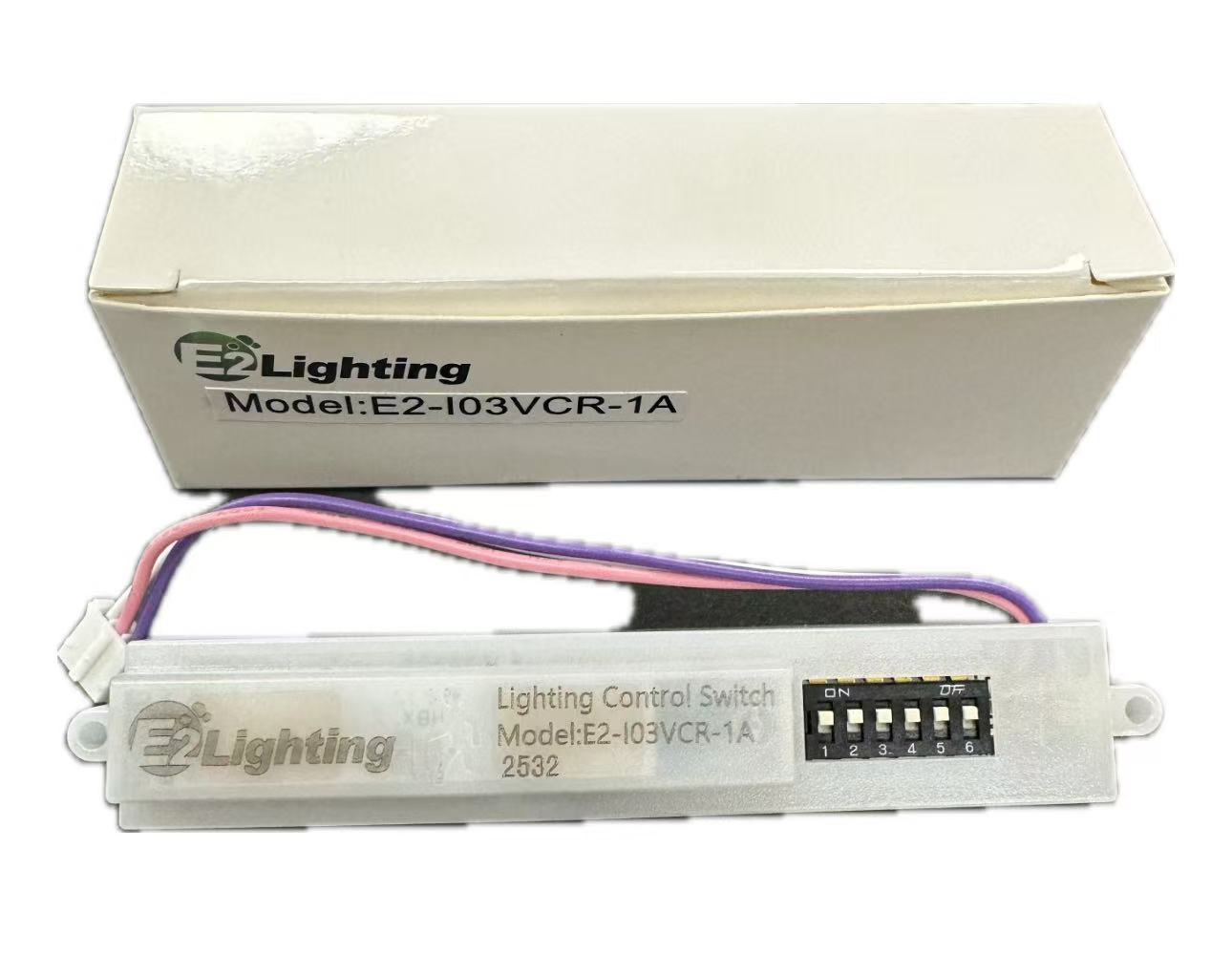

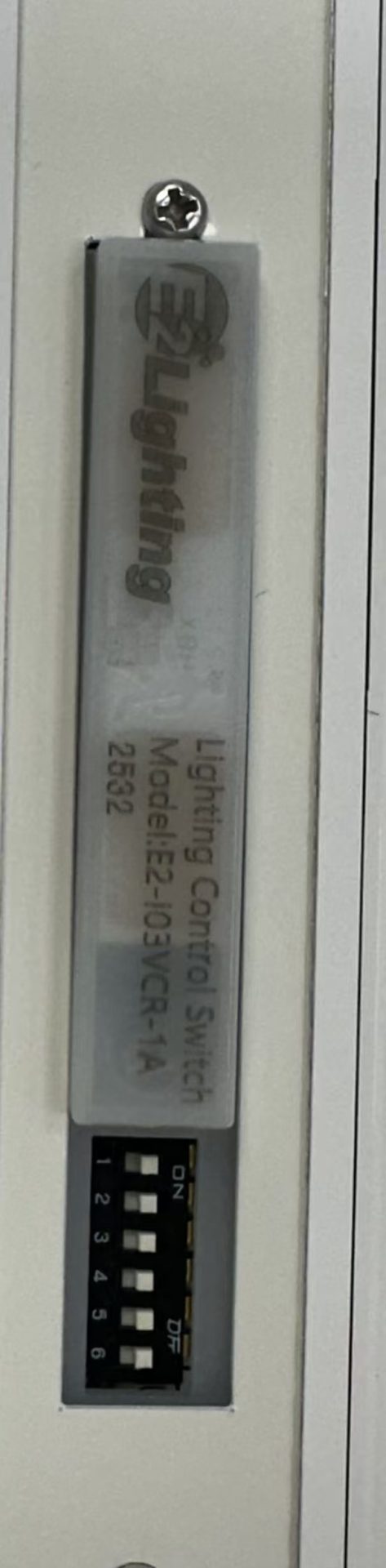

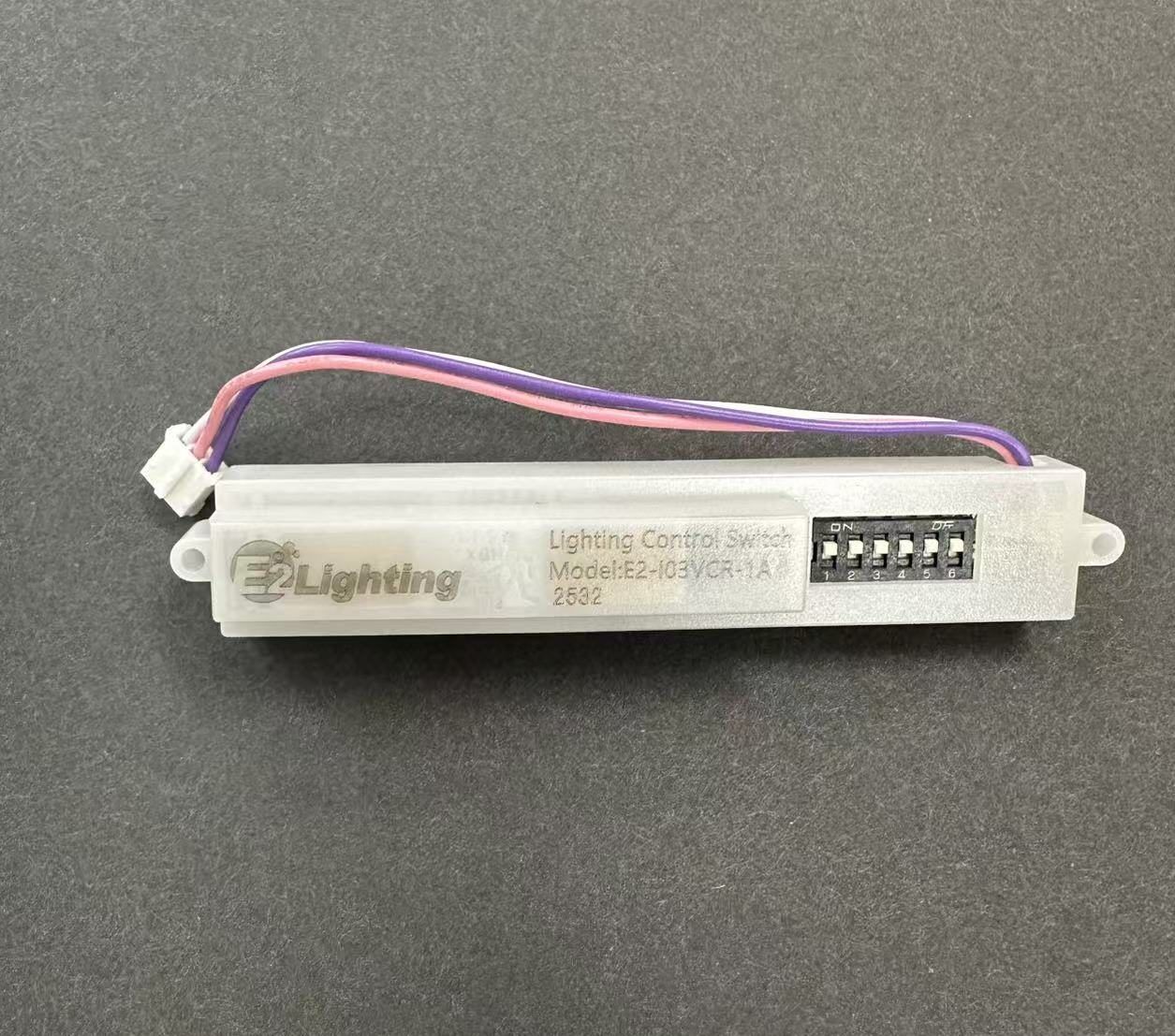

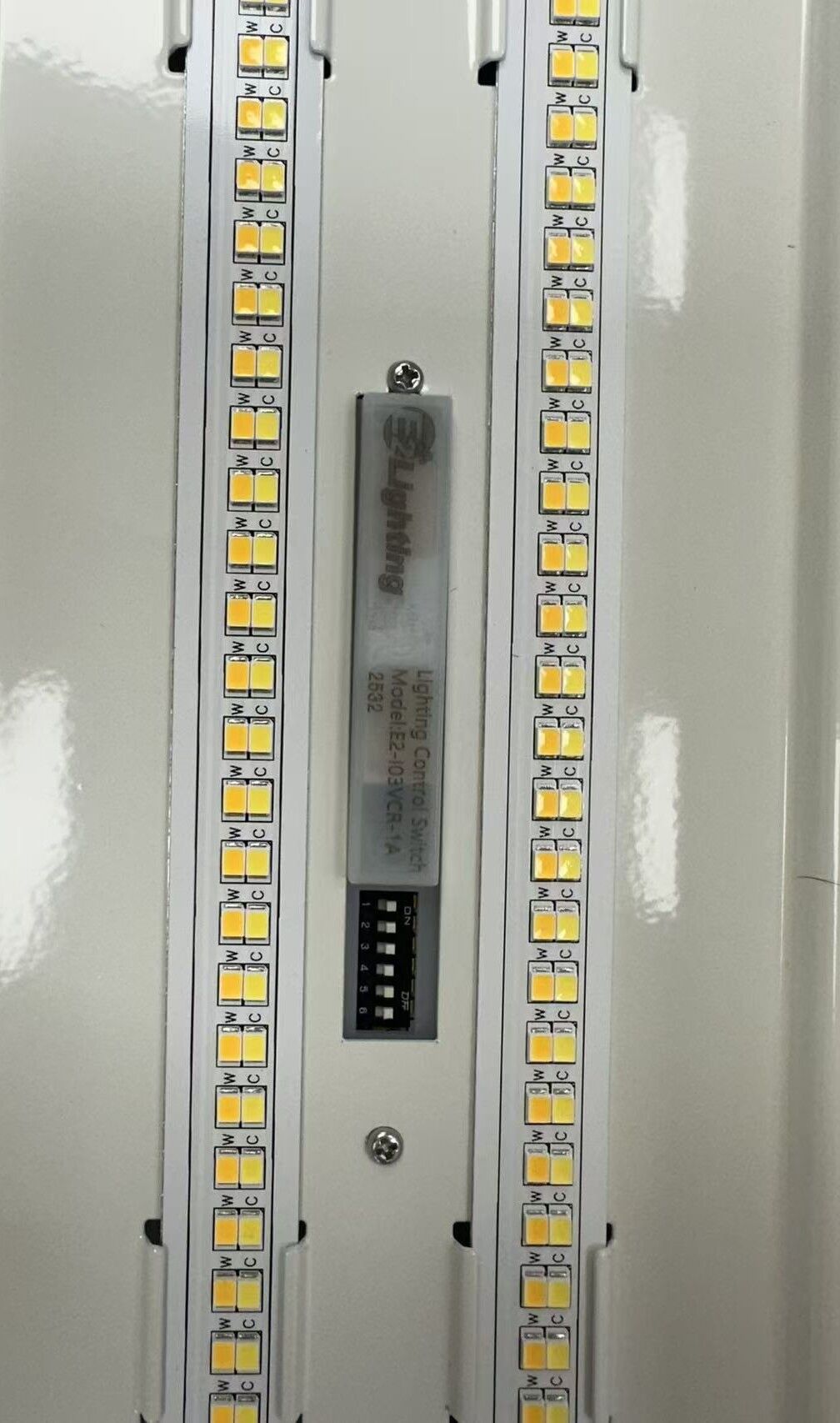

Model: E2-103VCR-1A
Microwave Sensor, Daylight Harvesting
Integrated Photocell
0-10V Dimmable
10-15 Volt
IP20
Specifications
| Voltage | 10–15V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Operating Temperature | -20°C(-4°F)-70°C(158°F) |
| Features | Quick Connector; Non-Waterproof |
| Connection Type | Pin connector |
| Current | up to 30mA (operating current) |
| Dimensions | 94.15 × 15.8 × 16.3 mm |
| Mounting Height | 2.5–4.5 m |
| Ceiling Detection Range | ceiling: 6–14 m / 19.68–45.93 ft |
| Daylight Harvesting | Yes |
| Detection Angle | up to 150° (side wall) / 360° (ceiling) |
| Photocell | Included (daylight sensor) |
| Sensor Type | Microwave |
| Switching Current Capacity | up to 40mA |
| Transmission Power | up to 0.3 mW |
| Control Functions | automatic on/off / daylight disable / corridor bi-level dimming |
| Sensor Settings | Detection area: 50% (detection area, DIP switch); Detection area: 100% (detection area, DIP switch); hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 10 minutes; hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; daylight threshold: Daylight threshold: 50 lux / Disable; daylight threshold: Daylight threshold: 2 lux / 10 lux / 15 lux / 50 lux / 80 lux / 120 lux / Disable; standby period: Standby period: 0 seconds / 1 minute; standby period: Standby period: 0 seconds / 10 seconds / 30 seconds / 1 minute / 5 minutes / 10 minutes / 20 minutes / 30 minutes / +∞; standby dimming level: Standby dimming level: 10% / 30%; standby dimming level: Standby dimming level: 10% / 20% / 30% / 50%; Detection area: 100%; Hold time: 5 seconds; Daylight threshold: Disabled; Standby period: 0 seconds; Standby dimming level: 10% (factory default) |
| Standards | CE / RoHS |
| Warranty | 5 years |
| Listings | IP20 |
| Family | Occupancy and daylight sensor |
Description
A microwave motion and daylight sensor for indoor fixtures, with automatic on/off and a corridor function that dims the light to a standby level before switching off when no motion is detected. Settings adjust with onboard DIP switches or a compatible remote control.
It runs on 10–15V DC, provides 0–10V bi-level dimming control and connects with a pin connector. It detects across 360° with a 6–14 m detection diameter at mounting heights of 2.5–4.5 m. The DIP switches set a 50% or 100% detection area; a hold time of 5 s, 30 s, 1 min or 10 min; a daylight threshold of 50 lux or disabled; a standby period of 0 s or 1 min; and a standby dimming level of 10% or 30%, with more steps by remote.
Rated IP20 and -20–70 °C, CE and RoHS compliant, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Features | Quick Connector; Non-Waterproof |
| Electrical | |
|---|---|
| Connection Type | Pin connector |
| Current | up to 30mA (operating current) |
| Voltage | 10–15V |
| Physical | |
|---|---|
| Ambient Temperature | -20–70 °C (operating) |
| Dimensions | 94.15 × 15.8 × 16.3 mm |
| Mounting Height | 2.5–4.5 m |
| Controls | |
|---|---|
| Ceiling Detection Range | ceiling: 6–14 m / 19.68–45.93 ft |
| Daylight Harvesting | Yes |
| Detection Angle | up to 150° (side wall) / 360° (ceiling) |
| Dimming Type | 0–10V |
| Photocell | Included (daylight sensor) |
| Sensor Type | Microwave |
| Switching Current Capacity | up to 40mA |
| Transmission Power | up to 0.3 mW |
| Control Functions | automatic on/off / daylight disable / corridor bi-level dimming |
| Sensor Settings | Detection area: 50% (detection area, DIP switch); Detection area: 100% (detection area, DIP switch); hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 10 minutes; hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; daylight threshold: Daylight threshold: 50 lux / Disable; daylight threshold: Daylight threshold: 2 lux / 10 lux / 15 lux / 50 lux / 80 lux / 120 lux / Disable; standby period: Standby period: 0 seconds / 1 minute; standby period: Standby period: 0 seconds / 10 seconds / 30 seconds / 1 minute / 5 minutes / 10 minutes / 20 minutes / 30 minutes / +∞; standby dimming level: Standby dimming level: 10% / 30%; standby dimming level: Standby dimming level: 10% / 20% / 30% / 50%; Detection area: 100%; Hold time: 5 seconds; Daylight threshold: Disabled; Standby period: 0 seconds; Standby dimming level: 10% (factory default) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| IP Rating | IP20 |
| Standards | CE / RoHS |
