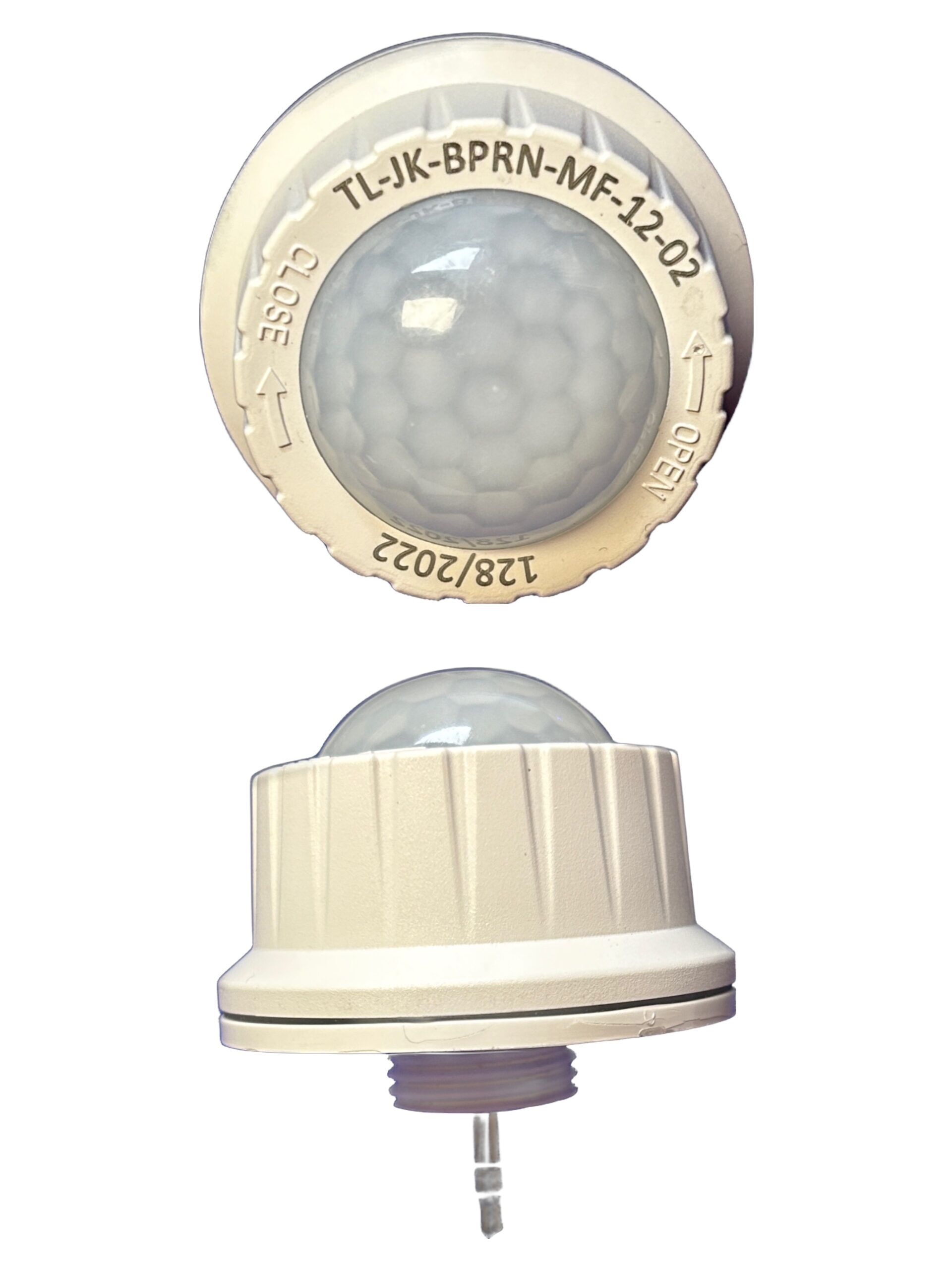

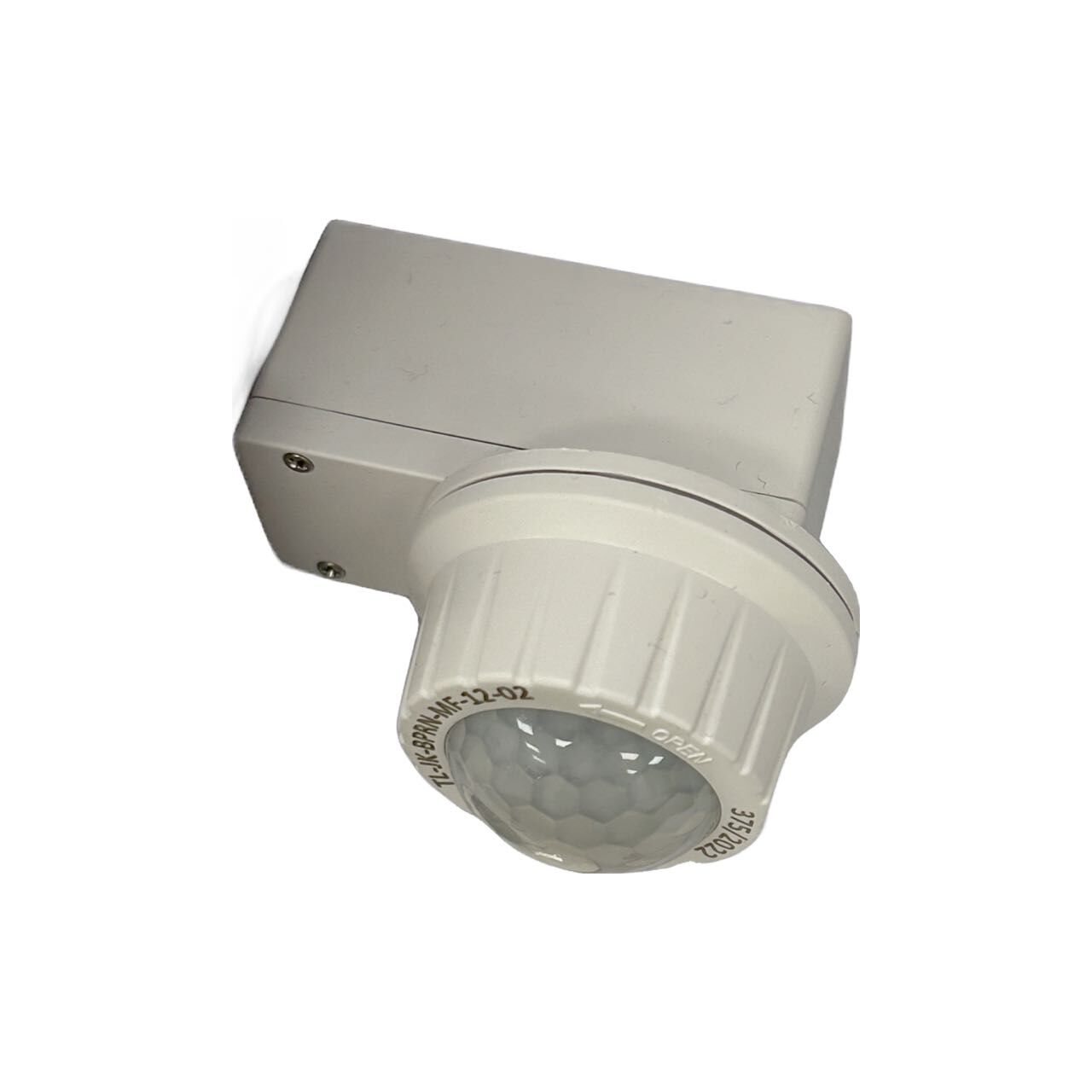

Smart Control System 120-277V PIR Sensor (Outdoor)
Smart Control System 120-277V PIR Sensor (Outdoor)
Model: E2-PP02 (Power Pack and Sensor)
Microwave Sensor, Daylight Harvesting, Bluetooth Mesh
Integrated Photocell and Motion Sensor
0-10V Dimmable
100-347 Volt
Specifications
| Voltage | 100–347V |
| Dimming | 0-10V |
| Frequency | Radio 2.4 GHz ± 75 MHz |
| Cable | Jack |
| Features | Daylight Harvesting |
| Listings | cULus |
| Current | up to 100mA (operating current, maximum) |
| Ambient Temperature | -20–45 °C (operating) |
| Mounting | Magnetic / Smart converter: Knockout (nuts) |
| Connectivity | Bluetooth Mesh |
| Daylight Harvesting | Yes |
| Motion Sensor | Integrated |
| Photocell | Included |
| Sensor Type | Microwave |
| Control Functions | Single-light control (Single light) / Group control (Group) / All-devices control (All devices) |
| Standards | RoHS |
| Warranty | 5 years |
| Family | Lighting controller, switch and remote |
Description

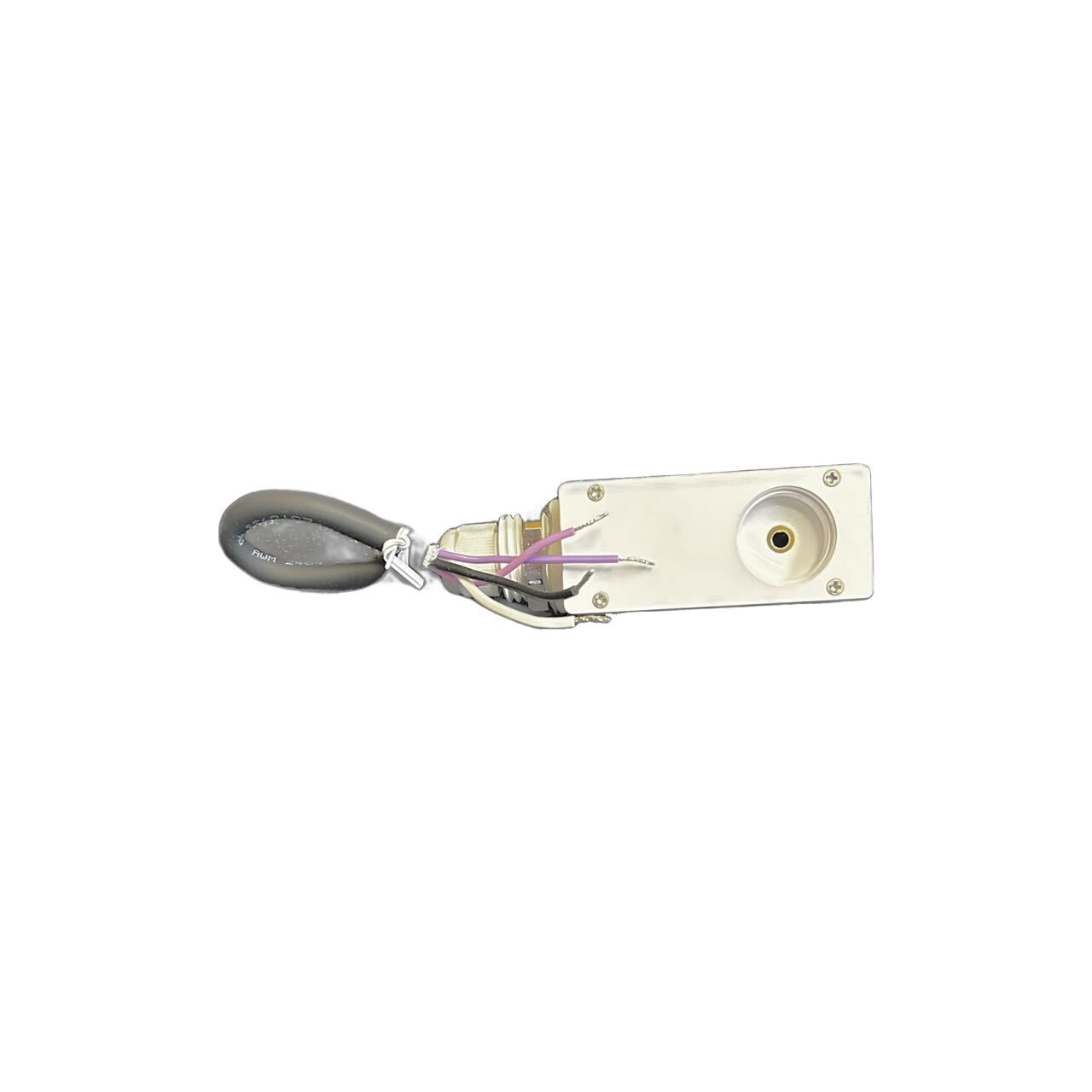

An outdoor power pack converter that brings existing fixtures onto a Bluetooth Mesh lighting control network, for wall packs, LED panels, UFO high bays and linear high bays. It connects to the Bluetooth control module through a jack interface and provides single-channel 0–10V dimming, with daylight harvesting and control of a single light, a group or all devices from a smartphone app.
The converter mounts magnetically or through a panel or troffer wiring knockout. It runs on 100–347V and operates from -20–45 °C.
cULus listed and RoHS compliant, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Lighting controller, switch and remote |
| Electrical | |
|---|---|
| Connection Type | Jack |
| Current | up to 100mA (operating current, maximum) |
| Voltage | 100–347V |
| Physical | |
|---|---|
| Ambient Temperature | -20–45 °C (operating) |
| Mounting | Magnetic / Smart converter: Knockout (nuts) |
| Controls | |
|---|---|
| Connectivity | Bluetooth Mesh |
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Motion Sensor | Integrated |
| Photocell | Included |
| Sensor Type | Microwave |
| Control Functions | Single-light control (Single light) / Group control (Group) / All-devices control (All devices) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus |
| Standards | RoHS |
