4FT LED T8 Tube Type C With Emergency Battery Backup
4FT LED T8 Tube Type C With Emergency Battery Backup
Model: E2-T8-TC-4FT-15W-27/30/35/40/50K-E-2P
15/30/45/60W Wattage Selectable, 4,200 Lumens

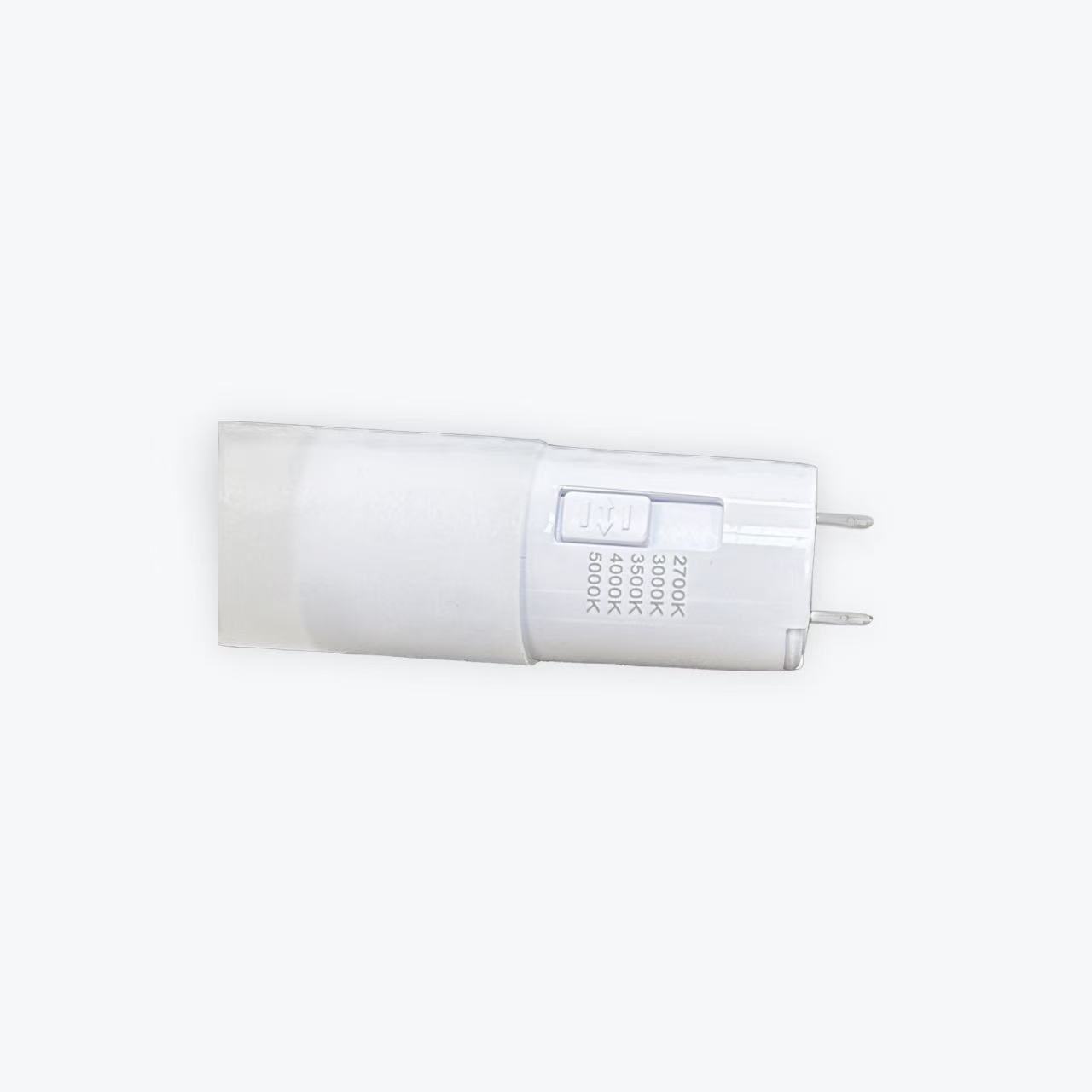

2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
1–4 tubes per external driver, Driver for 1–3 tubes, Driver for 2–4 tubes, Type C (DC-fit T8)
120-277 Volt
IP20
Specifications
| Wattage | 15W / 30W / 45W / 60W |
| Voltage | 120-277V |
| Dimming | Available |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | > 80 |
| Lumens | 4,200 lm |
| Lifespan | 50,000 hours (at L70) / 50,000 hours |
| Dimensions | 48" × 1.1" × 1.2" |
| Listings | DLC Premium / DLC Standard / IP20 / UL / ETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Beam Angle | 120–160° |
| Efficacy | 140+ lm/W |
| Connection Type | Quick connector (12AUV) |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Tube Wiring | 1–4 tubes per external driver / Driver for 1–3 tubes / Driver for 2–4 tubes / Type C (DC-fit T8) |
| Ambient Temperature | -4–113 °F (working) |
| Mounting | Magnetic |
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Standards | RoHS |
| Family | T8 LED tube |
| Series | E2-TC Type C T8 LED tube |
Description

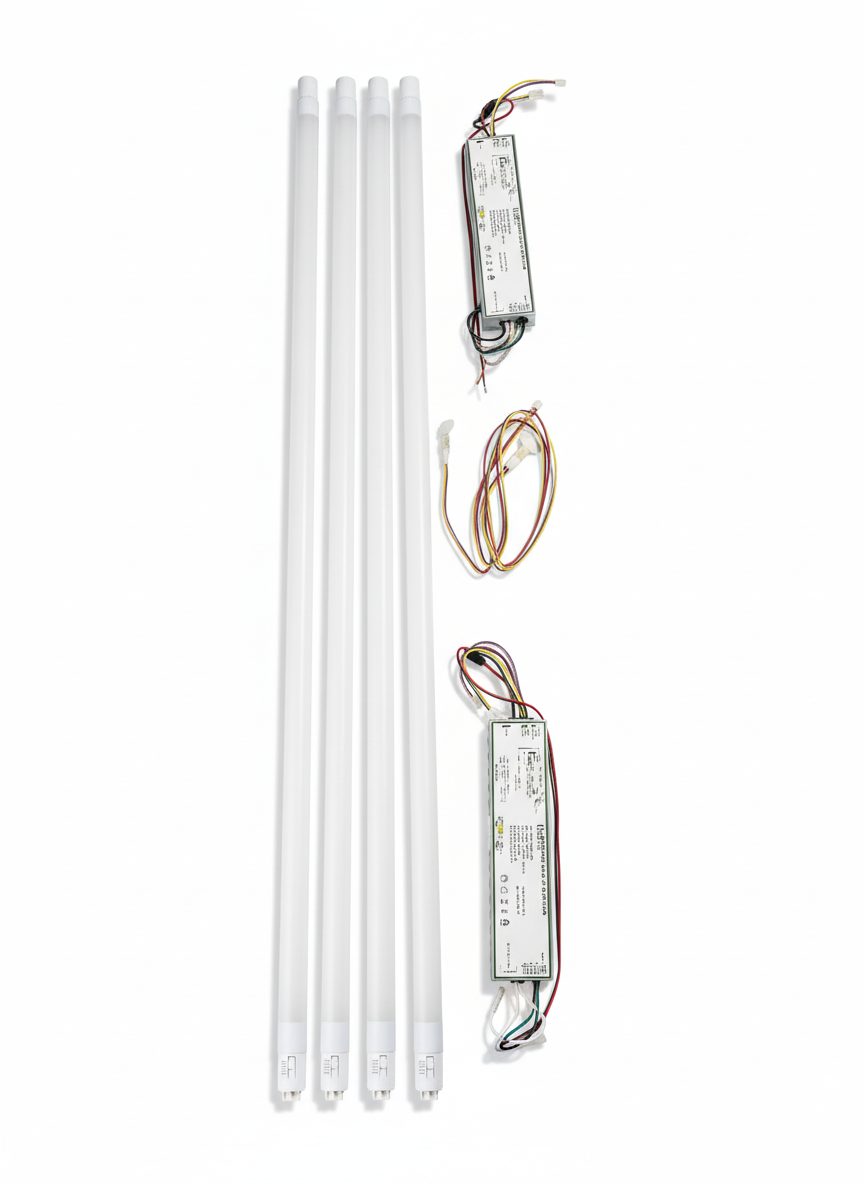

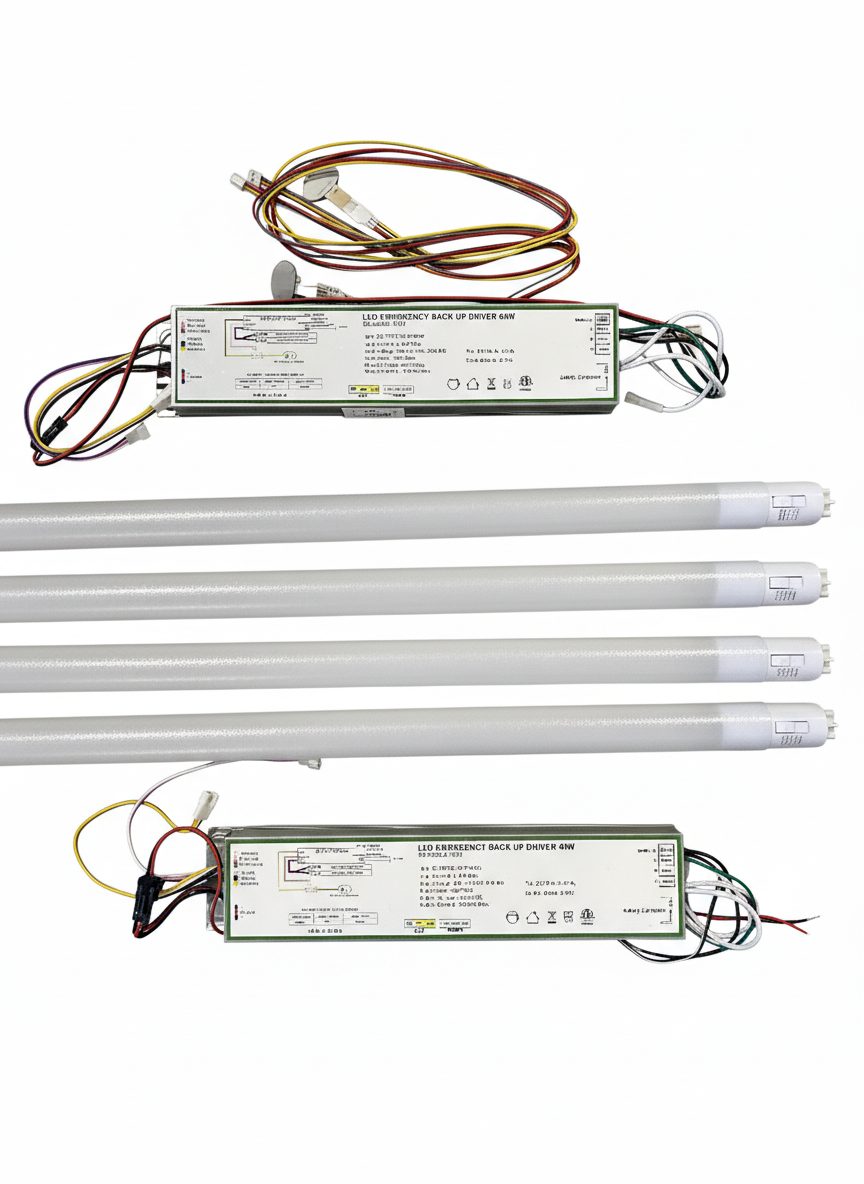

This complete 2-pack kit retrofits strip fixtures, troffers and other linear fixtures with 4-foot Type C T8 LED tubes that run from an external LED driver, with a pre-wired emergency battery that supplies 10W for 90 minutes during a power outage. Magnetic mounting and quick connectors make setup quick and tool-free.
The kit runs at 30W and delivers 4,200 lumens at 140+ lm/W; drivers handle one to four tubes, at 15, 30, 45 or 60W. Color temperature is selectable at 2700K, 3000K, 3500K, 4000K or 5000K, with a CRI of 80+ and a 120–160° beam. It is dimmable, runs on 120–277V with a power factor of 0.99 or higher and THD up to 15%, and each tube measures 48 × 1.1 × 1.2 in under a frosted cover.
Rated IP20 and -4–113 °F, UL and ETL listed, DLC Standard, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | T8 LED tube |
| Series | E2-TC Type C T8 LED tube |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120–160° |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 140+ lm/W |
| Lumens | 4,200 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector (12AUV) |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Voltage | 120–277V |
| Wattage | 15 / 30 / 45 / 60W |
| Tube Wiring | 1–4 tubes per external driver / Driver for 1–3 tubes / Driver for 2–4 tubes / Type C (DC-fit T8) |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) |
| Dimensions | 48 × 1.1 × 1.2 in (per strip) / 48 × 1.1 × 1.2 in |
| Mounting | Magnetic |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Controls | |
|---|---|
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) / 50,000 hours |
| Warranty | 5 years |
| Certifications | UL / ETL / DLC Standard |
| IP Rating | IP20 |
| Standards | RoHS |
