Magnetic LED Strip Retrofit Kit 2FT & 4FT
Magnetic LED Strip Retrofit Kit 2FT & 4FT
Models: E2-RTST-2FT-2S-30W-35K, E2-RTST-2FT-2S-30W-40K, E2-RTST-2FT-2S-30W-50K
20/24/30/40/45/60/80W Wattage Selectable, Up to 10,560 Lumens
4000K, 4500K or 5000K CCT
120-277 Volt
IP20
Specifications
| Wattage | 20W / 24W / 30W / 40W / 45W / 60W / 80W |
| Voltage | 120-277V |
| Dimming | Available |
| CCT | 4000 / 4500 / 5000K |
| CRI | > 80 |
| Lumens | 3120 - 10560 lm |
| Lifespan | 50,000 hours (at L70) |

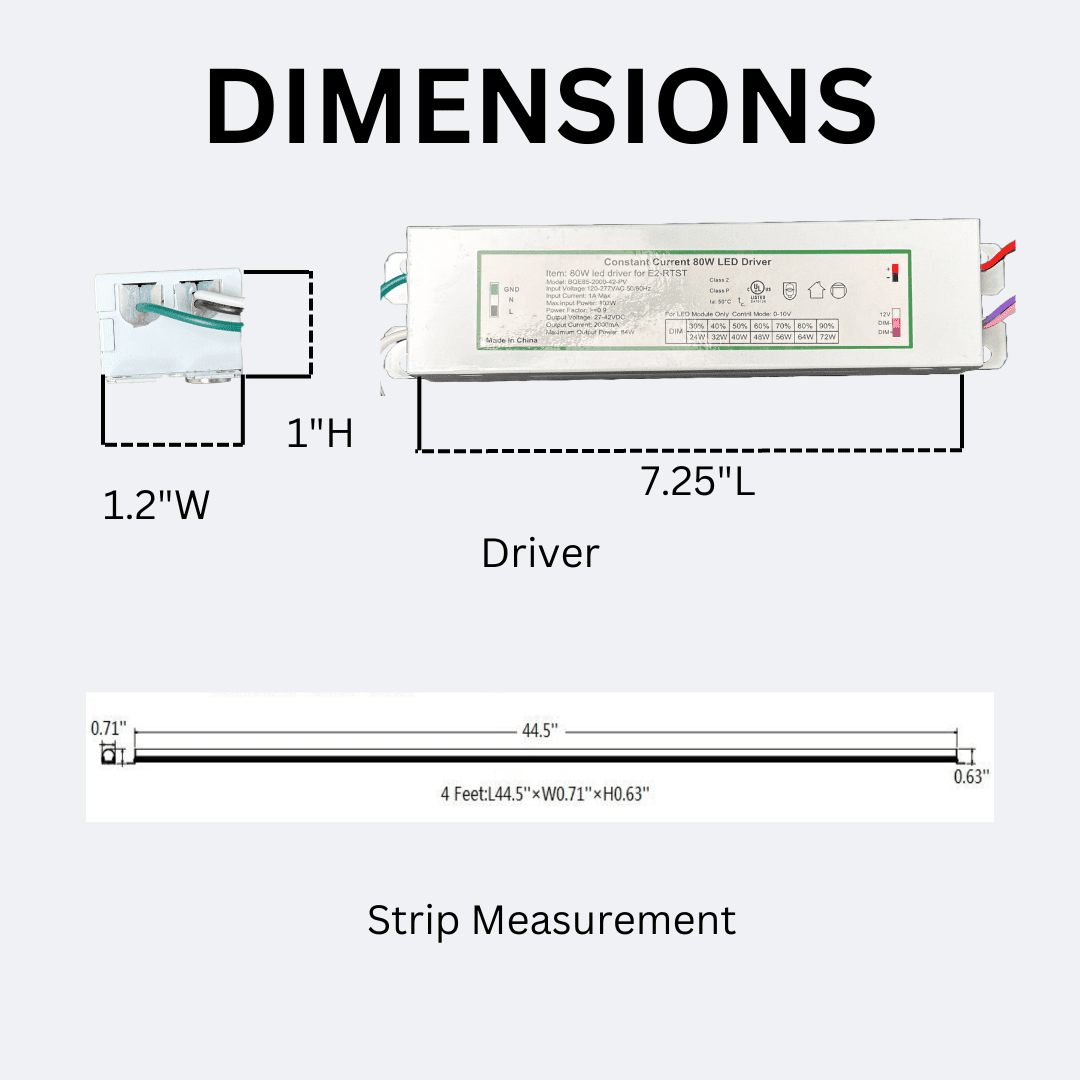

| Dimensions | 2 ft: 22.3 × 0.71 × 0.63 in / 4 ft: 44.5 × 0.71 × 0.63 in |
| Listings | DLC Premium / ETL / IP20 / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Beam Angle | 120–160° |
| Efficacy | 130+ lm/W |
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Ambient Temperature | -4–113 °F (operating) |
| Mounting | Magnetic |
| Dimmable | Yes |
| Photocell | Optional (optional, PIR/daylight sensor) |
| Mercury Free | Yes |
| Standards | RoHS |
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
Description

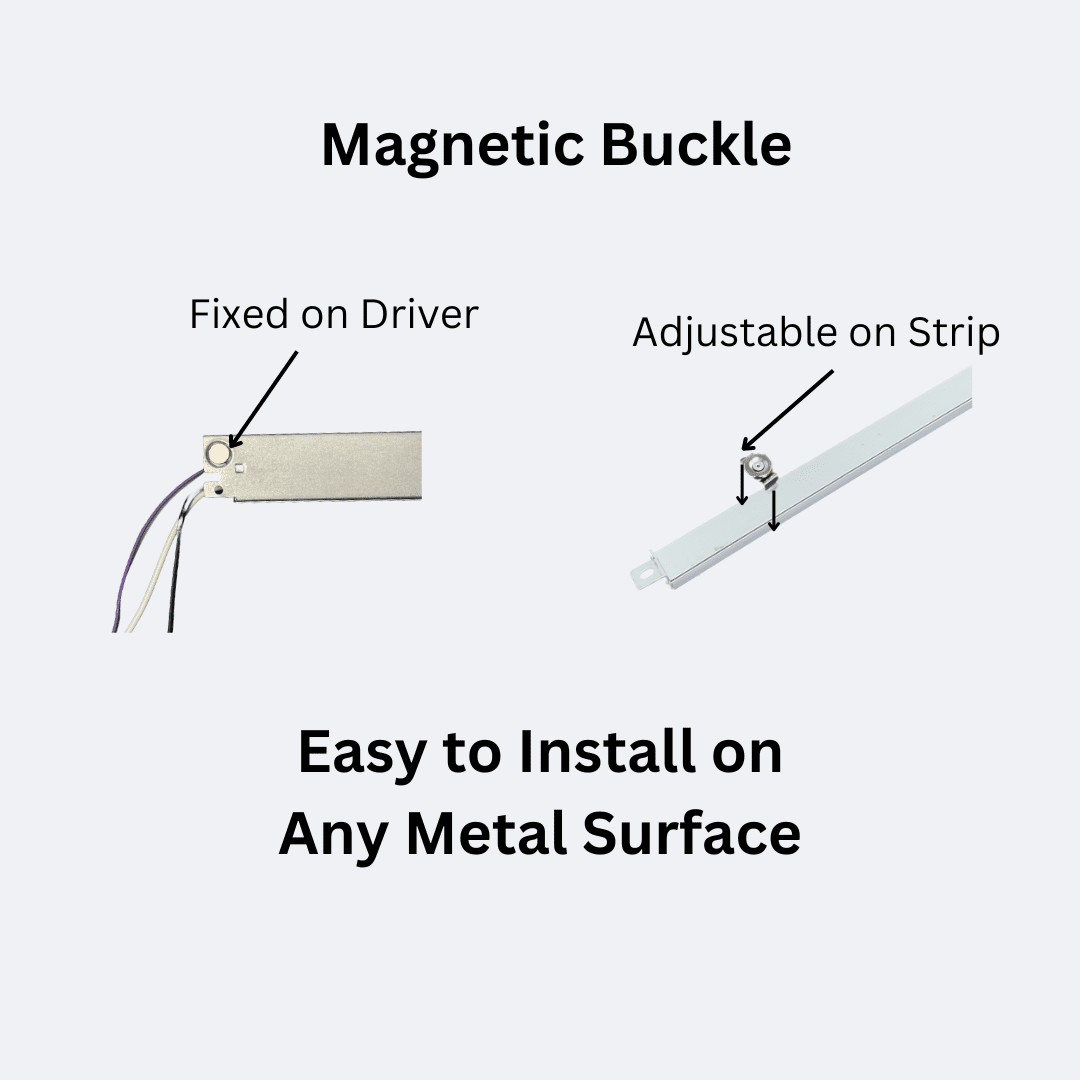

A magnetic LED strip retrofit kit for replacing T12, T5 and T8 lighting in existing troffers and strip fixtures, in offices, warehouses, parking garages, restrooms, storage areas and stairwells. High-power magnets hold the strips inside the existing fixture and quick connectors join them, so the housing stays in place.
The range comes in 22.3-inch and 44.5-inch strips and kit wattages of 20, 24, 30, 40, 45, 60 or 80W, covering 3,120–10,560 lumens at 130+ lm/W, in 4000K, 4500K or 5000K with a 120–160° beam. Frosted or clear lens covers and optional PIR, light-sensor and Bluetooth controls let the kit be specified for the application. It runs on 120–277V, is rated IP20 for indoor fixtures and operates from -4–113 °F.
UL, ETL and DLC Premium listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
| Light | |
|---|---|
| Beam Angle | 120–160° |
| CCT | 4000 / 4500 / 5000K |
| CRI | 80+ |
| Efficacy | 130+ lm/W |
| Lumens | 3,120–10,560 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Voltage | 120–277V |
| Wattage | 20 / 24 / 30 / 40 / 45 / 60 / 80W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (operating) |
| Dimensions | 2 ft: 22.3 × 0.71 × 0.63 in / 4 ft: 44.5 × 0.71 × 0.63 in |
| Mounting | Magnetic |
| Controls | |
|---|---|
| Dimmable | Yes |
| Photocell | Optional (optional, PIR/daylight sensor) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | UL / ETL / DLC Premium |
| IP Rating | IP20 |
| Mercury Free | Yes |
| Standards | RoHS |
