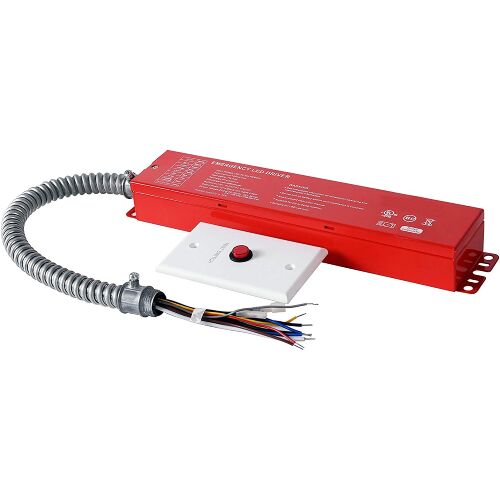

LED Emergency Battery 20W 227-480V
LED Emergency Battery 20W 227-480V
Model: E2-EM-AFY-20W/40W HV
20W Emergency Output, 90 Minutes
277-480 Volt
Output 310-500V
Recharges in 24 Hours
Specifications
| Wattage | 12W |
| Emergency Power | 20W |
| Input Voltage | 277-480V |
| Output Voltage | 310-500V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Recharge Time | 24 hours |
| Dimensions | 313 × 59 × 46 mm (12.33" × 2.33" × 1.82") |
| Listings | UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) / 0.2A (at 12V DC) |
| Frequency | 50 / 60 Hz |
| Weight | up to 2.69 lb |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator (optional, metal one-piece) / Status indicator (optional, plastic integrated) |
| Test Switch | Self-test (automatic) / Yes (optional, metal one-piece) / Yes (optional, plastic integrated) |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
Description
This high-voltage 20W LED emergency battery provides 90 minutes of continuous lighting in the event of a power outage. It is designed for LED fixtures that operate at 277–480V, wired to the AC input of a compatible fixture driver.
During an outage it delivers a constant 20W at 310–500V, and it recharges in 24 hours. Self-testing and surge protection are built in, and an indicator/test switch is available as an option. Rated for 0–50 °C ambient, it is ideal for commercial buildings, schools, hospitals, factories and data centers.
UL listed and compliant with California Title 20, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
| Electrical | |
|---|---|
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) / 0.2A (at 12V DC) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 310–500V |
| Voltage | 277–480V |
| Wattage | 12W |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Weight | up to 2.69 lb |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 20W |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator (optional, metal one-piece) / Status indicator (optional, plastic integrated) |
| Test Switch | Self-test (automatic) / Yes (optional, metal one-piece) / Yes (optional, plastic integrated) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| Protection | Surge protection (surge) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
