LED Emergency Battery 10W (24-150VDC )
LED Emergency Battery 10W (24-150VDC )
Model: E2-EM-10W-24-150VDC
10W Emergency Output, 90 Minutes
120-347 Volt
Output 24-150V
Recharges in 24 Hours
Specifications
| Emergency Power | 10W |
| Output Voltage | 24-150VDC |
| Ambient Temperature | -20–55 °C (ambient) / 0–55 °C (operating) |
| Operating Temperature | 0°C(32°F) - 55°C(131°F) |
| Recharge Time | 24 hours |
| Dimensions | 24.1 × 4.3 × 2.9 mm (9.5" × 1.7" × 1.14") |
| Listings | UL / cULus |
| Connection Type | Quick connector |
| Warranty | 5-Year Manufacturer's Warranty |
| Constant Wattage | Yes |
| Voltage | 120–347V |
| Emergency Runtime | 90 minutes |
| Test Switch | Self-test (automatic) |
| Protection | Surge protection (surge) |
| Standards | FCC / RoHS |
| Family | Emergency LED driver and battery |
| Series | 10W emergency battery |
Description

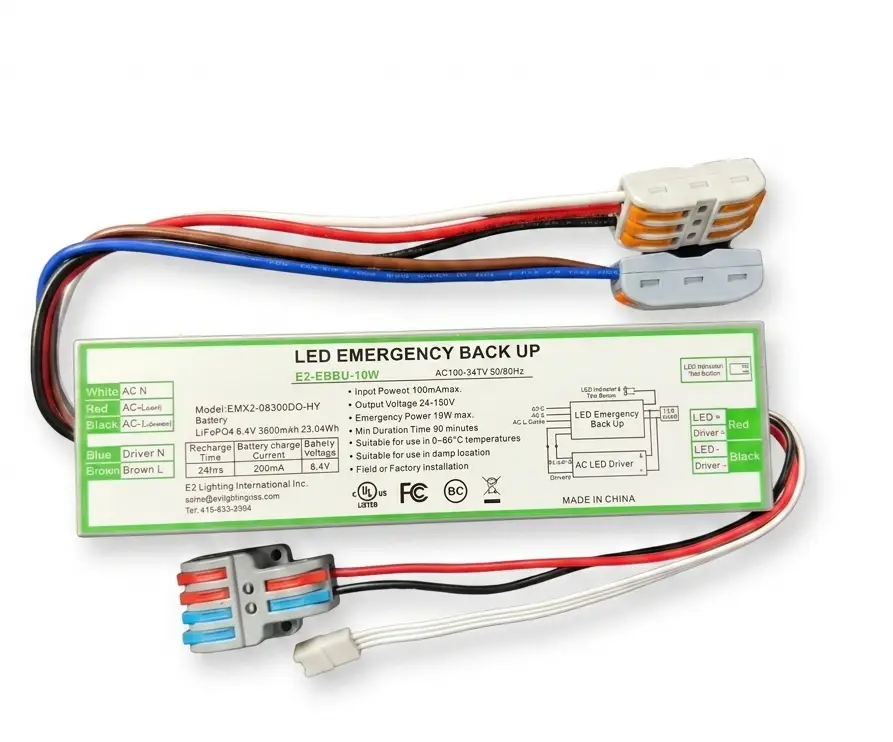

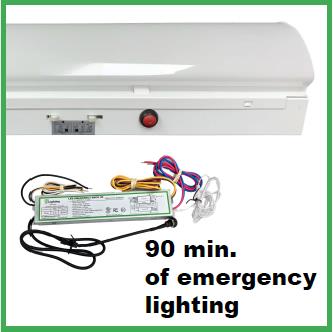

An emergency LED driver backup for lamps with an external driver, keeping them lit through a power failure. It delivers a constant 10W output for 90 minutes when normal AC power is lost, and its high 24–150V DC output voltage fits a wide range of LED fixtures.
It operates on 120–347V input, connects with quick connectors and recharges in 24 hours, with surge protection built in. Integrated monthly and annual self-testing checks the system automatically.
It is ideal for commercial buildings, schools, hospitals, factories and data centers, and it is UL and cULus listed with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | 10W emergency battery |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Constant Wattage | Yes |
| Output Voltage | 24–150V |
| Voltage | 120–347V |
| Physical | |
|---|---|
| Ambient Temperature | -20–55 °C (ambient) / 0–55 °C (operating) |
| Dimensions | 24.1 × 4.3 × 2.9 mm |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Test Switch | Self-test (automatic) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL / cULus |
| Protection | Surge protection (surge) |
| Standards | FCC / RoHS |
