Outdoor/Indoor PIR Sensor
Outdoor/Indoor PIR Sensor
Model: HD09VR-PH5-1
Passive infrared (PIR) Sensor, Daylight Harvesting
Integrated Photocell
0-10V Dimmable
12-24 Volt
IP65
Specifications
| Voltage | 12–24V |
| Dimming | 0-10V |
| Operating Temperature | -20°C(-20°F)-60°C(145°F) |
| Functions | occupancy sensing / photocell / dusk-dawn control |
| Connection Type | Plug (projecting) |
| Current | up to 15mA (standby current) |
| Compatibility | Single fixture; switching capacity <1 mA; LED driver OFF voltage at 1 mA: 0.25–0.3V (emergency driver, single fixture) |
| Mounting | Ceiling |
| Mounting Height | up to 12 m |
| Daylight Harvesting | Yes |
| Detection Angle | up to 120° |
| Detection Range | 3–7 m / 9.84–22.96 ft |
| Infrared Wavelength | 5–14 µm |
| Output Signal Peak | 3,500+ mV |
| PIR Sensitivity | 3,200 V/W |
| Photocell | Included |
| Sensor Lens | Fresnel lens |
| Sensor Type | Passive infrared (PIR) |
| Switching Current Capacity | up to 1mA (emergency-driver interface, single fixture) |
| Detection Notes | varies with movement, mounting height and site conditions / Performance weakens or may become non-responsive at 36–37°C; significantly weakens above 40°C |
| Sensor Settings | daylight harvesting: Mode: Sensor mode; Standby period: 0 seconds; Daylight threshold: 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux; Daylight harvesting: ON; photocell operation: Standby dimming level: 10% / 20% / 30%; Standby period: infinite; Daylight threshold: 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux; detection area: Detection area: 25% / 50% / 75% / 100%; hold time: Hold time: 5 seconds / 1 minute / 5 minutes / 10 minutes; hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; daylight threshold: Daylight threshold: 50 lux / 200 lux / 400 lux / Disable; daylight threshold: Daylight threshold: 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable; standby period: Standby period: 0 seconds / 10 minutes / 30 minutes / infinite; standby period: Standby period: 0 seconds / 10 seconds / 30 seconds / 1 minute / 5 minutes / 10 minutes / 30 minutes / 60 minutes / infinite; standby dimming level: Standby dimming level: 10% / 20% / 30% / 50%; Detection area: 100%; Hold time: 5 seconds; Daylight threshold: Disabled; Standby period: 0 seconds; Standby dimming level: 10% (factory default) |
| Warranty | 5 years |
| Listings | IP65 / cRUus |
| Family | Occupancy and daylight sensor |
Description

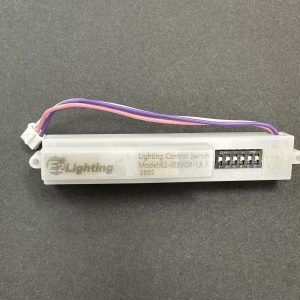

A PIR highbay sensor with daylight harvesting that mounts in the fixture and plugs in through a plug connector. Five rotary switches set it up locally, and an optional remote unlocks additional settings, so occupancy sensing and photocell dusk-to-dawn control can be tuned to each space.
It runs on 12–24V, provides 0–10V dimming and works at mounting heights up to 12 m, with a detection angle up to 120° and a 3–7 m detection radius through a Fresnel lens. The switches set a detection area of 25%, 50%, 75% or 100%; a hold time of 5 s, 1 min, 5 min or 10 min; a daylight threshold of 50, 200 or 400 lux, or disabled; a standby period of 0 s, 10 min, 30 min or infinite; and a standby dimming level of 10%, 20%, 30% or 50%.
Rated IP65 and -20–60 °C, it is cRUus listed with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Occupancy and daylight sensor |
| Electrical | |
|---|---|
| Connection Type | Plug (projecting) |
| Current | up to 15mA (standby current) |
| Voltage | 12–24V |
| Compatibility | Single fixture; switching capacity <1 mA; LED driver OFF voltage at 1 mA: 0.25–0.3V (emergency driver, single fixture) |
| Physical | |
|---|---|
| Ambient Temperature | -20–60 °C (operating) |
| Mounting | Ceiling |
| Mounting Height | up to 12 m |
| Controls | |
|---|---|
| Daylight Harvesting | Yes |
| Detection Angle | up to 120° |
| Detection Range | 3–7 m / 9.84–22.96 ft |
| Dimming Type | 0–10V |
| Infrared Wavelength | 5–14 µm |
| Output Signal Peak | 3,500+ mV |
| PIR Sensitivity | 3,200 V/W |
| Photocell | Included |
| Sensor Lens | Fresnel lens |
| Sensor Type | Passive infrared (PIR) |
| Switching Current Capacity | up to 1mA (emergency-driver interface, single fixture) |
| Control Functions | occupancy sensing / photocell / dusk-dawn control |
| Detection Notes | varies with movement, mounting height and site conditions / Performance weakens or may become non-responsive at 36–37°C; significantly weakens above 40°C |
| Sensor Settings | daylight harvesting: Mode: Sensor mode; Standby period: 0 seconds; Daylight threshold: 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux; Daylight harvesting: ON; photocell operation: Standby dimming level: 10% / 20% / 30%; Standby period: infinite; Daylight threshold: 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux; detection area: Detection area: 25% / 50% / 75% / 100%; hold time: Hold time: 5 seconds / 1 minute / 5 minutes / 10 minutes; hold time: Hold time: 5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 10 minutes / 20 minutes / 30 minutes; daylight threshold: Daylight threshold: 50 lux / 200 lux / 400 lux / Disable; daylight threshold: Daylight threshold: 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable; standby period: Standby period: 0 seconds / 10 minutes / 30 minutes / infinite; standby period: Standby period: 0 seconds / 10 seconds / 30 seconds / 1 minute / 5 minutes / 10 minutes / 30 minutes / 60 minutes / infinite; standby dimming level: Standby dimming level: 10% / 20% / 30% / 50%; Detection area: 100%; Hold time: 5 seconds; Daylight threshold: Disabled; Standby period: 0 seconds; Standby dimming level: 10% (factory default) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cRUus |
| IP Rating | IP65 |
