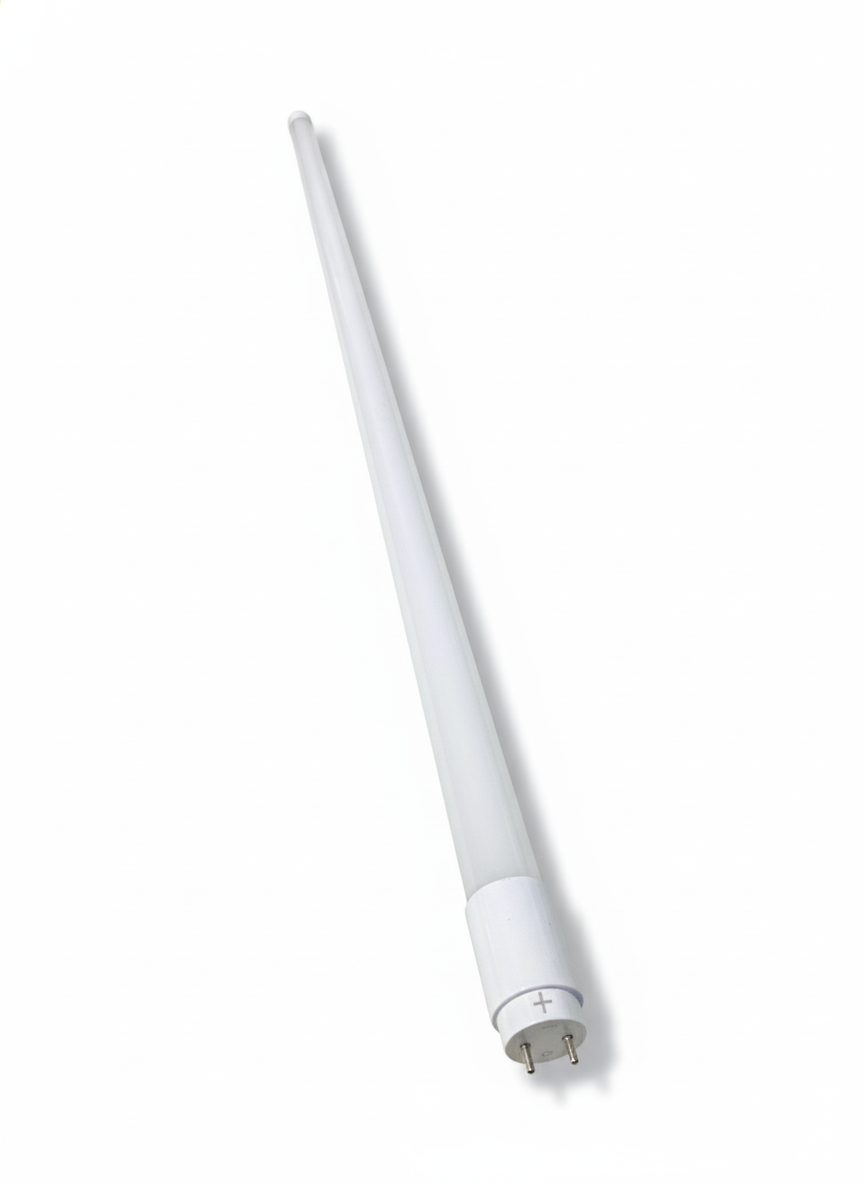

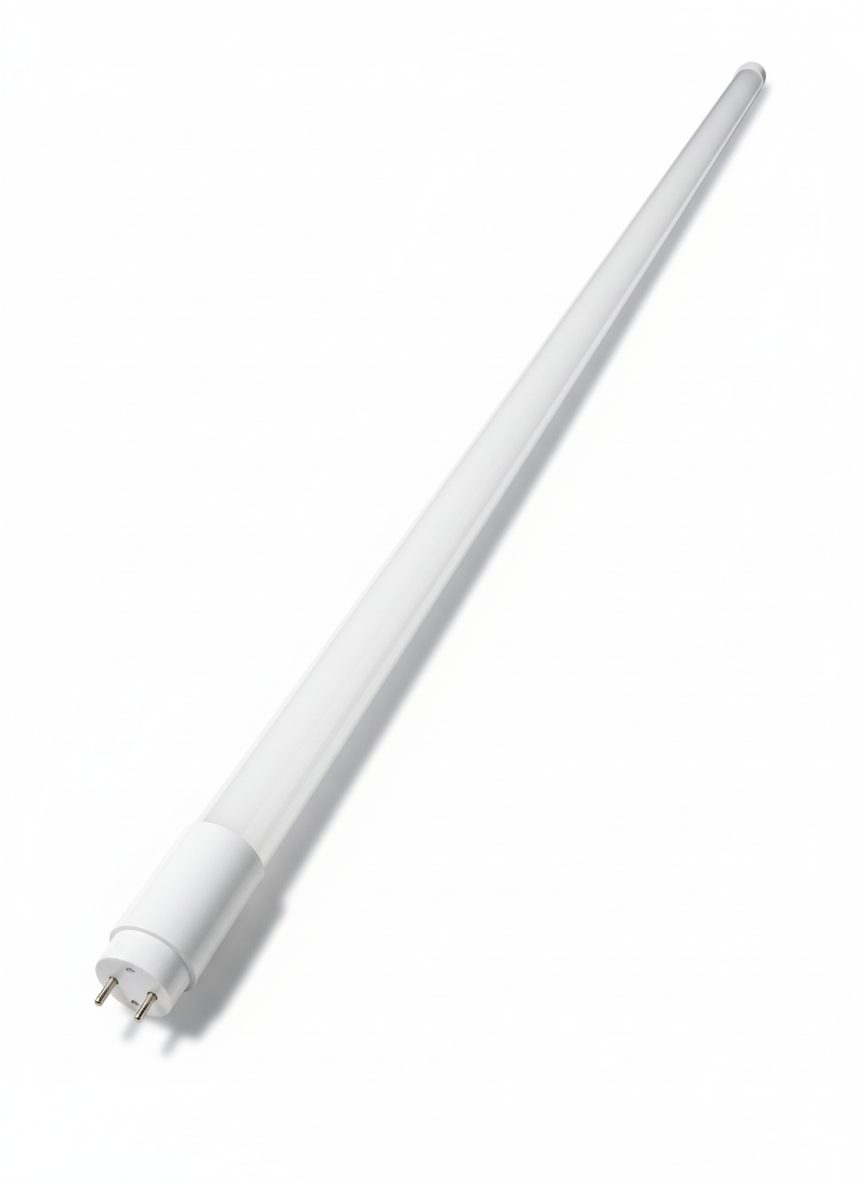

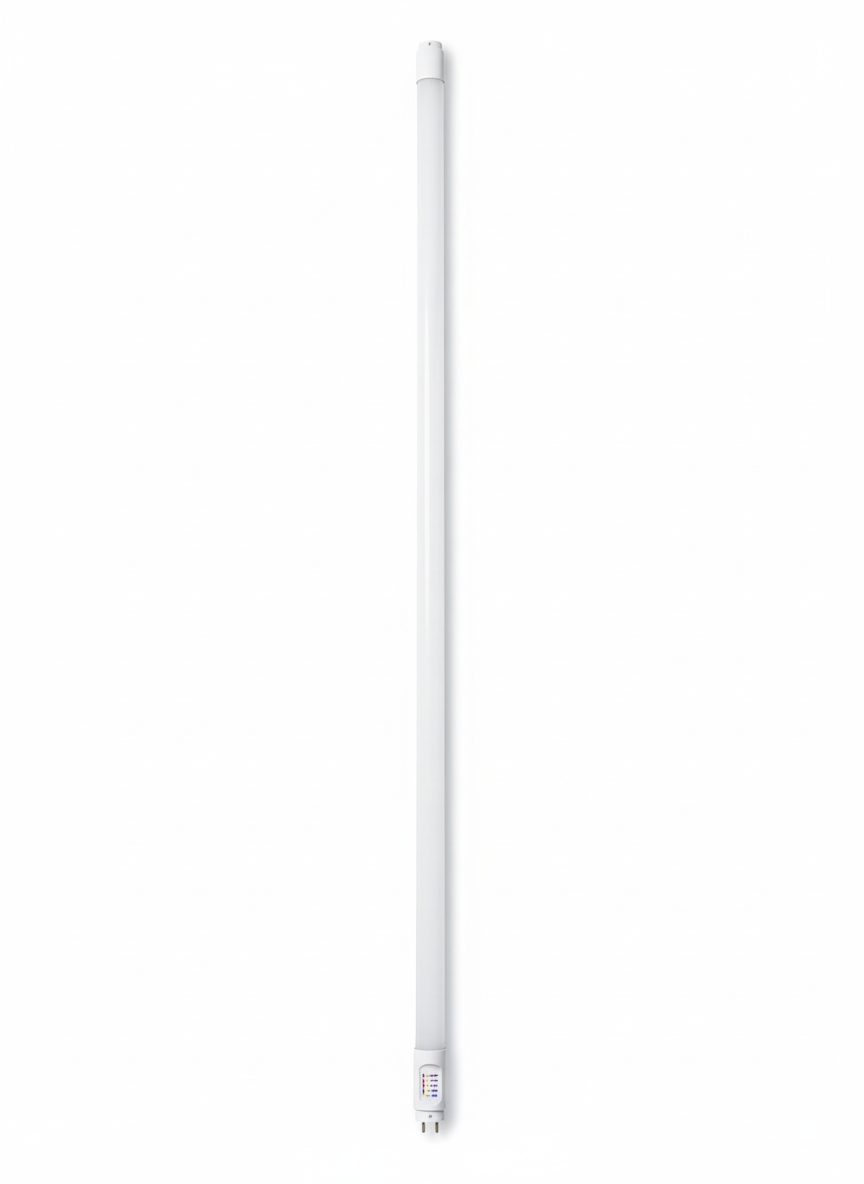

4FT LED T8 Tube Type C
4FT LED T8 Tube Type C
Models: E2-T8-TC-4FT-15W-40K, E2-T8-TC-4FT-15W-50K, E2-T8-TC-4FT-15W-65K
15/30/45/60W Wattage Selectable, Up to 8,400 Lumens
4000K, 5000K or 6500K CCT
External driver, Type C
120-277 Volt
IP20
Specifications
| Wattage | 15W / 30W / 45W / 60W |
| Voltage | 120-277V |
| Dimming | Available |
| CCT | 4000 / 5000 / 6500K |
| CRI | > 80 |
| Lumens | 2100 lm / 4200 lm / 6300 lm / 8400 lm |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 48" × 1.1" × 1.2" |
| Listings | ETL / IP20 |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Size | 4 ft |
| Beam Angle | 120–160° |
| Efficacy | 140+ lm/W |
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Tube Wiring | External driver / Type C |
| Ambient Temperature | -4–113 °F (operating) |
| Mounting | Magnetic |
| Dimmable | Yes |
| Motion Sensor | Optional (microwave or PIR) |
| Mercury Free | Yes |
| Standards | RoHS |
| Family | T8 LED tube |
| Series | E2-TC Type C T8 LED tube |
Description
A 4-foot Type C T8 LED tube that runs from an external driver instead of the old fluorescent ballast. Magnets hold it in place and quick connectors handle the wiring, keeping retrofits quick in homes and businesses.
The system runs at 15, 30, 45 or 60W, giving 2,100, 4,200, 6,300 or 8,400 lumens at 140+ lm/W. It is offered in 4000K, 5000K or 6500K with CRI 80+, and it is dimmable on 120–277V. The tube measures 48 × 1.1 × 1.2 in, is rated IP20 for indoor use and operates from -4 to 113 °F.
ETL listed, mercury-free and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | T8 LED tube |
| Series | E2-TC Type C T8 LED tube |
| Light Source | LED |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120–160° |
| CCT | 4000 / 5000 / 6500K |
| CRI | 80+ |
| Efficacy | 140+ lm/W |
| Lumens | 2,100 / 4,200 / 6,300 / 8,400 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Tube Wiring | External driver / Type C |
| Voltage | 120–277V |
| Wattage | 15 / 30 / 45 / 60W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (operating) |
| Dimensions | 48 × 1.1 × 1.2 in |
| Mounting | Magnetic |
| Controls | |
|---|---|
| Dimmable | Yes |
| Motion Sensor | Optional (microwave or PIR) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL |
| IP Rating | IP20 |
| Mercury Free | Yes |
| Standards | RoHS |
