100W G4 Area Light
100W G4 Area Light
Model: E2-SB-G4-XXW-50K
100W, 15,000 Lumens
5000K CCT
Type III/V Distribution
100-277 or 180-480 Volt
IP65
Specifications
| CCT | 5000K |
| Distribution Type | Type III / Type V |
| Efficacy | 150+ lm/W |
| Lumens | 15,000 lm |
| Frequency | 50–60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 100–277V / 180–480V |
| Wattage | 100W |
| Ambient Temperature | -40–122 °F (operating) |
| Coating | Powder coating |
| Color | Dark bronze |
| Adjustable Aiming | Yes (adjustable fitter mount) / B2: Yes (square-pole mount) / C2: Yes (round-pole mount) / D2: Yes (square-pole mount) / E2: Yes (round-pole mount) |
| Mounting | A: Slip fitter / B: Square pole / C: Round pole / D: Square pole / E: Round pole / A2: Slip fitter / B2: Square pole / C2: Round pole / D2: Square pole / E2: Round pole / F: Trunnion / F2: Wall |
| Motion Sensor | Optional |
| Photocell | Optional (optional) |
| Mercury Free | Yes |
| Standards | RoHS |
| Lifespan | 100,000 hours (at L70) |
| Warranty | 5 years |
| Listings | DLC (at 3000K–5000K models) / ETL / IP65 |
| Family | Area and roadway light |
| Series | G4 area light |
Description

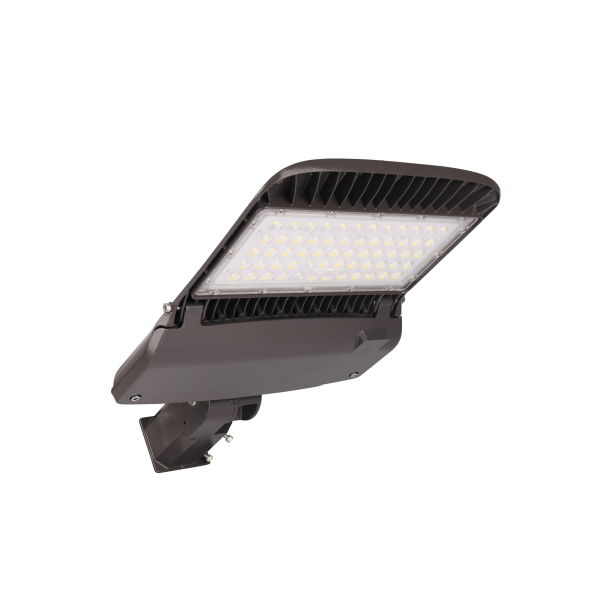

A 100W LED area light for pole- or arm-mounted parking lot, area and roadway lighting. It produces 15,000 lumens at 5000K with an efficacy of 150+ lm/W, and Type III or Type V distribution.
It runs on 100–277V or 180–480V and mounts by slip fitter, square pole, round pole, trunnion or wall bracket. The dark bronze powder-coated housing is IP65 rated for operation from -40 to 122°F, and motion sensor and photocell control are available as options.
ETL and DLC listed, RoHS compliant and mercury-free, with a 100,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Area and roadway light |
| Series | G4 area light |
| Light | |
|---|---|
| CCT | 5000K |
| Distribution Type | Type III / Type V |
| Efficacy | 150+ lm/W |
| Lumens | 15,000 lm |
| Electrical | |
|---|---|
| Frequency | 50–60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 100–277V / 180–480V |
| Wattage | 100W |
| Physical | |
|---|---|
| Ambient Temperature | -40–122 °F (operating) |
| Coating | Powder coating |
| Finish | Dark bronze |
| Adjustable Aiming | Yes (adjustable fitter mount) / B2: Yes (square-pole mount) / C2: Yes (round-pole mount) / D2: Yes (square-pole mount) / E2: Yes (round-pole mount) |
| Mounting | A: Slip fitter / B: Square pole / C: Round pole / D: Square pole / E: Round pole / A2: Slip fitter / B2: Square pole / C2: Round pole / D2: Square pole / E2: Round pole / F: Trunnion / F2: Wall |
| Controls | |
|---|---|
| Motion Sensor | Optional |
| Photocell | Optional (optional) |
| Warranty | |
|---|---|
| Rated Life | 100,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC (at 3000K–5000K models) |
| IP Rating | IP65 |
| Mercury Free | Yes |
| Standards | RoHS |
