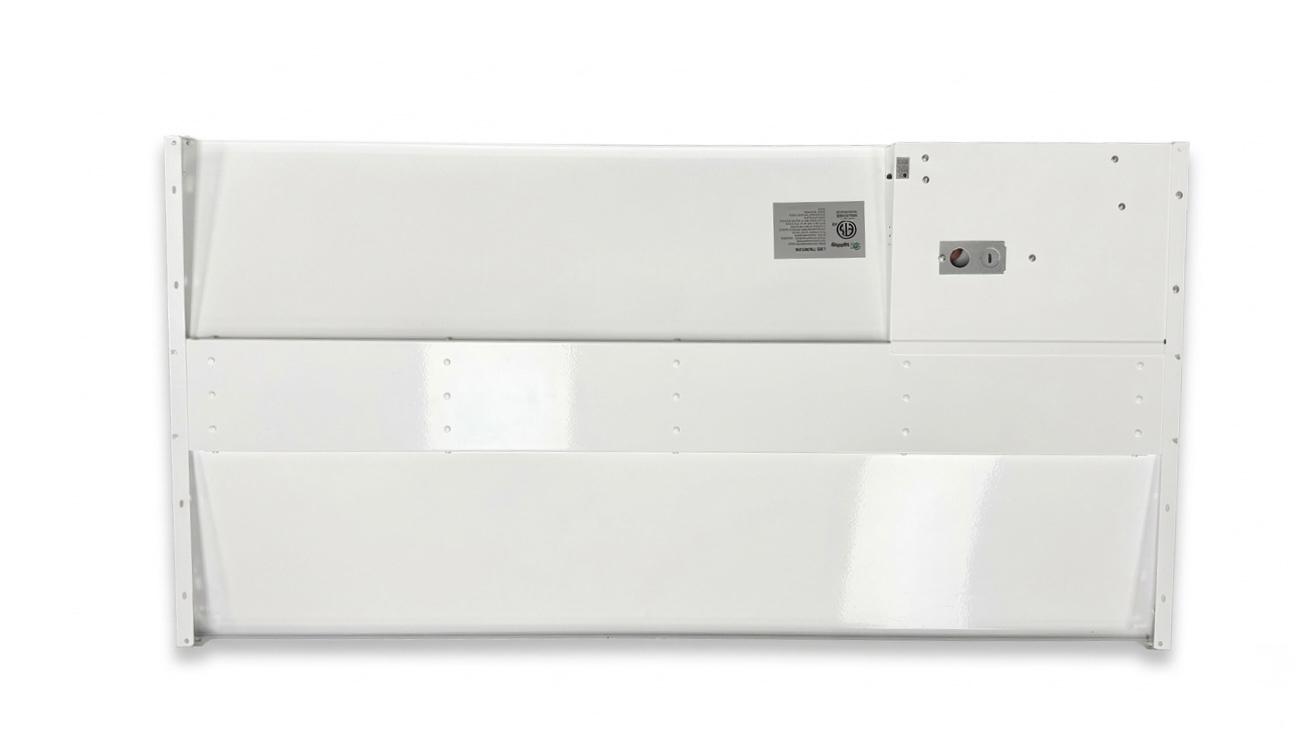

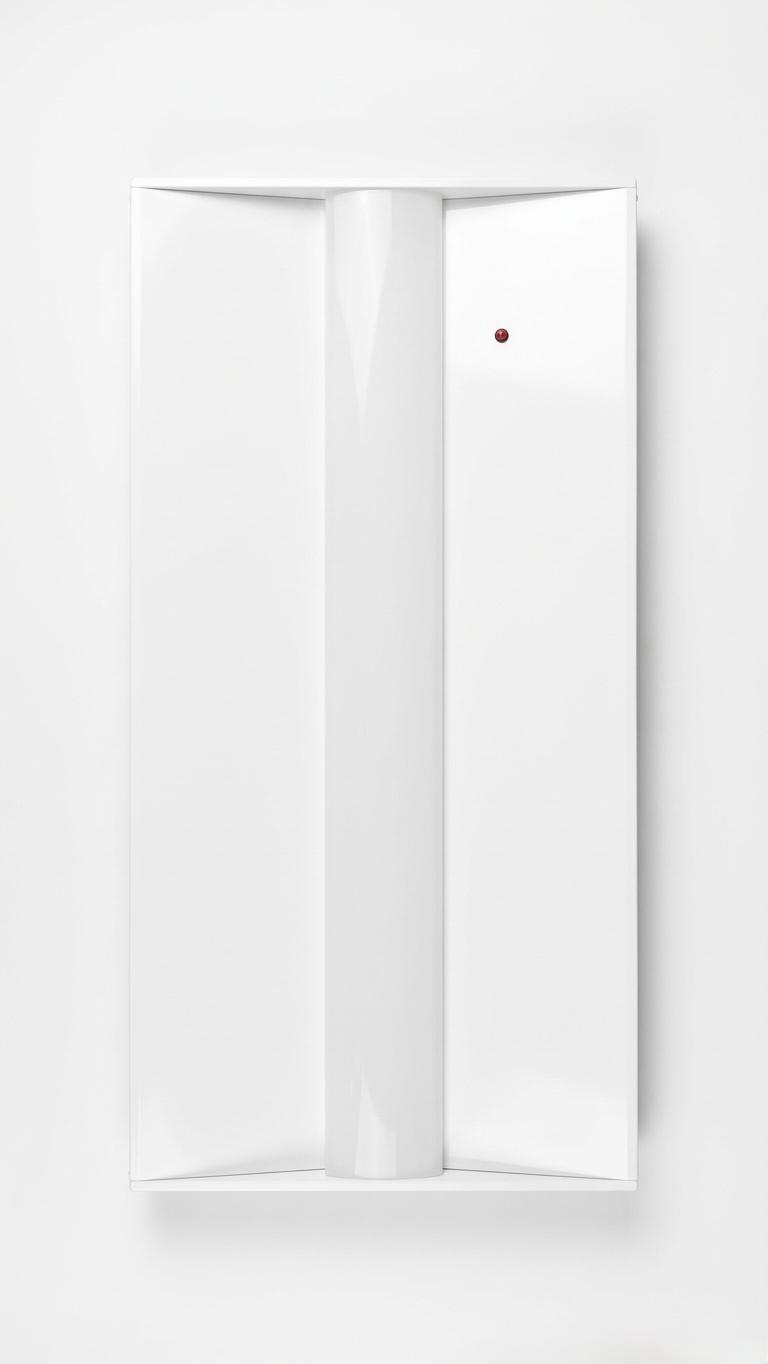

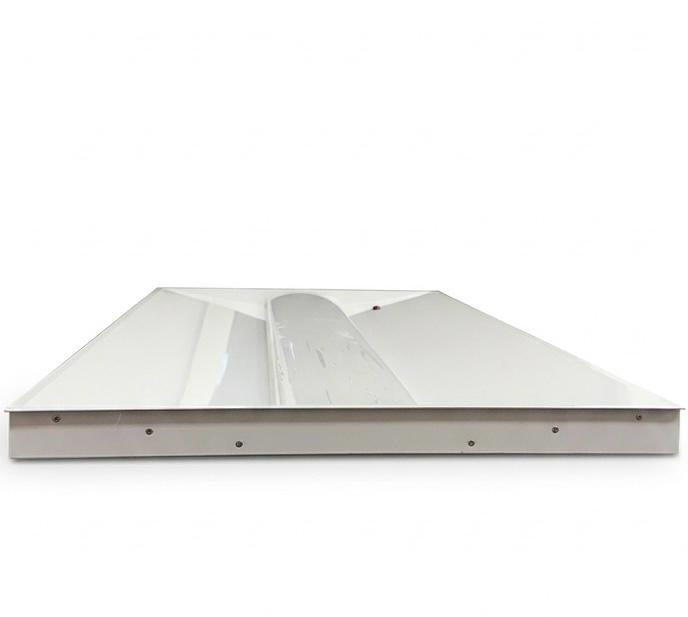

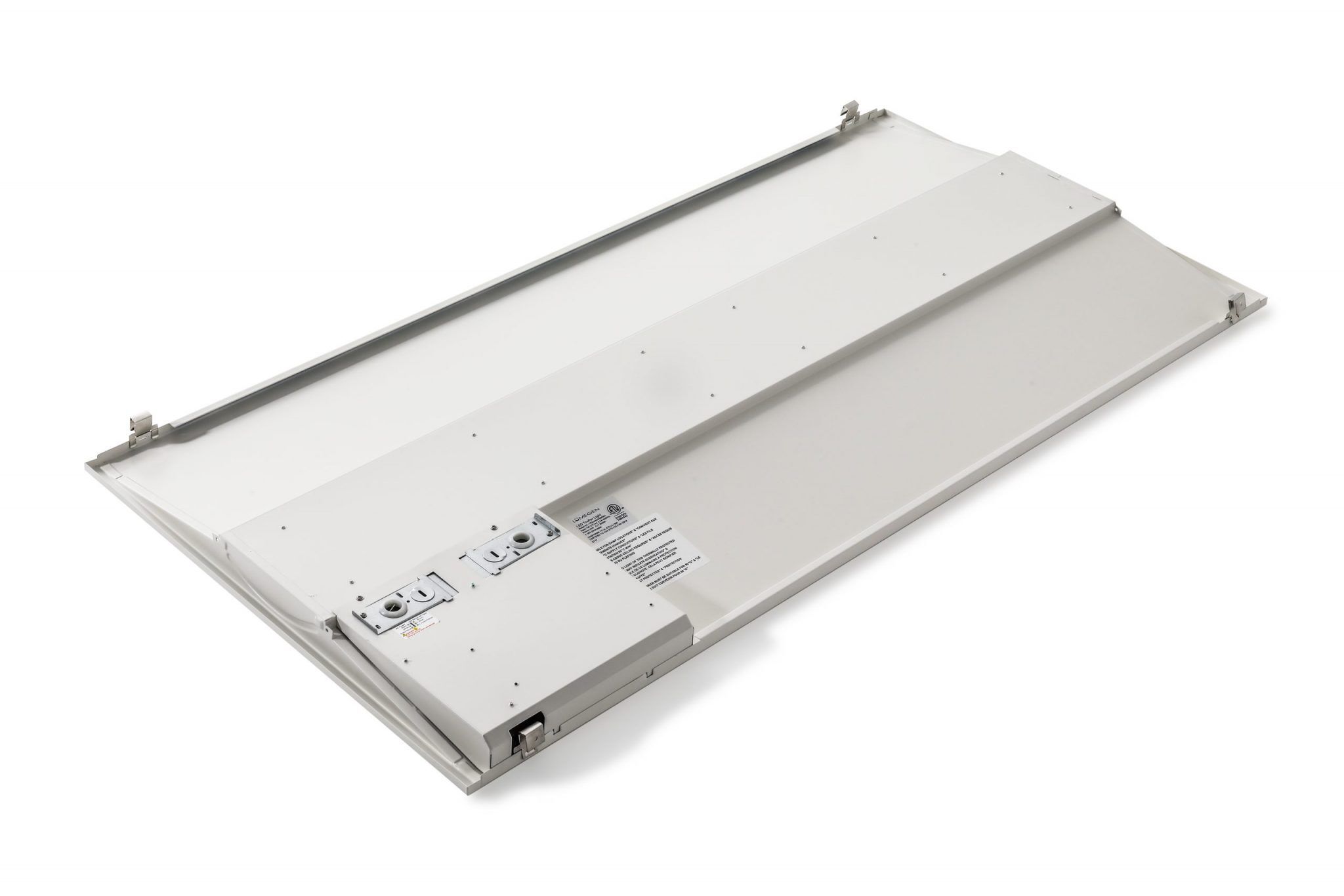

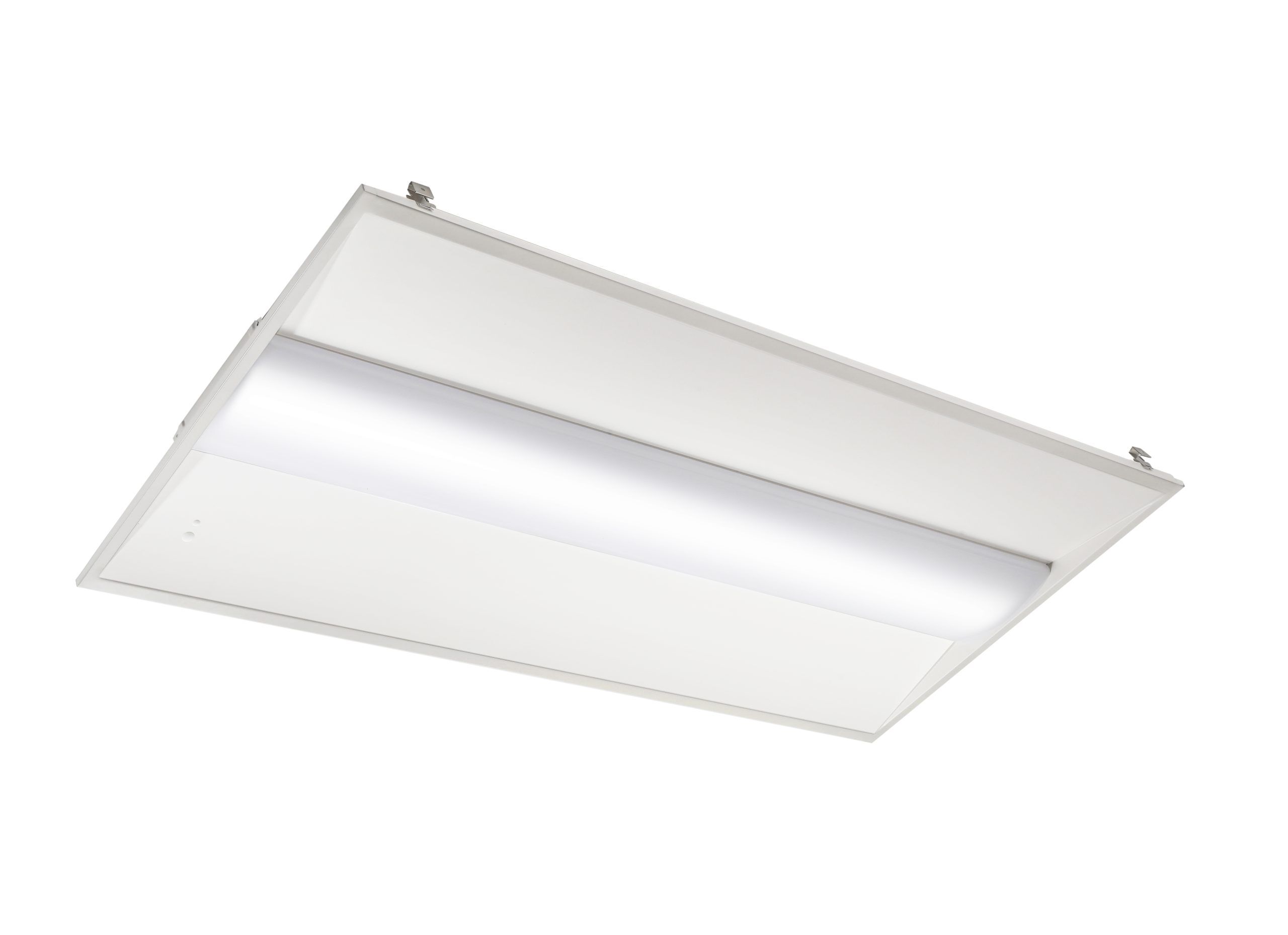

2X4 LED Troffer With Emergency Battery Backup CCT Tunable
2X4 LED Troffer With Emergency Battery Backup CCT Tunable
Model: E2-TRF-2X4-34/38/45W-35/40/50K-E
34/38/45W Wattage Selectable, Up to 5,715 Lumens
3500K/4000K/5000K CCT Selectable
Built-in 4W Emergency Battery, 90+ Minutes
1-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 34W / 38W / 45W |
| Voltage | 120-277V |
| Dimming | 1-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 4,250 / 4,758 / 5,715 lm |
| Lifespan | 75,000 hours |
| Dimensions | 1227 × 610 × 123 mm (48.3" × 24.0" × 4.8") |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 2×4 ft |
| Beam Angle | 119° |
| Efficacy | 125+ lm/W |
| Power Factor | 0.98+ |
| Mounting | Recessed (embedded) |
| Emergency Backup | Integrated |
| Emergency Lumens | 600 lm |
| Emergency Power | 4W |
| Emergency Runtime | 90+ minutes |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Standards | RoHS |
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
Description
Ideal for versatile indoor applications in damp environments, this 2×4 LED troffer includes an integrated emergency backup driver that provides 600 lumens for over 90 minutes during a power outage, using 4W of battery power. Rear-mounted controls select the wattage and color temperature, for healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more.
Wattage is selectable at 34, 38 or 45W, giving 4,250, 4,758 or 5,715 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+. It dims on 1–10V controls, runs on 120–277V with a power factor of 0.98+, and recesses into the ceiling.
Rated for damp locations, UL and DLC Premium listed and RoHS compliant, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
| Light Source | SMD LED |
| Size | 2×4 ft |
| Light | |
|---|---|
| Beam Angle | 119° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 4,250 / 4,758 / 5,715 lm |
| Electrical | |
|---|---|
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 34 / 38 / 45W |
| Physical | |
|---|---|
| Mounting | Recessed (embedded) |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 600 lm |
| Emergency Power | 4W |
| Emergency Runtime | 90+ minutes |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Damp location |
| Standards | RoHS |
