WP10 Series Full Cut Off Wall Pack With Emergency Battery Backup w/ photocell
WP10 Series Full Cut Off Wall Pack With Emergency Battery Backup w/ photocell
Models: E2-WP-F-WP10-60W-50K-M-P-E-BK, E2-WP-F-WP10-80W-50K-M-P-E-BK
60W or 80W
7,800 or 10,400 Lumens
5000K CCT
Integrated Photocell and Motion Sensor
Built-in 10W Emergency Battery, 90+ Minutes
120-277 Volt
Wet Location, IP65
Specifications
| Wattage | 30W / 40W / 60W / 80W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 5000K |
| CRI | > 70 |
| Lumens | 7,800 lm (at 60W) / 10,400 lm (at 80W) |
| Lifespan | 50,000 hours |

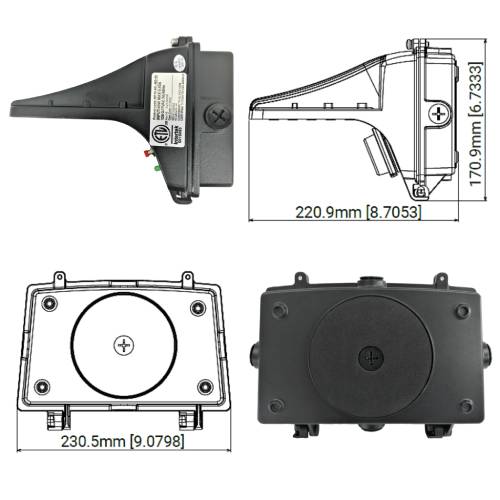

| Dimensions | 60W and 80W: 11 × 9 × 7.25 in |
| Listings | DLC Premium / IP65 / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Efficacy | 130 lm/W (±10%) |
| THD | up to 20% |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| Emergency Backup | Integrated |
| Emergency Power | 60W and 80W fixtures: 10W |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Status indicator |
| Test Switch | Test button (button, manual) |
| Motion Sensor | Integrated (microwave, plug-and-play) |
| Photocell | Included (plug-and-play) |
| Location Rating | Outdoor / Wet location |
| Accessories | Built-in level (included) |
| Family | Wall pack and wall luminaire |
| Series | WP10 full-cutoff wall pack |
| Daylight Harvesting | Yes |
Description

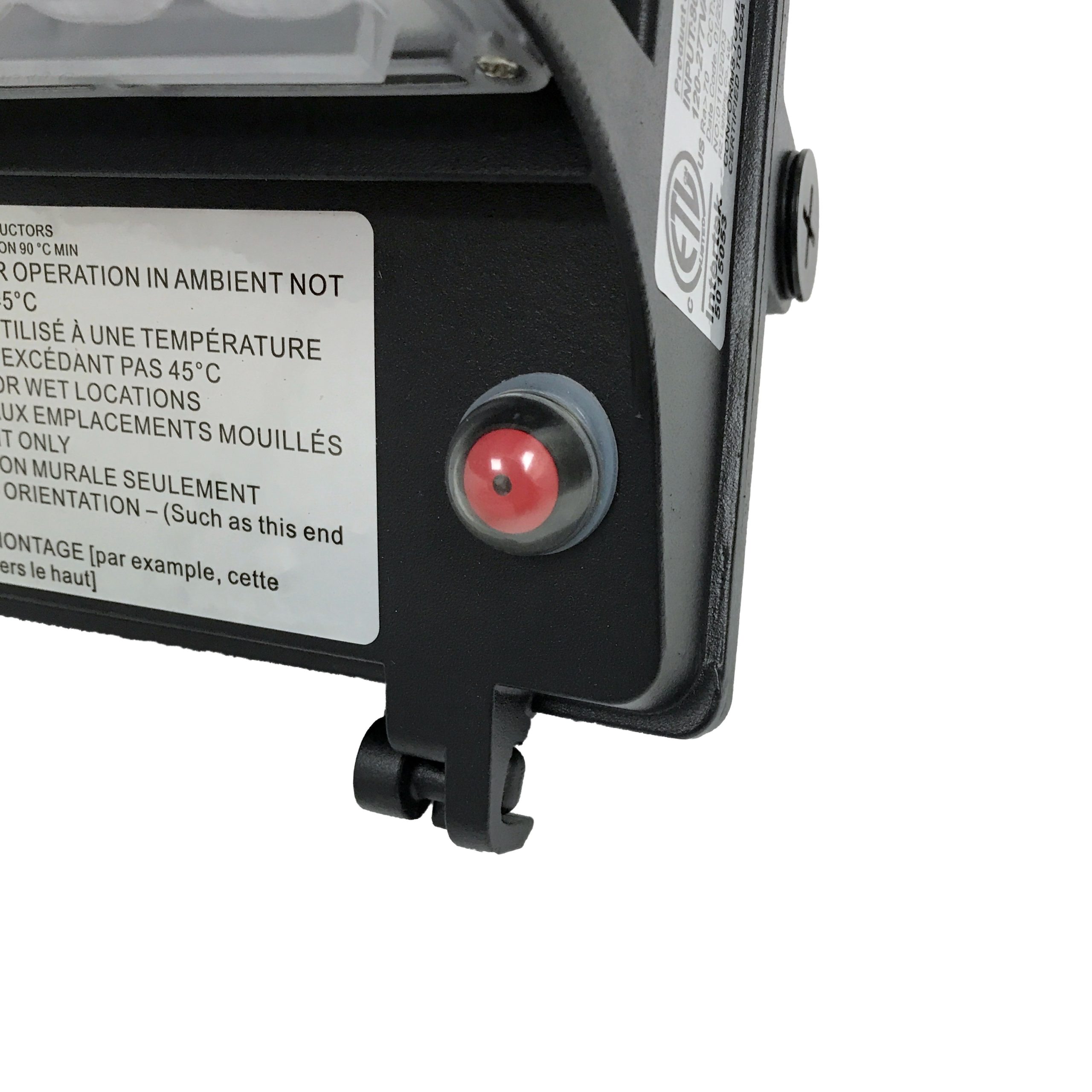

These full cut-off LED wall packs come in 60W and 80W models with an integrated emergency battery that delivers at least 90 minutes of light at 10W during a power loss, with a test button and indicator light for checking it. The rugged die-cast aluminum housing provides thermal management and protection against outdoor environments, with a UV-resistant polycarbonate refractor lens and a built-in level.
The 60W model delivers 7,800 lumens and the 80W model 10,400 lumens, both at 130 lm/W in 5000K with a CRI of 70+, dimming with 0–10V controls and running on 120–277V. They are wet-location and IP65 rated for building facades on commercial, industrial, retail and hospitality properties, with an integrated photocell and motion sensor.
DLC Premium and cETLus listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WP10 full-cutoff wall pack |
| Light Source | LED |
| Light | |
|---|---|
| CCT | 5000K |
| CRI | 70+ |
| Efficacy | 130 lm/W (±10%) |
| Lumens | 7,800 lm (at 60W) / 10,400 lm (at 80W) |
| Electrical | |
|---|---|
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 60 / 80W |
| Physical | |
|---|---|
| Dimensions | 60W and 80W: 11 × 9 × 7.25 in |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 60W and 80W fixtures: 10W |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Status indicator |
| Test Switch | Test button (button, manual) |
| Controls | |
|---|---|
| Daylight Harvesting | Yes |
| Dimming Type | 0–10V |
| Motion Sensor | Integrated (microwave, plug-and-play) |
| Photocell | Included (plug-and-play) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Outdoor / Wet location |
| Accessories | Built-in level (included) |
