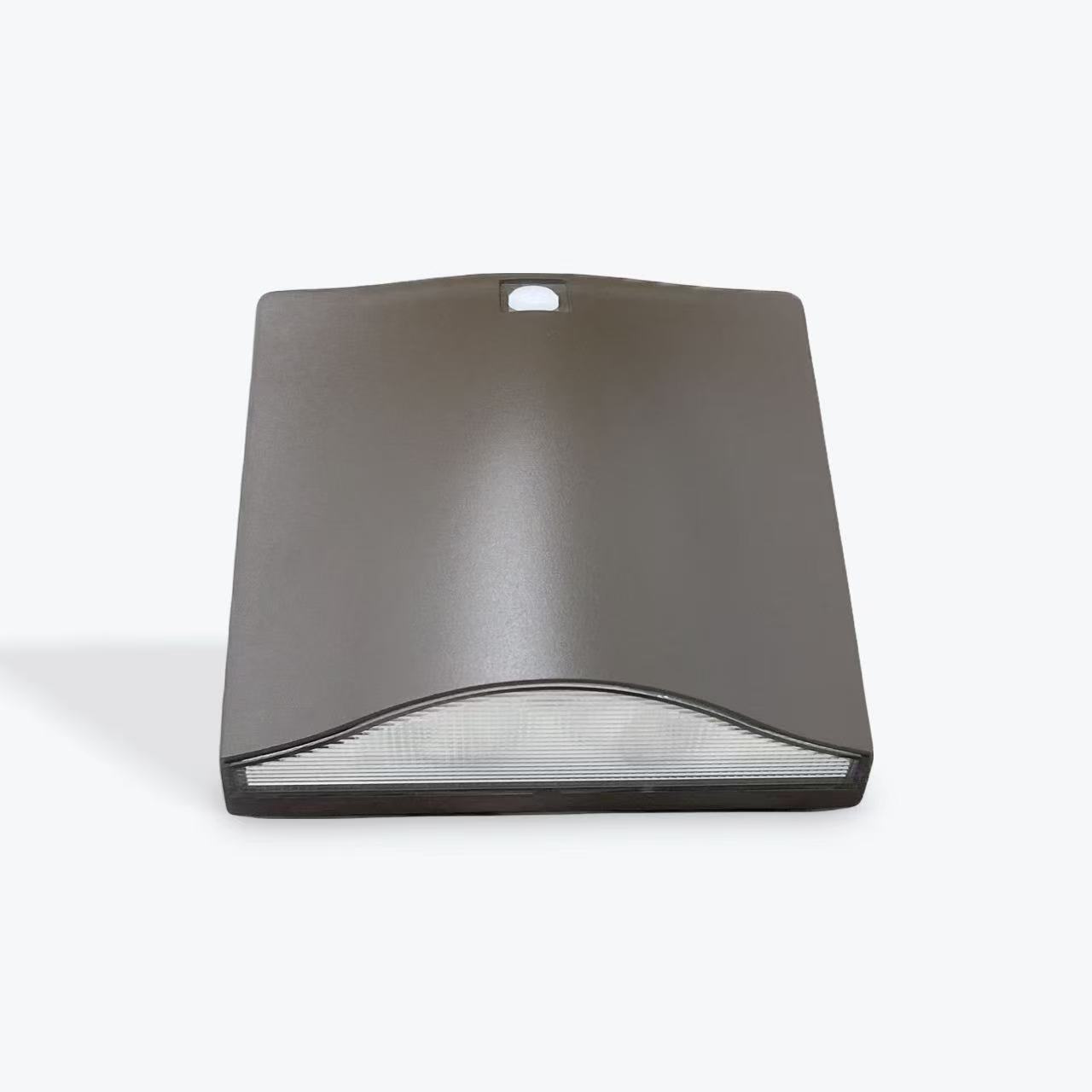

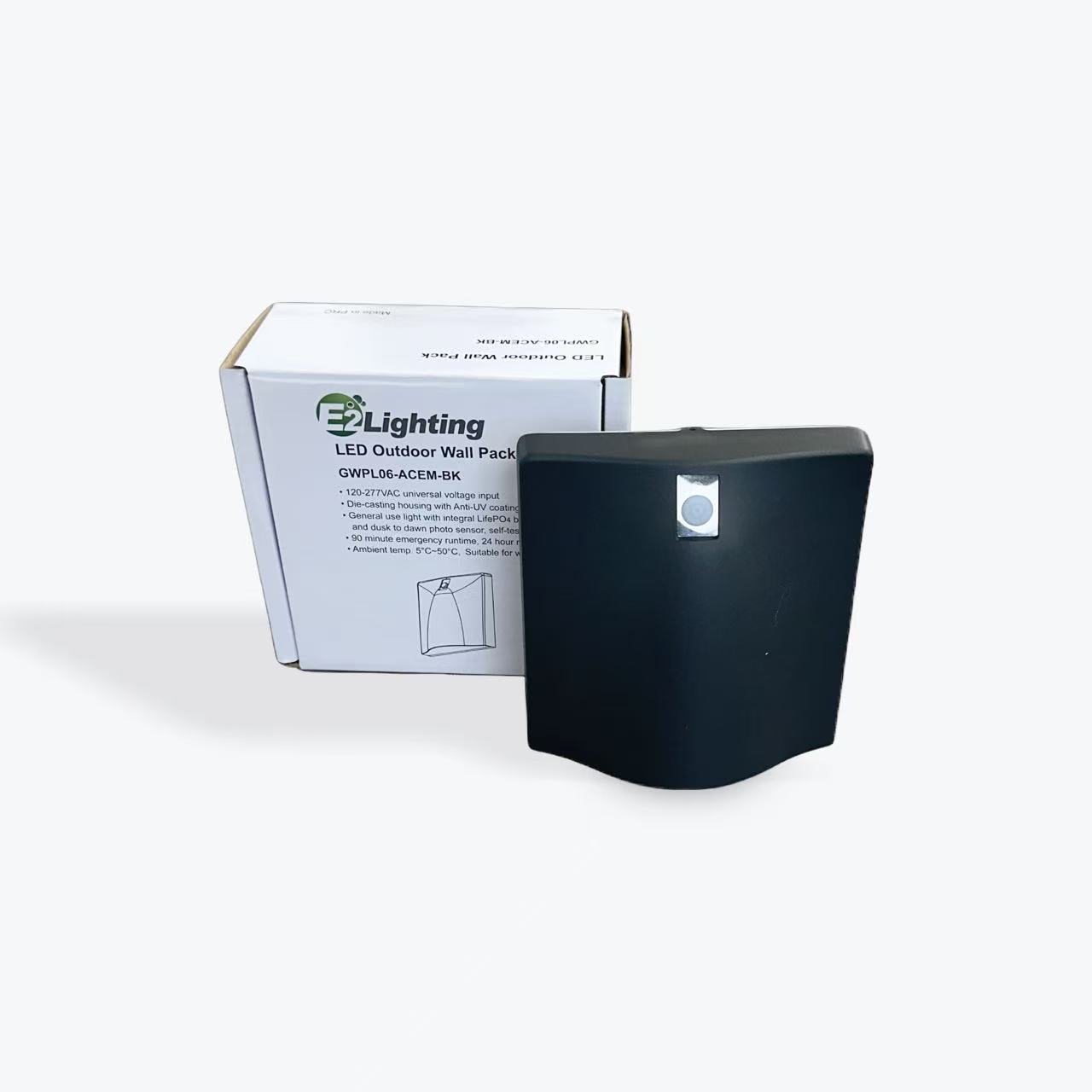

Mini Square Wall Pack With Emergency Battery Backup
Mini Square Wall Pack With Emergency Battery Backup
Model: E2-WP-L06-ACEM- Black
9W, 600 Lumens
6500K CCT
Integrated Photocell
Built-in Emergency Battery, 90+ Minutes
120-277 Volt
Wet Location, IP65
Black / Dark Bronze Finish
Specifications
| Wattage | 9W |
| Voltage | 120-277V |
| CCT | 6500K |
| CRI | > 70 |
| Lumens | 600 lm |
| Lifespan | 50,000 hours |
| Dimensions | 127 × 127 × 53 mm (5" × 5" × 2.1") |
| Listings | cUL Certified, DLC Standard, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Beam Angle | 113.4° (C0/180) / 66.8° (C30/210) / 43.3° (C60/240) / 41.3° (C90/270) / 66.2° |
| Color Consistency (SDCM) | 5 SDCM |
| Cutoff | Full cutoff |
| Connection Type | Terminal block |
| Frequency | 60 Hz |
| Ambient Temperature | 5–50 °C (ambient) |
| Color | Black / Dark bronze |
| Mounting | Wall |
| Recharge Time | 24 hours |
| Emergency Backup | Integrated |
| Emergency Lumens | 250 lm |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Status indicator |
| Test Switch | Yes (manual) |
| Control Type | Wall switch (external wall switch as connection target) |
| Photocell | Included |
| IK Rating | IK08 |
| Location Rating | Wet location |
| Family | Wall pack and wall luminaire |
| Series | L06 mini wall pack with emergency |
Description

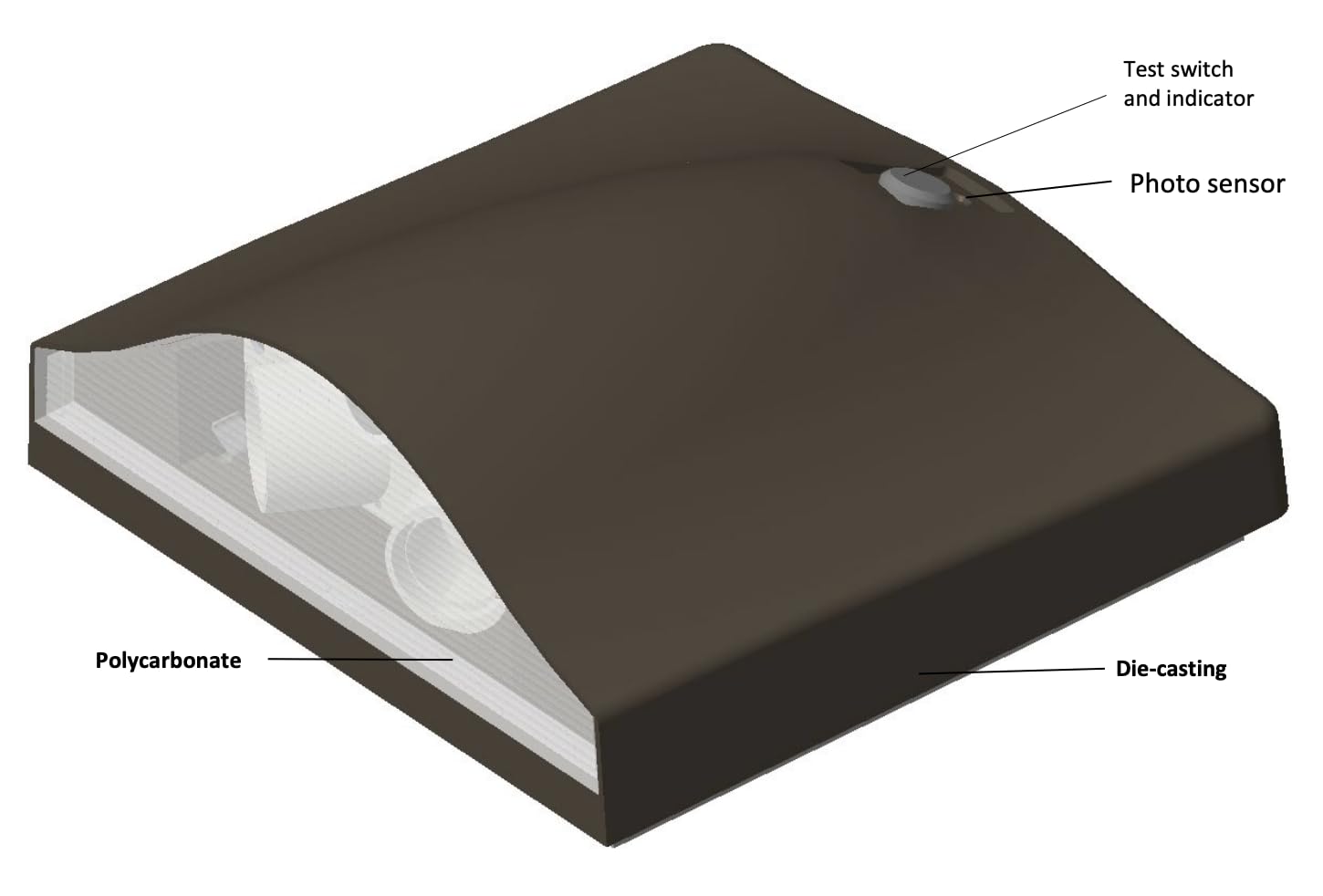

This mini square LED wall pack has an integrated emergency battery backup that provides 90+ minutes of light at 250 lumens in a power outage, which makes it a good choice for safety and security lighting indoors or out. A test switch, indicator and self-test keep track of the battery, which recharges in 24 hours.
It draws up to 9W and delivers 600 lumens in 6500K with a CRI of 70+, with a full-cutoff distribution. A built-in photocell switches it automatically with ambient light, or it can run from a wall switch, on 120–277V. The die-cast housing has a UV-resistant powder-painted finish in black or dark bronze and is IK08, wet-location and IP65 rated to withstand rain and harsh weather, from 5 to 50 °C.
cULus listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | L06 mini wall pack with emergency |
| Light | |
|---|---|
| Beam Angle | 113.4° (C0/180) / 66.8° (C30/210) / 43.3° (C60/240) / 41.3° (C90/270) / 66.2° |
| CCT | 6500K |
| CRI | 70+ |
| Color Consistency (SDCM) | 5 SDCM |
| Cutoff | Full cutoff |
| Lumens | 600 lm |
| Electrical | |
|---|---|
| Connection Type | Terminal block |
| Frequency | 60 Hz |
| Voltage | 120–277V |
| Wattage | up to 9W (maximum) |
| Physical | |
|---|---|
| Ambient Temperature | 5–50 °C (ambient) |
| Dimensions | 127 × 127 × 53 mm |
| Finish | Black / Dark bronze |
| Mounting | Wall |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Backup | Integrated |
| Emergency Lumens | 250 lm |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Status indicator |
| Test Switch | Yes (manual) |
| Controls | |
|---|---|
| Control Type | Wall switch (external wall switch as connection target) |
| Photocell | Included |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cULus |
| IK Rating | IK08 |
| IP Rating | IP65 |
| Location Rating | Wet location |
