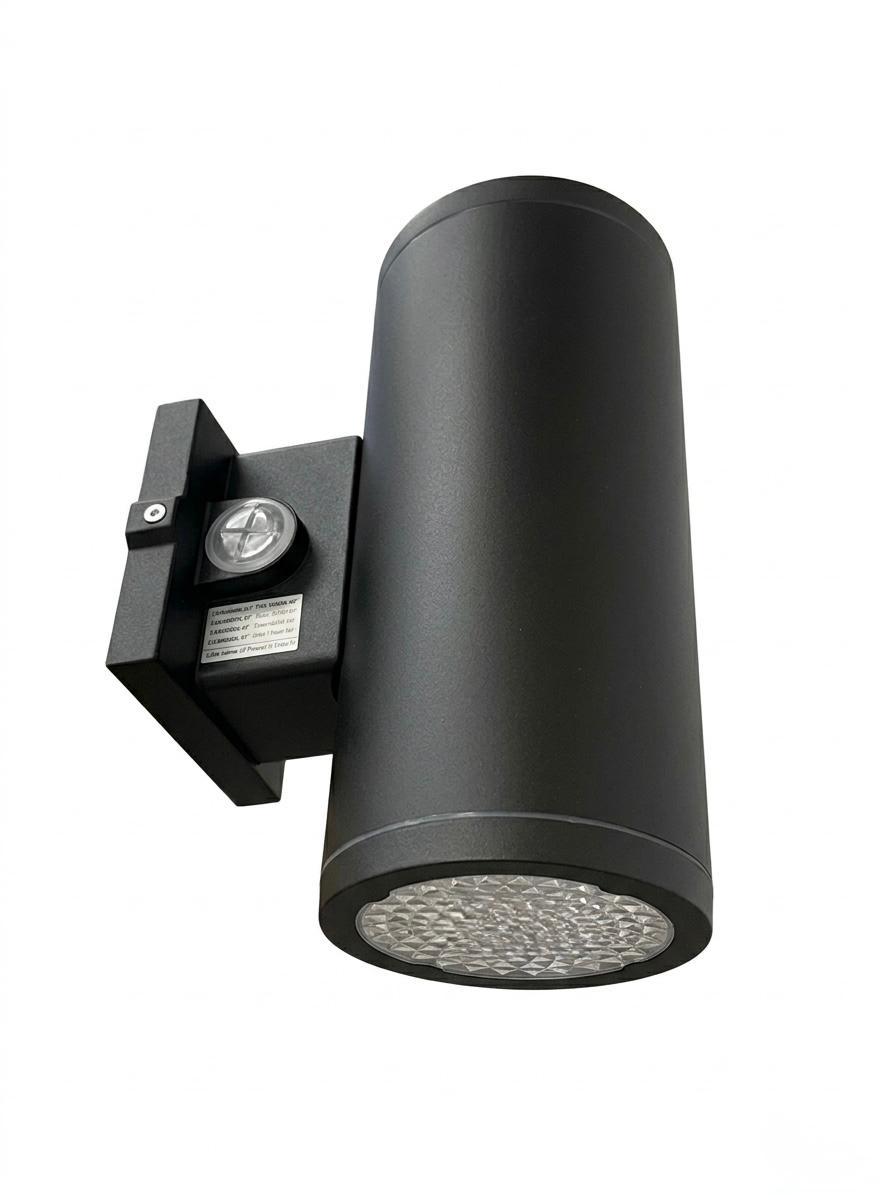

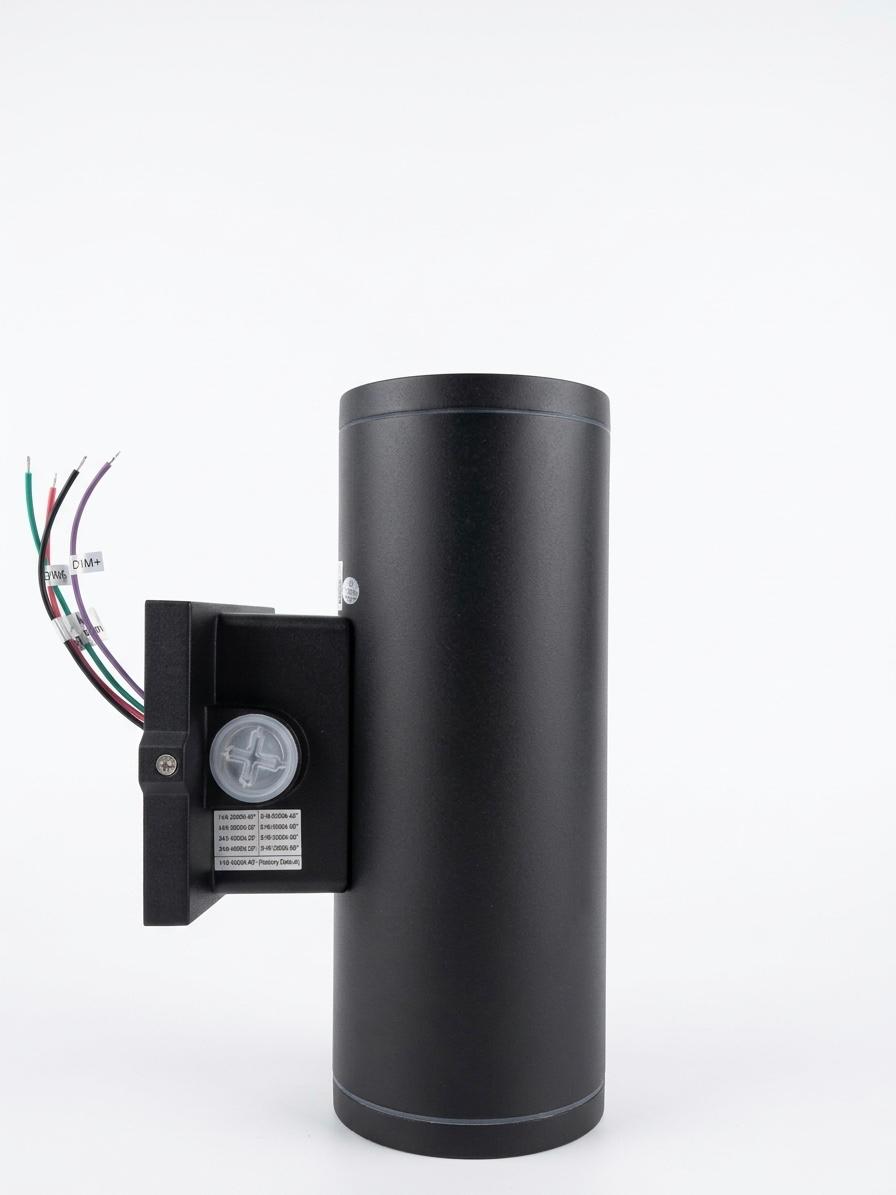

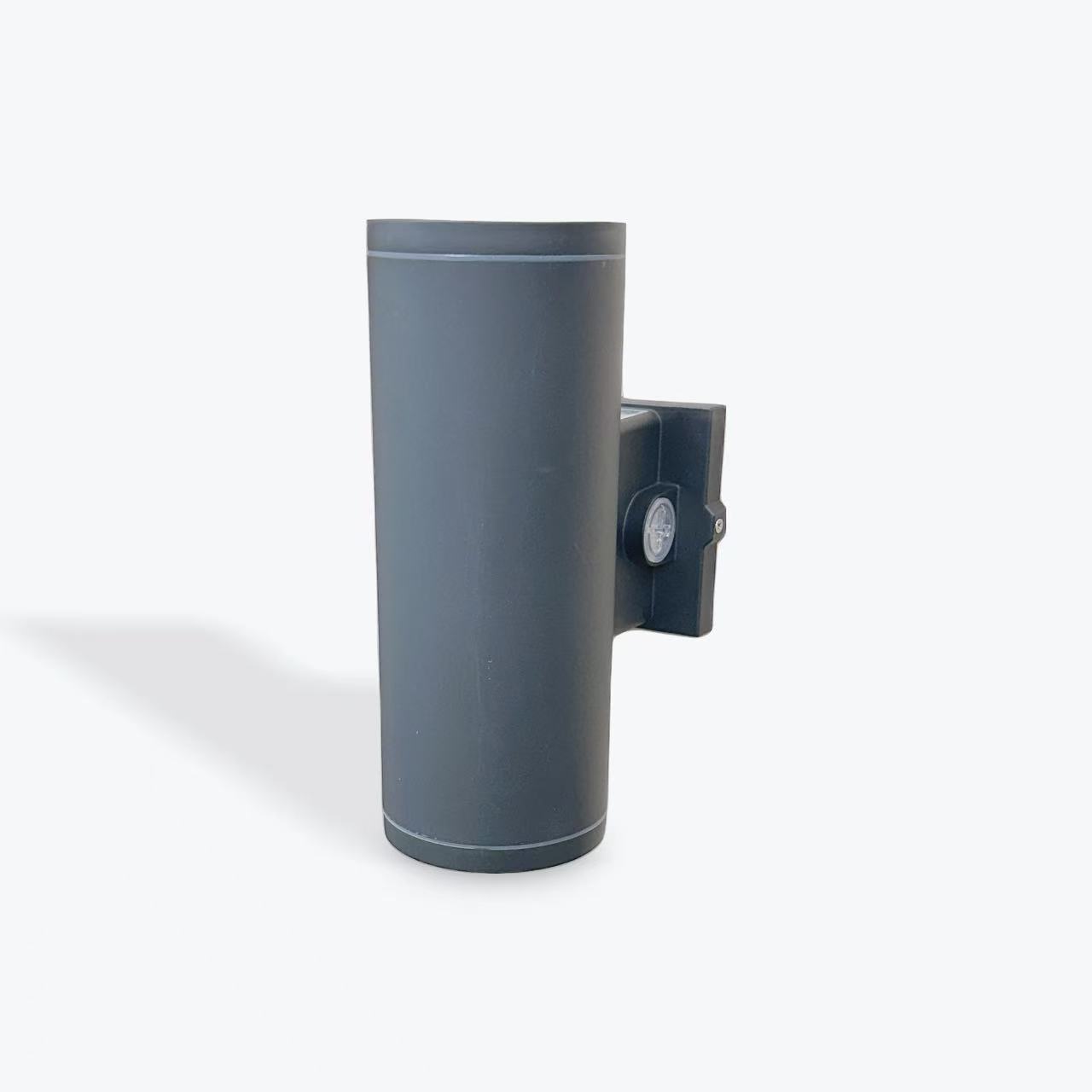

Architectural LED Cylinder – 12/16/20W Power Selectable Wall Sconce, 3-Way Directional Lighting (Up/Down/Full), Emergency Battery Backup
Architectural LED Cylinder – 12/16/20W Power Selectable Wall Sconce, 3-Way Directional Lighting (Up/Down/Full), Emergency Battery Backup
Model: E2-WP-CY-WP29-12/16/20W-30/40/50K-P-E-BK
12/16/20W Wattage Selectable, Up to 3,000 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
120-347 Volt
Wet Location, IP65
Specifications
| Wattage | 12W / 16W / 20W |
| Voltage | 120–347V |
| CCT | 3000K (A+1, at 40°) / 4000K (A+2, at 25°) / 5000K (A+3, at 25°) / 3000K (A+4, at 25°) / 5000K (B+0, at 40°) / 5000K (C+0, at 60°) / 4000K (D+0, at 60°) / 3000K (E+0, at 60°) / 4000K (B+1, at 40°) / 3000 / 4000 / 5000K |
| CRI | > 80 |
| Lumens | 1800 lm / 2400 lm / 3000 lm |
| Lifespan | 50,000 hours |
| Listings | DLC Standard, IP65 Rating, UL Listed |

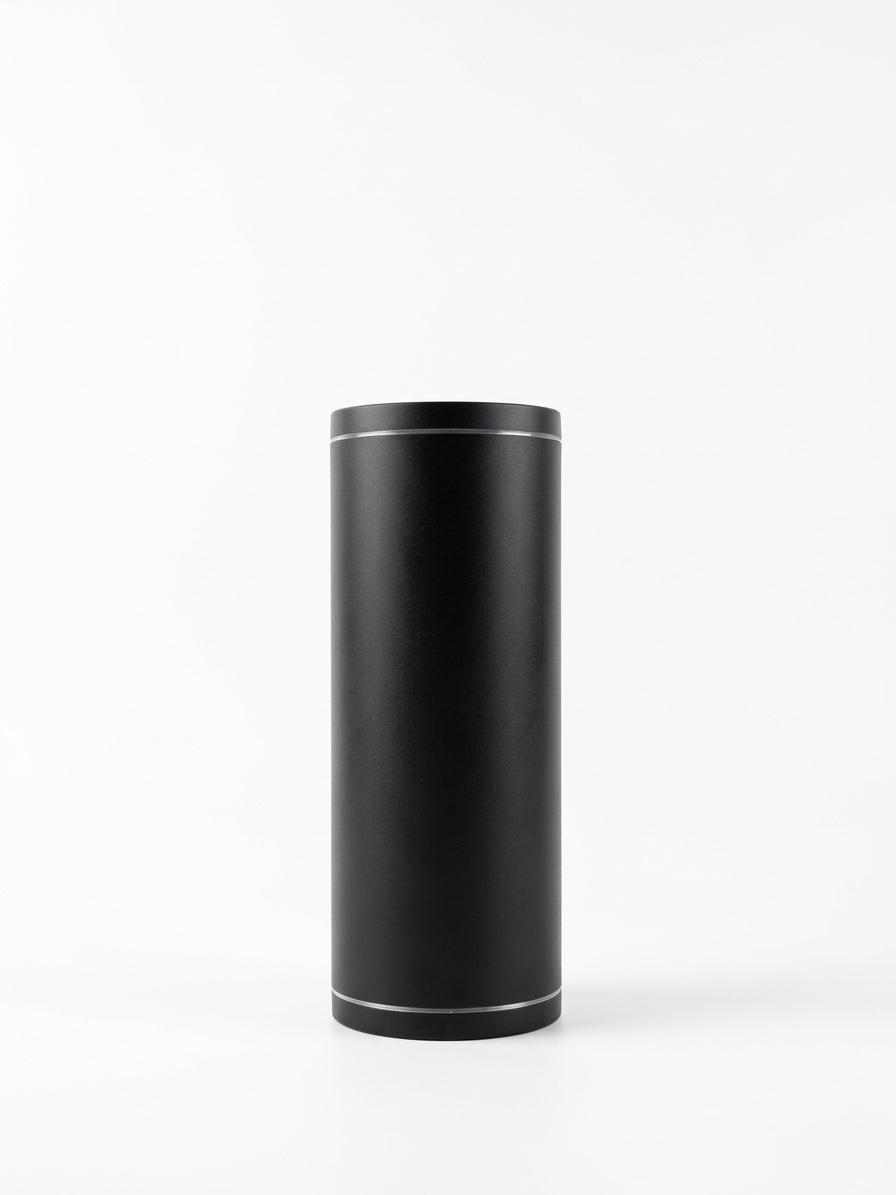

| Construction | Die-cast (end caps, mounting plate) |
| Warranty | 5-Year Manufacturer's Warranty |

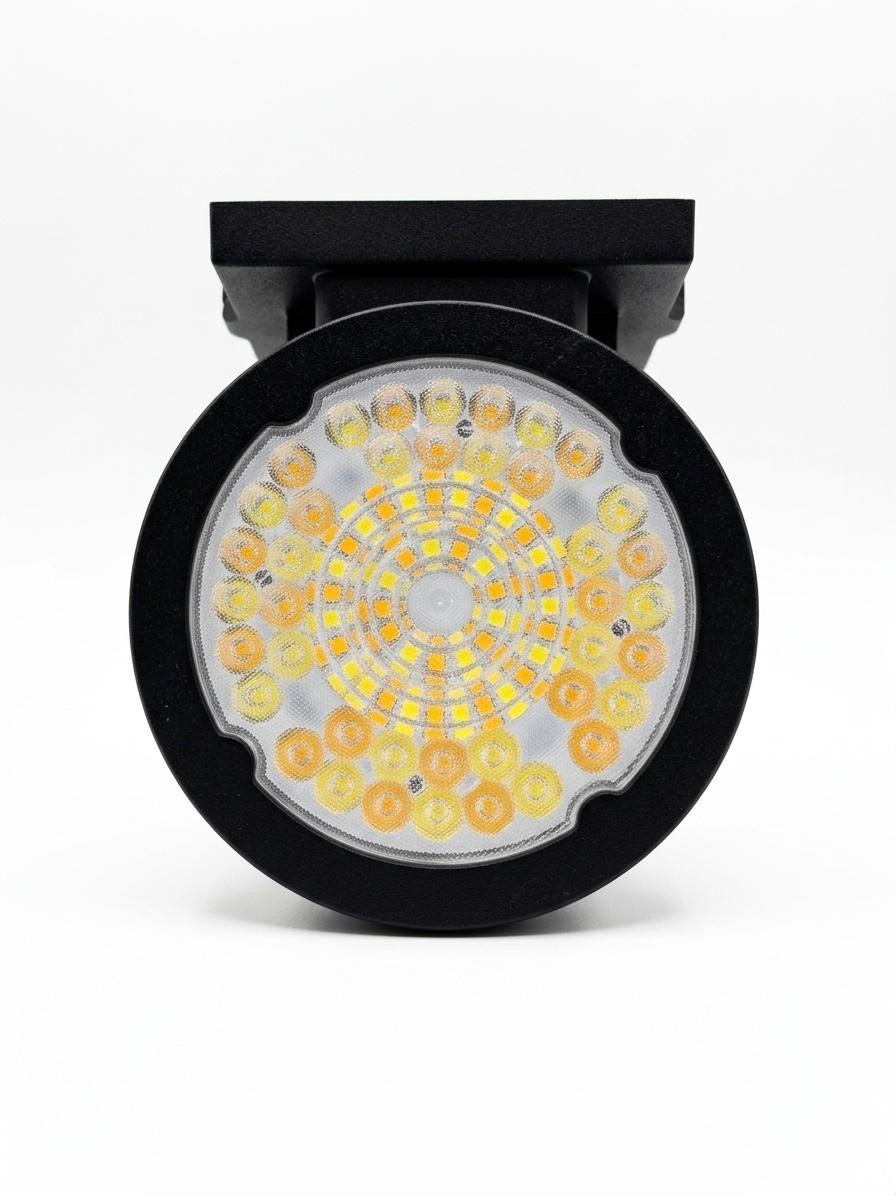

| Light Source | SMD LED |

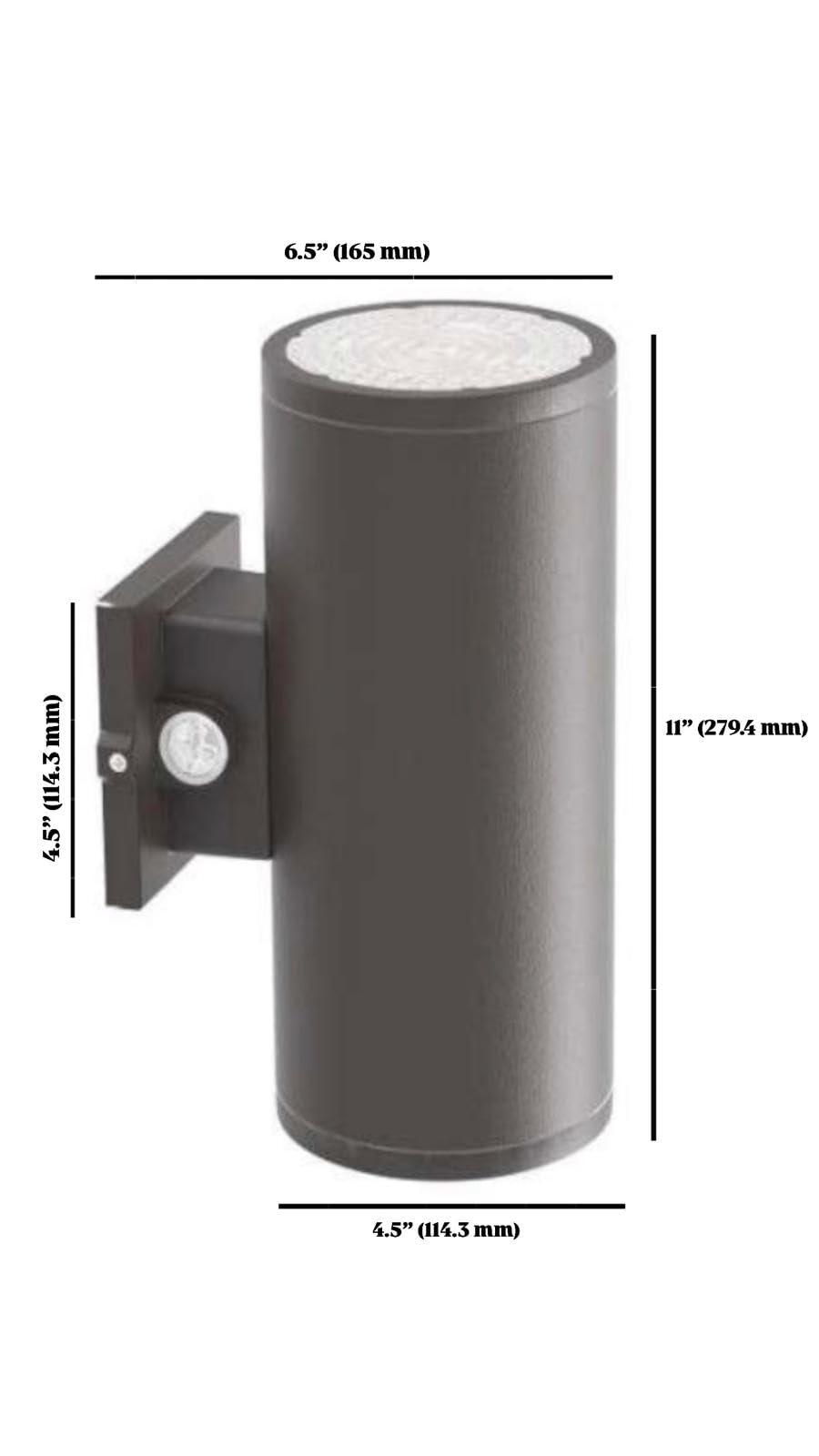

| Size | 4 in |
| Efficacy | 150 lm/W (at CRI >80, at 4000K, at 40°, at Full) |
| Lighting Direction | Up only / Full: up and down / Down only |
| Beam Angle | 40° (A+1, at 3000K) / 25° (A+2, at 4000K) / 25° (A+3, at 5000K) / 25° (A+4, at 3000K) / 40° (B+0, at 5000K) / 60° (C+0, at 5000K) / 60° (D+0, at 4000K) / 60° (E+0, at 3000K) / 40° (B+1, at 4000K) / 25 / 40 / 60° |
| Frequency | 50 / 60 Hz |
| Ambient Temperature | 5–30 °C (operating, emergency version) / -40–70 °C (storage) |
| Material | Aluminum (end caps, mounting plate) |
| Mounting | Wall |
| Emergency Backup | Optional (EMY-04058DO-UI, sold separately, emergency driver) |
| Emergency Power | 4W |
| Dimming | 0–10V |
| Photocell | Included (ON/OFF selectable) |
| Wattage Selectable | Yes |

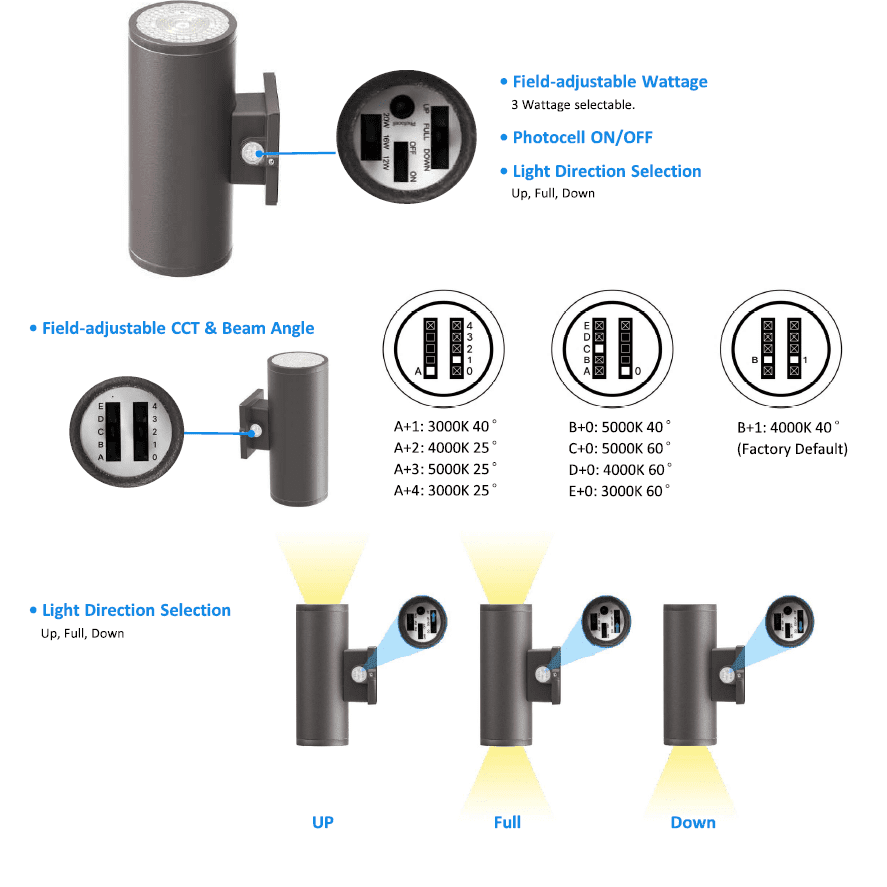

| CCT Selectable | Yes, switchable (coded selector setting, A+1) / Yes, switchable (coded selector setting, A+2) / Yes, switchable (coded selector setting, A+3) / Yes, switchable (coded selector setting, A+4) / Yes, switchable (coded selector setting, B+0) / Yes, switchable (coded selector setting, C+0) / Yes, switchable (coded selector setting, D+0) / Yes, switchable (coded selector setting, E+0) / Yes, switchable (coded selector setting, B+1) / Yes, switchable |
| Selectable Distribution | Yes (CCT and beam selector, beam angle, A+1) / Yes (CCT and beam selector, beam angle, A+2) / Yes (CCT and beam selector, beam angle, A+3) / Yes (CCT and beam selector, beam angle, A+4) / Yes (CCT and beam selector, beam angle, B+0) / Yes (CCT and beam selector, beam angle, C+0) / Yes (CCT and beam selector, beam angle, D+0) / Yes (CCT and beam selector, beam angle, E+0) / Yes (CCT and beam selector, beam angle, B+1) / Yes (beam angle) |
| Sensor Settings | Photocell: ON (factory default) |
| Location Rating | Wet location |
| Protection | Surge protection (surge, at 10W and 20W configurations) |
| Family | Wall pack and wall luminaire |
| Series | WP29 cylinder wall mount |
Description

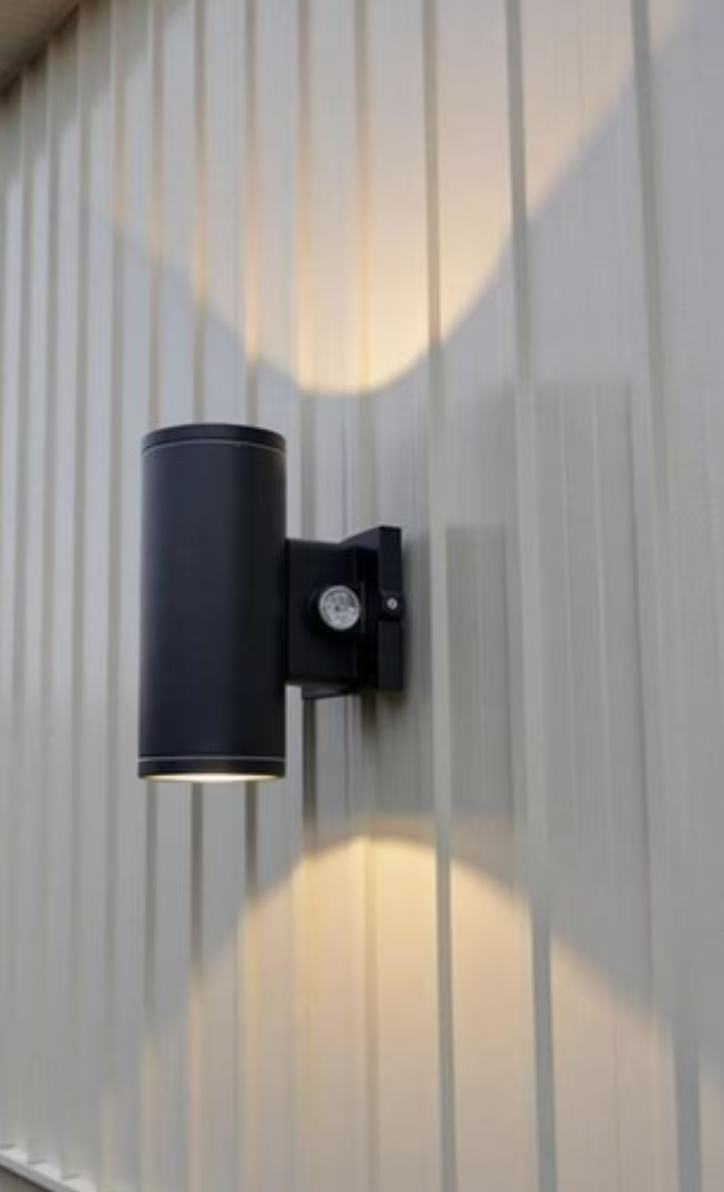

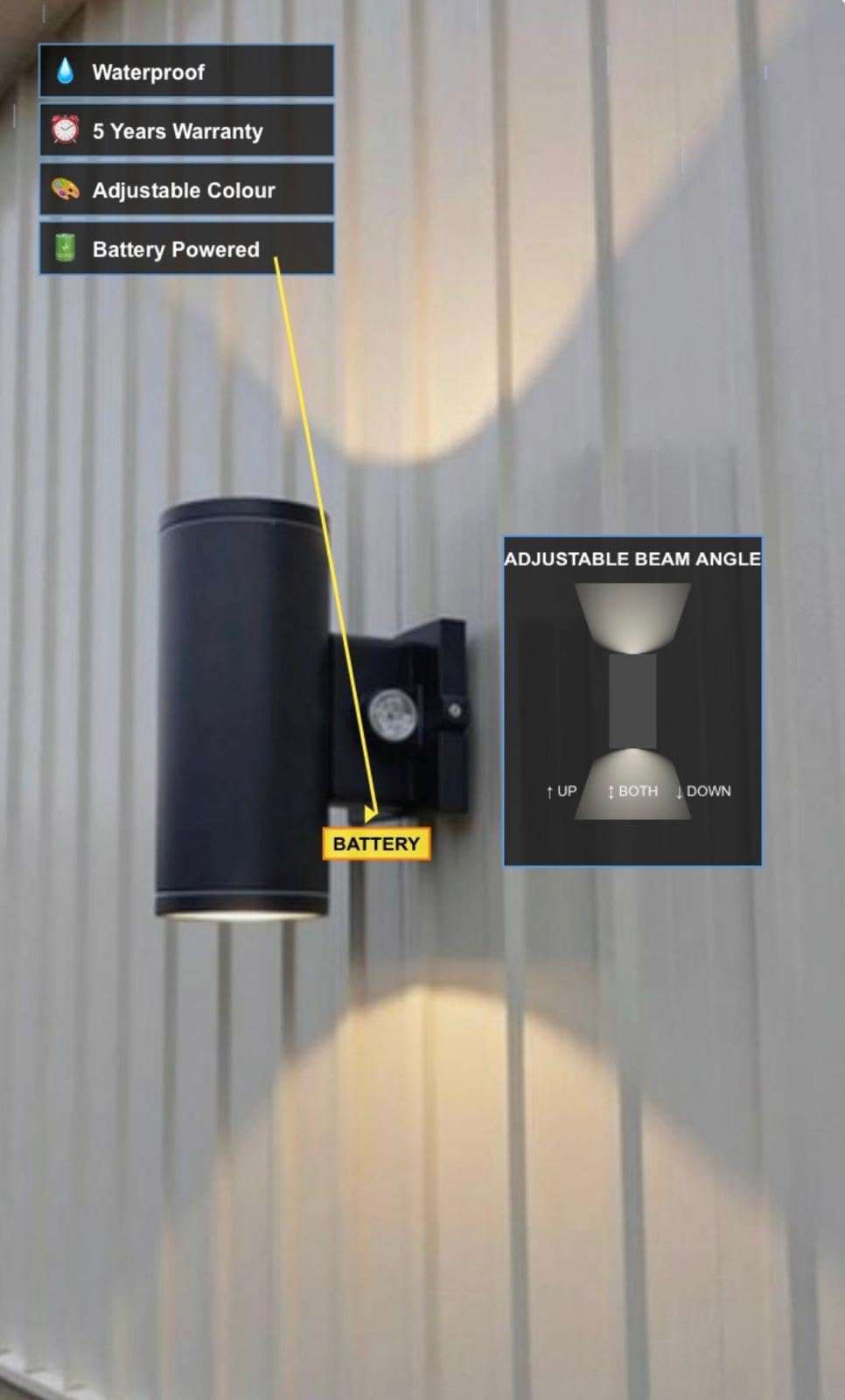

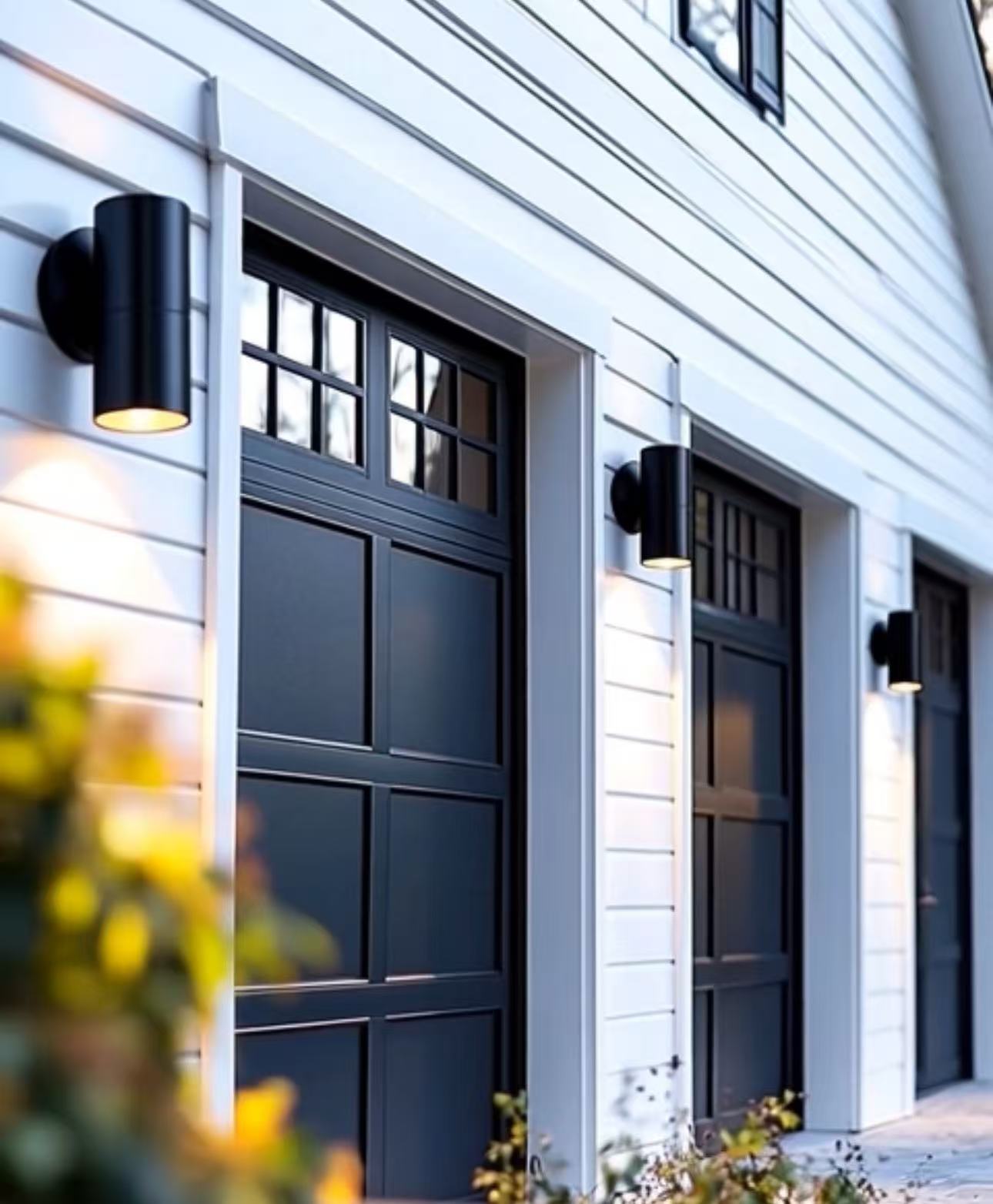

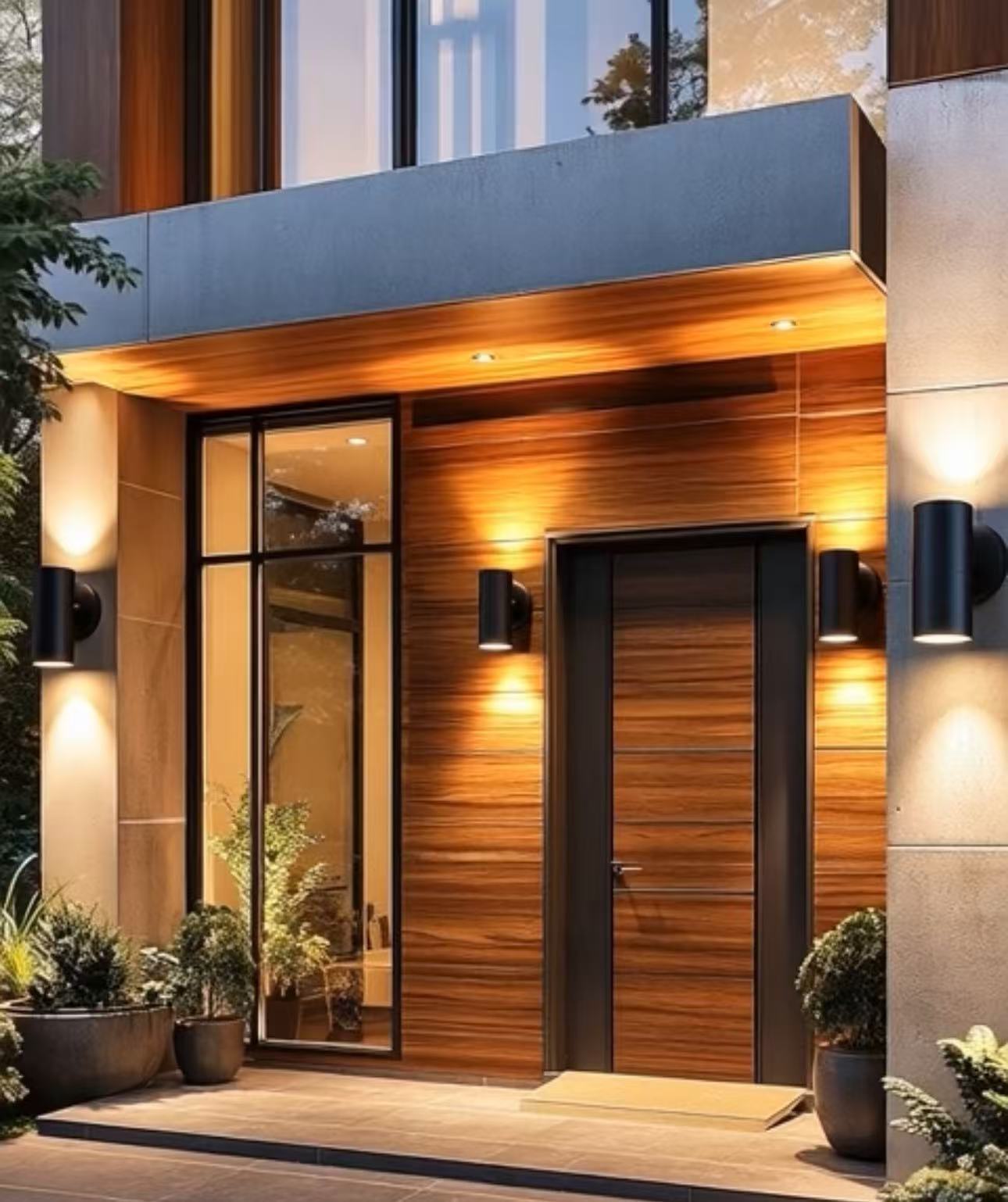

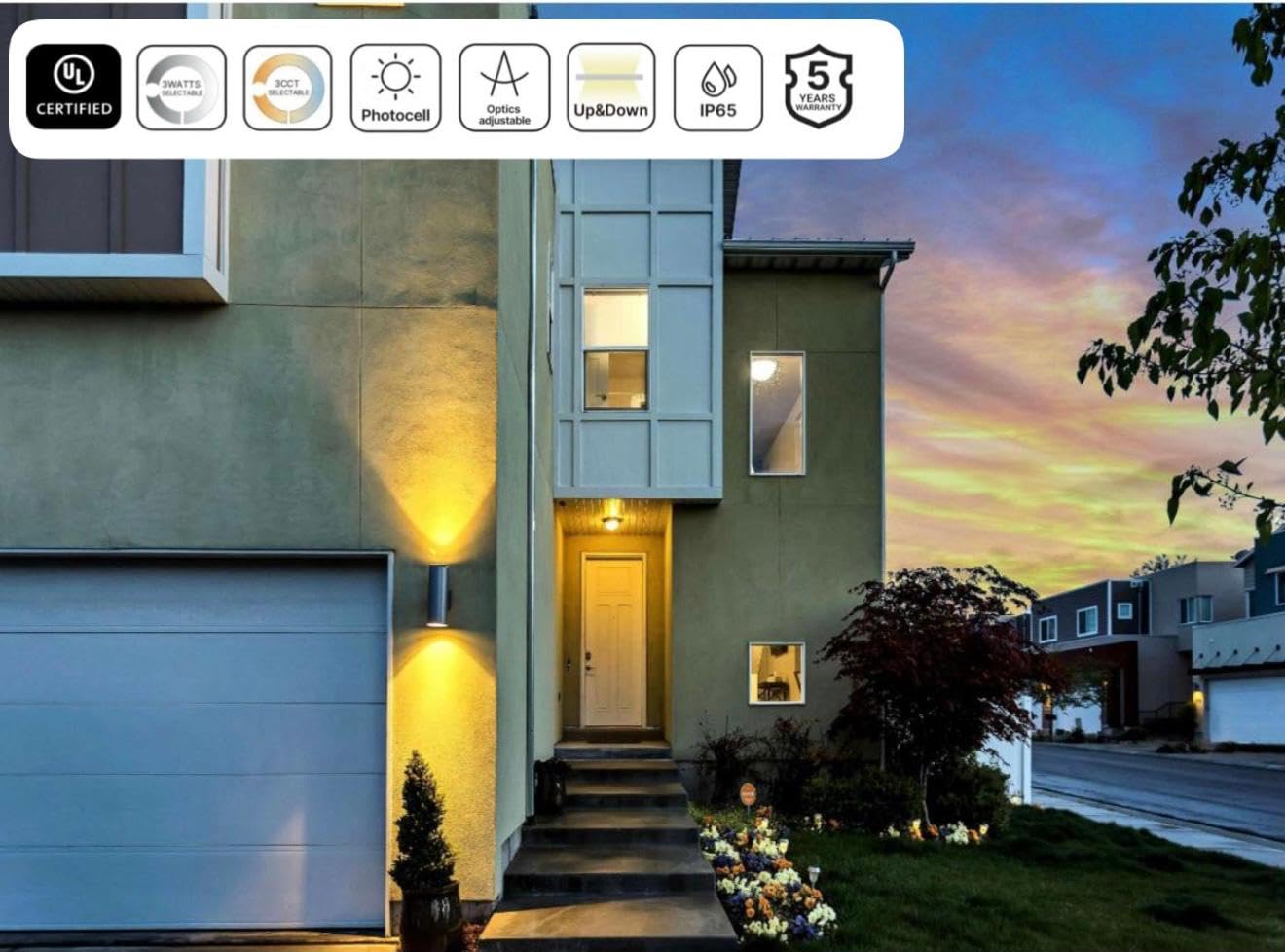

A 4-inch architectural LED cylinder for entryways, awnings, facades and wall washing, with a direction switch for up, down or full up-and-down light and a switchable dusk-to-dawn photocell. Optics, color temperature and power are all set in the field to suit the wall.

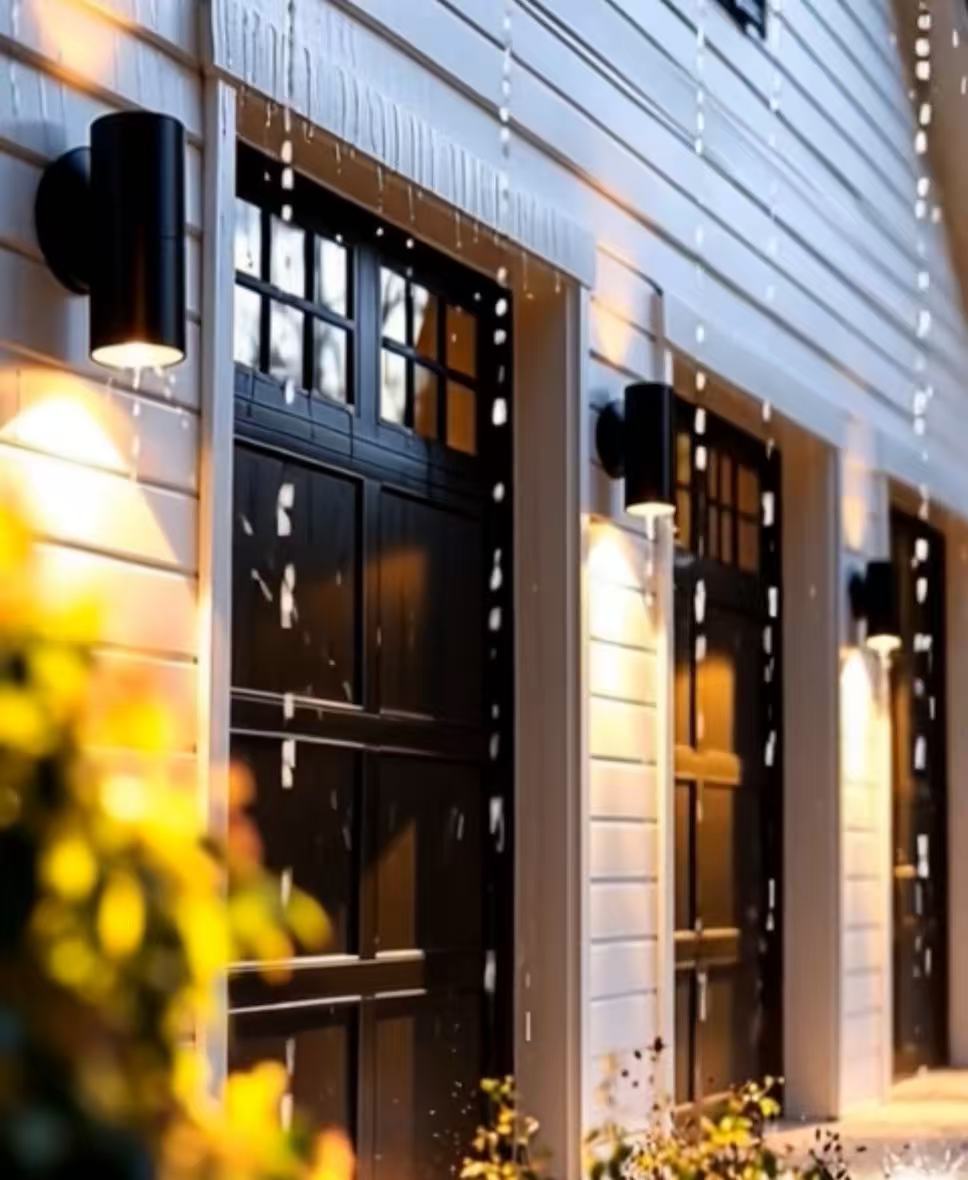

Wattage is selectable at 12, 16 or 20W, giving 1,800, 2,400 or 3,000 lumens at 150 lm/W, color temperature at 3000K, 4000K or 5000K with a CRI of 80+, and beam angle at 25°, 40° or 60°. It dims with 0–10V controls, runs on 120–347V and includes surge protection. The die-cast aluminum housing is wet-location and IP65 rated to withstand rain and harsh weather, for outdoor or indoor use. A 4W emergency driver is sold separately for outage backup.
UL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WP29 cylinder wall mount |
| Construction | Die-cast (end caps, mounting plate) |
| Light Source | SMD LED |
| Size | 4 in |
| Light | |
|---|---|
| CRI | 80+ |
| Efficacy | 150 lm/W (at CRI >80, at 4000K, at 40°, at Full) |
| Lighting Direction | Up only / Full: up and down / Down only |
| Lumens | 1,800 / 2,400 / 3,000 lm |
| Beam Angle | 40° (A+1, at 3000K) / 25° (A+2, at 4000K) / 25° (A+3, at 5000K) / 25° (A+4, at 3000K) / 40° (B+0, at 5000K) / 60° (C+0, at 5000K) / 60° (D+0, at 4000K) / 60° (E+0, at 3000K) / 40° (B+1, at 4000K) / 25 / 40 / 60° |
| CCT | 3000K (A+1, at 40°) / 4000K (A+2, at 25°) / 5000K (A+3, at 25°) / 3000K (A+4, at 25°) / 5000K (B+0, at 40°) / 5000K (C+0, at 60°) / 4000K (D+0, at 60°) / 3000K (E+0, at 60°) / 4000K (B+1, at 40°) / 3000 / 4000 / 5000K |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Voltage | 120–347V |
| Wattage | 12 / 16 / 20W |
| Physical | |
|---|---|
| Ambient Temperature | 5–30 °C (operating, emergency version) / -40–70 °C (storage) |
| Material | Aluminum (end caps, mounting plate) |
| Mounting | Wall |
| Emergency | |
|---|---|
| Emergency Backup | Optional (EMY-04058DO-UI, sold separately, emergency driver) |
| Emergency Power | 4W |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Photocell | Included (ON/OFF selectable) |
| Wattage Selectable | Yes |
| CCT Selectable | Yes, switchable (coded selector setting, A+1) / Yes, switchable (coded selector setting, A+2) / Yes, switchable (coded selector setting, A+3) / Yes, switchable (coded selector setting, A+4) / Yes, switchable (coded selector setting, B+0) / Yes, switchable (coded selector setting, C+0) / Yes, switchable (coded selector setting, D+0) / Yes, switchable (coded selector setting, E+0) / Yes, switchable (coded selector setting, B+1) / Yes, switchable |
| Selectable Distribution | Yes (CCT and beam selector, beam angle, A+1) / Yes (CCT and beam selector, beam angle, A+2) / Yes (CCT and beam selector, beam angle, A+3) / Yes (CCT and beam selector, beam angle, A+4) / Yes (CCT and beam selector, beam angle, B+0) / Yes (CCT and beam selector, beam angle, C+0) / Yes (CCT and beam selector, beam angle, D+0) / Yes (CCT and beam selector, beam angle, E+0) / Yes (CCT and beam selector, beam angle, B+1) / Yes (beam angle) |
| Sensor Settings | Photocell: ON (factory default) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Protection | Surge protection (surge, at 10W and 20W configurations) |
